House Plan 41836
2 Story Barndominium Construction Plan
sq ft
3399beds
3baths
3bays
3width
119'depth
67'
click for more images
Plan Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 3399 sq ft |
| Main Living Area: | 2377 sq ft |
| Upper Living Area: | 1022 sq ft |
| Garage Area: | 2789 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 3 |
| Foundation Types: | Basement - * $395.00 Total Living Area may increase with Basement Foundation option. Crawlspace - * $295.00 Slab |
| Exterior Walls: | 2x4 - * $200.00 2x6 |
| House Width: | 119' |
| House Depth: | 67' |
| Number of Stories: | 2 |
| Bedrooms: | 3 |
| Full Baths: | 3 |
| Max Ridge Height: | 30'8 from Front Door Floor Level |
| Primary Roof Pitch: | 7:12 |
| Roof Load: | 30 psf |
| Roof Framing: | Truss |
| Porch: | 857 sq ft |
| FirePlace: | Yes |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 9' |
| Upper Ceiling Height: | 8' |
Special Features:
Plan Description
2 Story Barndominium Construction Plan
Barndominium Construction Plan 41836 has 3,399 square feet of living space, 3 bedrooms, and 3 bathrooms. The main level is 2,377 square feet, and the upper level is 1,022 square feet. Overall, this plan measures 119' wide by 67' deep. Most impressive is the garage because it's 2,789 square feet. Buyers will choose this new barndominium plan because it offers a work shop, RV parking, and plenty of space for various other vehicles. Most importantly, when it comes to protecting your family, they can duck into the safe room and ride out a storm.
Barndominium Construction Plan With Loft
Barndominium Construction Plan 41836 has so many cool features! Firstly, the living room has a two-story ceiling. This makes your living space feel huge. The fireplace makes this open living space cozy, and your family will love snuggling in front of the flickering flames on a cold winter evening. Secondly, this home is ready for the holidays. Place a long table in the dining area and host the best Christmas dinner ever. Your kitchen is U-shaped and includes a big island. Plus, the walk-in pantry means that you will never run out of supplies for entertaining.
Thirdly, the home is full of natural light thanks to the floor to ceiling windows around the chimney. Beautiful sunshine floods the open living space on the main floor, and it reaches all the way into the kitchen. Heading upstairs, there is an open loft which also benefits from those tall windows. Bedrooms 2 and 3 are on this upper level, and they share a full bathroom. Each child has a walk-in closet, and they will love using the loft as a play room.
Functional Floor Plan Design
Let's talk function in Barndominium Construction Plan 41836. The master suite has a walk-in closet that is connected to the laundry room. Start by entering the master bedroom toward the back end of the house. It measures about 15' wide by 17' deep, and it has a large bathroom. The bath includes toilet closet, double vanity, soaking tub, and separate tile shower with seat. Open the pocket door to access a huge walk-in closet, and then pass right through another pocket door to a spacious laundry room.
The laundry room works overtime as a mud room because it's also the entry point from the garage. From here, you have access to the washer and dryer, utility sink, counter for folding clothes, locker drop zone to keep you organized, and a convenient small bathroom with shower. Other great features of this plan include a sewing room (or home office) off the entry foyer, and a great covered porch with outdoor fireplace.
What's Included?
4 elevations, all details, notes, etc...
Floor plans (1st, 2nd, bsmt, etc...)
Roof plan
Wall sections, sometimes building cross sections
Foundation plan & Foundation details
General notes page
Electrical plans for each floor.
Miscellaneous column, bracket, details, stair sections.
What is not included will be beam sizes, floor framing plan, roof framing plan, wall framing plans(We do not include these for a few reasons. Our plans are sold across the country, so it's not possible for us to meet local code requirements. To maintain usability, we allow for those details to be decided by local engineers and contractors so they can meet your code requirements.).
Modifications
Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!
We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.
Email Designer This is the best and quickest way to get a modification quote!
Please include your preferred Foundation Type and a Specific List of Changes. You can also attach a Sketch of Changes.
It's as simple as that!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
click for galleryInfo Brochure
Photographs may show modified designs.

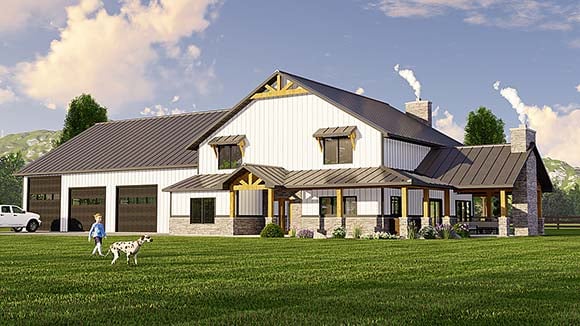

Elevation

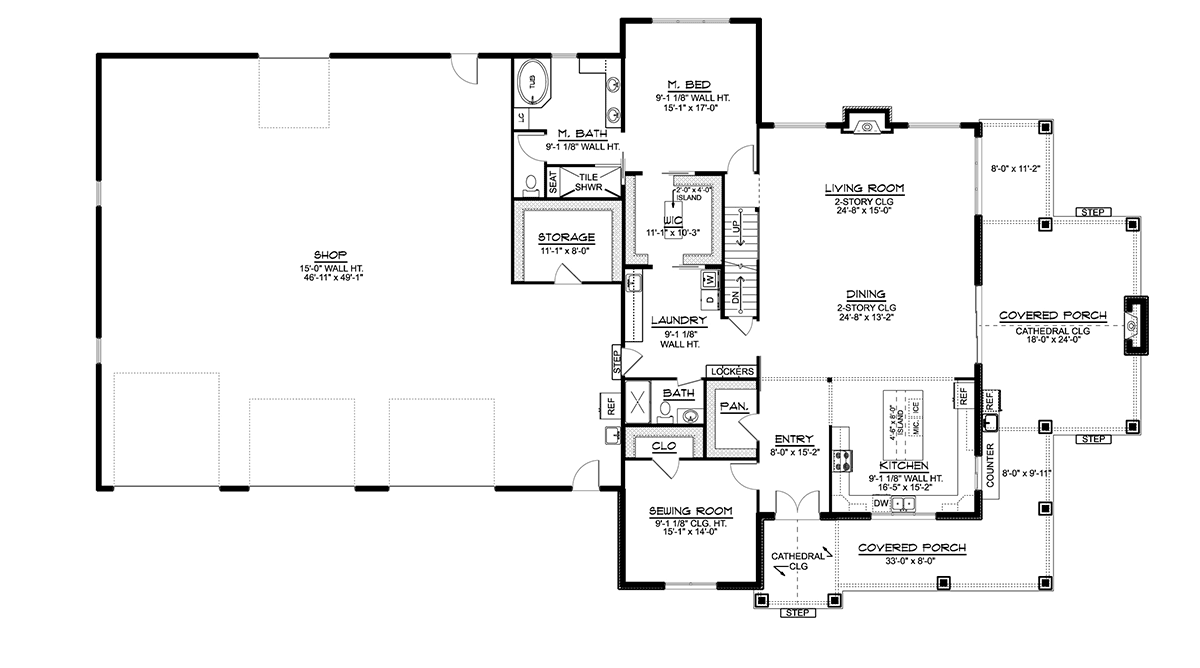

Level One
Level Two

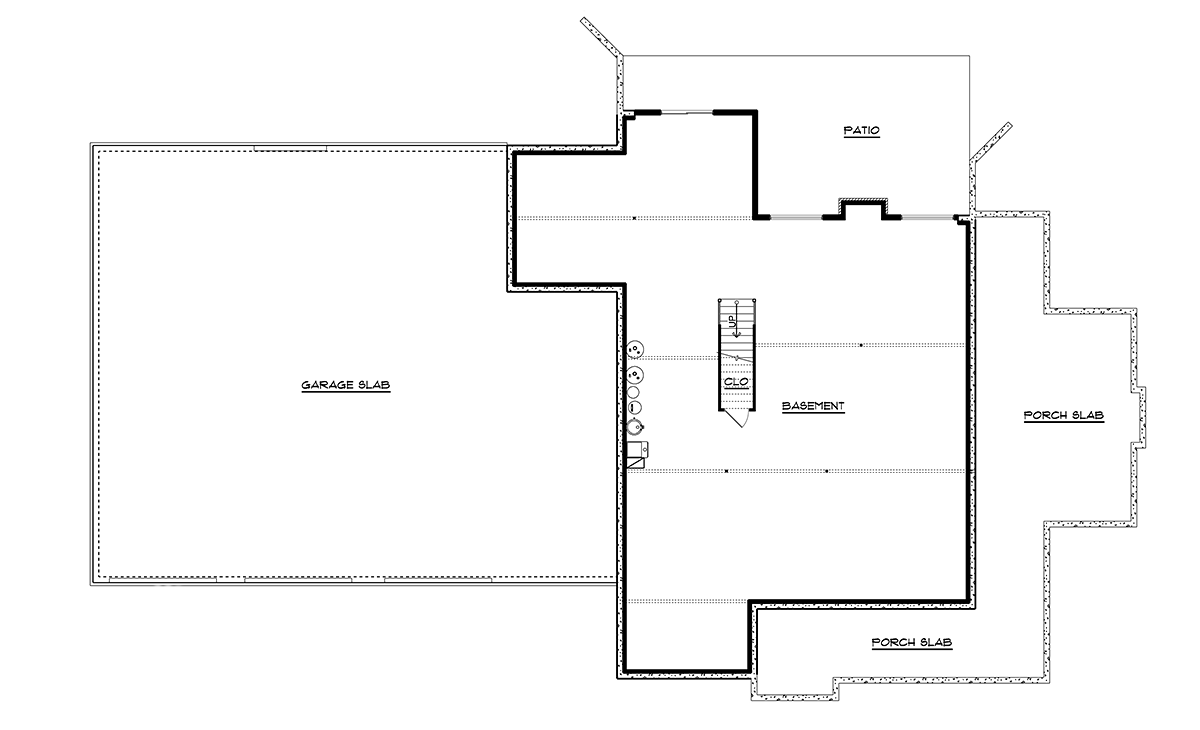

Lower Level
Quick Specs
3399 Total Living Area2377 Main Level
1022 Upper Level
3 Bedrooms
3 Full Baths
3 Car Garage
119' W x 67' D
Quick Specs
3399 Total Living Area3 Bedrooms
3 Full Baths
3 Car Garage
119' W x 67' D
Pricing
PDF File: $1,350.005 Sets: $1,525.00
5 Sets plus PDF File: $1,600.00
CAD File: $2,600.00
more info

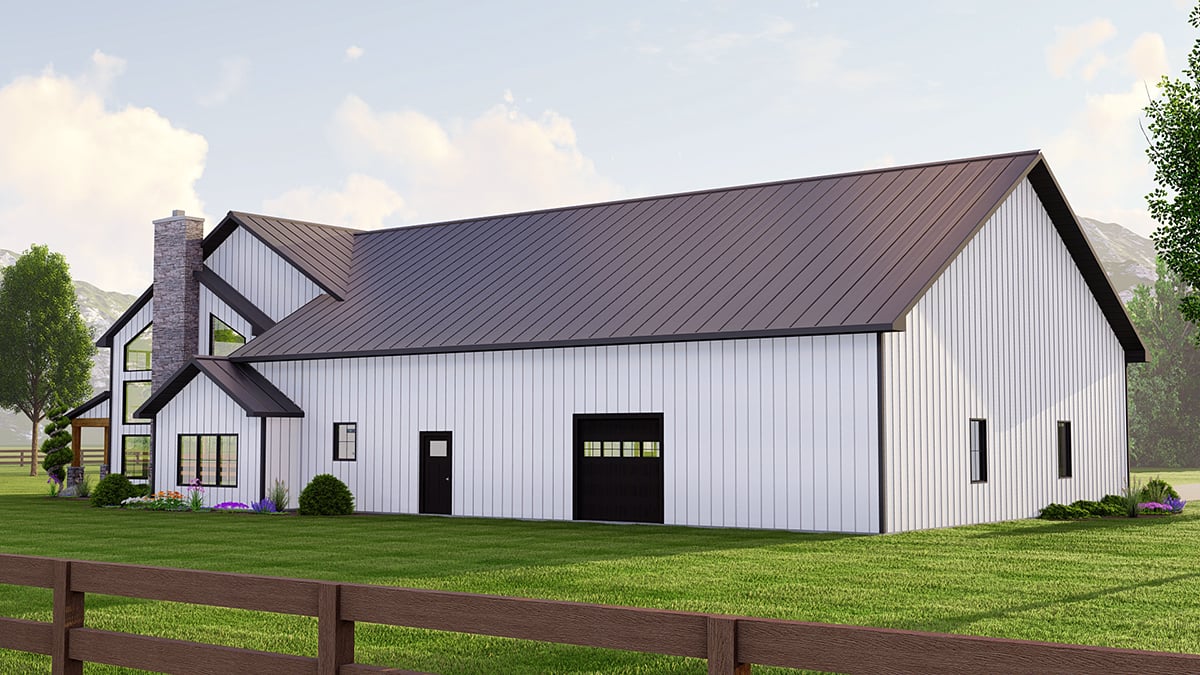

Rear Elevation
Photographs may show modified designs.
