Garage-Living Plan 42906

• PDF File: $699.00
• CAD File: $899.00
  Single Build License issued on CAD File orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $200.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	394 sq ft
Upper Living Area:	394 sq ft

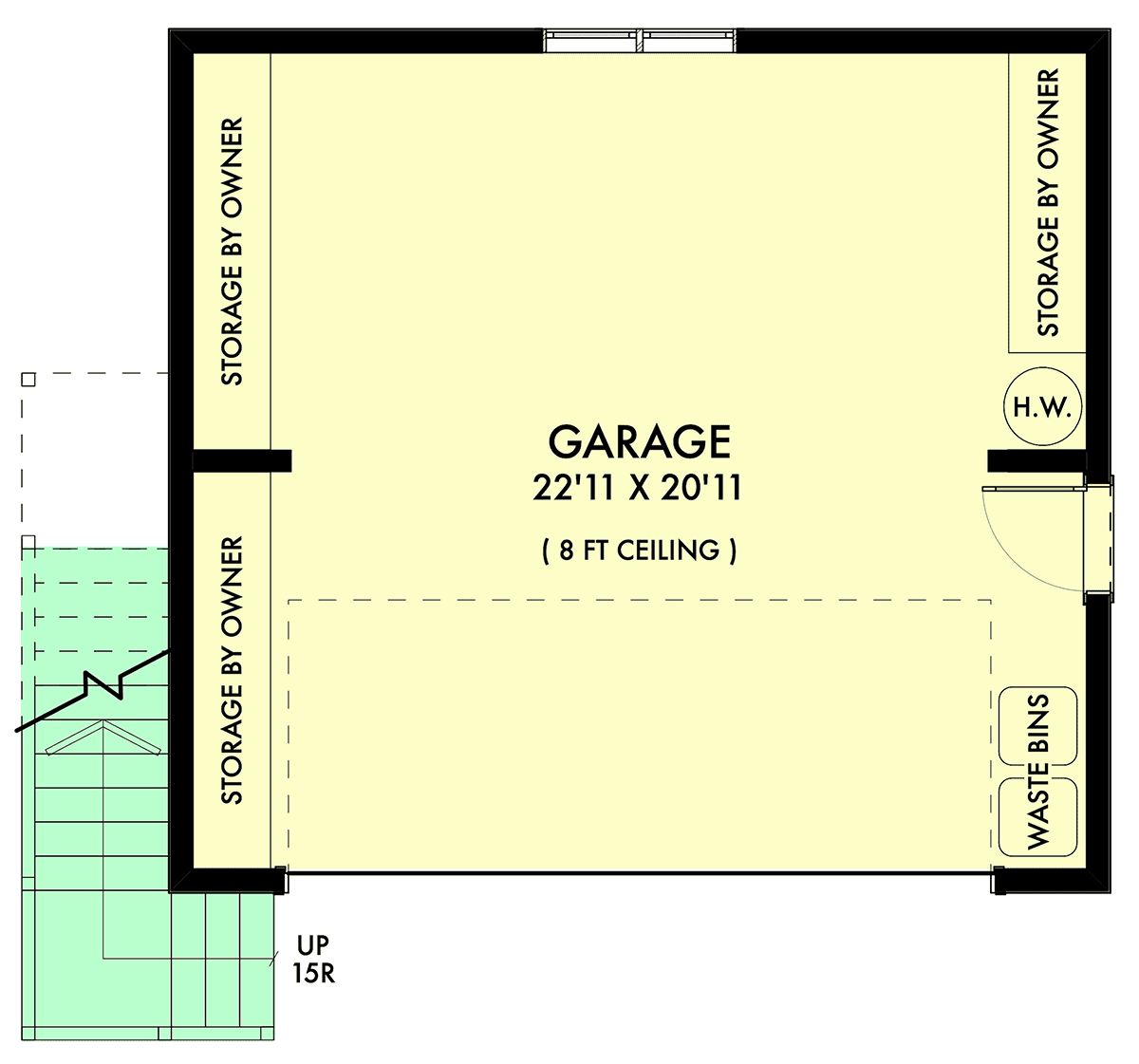

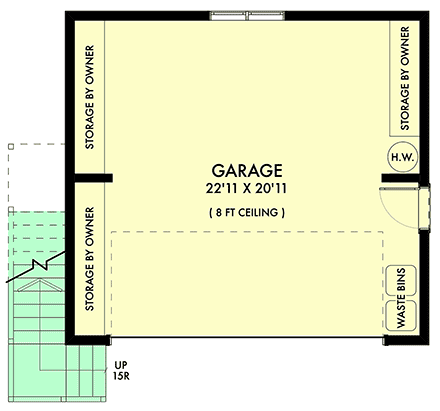

Garage Area:	528 sq ft
Garage Type:	Drive Under
Garage Bays:	2
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	24'0
House Depth:	22'0
Number of Stories:	2
Bedrooms:	1
Full Baths:	1
Max Ridge Height:	20'0 from Front Door Floor Level
Primary Roof Pitch:	9:12
Roof Framing:	Truss
Main Ceiling Height:	8'
Upper Ceiling Height:	8'

Special Features:

• Coat Closet
• Entertaining Space
• Open Floor Plan
• Storage Space

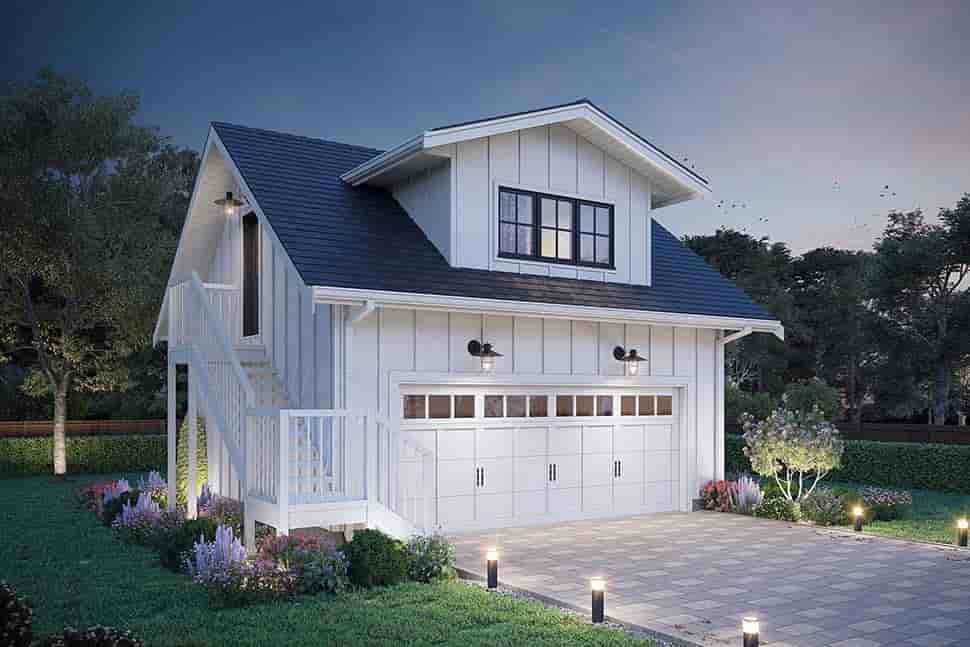

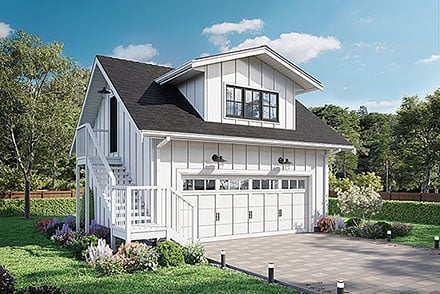

Modern Farmhouse Garage Apartment Plan

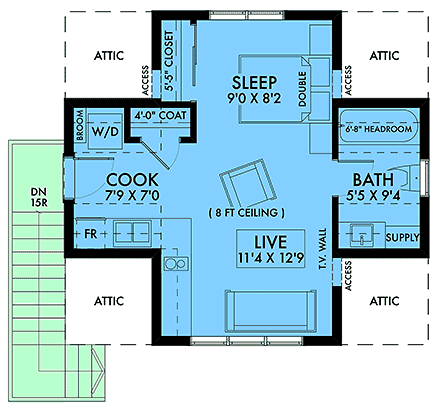

This attractive double garage features a 1 bedroom, 1 bathroom bachelor suite above. It has 15’-10” height from finished grade to the midpoint of the main roof and energy efficiency in mind. The garage is wide enough to accommodate extra storage down each side and the efficient studio apartment would suit one person comfortably.

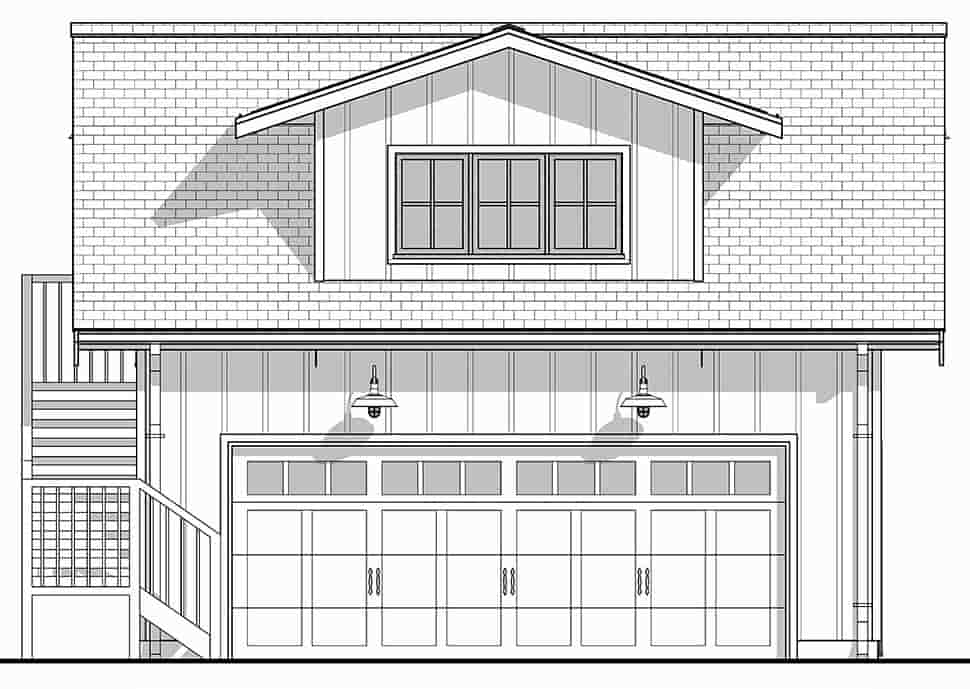

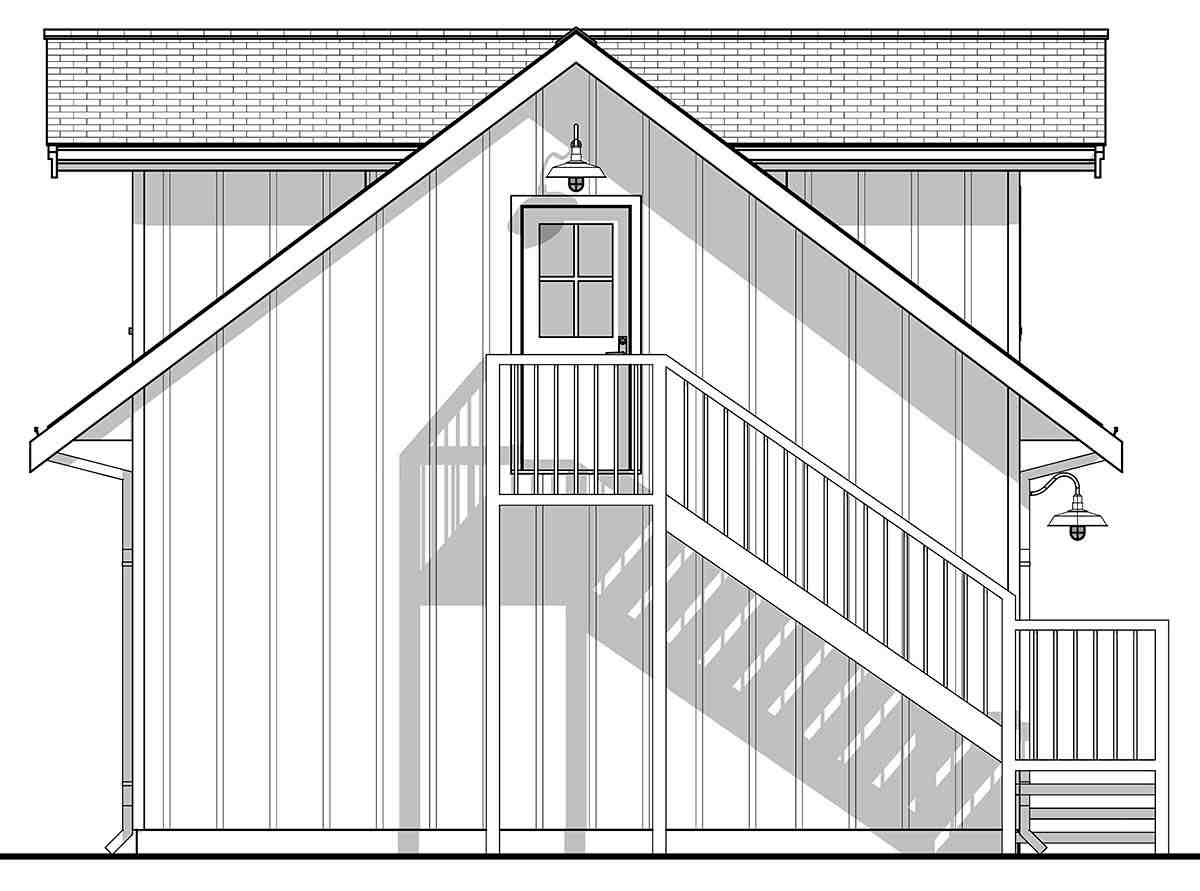

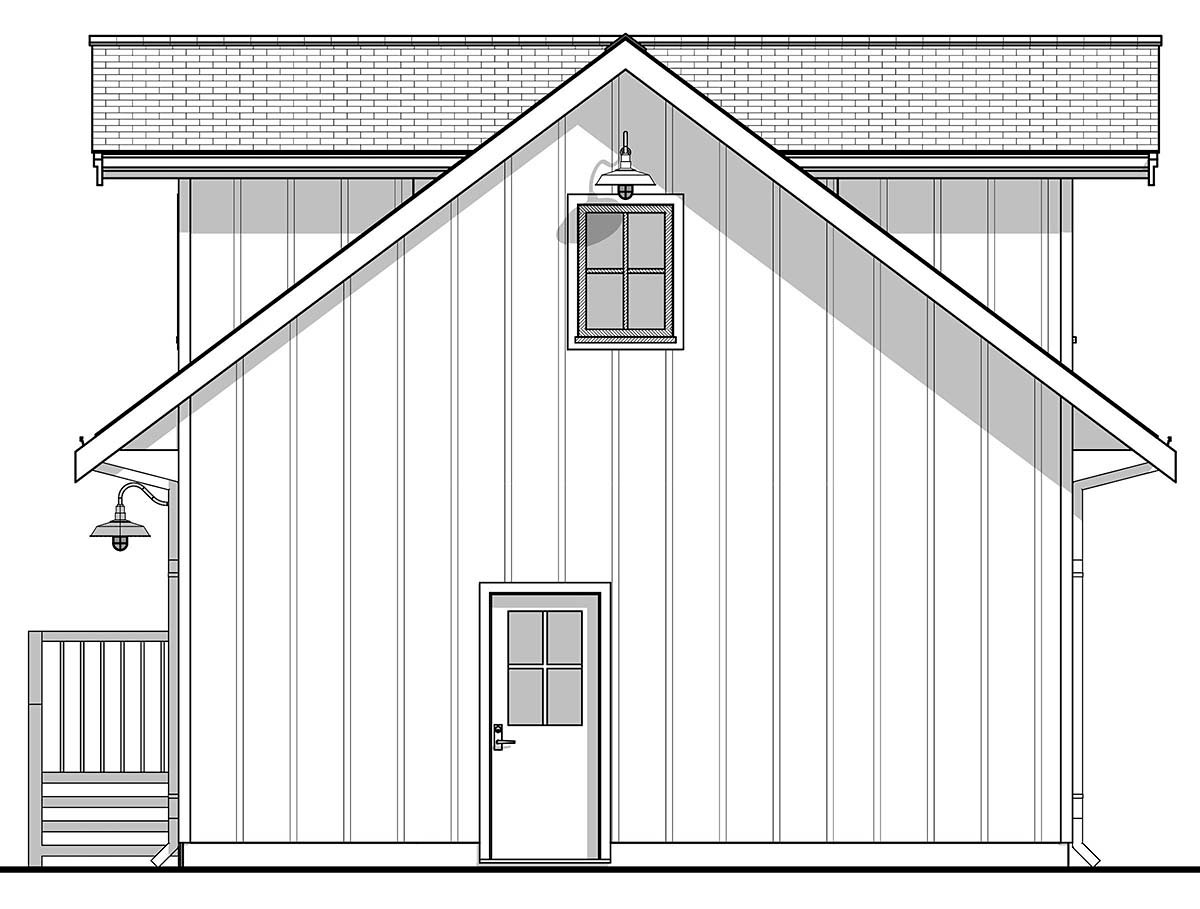

Fillable site plan, 3D visuals and notes, Foundation Plan, Floor Plans, Roof Plan ( trusses to be engineered locally ), 4 elevations and notes, 2 building sections and notes, 1 typical wall section, Electrical diagrams

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:

Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!

Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.

Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.
