House Plan 43304
Craftsman Style, 3691 Sq Ft, 4 Bed, 5 Bath, 3 Car | Plan 43304
sq ft
3691beds
4baths
4.5bays
3width
75'depth
100'
Plan Pricing from $1,995.00
Plan Pricing
** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 3691 sq ft |
| Main Living Area: | 2720 sq ft |

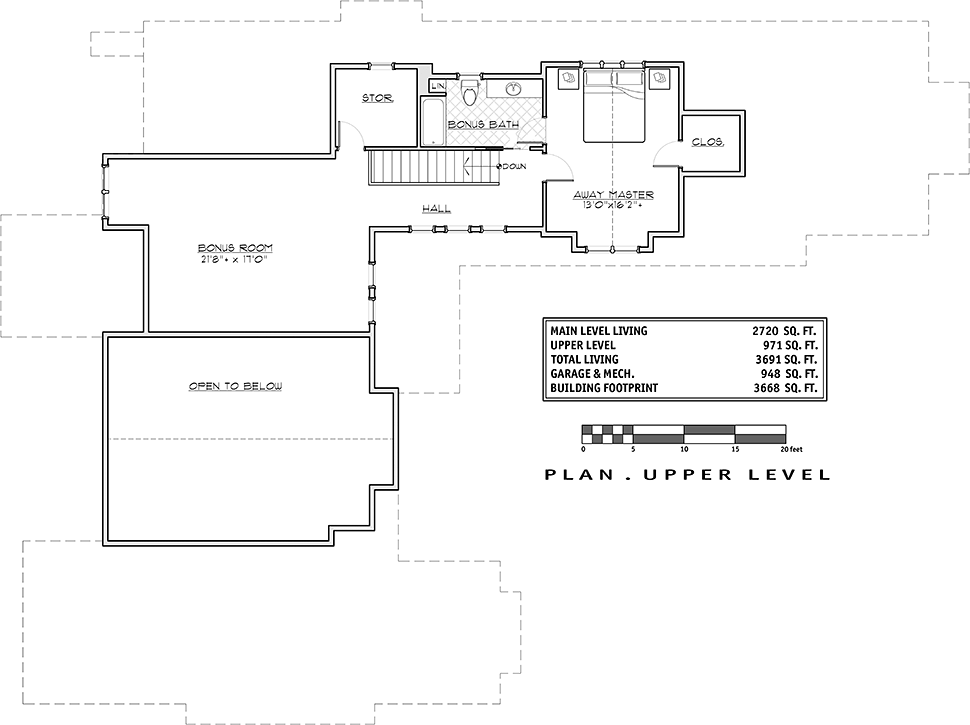

| Upper Living Area: | 971 sq ft |
| Garage Area: | 948 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 3 |
| Foundation Types: | Crawlspace |
| Exterior Walls: | 2x6 |
| House Width: | 74'6 |
| House Depth: | 100 |
| Number of Stories: | 2 |
| Bedrooms: | 4 |
| Full Baths: | 4 |
| Half Baths: | 1 |
| Max Ridge Height: | 24'6 from Front Door Floor Level |
| Primary Roof Pitch: | 10:12 |
| Roof Framing: | Truss |
| Porch: | 152 sq ft |
| FirePlace: | Yes |
| 1st Floor Master: | Yes |
Special Features:
Plan Description
Craftsman Lodge Home Plans with Four Master Suites

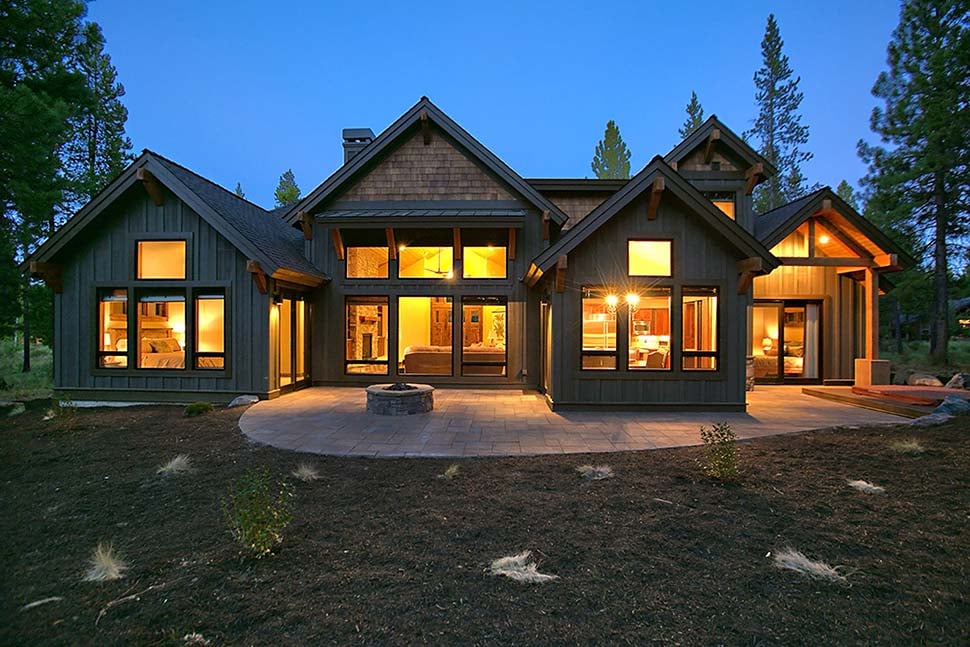

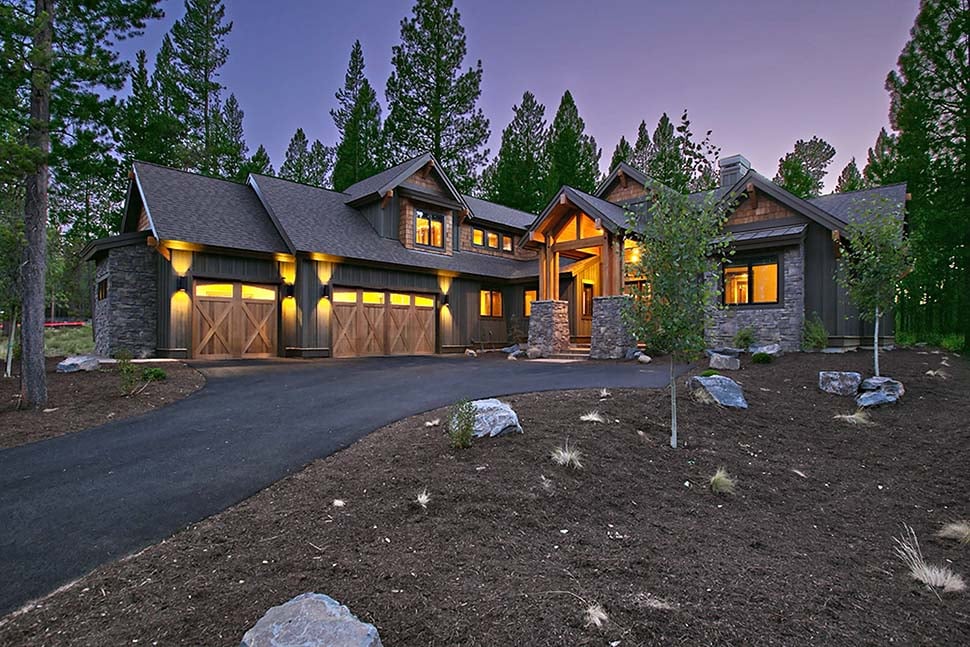

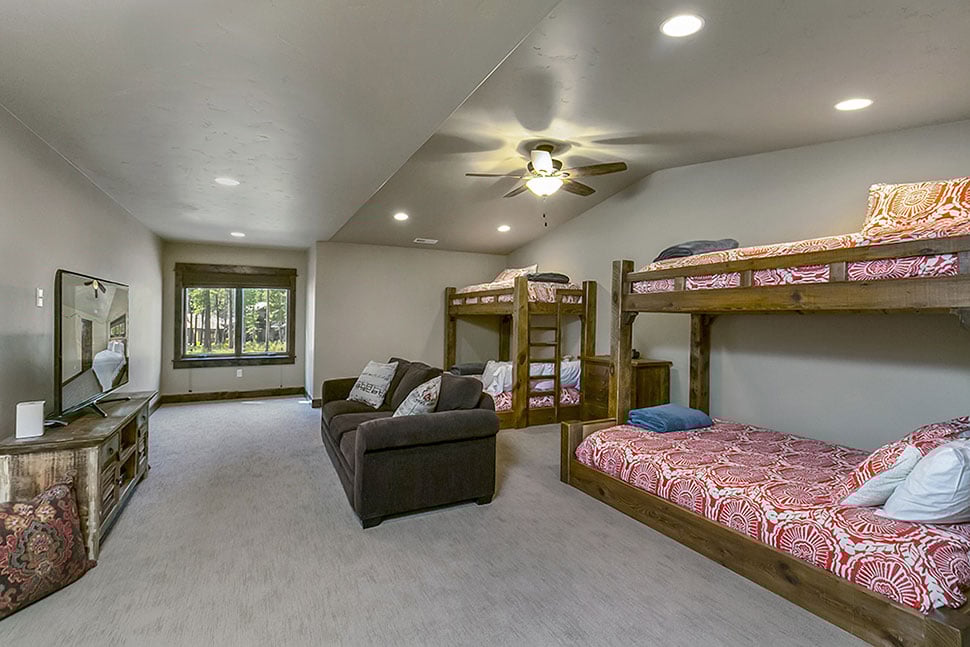

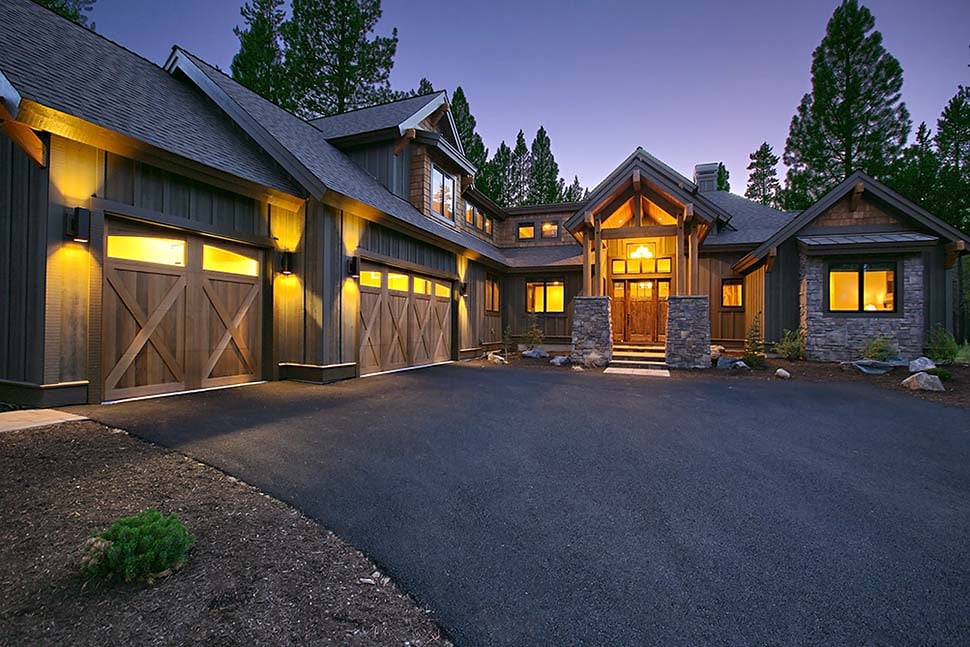

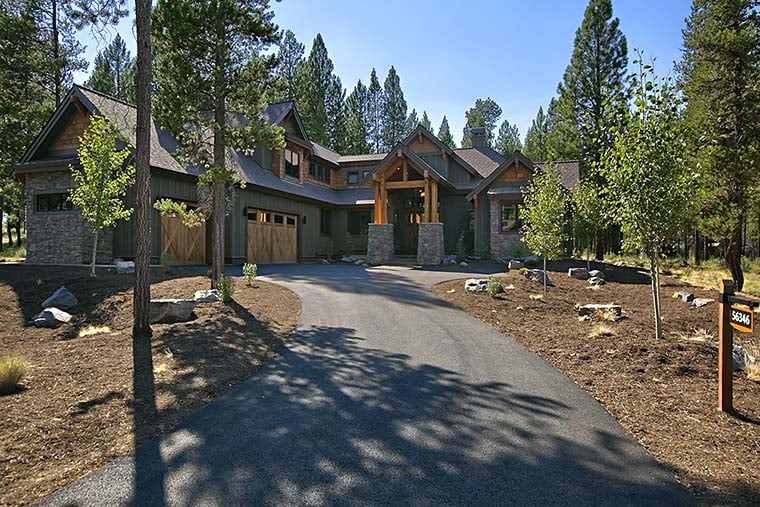

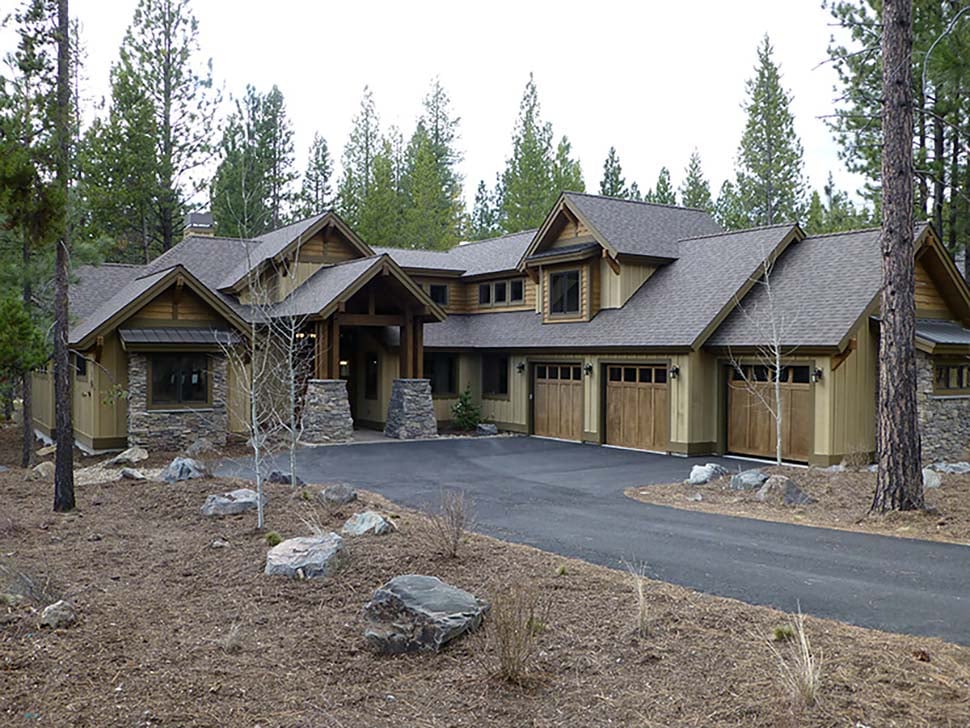

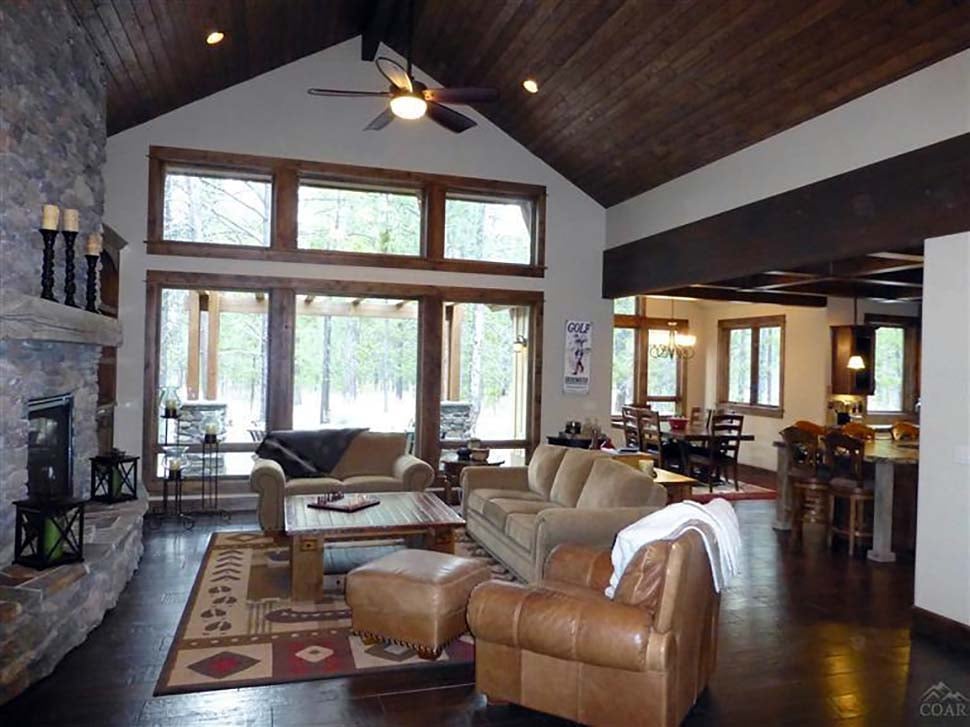

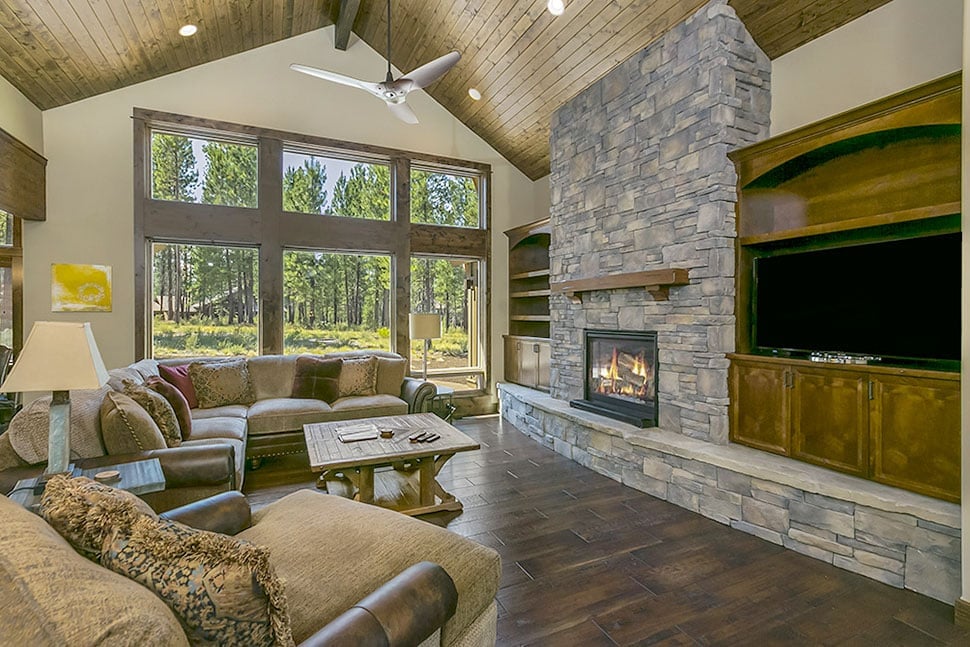

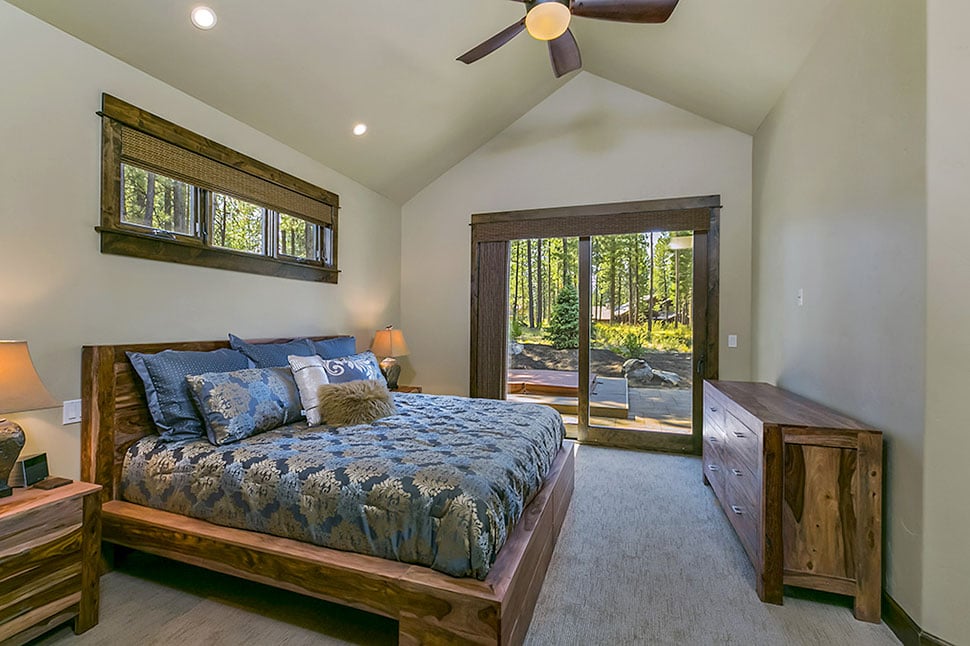

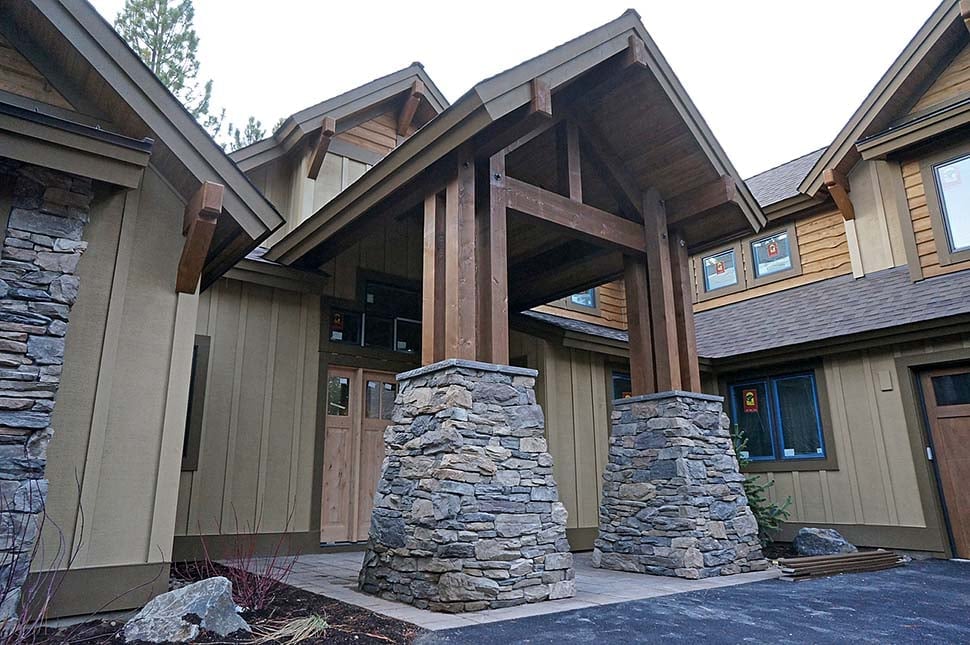

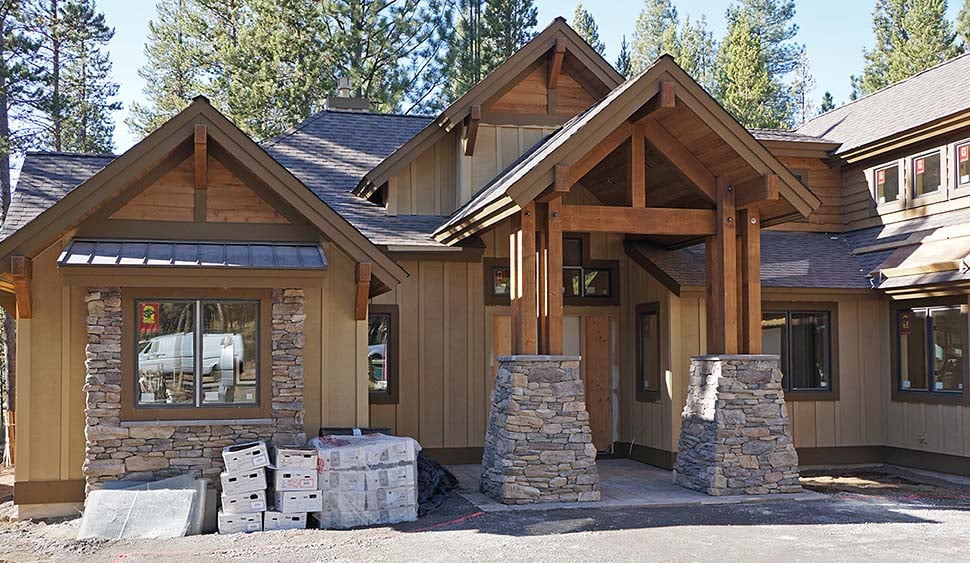

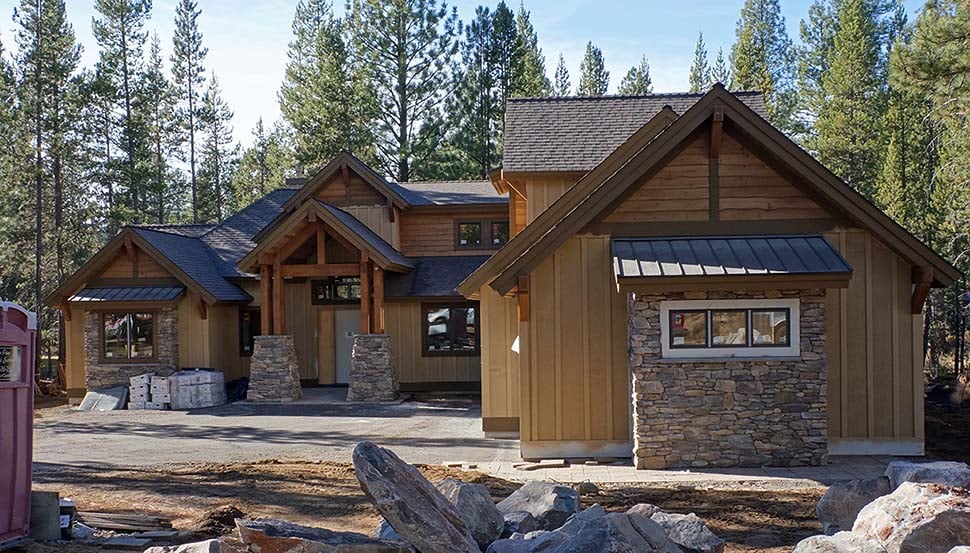

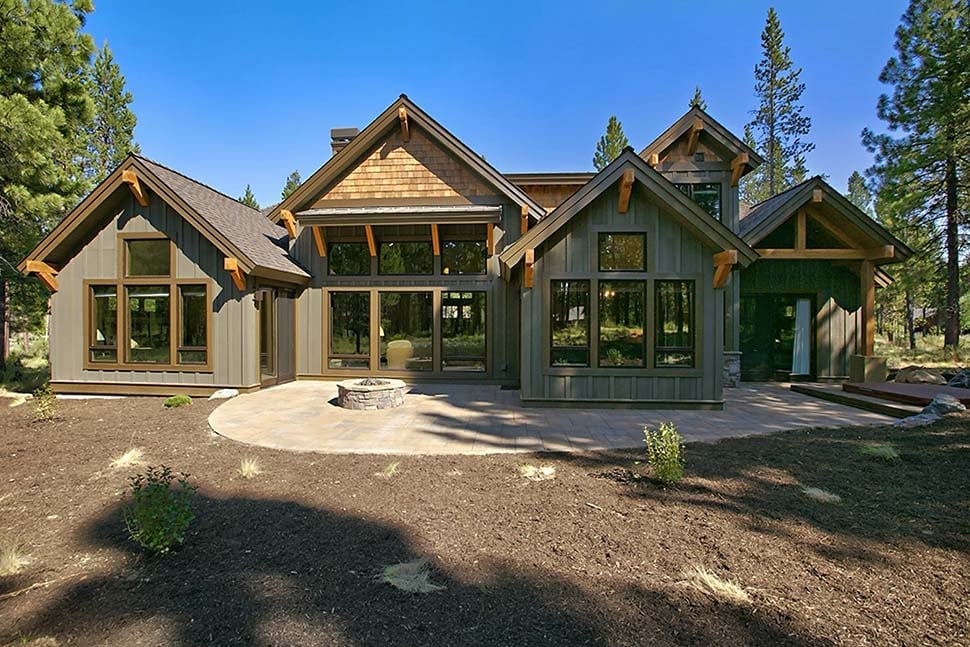

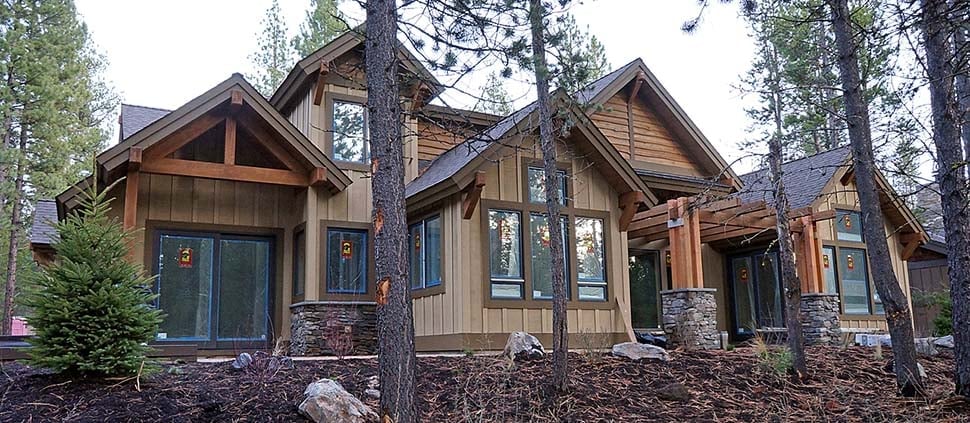

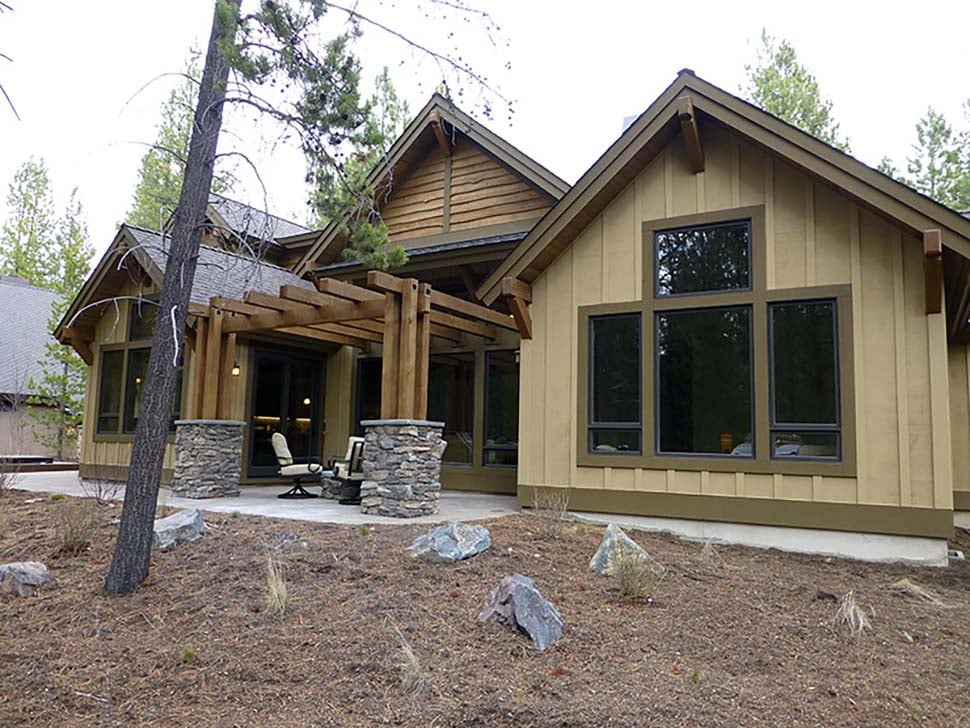

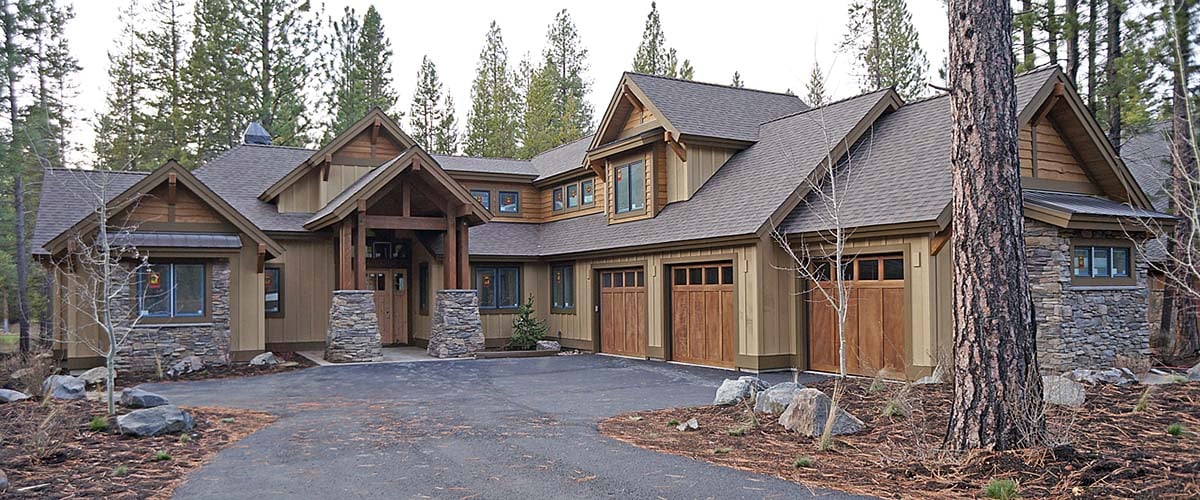

This rugged mountain lodge home has a dramatic entry roof with heavy stone columns. Inside, the entry ridge continues as a continuous 17' high vaulted ceiling all through the entry foyer and great room, with a large wall of windows at the rear. The plan features three master suites downstairs, and an additional suite upstairs that can share its bath with the bonus room area.What's Included?
Foundation Plan

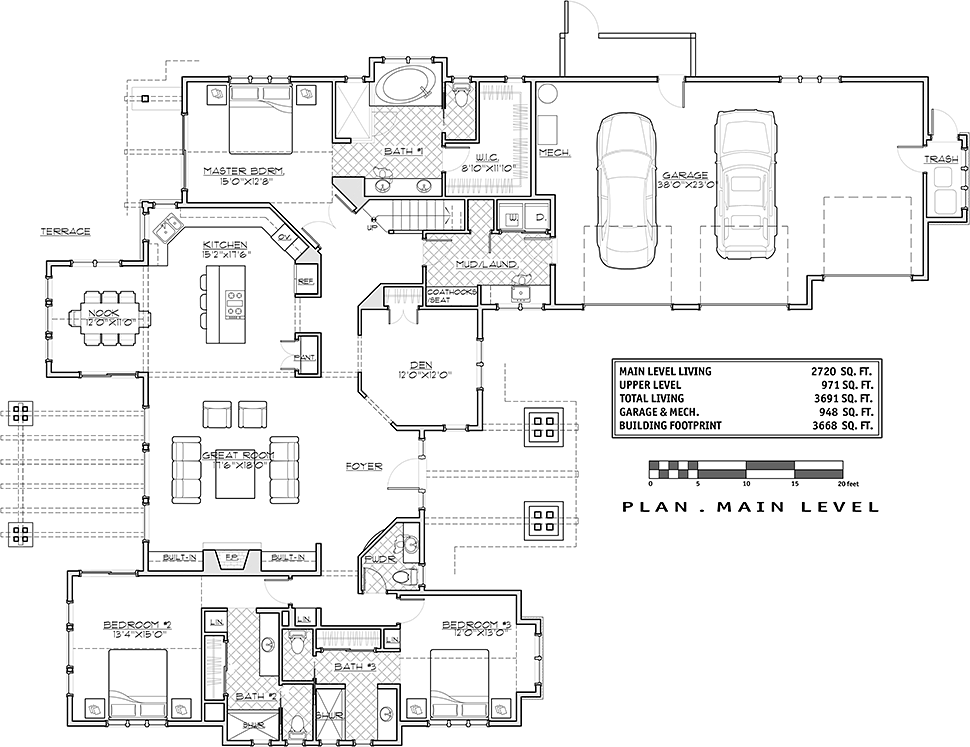

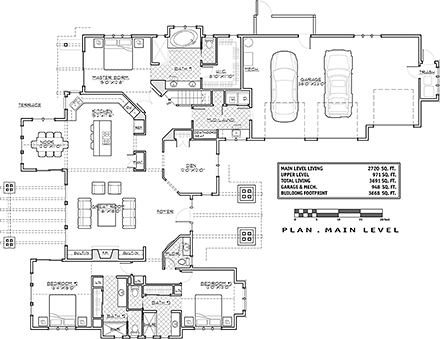

Dimensioned Floor Plan: shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.
Exterior Elevations: show the front, rear and sides of the house, including exterior materials, details and roof pitches.
Building Cross Section: shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.
Interior Elevations: show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.
Roof Plan: provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable.
Electrical Plan: shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.
Notes & Details: provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.
What is not included in the plans:
Architectural or Engineering Stamp
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Framing layouts with beam sizes and locations
Energy calculations
Materials list
Dimensioned Floor Plan: shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.
Exterior Elevations: show the front, rear and sides of the house, including exterior materials, details and roof pitches.
Building Cross Section: shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.
Interior Elevations: show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.
Roof Plan: provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable.
Electrical Plan: shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.
Notes & Details: provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.
What is not included in the plans:
Architectural or Engineering Stamp
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Framing layouts with beam sizes and locations
Energy calculations
Materials list
Modifications
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
