Garage-Living Plan 43690

Barndominium Style with 1 Bed, 1 Bath, 1 Car Garage | Plan 43690

sq ft

1580

beds

baths

bays

width

62'

depth

48'

Turn OFF Image Gallery

Add to cart

Plan Pricing from $1,250.00

Plan Pricing

PDF Study Set: $625.00
Get your plans fast! A PDF Study Set is a complete set of plans stamped NOT FOR CONSTRUCTION. Not considered a license-to-build. Great for bidding purposes. Customer can upgrade within 90 days.
PDF File: $1,250.00
5 Sets plus PDF File: $1,400.00
CAD File: $1,900.00
Single Build License issued on CAD File orders.
Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Right Reading Reverse: $195.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Additional Notes

Tack/Storage Room – 378 sf

Available Foundation Types:

Slab : No Additional Fee

Available Exterior Wall Types:

2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	1580 sq ft

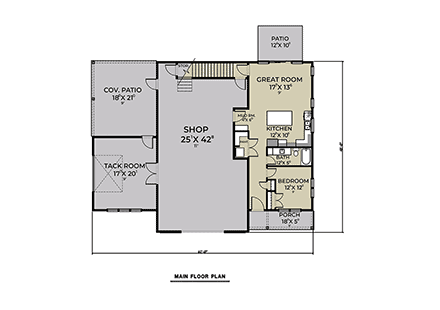

Main Living Area:	833 sq ft

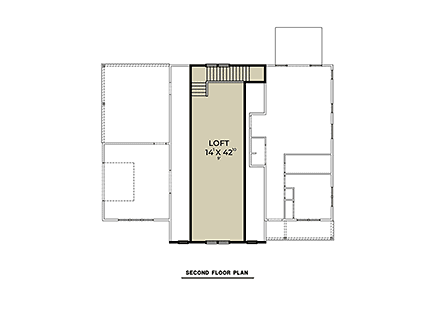

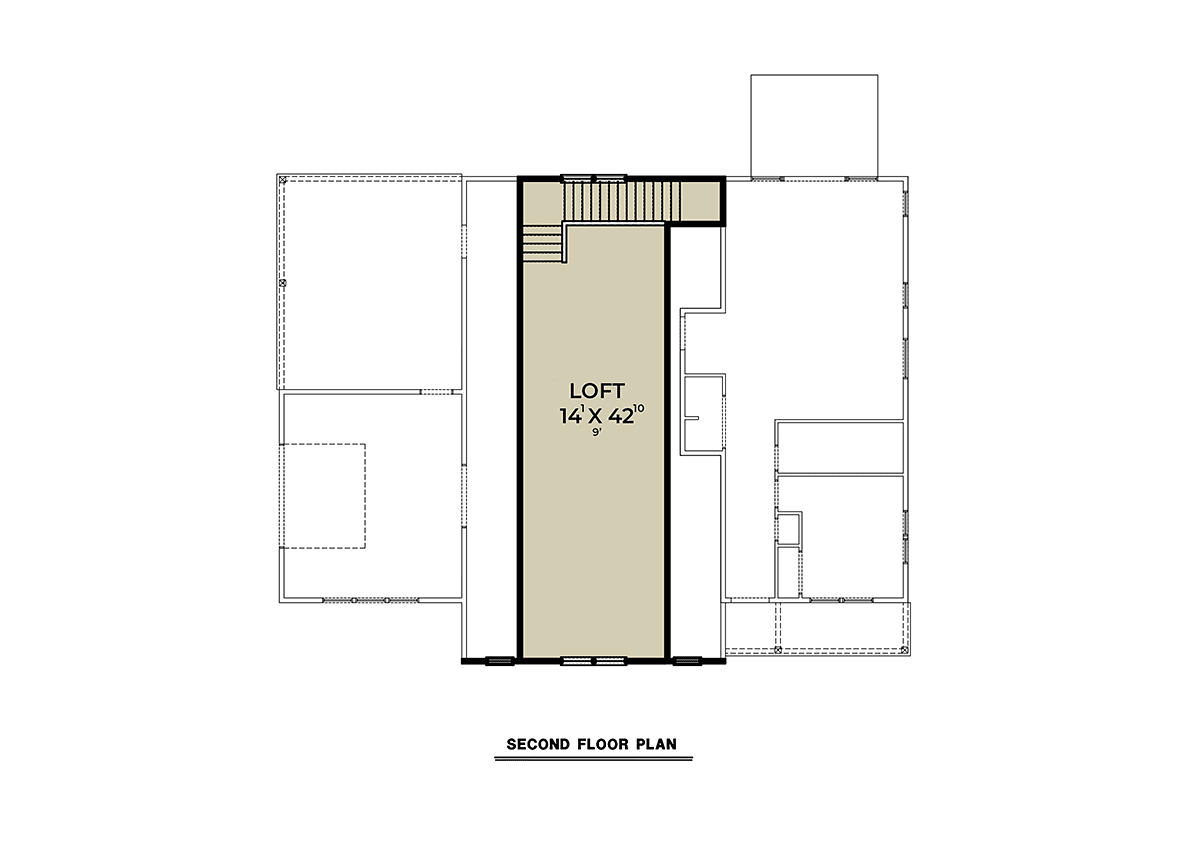

Upper Living Area:	747 sq ft
Garage Area:	1072 sq ft
Garage Type:	Attached
Garage Bays:	1
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	62'0
House Depth:	48'0
Number of Stories:	2
Bedrooms:	1
Full Baths:	1
Max Ridge Height:	28'8 from Front Door Floor Level
Primary Roof Pitch:	10:12
Roof Framing:	Truss
Porch:	378 sq ft
Main Ceiling Height:	9'

Special Features:

Coat Closet
Deck or Patio
Entertaining Space
Front Porch
Mudroom
Open Floor Plan
Pantry
Storage Space
Workshop

What's Included?

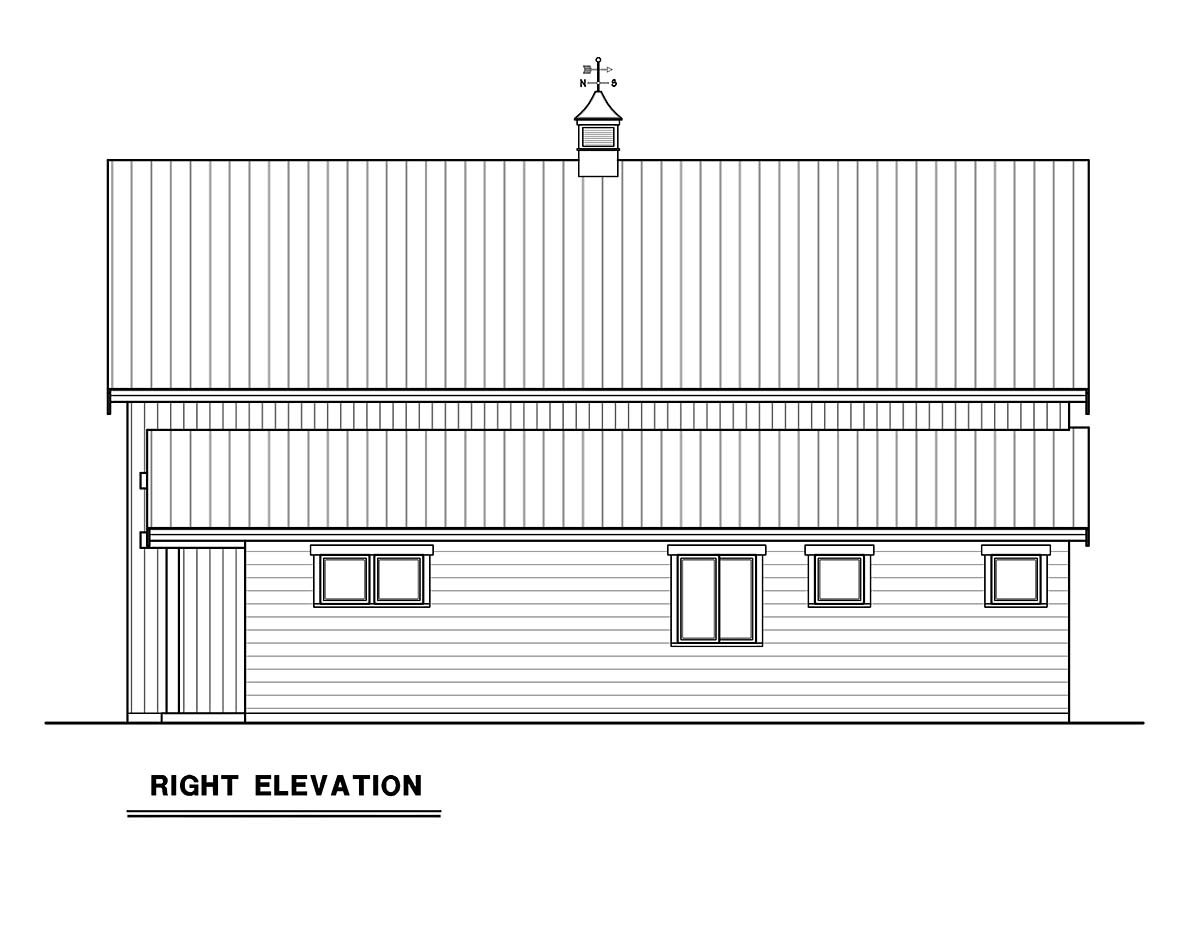

Four Exterior Elevations Main Floor Plan Second Level Floor Plan – if applicable Basement Floor Plan – if Applicable Bonus Floor Plan – if Applicable Building Sections Typical Wall Detail Foundation Plan and Details Second Floor Framing Plan – if Applicable Roof Framing Plan Electrical Plan

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.

FHP Low Price Guarantee

If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
