Multi-Family Plan 43708

• PDF File: $3,685.00
• 1 Set: $1,455.00 **
• 5 Sets plus PDF File: $2,185.00
• CAD File: $4,045.00
  Single Build License issued on CAD File orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
• Right Reading Reverse: $525.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $80.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Additional Notes

Unit A
1st Floor: 704 sq ft
2nd Floor: 947 sq ft
3rd Floor: 821 sq ft
Garage: 310 sq ft
Bedrooms: 5
Full Baths: 5
Garage Bays: 1

Unit B
1st Floor: 704 sq ft
2nd Floor: 947 sq ft
3rd Floor: 821 sq ft
Garage: 310 sq ft
Bedrooms: 5
Full Baths: 5
Garage Bays: 1

Available Foundation Types:

• Crawlspace : No Additional Fee

Available Exterior Wall Types:

• 2x4: $660.00
  (Please call for drawing time.)
• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	4944 sq ft
Main Living Area:	1408 sq ft
Upper Living Area:	1894 sq ft
Garage Area:	620 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Crawlspace
Exterior Walls:	2x4 - * $660.00 2x6
House Width:	40'0
House Depth:	56'0
Number of Stories:	3
Bedrooms:	10
Full Baths:	10
Max Ridge Height:	39'7 from Front Door Floor Level
Primary Roof Pitch:	5:12
Roof Framing:	Truss and/or Stick
Main Ceiling Height:	9'
Upper Ceiling Height:	9'

* May require additional drawing time.

Special Features:

• Deck or Patio
• Entertaining Space
• Pantry

Three Story Duplex House Plan with 10 Beds, 10 Baths and a 2 Car Garage

The traditional style of this duplex's horizontal siding and covered balconies make for a charming addition to a neighborhood. The narrow, tall nature of this duplex makes it possible for large families to live on the more narrow city lots. Originally designed for student housing, the Durban would also work well for a large family with older children seeking some independence. Each unit is a mirror of the other and features five suites with private bathrooms and large closets. Per each unit, the first entry level has a single car garage, one suite, large storage closet, and utility room. The second floor has three suites and features a small beverage bar for convenience. The third level has the last suite and an open, casual living space with a large kitchen for communal living.

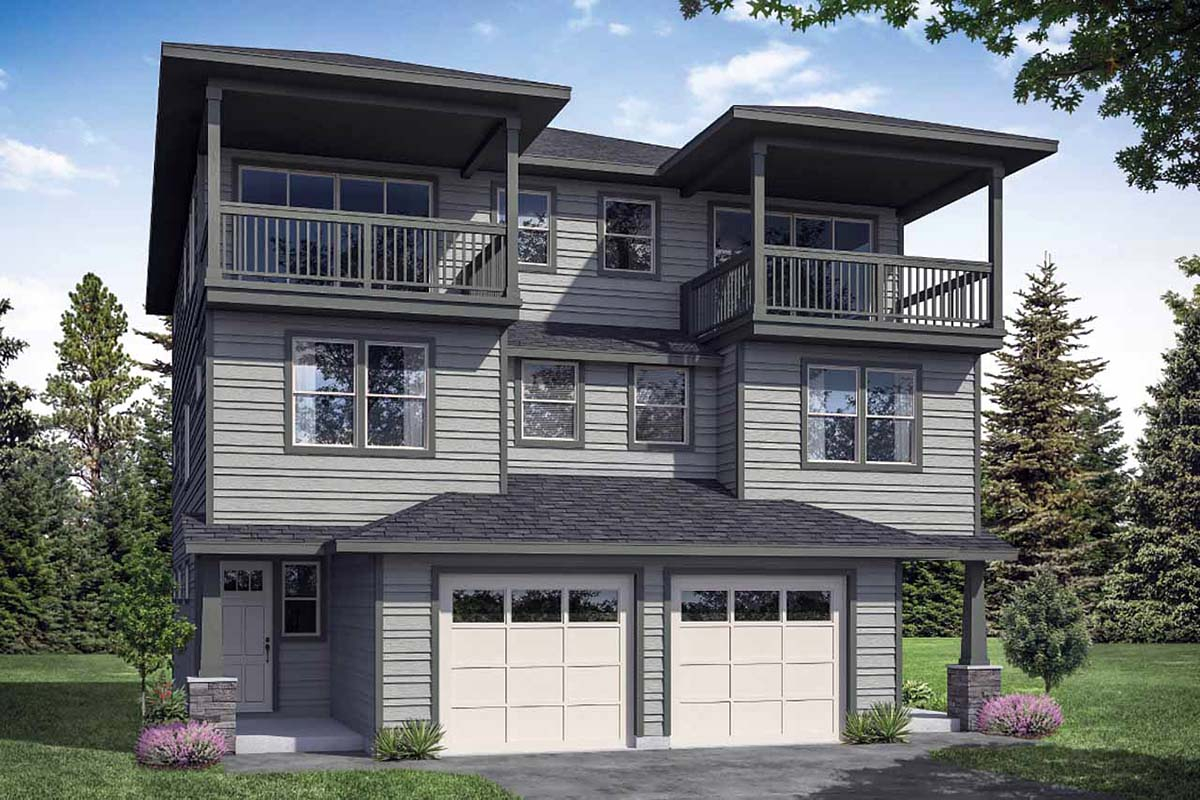

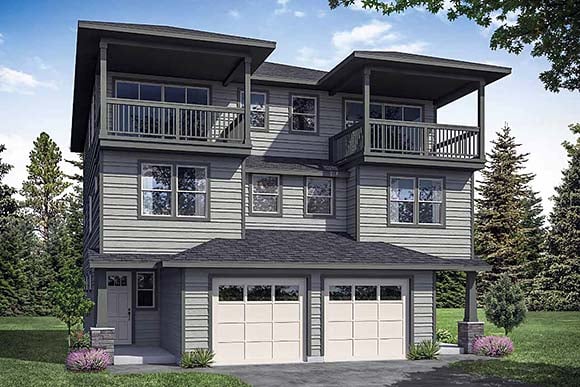

Artist's Rendering: An artist's drawing of the home, usually viewed from the front.

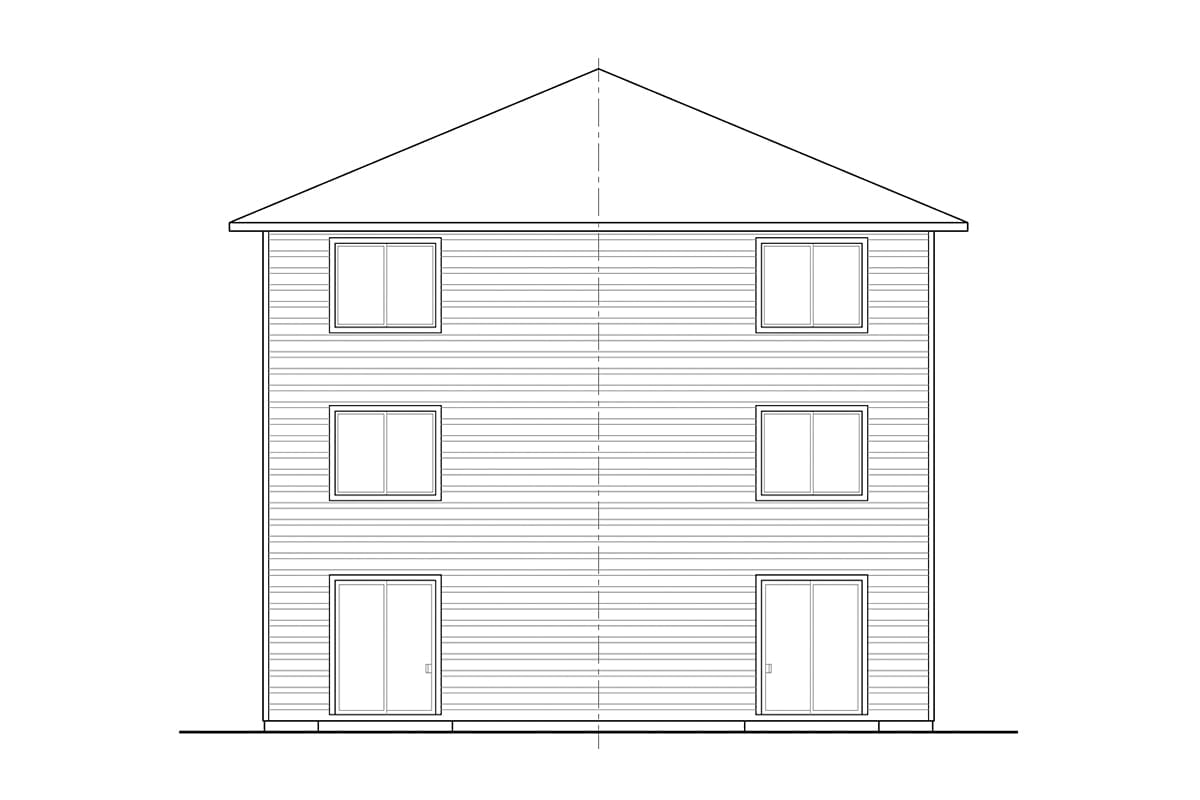

Elevations: Drawings which show the front, sides, and rear of the home, including exterior materials, trim sizes, roof pitches, etc.

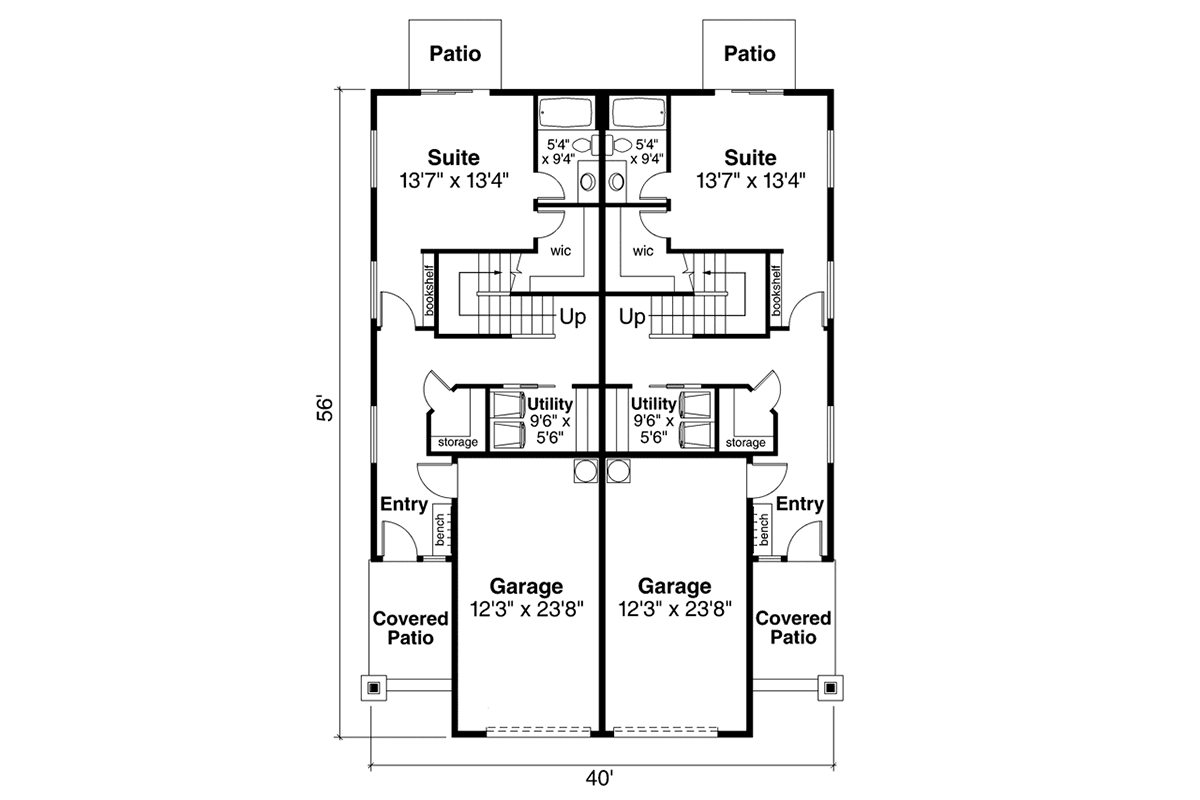

Main Floor Plan: Shows the placement and dimensions of all walls, doors, and windows. Includes the location of beams, ceiling heights, pertinent interior elevations, etc.

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details.

Basement Plan (if any): Included if the plan has a basement alternative. Shows all basement details. Plans which include alternate basement stair location or main basement stair will include a basement plan. Other plans can be modified to include a basement foundation.

Roof Framing Plan: Shows roof outlines, conventional framing and/or trusses, beams, roof framing details, etc.

Details: Drawings which show specific details such as fireplaces, stairways, decks, etc.

Section: A drawing of a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan: A schematic layout of all lighting and electrical outlets.
