Garage-Living Plan 43725

• PDF File: $1,375.00
• 1 Set: $550.00 **
• 5 Sets plus PDF File: $825.00
• CAD File: $1,525.00
  Single Build License issued on CAD File orders.
• CAD File Unlimited Build: $1,675.00
  Unlimited Build License issued on CAD File Unlimited Build orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $190.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional License Fee: $550.00
  Provides you with one additional license to build (a total of two builds).
• Additional Sets: $40.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: $350.00
  (Please call for drawing time.)
• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	1585 sq ft
Main Living Area:	433 sq ft
Upper Living Area:	1152 sq ft
Garage Area:	1511 sq ft
Garage Type:	N/A or Unknown
Garage Bays:	3
Foundation Types:	Slab
Exterior Walls:	2x4 - * $350.00 2x6
House Width:	54'0
House Depth:	41'0
Number of Stories:	2
Bedrooms:	2
Full Baths:	3
Max Ridge Height:	30'10 from Front Door Floor Level
Primary Roof Pitch:	6:12
Roof Framing:	Truss and/or Stick
Main Ceiling Height:	12'
Upper Ceiling Height:	8'

* May require additional drawing time.

Special Features:

• 2nd Floor Balcony
• Entertaining Space
• Mudroom
• Office
• Open Floor Plan
• Storage Space

Traditional Style Barn with Living Space

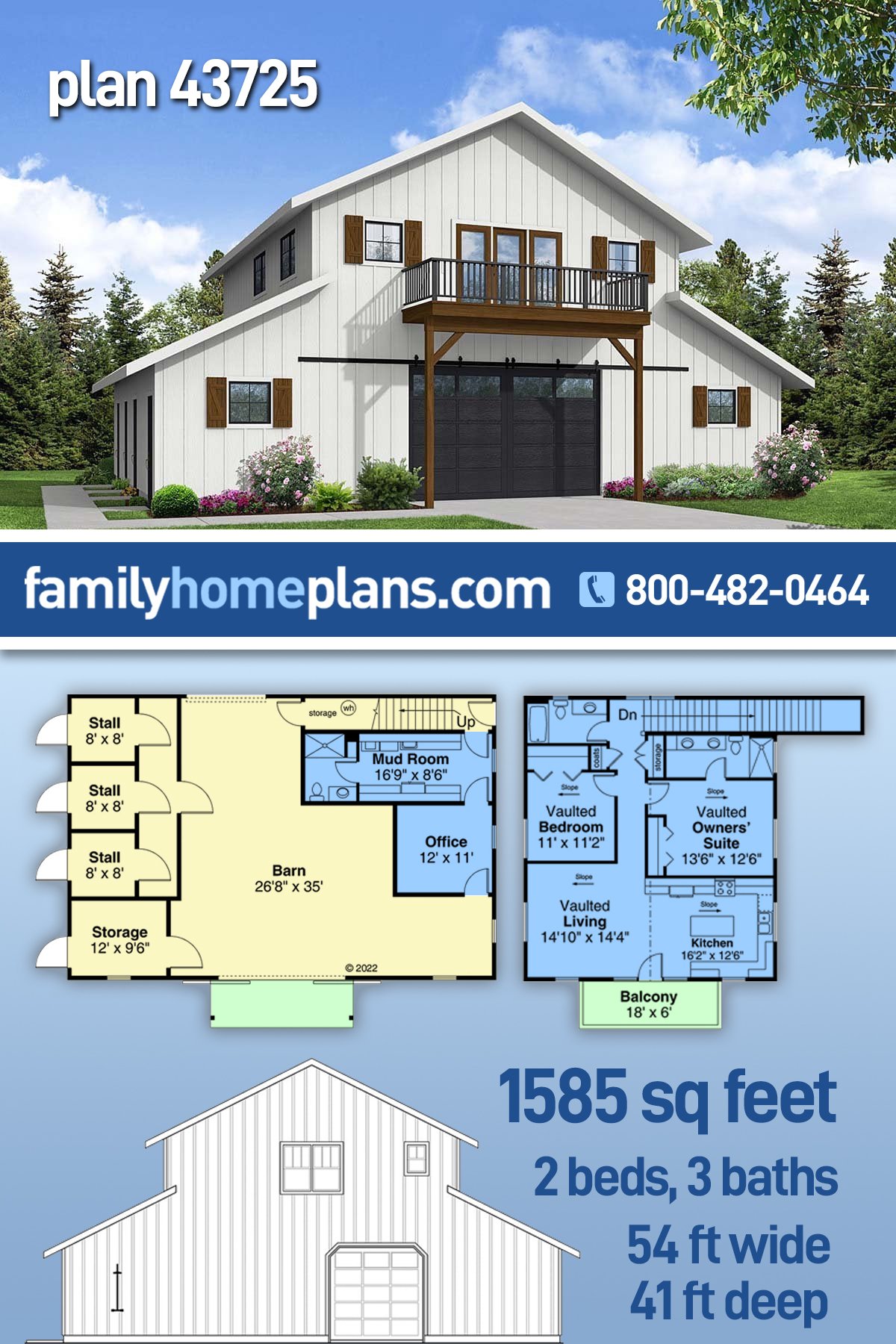

Barn Plan With Apartment 43725 has 1,585 square feet of living space. Three 8' x 8' stalls are available for your horses or other livestock. Open barn area allows for storage of your farm equipment, or you can use it simply as a garage to park your regular vehicles. The upper-level apartment has 1,152 square feet of living space and includes 2 bedrooms and 2 bathrooms. Choose this plan if you are just getting started on a new property. Your family (and your horses) will live comfortably while you are in the process of constructing your main house.

Barn Plan With Apartment and Office

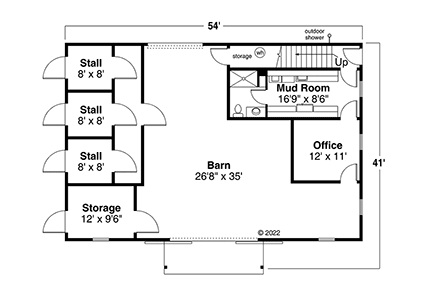

Let's take a tour of the exterior and the main floor. Firstly, the exterior of Barn Plan With Apartment 43725 is the traditional style barn design. We are greeted by white vertical siding and board and batten shutters. There is one large 16’ x 10’ garage door in the front, with a pull through 10’ x 10’ garage door in the rear. Even better, the garage doors slide back on barn door hinges rather than rolling up. Secondly, the mud room contains the laundry area and a bath with a shower. In the laundry room, you have a space for a fridge for animal medications.

Thirdly, you have space for your horses and for their gear. Three 8' x 8' stalls are available to ensure that your furry friends are comfortable. Furthermore, they are protected from potentially dangerous equipment that you might have stored in the large barn area. For example, some horses are experts at getting in and out of their stalls. For that reason, you have another interior door on which to install a safety lock should they open the first interior stall door. Lastly, with horses, tack seems to multiply. Use the storage room for saddles, bridles, leads, halters, and all the other necessary equipment.

Upper Level Barn Apartment Plan

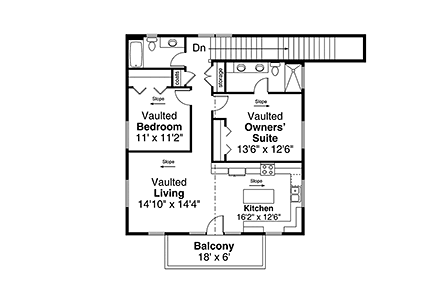

On the second floor of Barn Plan With Apartment 43725, there is a full-sized apartment with two bedrooms. Two full bathrooms are available upstairs, bringing the total number of bathrooms in this dual use barn space to three. The owners' suite measures 13'6 wide by 12'6 deep, and it includes a standard-sized closet. Couples will save time in the morning thanks to the dual vanity and walk-in shower in the bathroom. The smaller bedroom measures 11' wide by 11'2 deep, and the occupant will have access to the guest bathroom which has a combination tub/shower.

After a long day working on the farm, you might want to relax on your leather couches in the living room and watch your favorite tv show. An open concept kitchen is home to an island for eating. This kitchen has all the features that you would expect to find in a larger home as well as direct access to the second-floor balcony. In conclusion, this barn apartment plan is great for temporary living space while you are building the main house, and then it's great for a tenant or live-in employee.

Artist's Rendering: An artist's drawing of the home, usually viewed from the front.

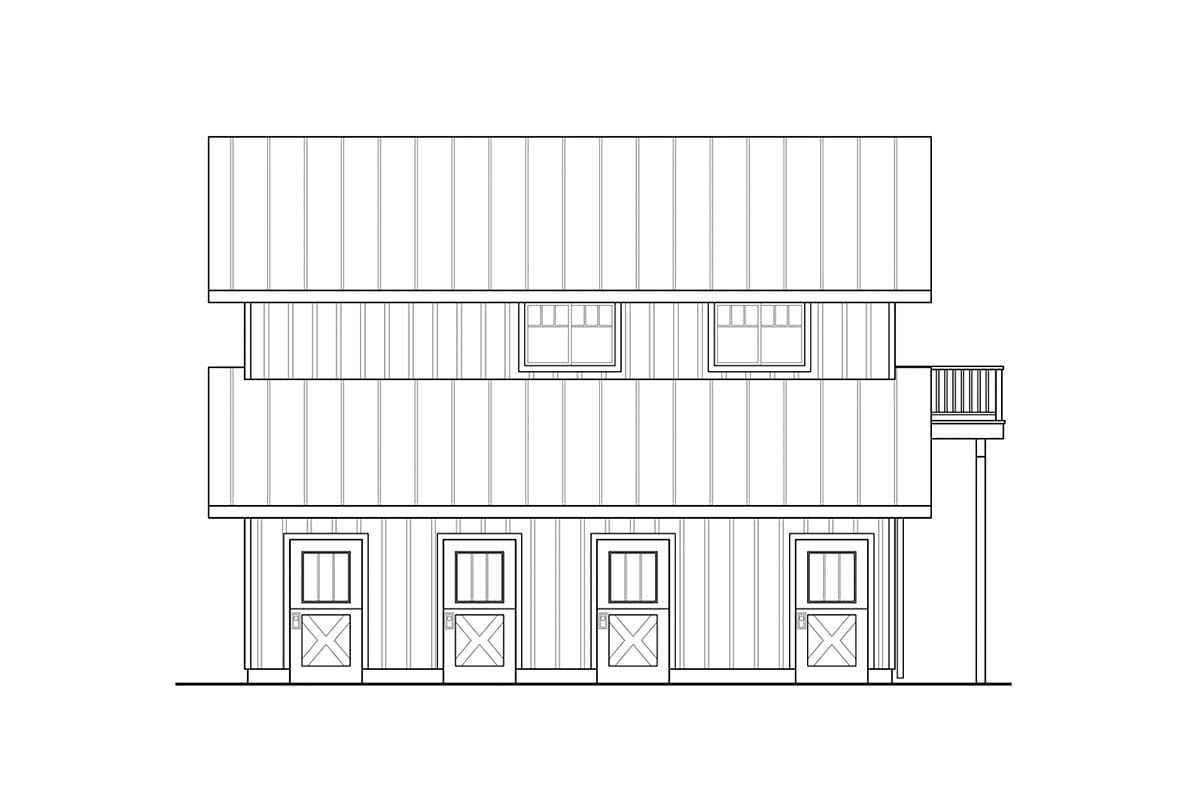

Elevations: Drawings which show the front, sides, and rear of the home, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan: Shows the placement and dimensions of all walls, doors, and windows. Includes the location of beams, ceiling heights, pertinent interior elevations, etc.

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details.

Basement Plan (if any): Included if the plan has a basement alternative. Shows all basement details. Plans which include alternate basement stair location or main basement stair will include a basement plan. Other plans can be modified to include a basement foundation.

Roof Framing Plan: Shows roof outlines, conventional framing and/or trusses, beams, roof framing details, etc.

Details: Drawings which show specific details such as fireplaces, stairways, decks, etc.

Section: A drawing of a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan: A schematic layout of all lighting and electrical outlets.
