4 Car Garage Plan 43742

• PDF File: $315.00
• 1 Set: $160.00 **
• 5 Sets plus PDF File: $265.00
• CAD File: $370.00
  Single Build License issued on CAD File orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $25.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $10.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• Other: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Garage Area:	1408 sq ft
Garage Type:	Carport
Garage Bays:	4
Foundation Types:	Slab
Exterior Walls:	Other
House Width:	44'0
House Depth:	32'0
Number of Stories:	1
Max Ridge Height:	17'2 from Front Door Floor Level
Primary Roof Pitch:	6:12
Roof Load:	25 psf
Roof Framing:	Truss and/or Stick
Main Ceiling Height:	9'

Traditional Style Carport

This 9' ceiling Traditional Style Carport has room for 4 cars. The 8' ceiling Storage area to the right is intended to store your outdoor toys, firewood or equipment you desire to keep out of the elements.

Artist's Rendering: An artist's drawing of the home, usually viewed from the front.

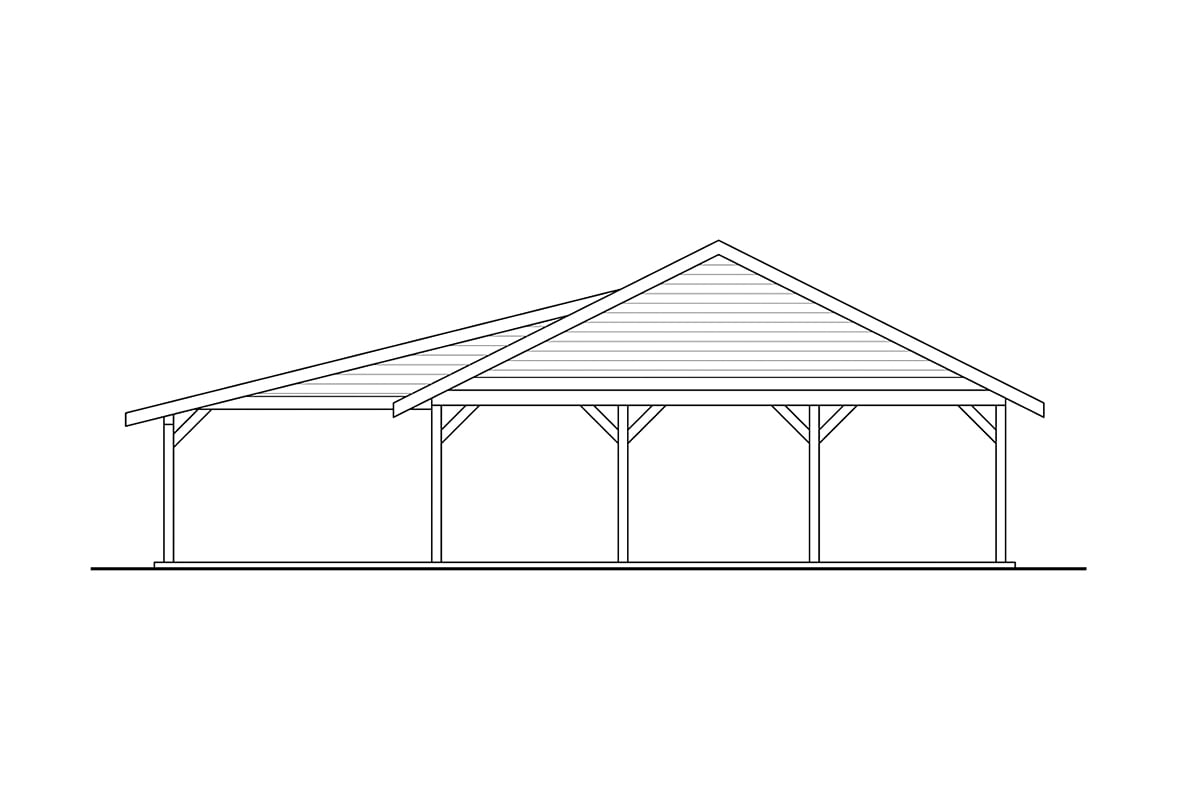

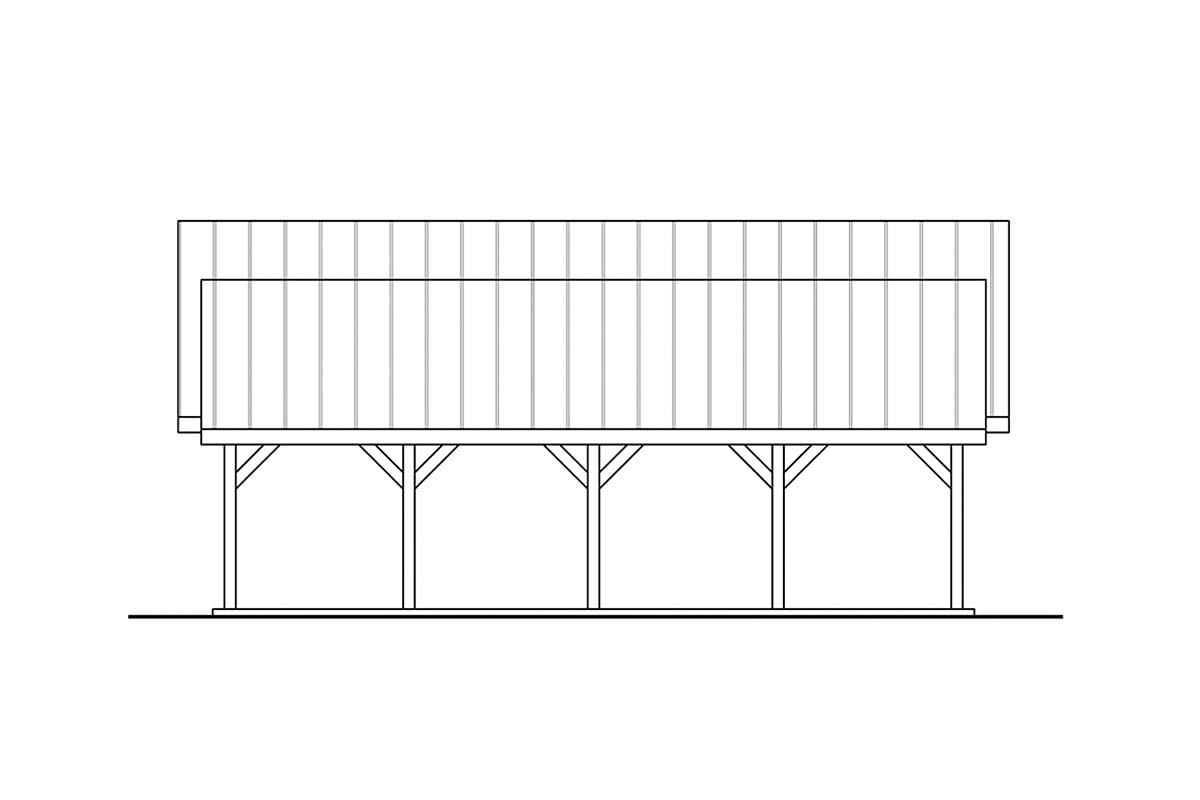

Elevations: Drawings which show the front, sides, and rear of the home, including exterior materials, trim sizes, roof pitches, etc.

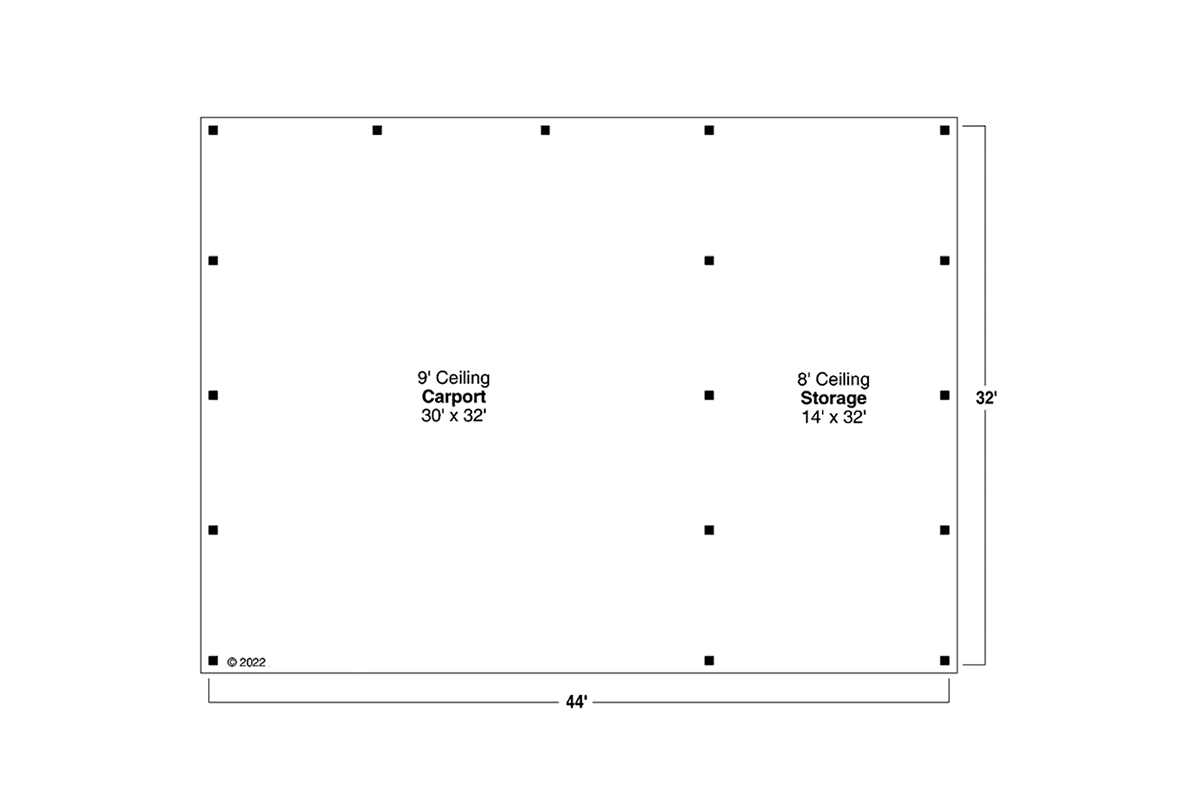

Main Floor Plan: Shows the placement and dimensions of all walls, doors, and windows. Includes the location of beams, ceiling heights, pertinent interior elevations, etc.

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details.

Basement Plan (if any): Included if the plan has a basement alternative. Shows all basement details. Plans which include alternate basement stair location or main basement stair will include a basement plan. Other plans can be modified to include a basement foundation.

Roof Framing Plan: Shows roof outlines, conventional framing and/or trusses, beams, roof framing details, etc.

Details: Drawings which show specific details such as fireplaces, stairways, decks, etc.

Section: A drawing of a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan: A schematic layout of all lighting and electrical outlets.

Receive a FREE modification estimate:

1) Please Email Us your changes. (Itemized list of changes with details)

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
