Multi-Family Plan 43774

• PDF File: $5,250.00
• 1 Set: $2,075.00 **
• 5 Sets plus PDF File: $3,125.00
• CAD File: $5,825.00
  Single Build License issued on CAD File orders.
• CAD File Unlimited Build: $6,350.00
  Unlimited Build License issued on CAD File Unlimited Build orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $465.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional License Fee: $2,075.00
  Provides you with one additional license to build (a total of two builds).
• Additional Sets: $70.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Available Foundation Types:

• Crawlspace : No Additional Fee

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	3566 sq ft
Main Living Area:	1634 sq ft
Upper Living Area:	1932 sq ft
Garage Area:	527 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Crawlspace
Exterior Walls:	2x6
House Width:	48'0"
House Depth:	56'0"
Number of Stories:	2
Bedrooms:	6
Full Baths:	4
Half Baths:	2
Max Ridge Height:	28'3" from Front Door Floor Level
Primary Roof Pitch:	3:12
Roof Load:	25 psf
Roof Framing:	Truss
Main Ceiling Height:	9'
Upper Ceiling Height:	8'

Special Features:

• 2nd Floor Balcony
• Coat Closet
• Deck or Patio
• Dropzone
• Entertaining Space
• Open Floor Plan
• Pantry
• Storage Space

6-bedroom Luxurious Modern Duplex Plan

Introducing the ideal Contemporary duplex plan designed for multifamily living or as a high-return investment on slightly sloped lots. This architectural masterpiece features six elegantly designed bedrooms distributed evenly across two mirror-image units, making it a perfect choice for extended families or savvy investors seeking a premium living arrangement.

The facade of this duplex blends modern aesthetics with functionality, showcasing sharp lines and balanced proportions. The use of high-quality, durable materials ensures that the exterior is not only visually appealing but also robust enough to withstand the elements, requiring minimal upkeep. Each unit features large windows that flood the interiors with natural light, enhancing the ambiance and creating bright, welcoming living spaces.

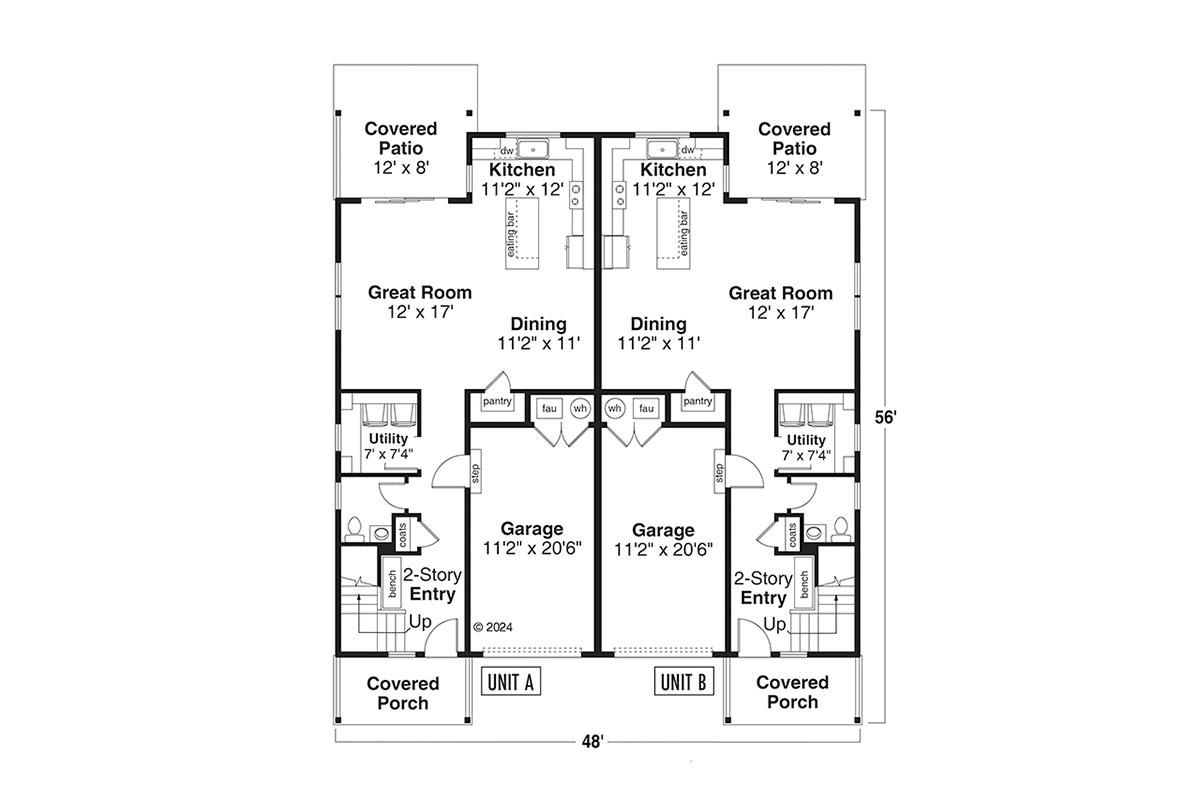

Upon entering each unit, the spacious two-story entryway sets a tone of grandeur while leading into an expansive great room and dining area. These areas are designed with an open-plan concept, ideal for family gatherings and entertaining guests. The transition to the state-of-the-art kitchen is seamless, where modern appliances, extensive countertop space, and a functional walk-in pantry cater to culinary enthusiasts and facilitate comfortable daily living.

Adjacent to the kitchen, the conveniently located utility room provides access to essential services without impeding the flow of the main living areas. This ensures practical use of space and maintains an organized environment. The ground floor also includes a covered porch and patio for each unit, offering private outdoor spaces for relaxation or dining, surrounded by the natural beauty of the slightly sloped lot.

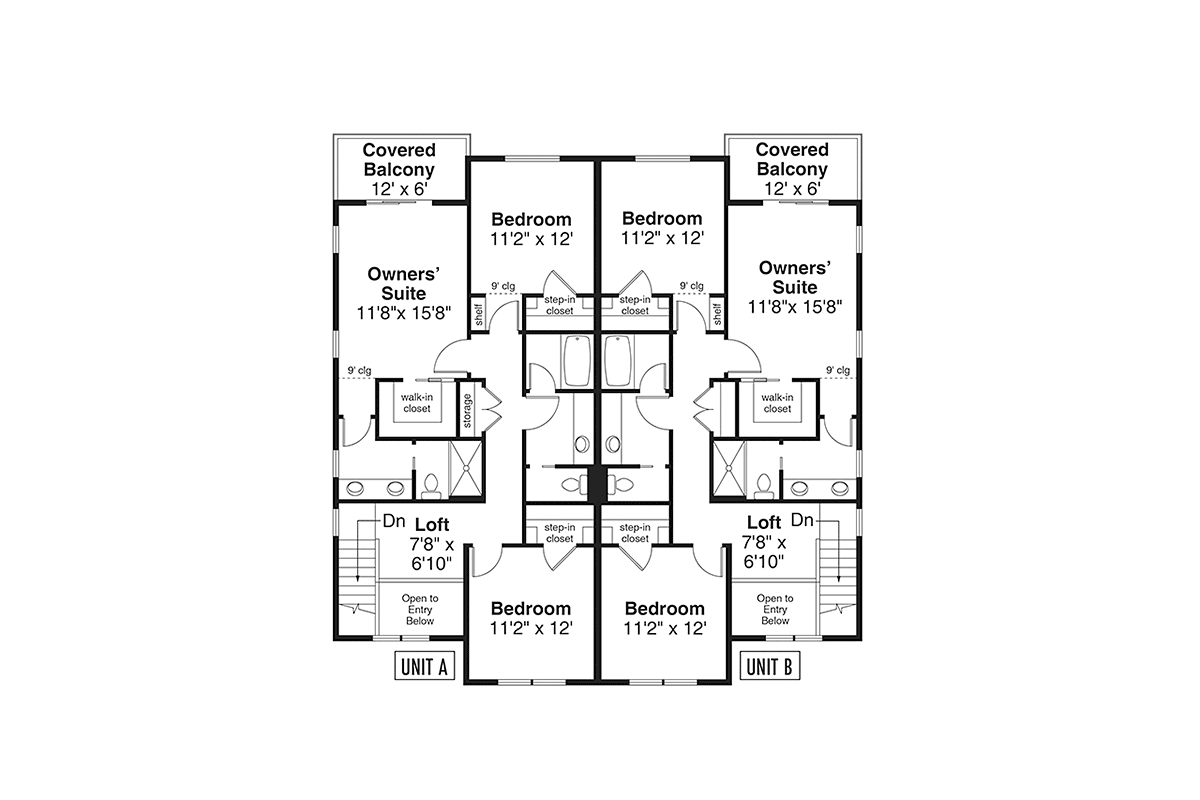

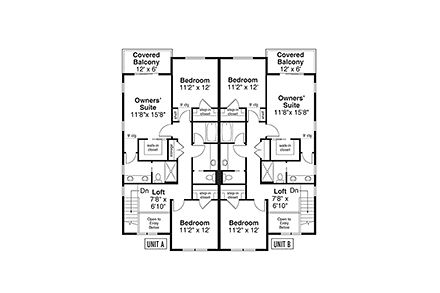

The upper floor is thoughtfully laid out to maximize privacy and comfort. Each unit's luxurious owner's suite serves as a private retreat, featuring a generous walk-in closet and an elegantly appointed ensuite bathroom. Additionally, two more bedrooms with step-in closets share a well-equipped full bathroom. The design also incorporates a covered balcony accessible from the upper hallway, providing a perfect spot for residents to enjoy morning coffees or unwind in the evening.

A unique feature of this duplex is the loft area, overlooking the entry below. This versatile space can be adapted for various uses such as a home office, a children's playroom, or an additional lounge, adding to the unit's flexibility and appeal.

The thoughtful inclusion of a covered garage in each unit accommodates two vehicles, providing secure and convenient parking. The architectural design focuses on efficient utilization of space, promoting a comfortable and organized living environment.

Moreover, the landscaping around the property is designed to enhance the Duplex's aesthetic appeal and integrate it smoothly with the natural surroundings. Optional exterior features such as stone accents or wooden beams can be added, allowing for further customization of the home's appearance.

This 6-bedroom modern duplex plan is a harmonious blend of luxury, practicality, and thoughtful design, making it an exceptional choice for those seeking a sophisticated, spacious, and adaptable living solution for multifamily use on a slightly sloped lot. Designed to provide independence and privacy while fostering communal living, this duplex plan is not just a place to reside but a potential hub of life and activity, promising a solid investment in today's dynamic real estate market.

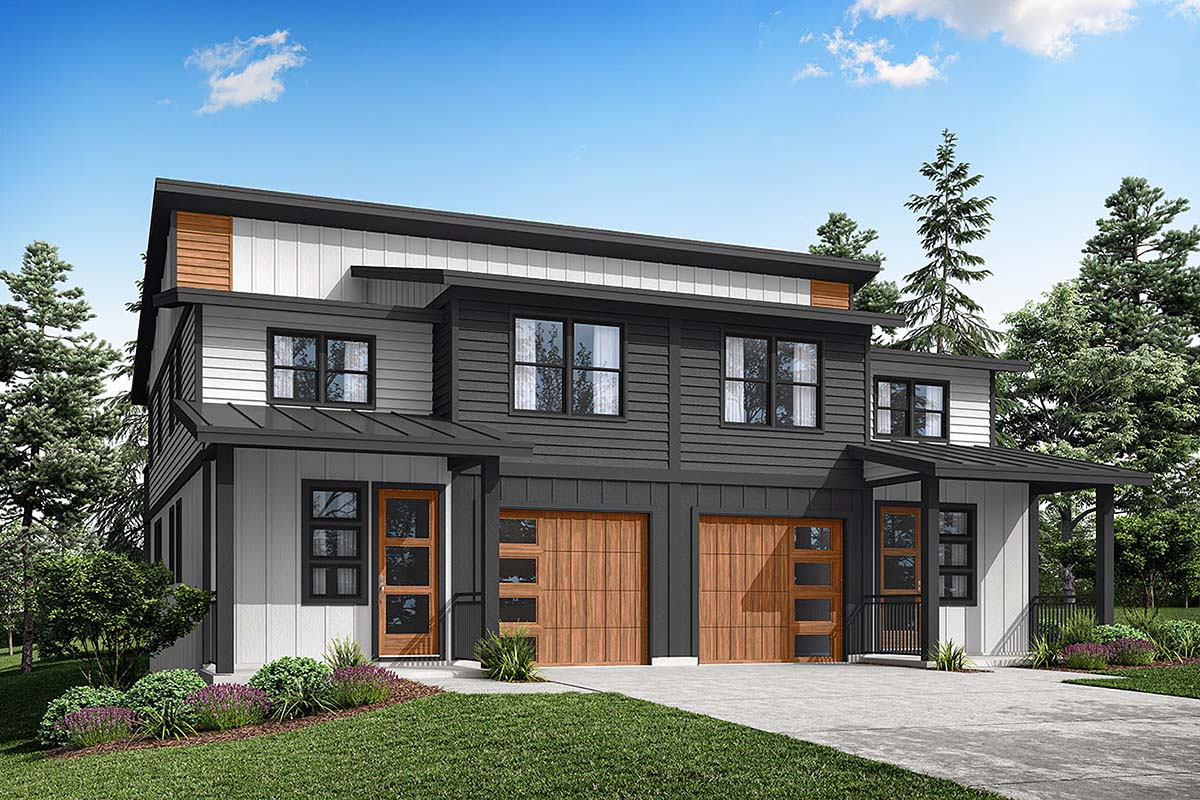

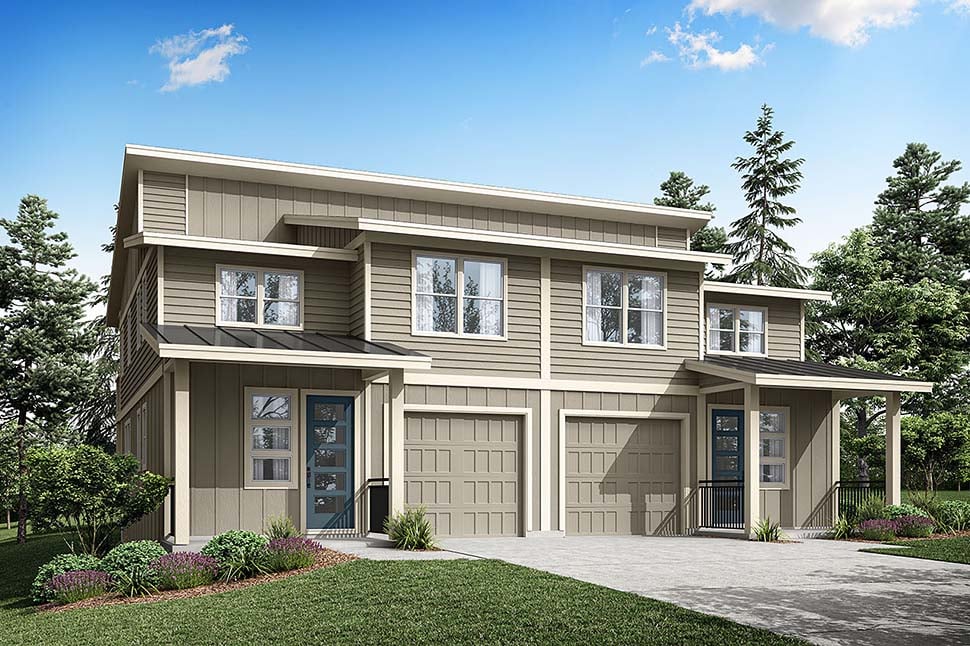

Artist's Rendering: An artist's drawing of the home, usually viewed from the front.

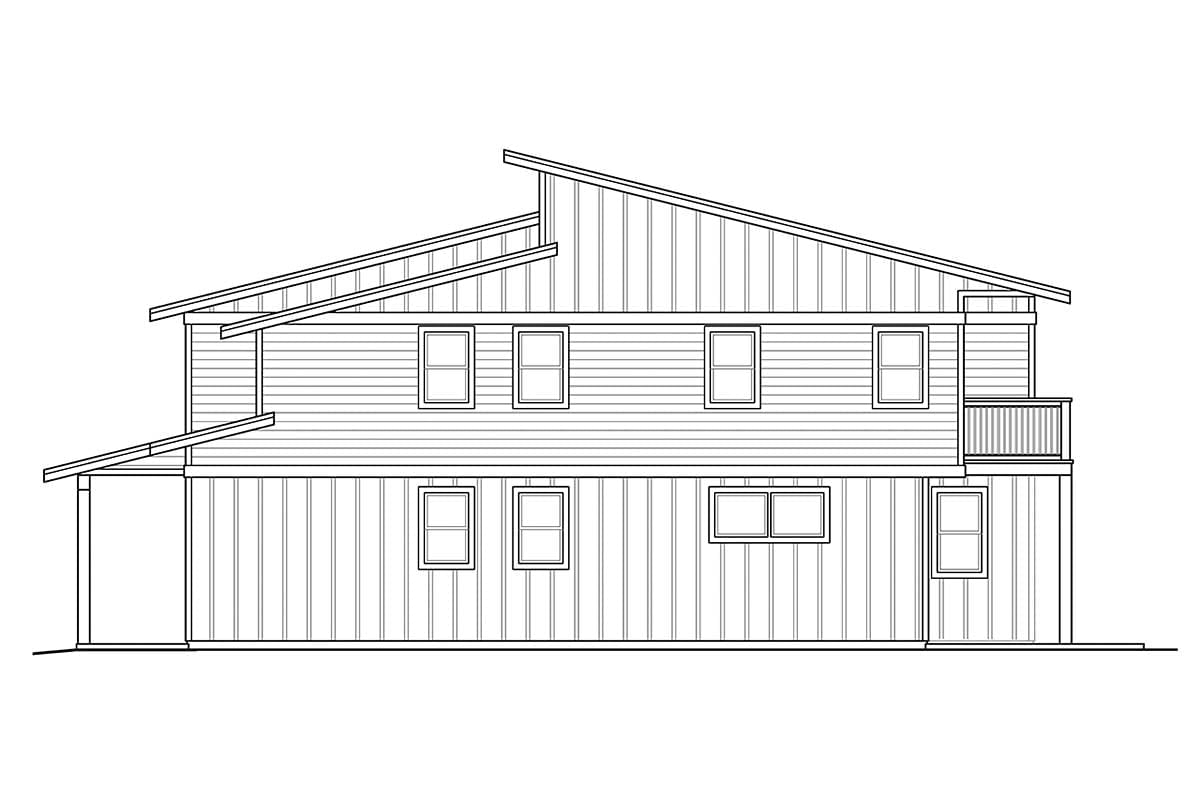

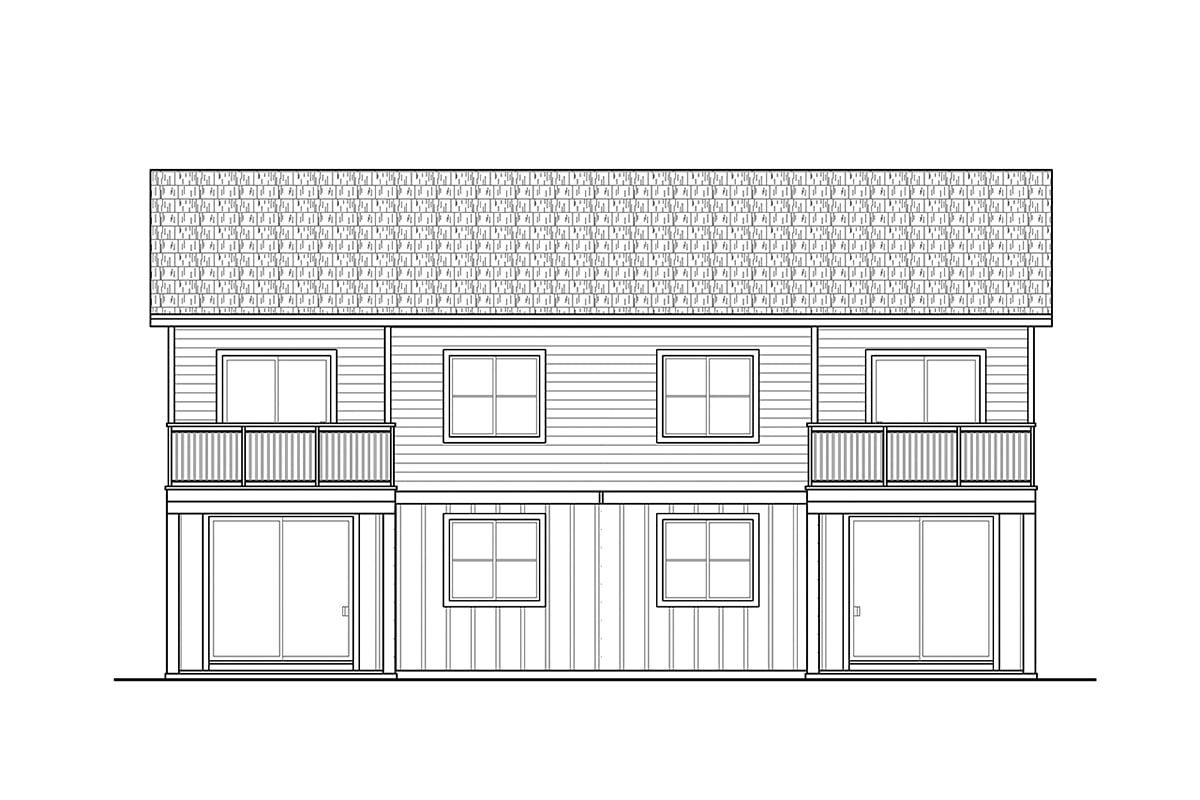

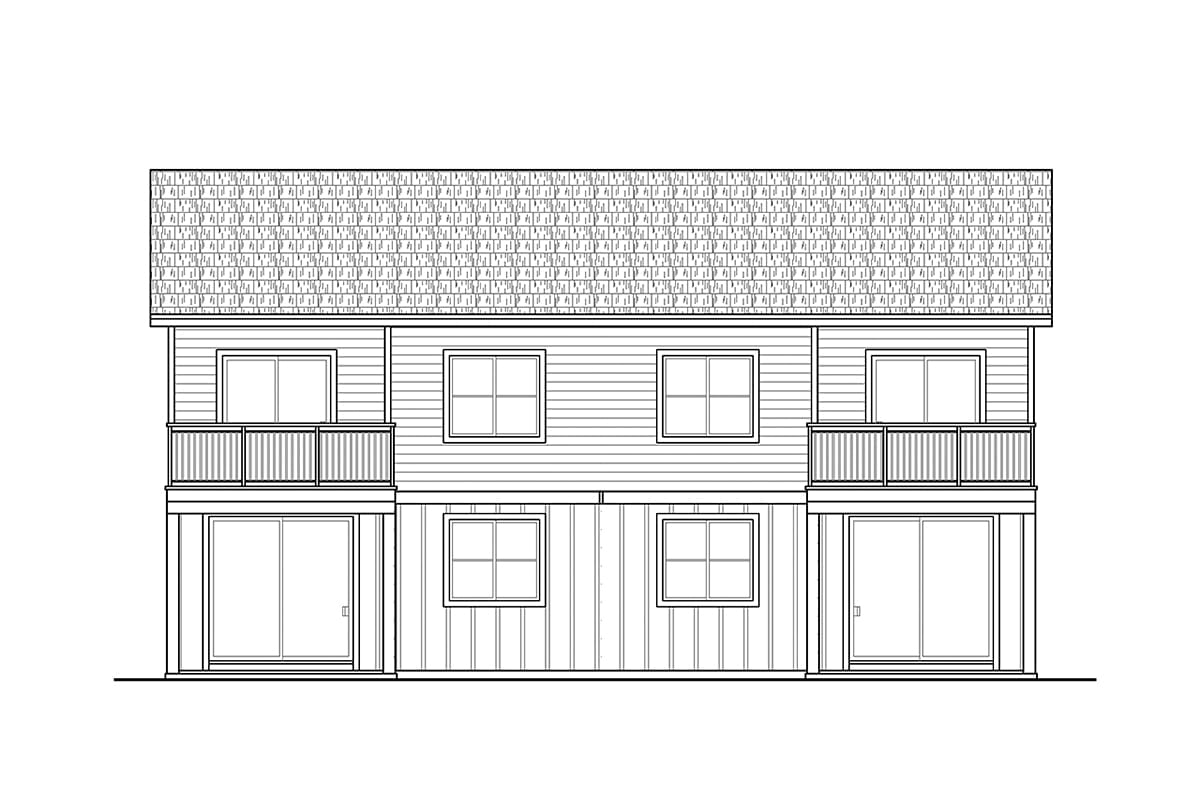

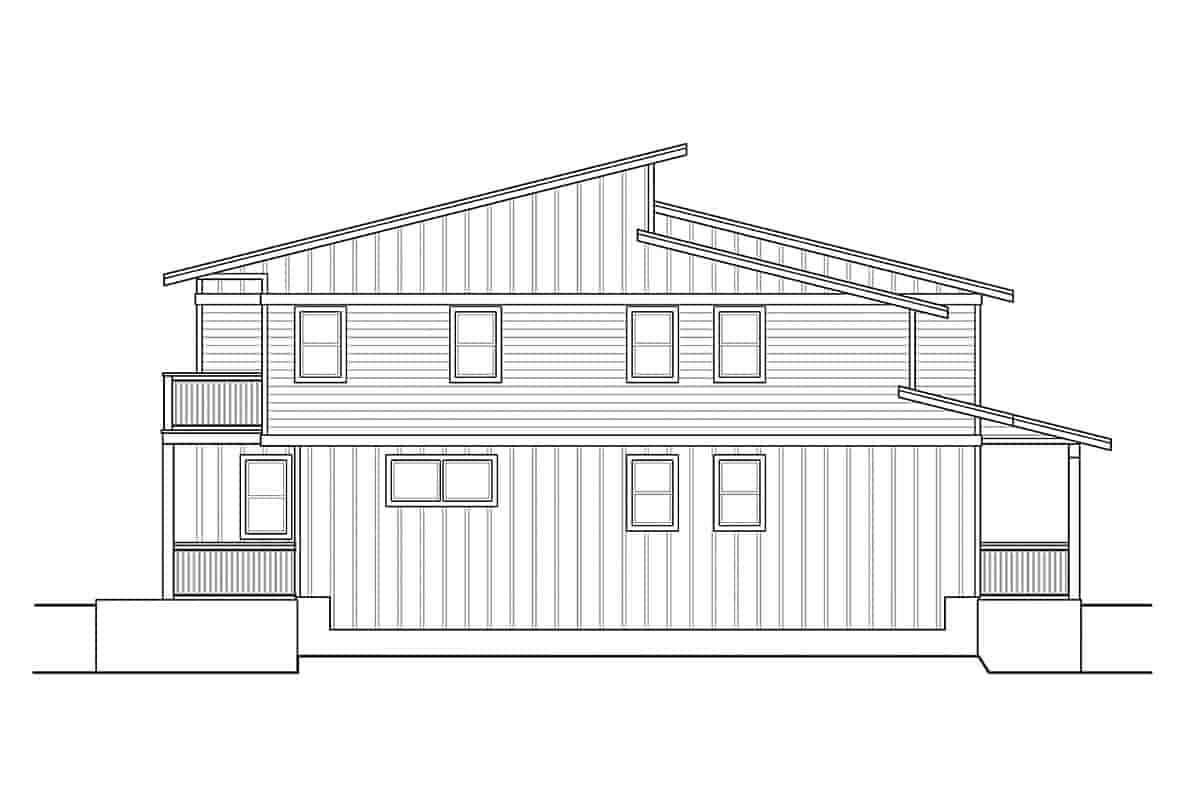

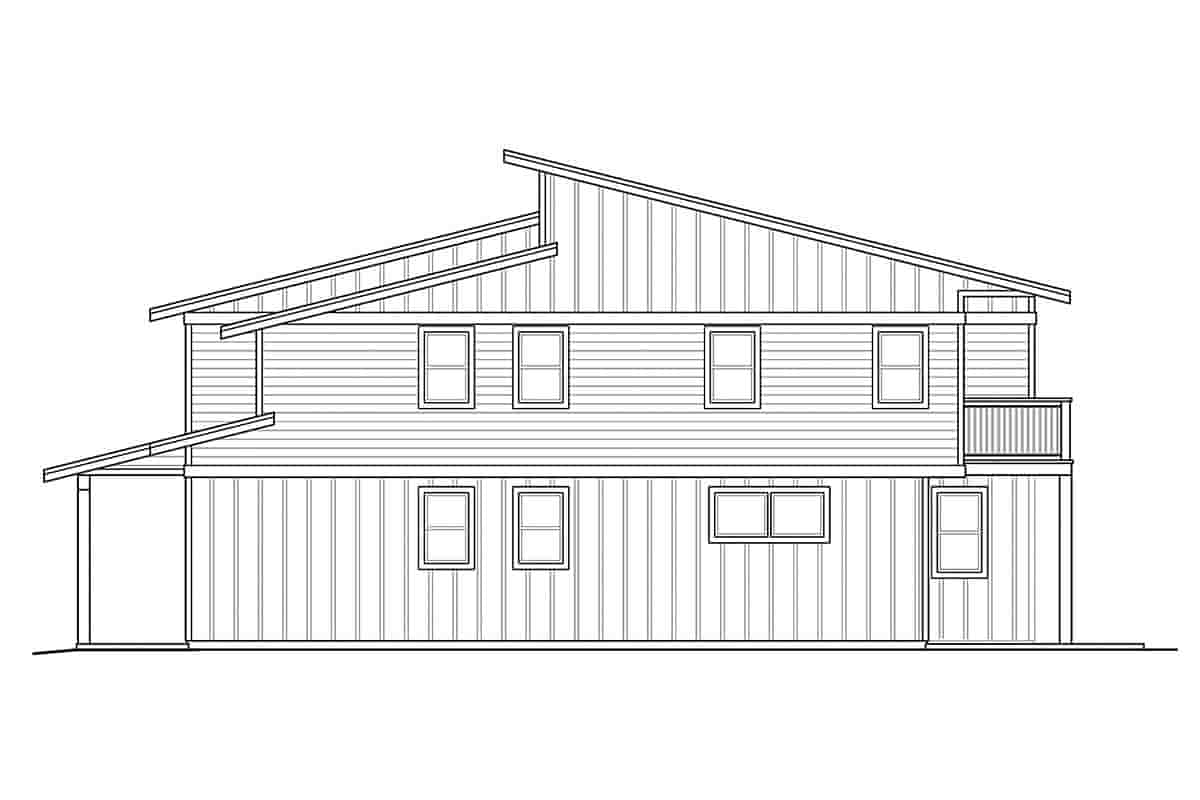

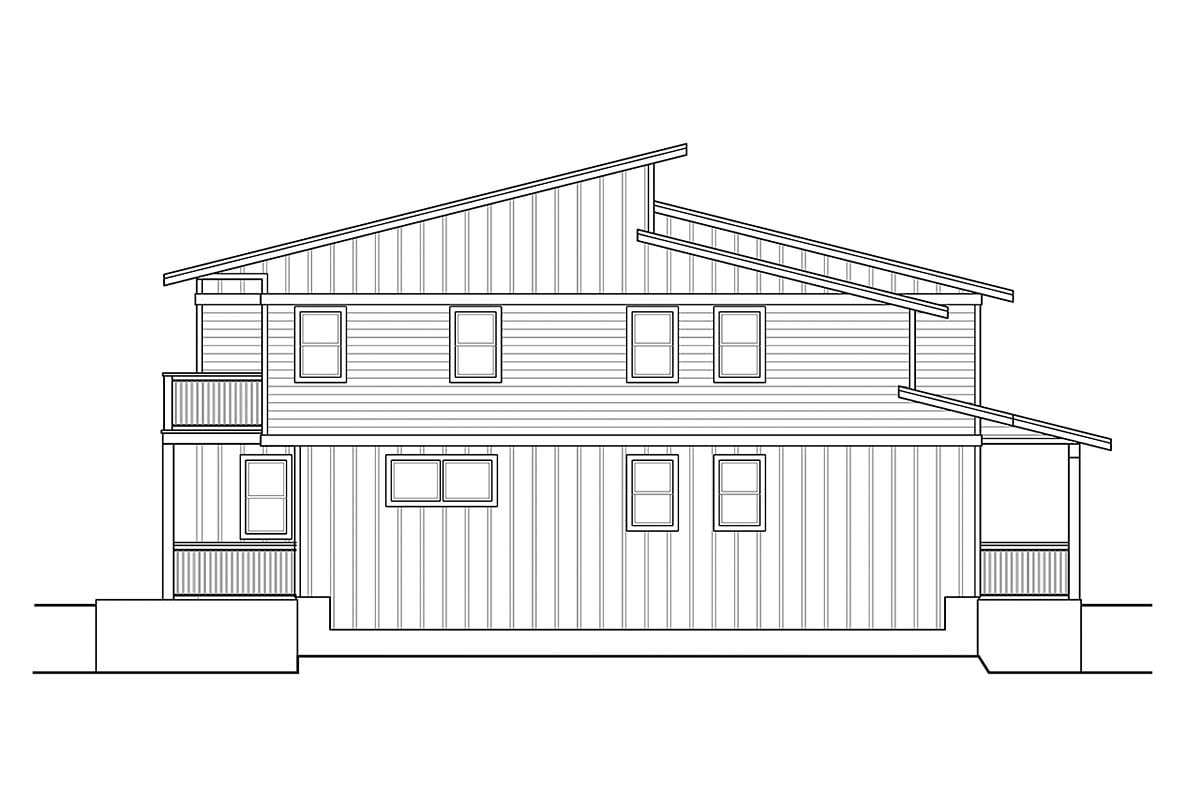

Elevations: Drawings which show the front, sides, and rear of the home, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan: Shows the placement and dimensions of all walls, doors, and windows. Includes the location of beams, ceiling heights, pertinent interior elevations, etc.

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details.

Basement Plan (if any): Included if the plan has a basement alternative. Shows all basement details. Plans which include alternate basement stair location or main basement stair will include a basement plan. Other plans can be modified to include a basement foundation.

Roof Framing Plan: Shows roof outlines, conventional framing and/or trusses, beams, roof framing details, etc.

Details: Drawings which show specific details such as fireplaces, stairways, decks, etc.

Section: A drawing of a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan: A schematic layout of all lighting and electrical outlets.
