House Plan 43804
Modern Tudor House Plan
sq ft
3438beds
4baths
3.5bays
3width
70'depth
77'
click for more images
Plan Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 3438 sq ft |
| Main Living Area: | 2416 sq ft |
| Upper Living Area: | 1022 sq ft |
| Garage Area: | 945 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 3 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x4 |
| House Width: | 70'0" |
| House Depth: | 76'6" |
| Number of Stories: | 1 |
| Bedrooms: | 4 |
| Full Baths: | 3 |
| Half Baths: | 1 |
| Max Ridge Height: | 30'8" from Front Door Floor Level |
| Primary Roof Pitch: | 10:12 |
| Roof Framing: | Stick |
| Porch: | 482 sq ft |
| FirePlace: | Yes |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 10'0" |
Special Features:
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: This plan set includes first and second floor layouts, foundation dimensions, roof plan, roof framing layout, all four elevations, and an electrical layout.
A: Hi, Thanks for your questions. 1. Yes, there is a walkway under the stairs and that is where the double oven is located. 2. I can provide a crawlspace foundation plan for an additional $600 and an additional 2 weeks to deliver plans. The slab foundation will still be included and the base plans will show everything at the grade of the floor. 3. The doors from the Great Room to the covered patio are a large, 4 piece sliding glass door. It's noted on the plan as a 14'(W) x 8'(T) Kolbe Door, which is a brand of door, but your builder could use whatever type door that they normally use providing that it fits the space. 4. The door from the game room into the attic space is a 2868 (32" x 80") full size door that provides some mechanical/storage space above the kitchen. There is also another door to the attic that is a 2668 (30"x 80") that provides access above the master bedroom for mechanical if needed. Lastly, there is an attic access ladder in the garage for storage in that area. Thanks
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Photographs may show modified designs.

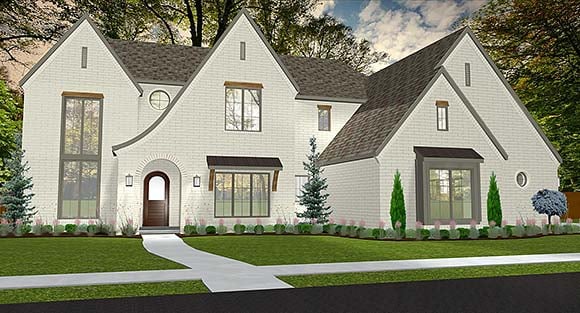

Elevation

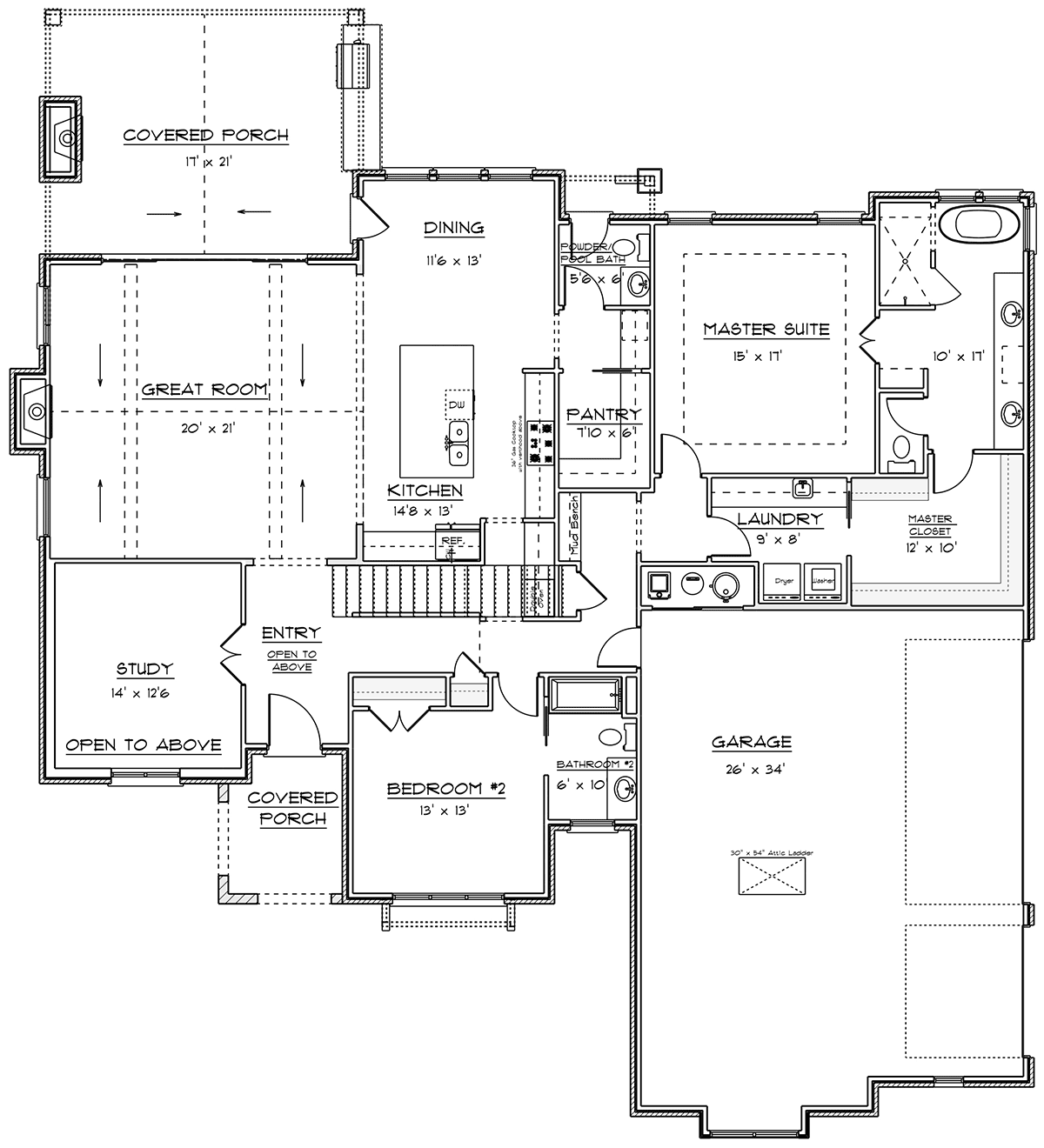

Level One

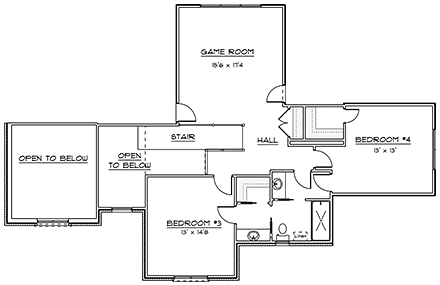

Level Two
Quick Specs
3438 Total Living Area2416 Main Level
1022 Upper Level
4 Bedrooms
3 Full Baths, 1 Half Baths
3 Car Garage
70'0" W x 76'6" D
Quick Specs
3438 Total Living Area4 Bedrooms
3 Full Baths, 1 Half Baths
3 Car Garage
70'0" W x 76'6" D

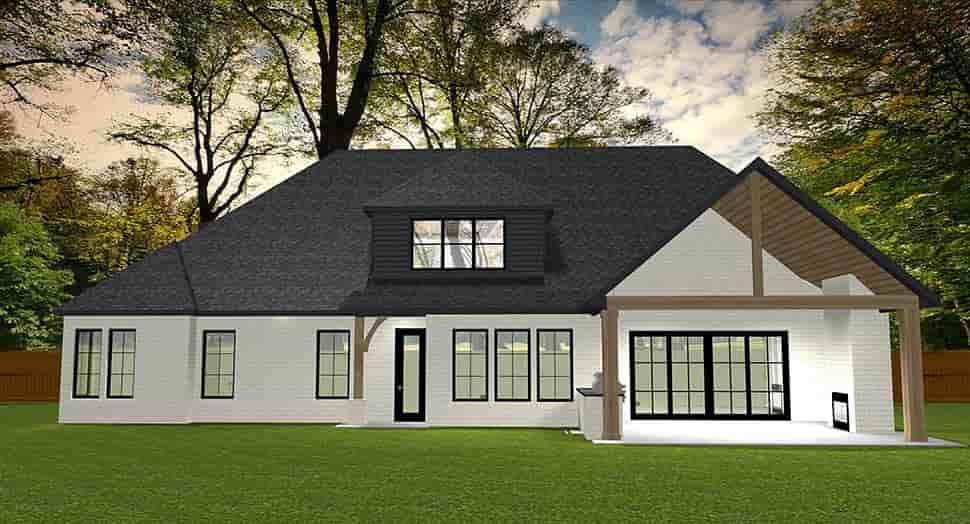

Rear Elevation
Photographs may show modified designs.
