Multi-Family Plan 45368

• PDF File: $850.00
• 5 Sets plus PDF File: $950.00
• CAD File: $2,050.00
  Single Build License issued on CAD File orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $50.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $35.00

Truss Roof System (up to 1-2 weeks delay)

Available Foundation Types:

• Basement : $125.00
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : No Additional Fee
• Slab : No Additional Fee
• Stem Wall Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	2520 sq ft
Main Living Area:	630 sq ft
Upper Living Area:	630 sq ft
Garage Type:	None
Foundation Types:	Basement - * $125.00 Total Living Area may increase with Basement Foundation option. Crawlspace Slab Stem Wall Slab
Exterior Walls:	2x4
House Width:	41'
House Depth:	35'
Number of Stories:	2
Bedrooms:	4
Full Baths:	4
Half Baths:	2
Primary Roof Pitch:	8:12
Roof Framing:	Stick
Main Ceiling Height:	8'
Upper Ceiling Height:	8'

* May require additional drawing time.

Plans include complete working drawings.

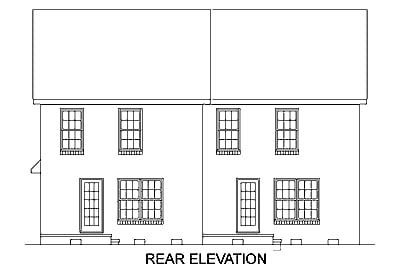

all four elevations (front, sides, and rear)

foundation and details -- all girders, piers, and double joists are dimensioned; floor joist direction, size & spacing are labeled

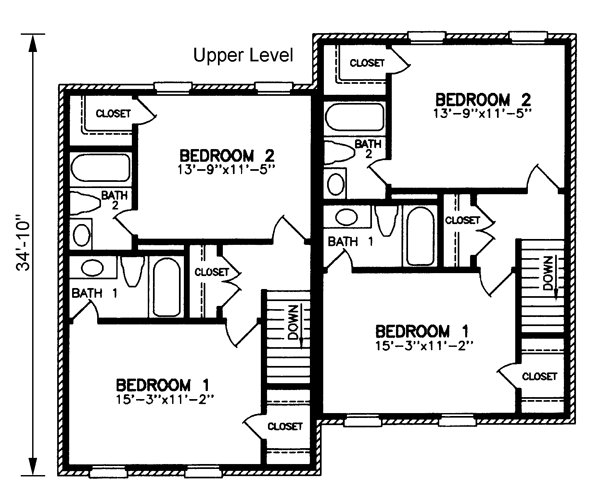

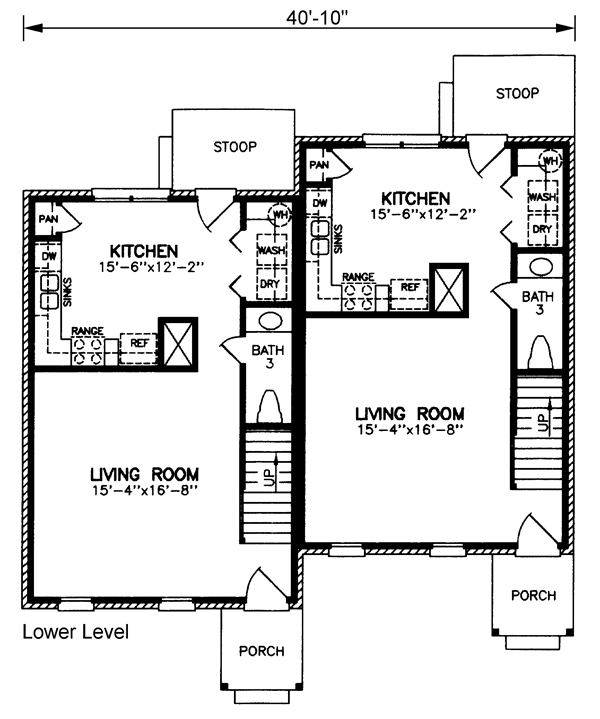

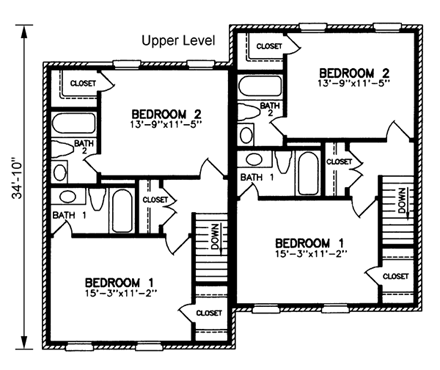

floor plan -- all rooms, door, and windows are labeled and dimensioned; ceiling joist direction, size & spacing are labeled; beams in ceiling are shown and labeled

roof plan -- rafter direction, size & spacing are labeled; all hips, valleys & supports are labeled

millwork such as cabinets & fireplaces

framing -- wall section & details showing each framing end condition

vent calculations -- for attic and foundation
