Multi-Family Plan 45504

• PDF File: $825.00
• 5 Sets plus PDF File: $925.00
• CAD File: $1,850.00
  Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

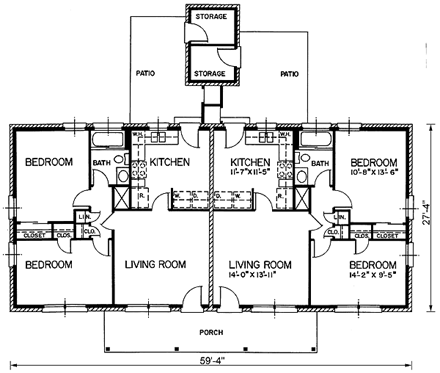

• Right Reading Reverse: $50.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $35.00

Plans can be ordered with a trussed roof system upon request. Please add to order notes.

Available Foundation Types:

• Basement : $125.00
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : No Additional Fee
• Slab : No Additional Fee
• Stem Wall Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee
• 2x6: $187.50
  (Please call for drawing time.)

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	1622 sq ft
Main Living Area:	811 sq ft
Garage Type:	None
Foundation Types:	Basement - * $125.00 Total Living Area may increase with Basement Foundation option. Crawlspace Slab Stem Wall Slab
Exterior Walls:	2x4 2x6 - * $187.50
House Width:	60'
House Depth:	28'
Number of Stories:	1
Bedrooms:	4
Full Baths:	2
Primary Roof Pitch:	4:12
Roof Framing:	Stick
1st Floor Master:	Yes
Main Ceiling Height:	8'

* May require additional drawing time.

Plans include complete working drawings.

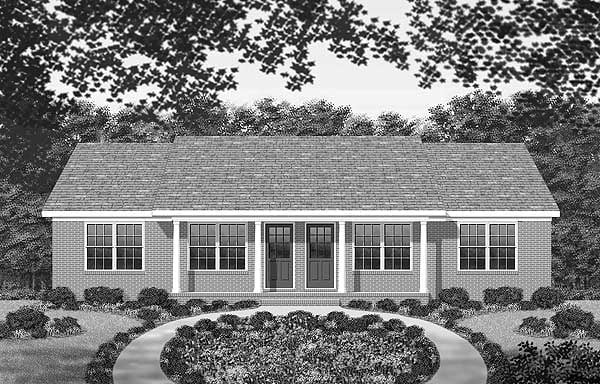

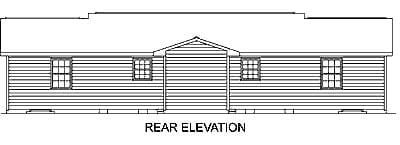

all four elevations (front, sides, and rear)

foundation and details -- all girders, piers, and double joists are dimensioned; floor joist direction, size & spacing are labeled

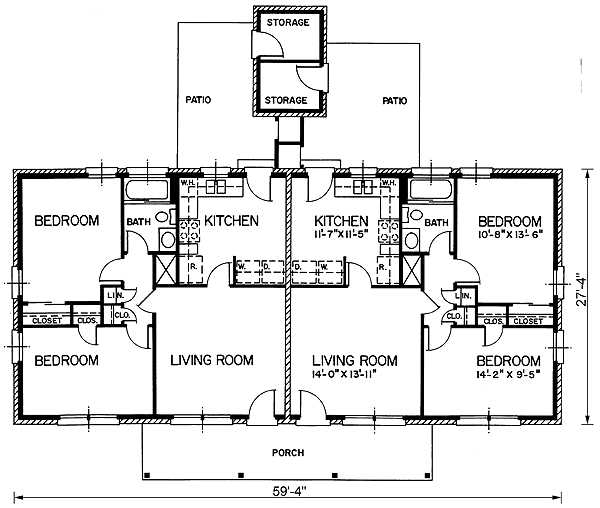

floor plan -- all rooms, door, and windows are labeled and dimensioned; ceiling joist direction, size & spacing are labeled; beams in ceiling are shown and labeled

roof plan -- rafter direction, size & spacing are labeled; all hips, valleys & supports are labeled

millwork such as cabinets & fireplaces

framing -- wall section & details showing each framing end condition

vent calculations -- for attic and foundation

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!
