2 Car Garage Apartment Plan 45512

• PDF File: $490.00
• 1 Set: $275.00 **
• 4 Sets: $310.00
• 8 Sets: $350.00
• Reproducible Set: $490.00
• CAD File: $690.00
  Single Build License issued on CAD File orders.
• Materials List: $100.00
• Additional Sets: $25.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.
Plans can be ordered with a trussed roof system upon request. Please add to order notes.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	480 sq ft
Upper Living Area:	480 sq ft
Garage Area:	709 sq ft
Garage Type:	Detached
Garage Bays:	2
Foundation Types:	Slab
Exterior Walls:
House Width:	24-0
House Depth:	32-0
Number of Stories:	2
Bedrooms:	1
Full Baths:	1
Max Ridge Height:	23-3 from Front Door Floor Level
Primary Roof Pitch:	12:12
Roof Framing:	Stick
Main Ceiling Height:	0
Upper Ceiling Height:	0
Vaulted Ceiling:	Yes
Tray Ceiling:	Yes

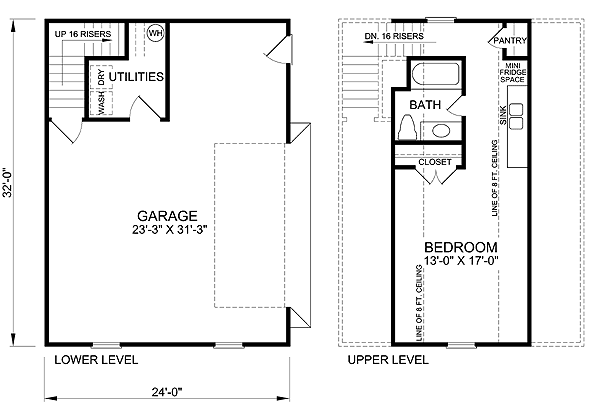

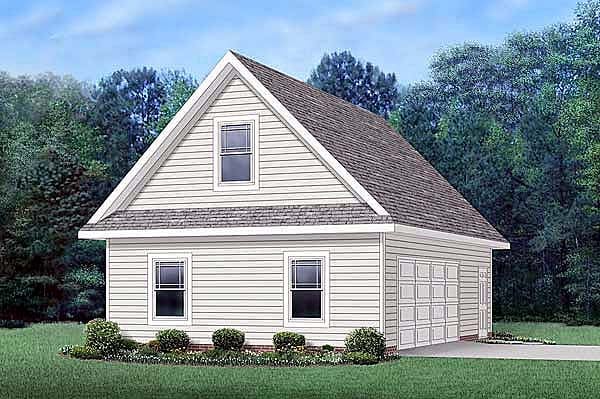

This structure offers a detached garage apartment designed to enhance the value of your property while providing separate living quarters for your college student or renter. Also ideal as a guest house or home office, this plan has a two-car bay and a laundry room. Upstairs you’ll find a spacious bedroom, a private full bath, and a kitchenette with a pantry—all planned for comfort and efficiency within its 480 square feet of heated area.

Plans include complete working drawings.

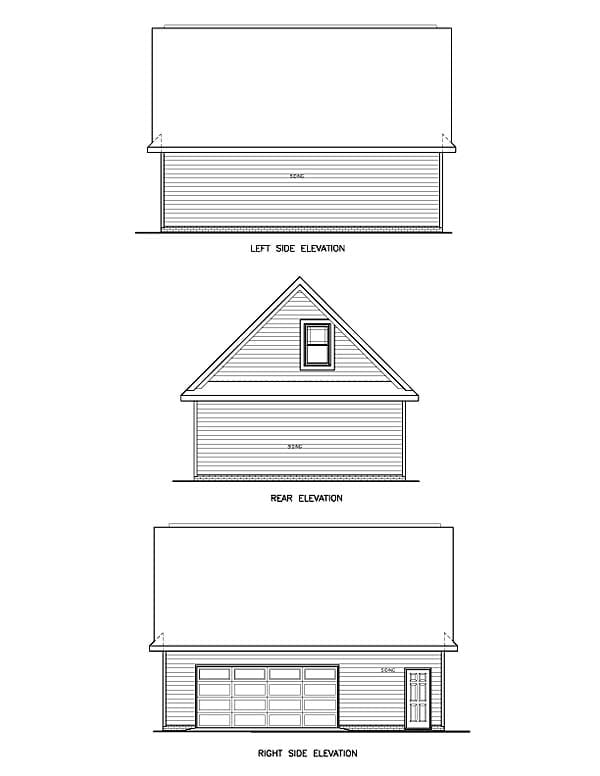

all four elevations (front, sides, and rear)

foundation and details -- all girders, piers, and double joists are dimensioned; floor joist direction, size & spacing are labeled

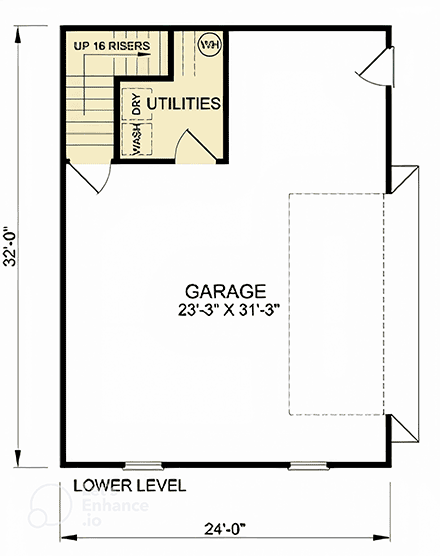

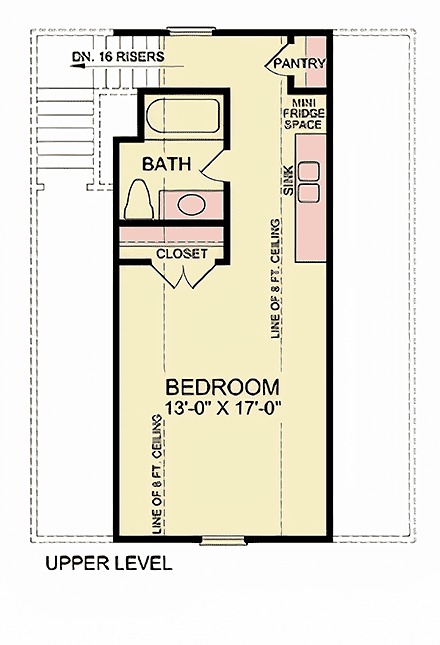

floor plan -- all rooms, door, and windows are labeled and dimensioned; ceiling joist direction, size & spacing are labeled; beams in ceiling are shown and labeled

roof plan -- rafter direction, size & spacing are labeled; all hips, valleys & supports are labeled

millwork such as cabinets & fireplaces

framing -- wall section & details showing each framing end condition

vent calculations -- for attic and foundation

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!
