House Plan 45516
Craftsman Style with 3 Bed, 2 Bath | Plan 45516
sq ft
1382beds
3baths
2bays
0width
31'depth
60'
click for more images
Plan Pricing from $800.00
Plan Pricing
Plans can be ordered with a trussed roof system upon request. Please add to order notes.
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 1382 sq ft |
| Main Living Area: | 1382 sq ft |
| Garage Type: | N/A or Unknown |
| Foundation Types: | Basement - * $125.00 Total Living Area may increase with Basement Foundation option. Crawlspace Slab Stem Wall Slab |
| Exterior Walls: | 2x4 |
| House Width: | 30-5 |
| House Depth: | 59-4 |
| Number of Stories: | 1 |
| Bedrooms: | 3 |
| Full Baths: | 2 |
| Max Ridge Height: | 22-6 from Front Door Floor Level |
| Primary Roof Pitch: | 7:12 |
| Roof Framing: | Stick |
| Porch: | 265 sq ft |
| FirePlace: | Yes |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 9 |
Plan Description

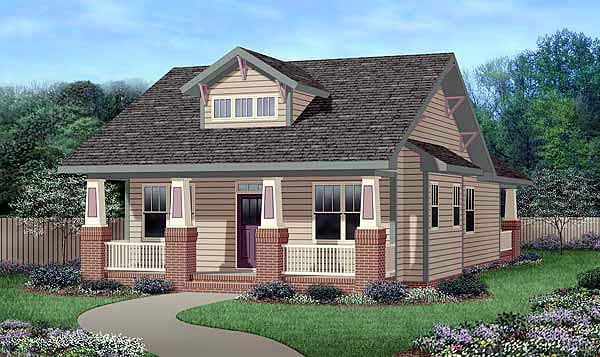

This modern interpretation of the Craftsman bungalows in the 1920s is designed for the family seeking something different and inviting, yet economical. This home offers an efficient floor plan well-suited for a relatively narrow lot. Beyond the charming appearance, you’ll appreciate its cozy comfort and built-in amenities: • Welcoming front porch with substantial brick-and-wood columns • Family room with a fireplace flanked by shelves • Kitchen with a pantry, washer/dryer nook, and access to the back porch for enjoying outdoor meals • Semiformal dining room • Private full bath for the Master bedroom with a double vanity, built-in shelves, and a walk-in closet • A second full bath between the other two bedrooms • Nine-foot ceiling height throughout
What's Included?
Plans include complete working drawings.
all four elevations (front, sides, and rear)
foundation and details -- all girders, piers, and double joists are dimensioned; floor joist direction, size & spacing are labeled

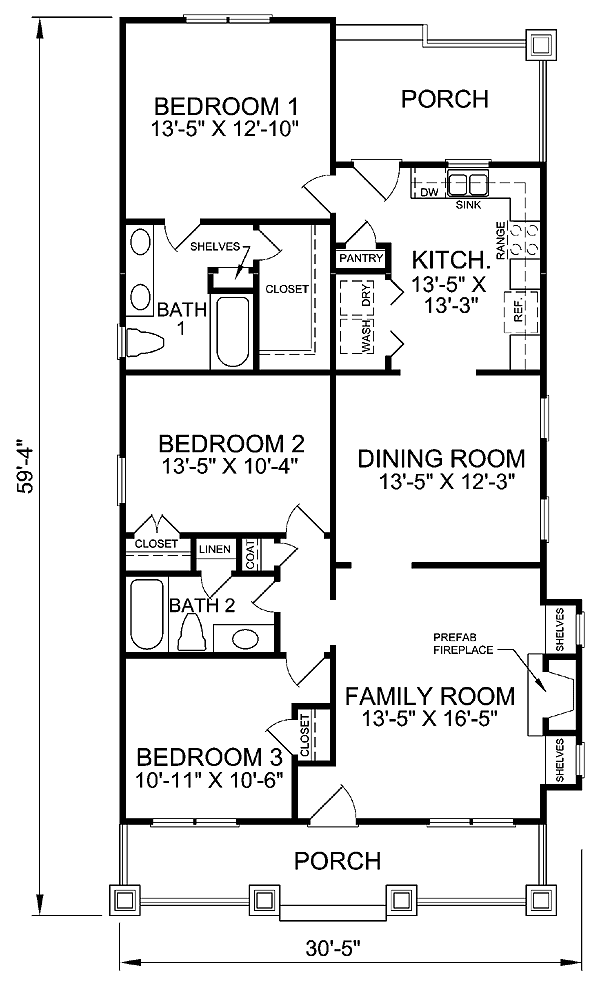

floor plan -- all rooms, door, and windows are labeled and dimensioned; ceiling joist direction, size & spacing are labeled; beams in ceiling are shown and labeled
roof plan -- rafter direction, size & spacing are labeled; all hips, valleys & supports are labeled
millwork such as cabinets & fireplaces
framing -- wall section & details showing each framing end condition
vent calculations -- for attic and foundation
all four elevations (front, sides, and rear)
foundation and details -- all girders, piers, and double joists are dimensioned; floor joist direction, size & spacing are labeled
floor plan -- all rooms, door, and windows are labeled and dimensioned; ceiling joist direction, size & spacing are labeled; beams in ceiling are shown and labeled
roof plan -- rafter direction, size & spacing are labeled; all hips, valleys & supports are labeled
millwork such as cabinets & fireplaces
framing -- wall section & details showing each framing end condition
vent calculations -- for attic and foundation
Modifications
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
Q: Does the slab foundation include where the trenches are located? Does it show the specs on the foundation like depth and length and location of trenches? Does it show the type of rebar?
A: Hey, good question, basically the answer is yes. The foundation sheet has a solid line dictating the outside of the foundation and a dashed line dictating the inside of the foundation. The detail sheet depicts the depth and length and details. We are a NC company and do not show rebar, since NC does not require it, however depending on where you are building we may have specific detail sheet for your area.
Common Q & A
Q: Can I make modifications to this plan?
A: Yes you can! Please click the "Modifications" tab above to get more information.
Q: What is the estimated price to build this plan?
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
