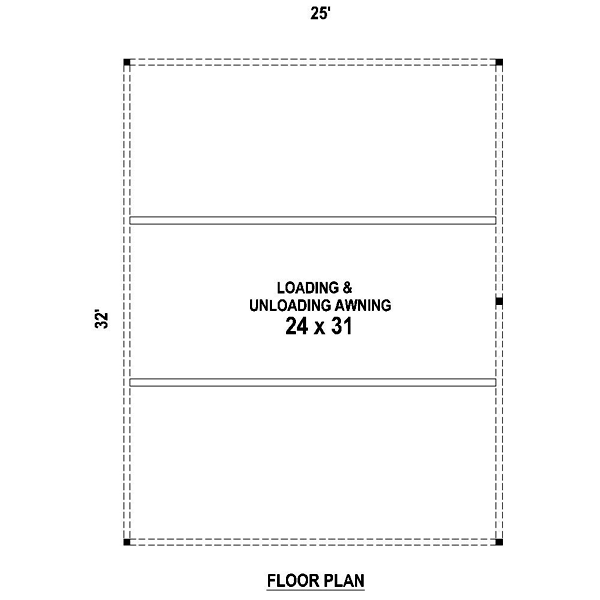

Here is an oversized carport designed to satisfy a variety of needs. For the family with multiple teenaged drivers, this carport plan is an ideal and economical solution for sheltered parking. You can easily protect all cars from Mother Nature’s fury. For those living on ranches and farms, this carport design is much more. Use it for sheltered parking or for a loading and unloading area of work trucks and machinery. No matter what the weather, you’ll have a sheltered place to work. This structure could also provide boat and trailer parking or even serve as a pavilion. The design is supported with 5” posts and provides 800 square feet of covered and usable space. Fashioned for function and multiple purposes, this carport plan is worth taking a second look.
a)Floor Plans: House plan drawings indicating dimensions for construction.
b)Roof Plan: Drawings indicating roof slopes and unique conditions.
c)Exterior Elevations: Drawings showing appearance and the types of materials used in the construction.
d)Building Sections: Drawings cut through important locations in the structure.
e)Construction Details: Drawings showing specific construction of building elements at a large scale.
f)Electrical Plans: General electrical layout - light fixture and outlet locations, circuit diagrams.
g)SLAB Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure.
h)A building license: “A single-use licensed for construction at one location only.” If design is to be used at subsequent locations, a discounted re-use license is required.
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
We are sorry, but an estimated cost build report is not available for this particular plan.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
Q:what are the details of the materials for this plan and the pitch
A:The roof pitch is 4:12.
We do not do materials lists however, you can get one done from your local
supplier usually at no charge. The materials used for this structure are all metal.
The plan details are included in the working drawings that must be purchased.
Have a good day.
Common Q & A
Q:Can I make modifications to this plan?
A:Yes you can! Please click the "Modifications" tab above to get more information.
Q:What is the estimated price to build this plan?
A:The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
