2 Car Garage Apartment Plan 47080

• PDF File: $876.00
• 5 Sets: $672.00
• CAD File: $1,080.00
  Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $210.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $48.00

Please take note that the designer's office will be closed December 23, 2024 – January 1, 2025 to celebrate Christmas and the New Year. They will resume on January 2, 2025.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Bonus Area:	454 sq ft
Garage Area:	716 sq ft
Garage Type:	Detached
Garage Bays:	2
Foundation Types:	Slab
Exterior Walls:	2x4
House Width:	25'
House Depth:	29'
Number of Stories:	2
Max Ridge Height:	25' from Front Door Floor Level
Primary Roof Pitch:	14:12
Roof Framing:	Unknown
Main Ceiling Height:	9'
Upper Ceiling Height:	9'

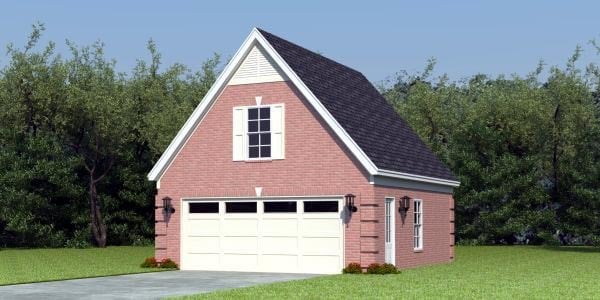

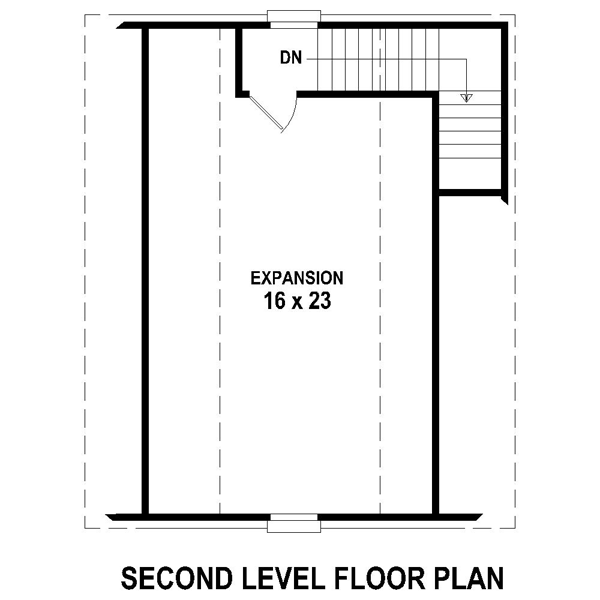

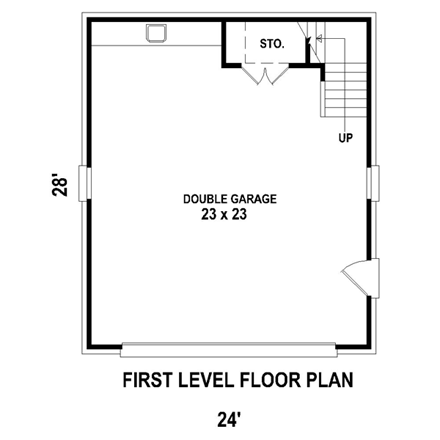

Window shutters and corner quoins accent the brick façade of this detached two-car garage plan while a reverse gable roofline rests above. An overhead garage door and a side-entry service door lend access to the double garage on the main level boasting 716 square feet of usable space. Thoughtful extras include a storage closet and counter space. You’ll appreciate the room to grow on the second level where a loft provides 454 square feet of expansion space. Use the loft for storage or as finished and usable space. Perhaps you need a quiet place for your home based business or an exercise room for working out. This space can accommodate your needs. Or consider this a future addition and finish it a few years from now. Maybe you’ll need a hobby room, game room or home theater down the road. Flexible and accommodating, this garage loft plan with storage is a valuable addition to any home.

a)Floor Plans: House plan drawings indicating dimensions for construction.

b)Roof Plan: Drawings indicating roof slopes and unique conditions.

c)Exterior Elevations: Drawings showing appearance and the types of materials used in the construction.

d)Building Sections: Drawings cut through important locations in the structure.

e)Construction Details: Drawings showing specific construction of building elements at a large scale.

f)Electrical Plans: General electrical layout - light fixture and outlet locations, circuit diagrams.

g)SLAB Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure.

h)A building license: “A single-use licensed for construction at one location only.” If design is to be used at subsequent locations, a discounted re-use license is required.

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!
