2 Car Garage Apartment Plan 47090

• PDF File: $876.00
• 5 Sets: $672.00
• CAD File: $1,080.00
  Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $210.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $48.00

Please take note that the designer's office will be closed December 23, 2024 – January 1, 2025 to celebrate Christmas and the New Year. They will resume on January 2, 2025.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	655 sq ft
Upper Living Area:	655 sq ft
Garage Area:	651 sq ft
Garage Type:	Detached
Garage Bays:	2
Foundation Types:	Slab
Exterior Walls:	2x4
House Width:	23'
House Depth:	29'
Number of Stories:	2
Bedrooms:	1
3/4 Baths:	1
Primary Roof Pitch:	0
Roof Framing:	Unknown

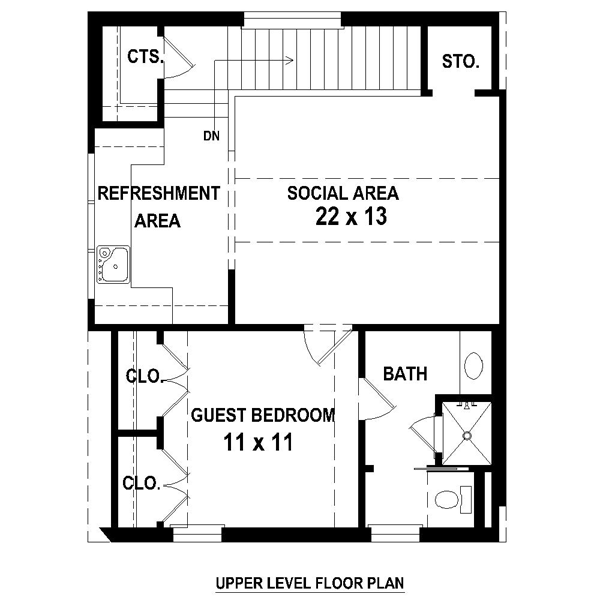

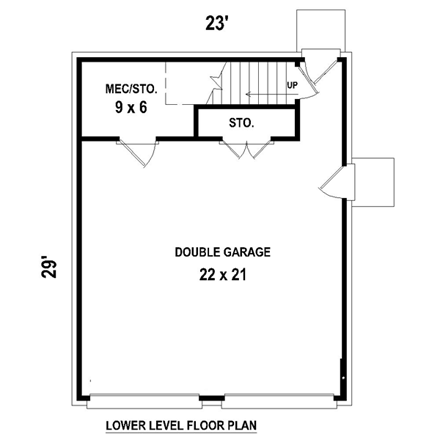

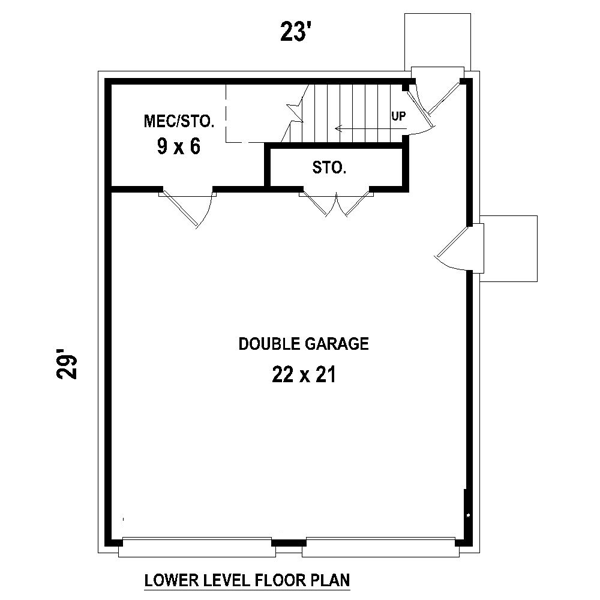

Stylish European details dress up the exterior of this 2-car garage apartment plan lending Tudor style flair and curb appeal. Dual overhead doors open to reveal 651 square feet of parking and storage on the main level. Don’t miss the two convenient service doors providing immediate access to your cars inside. At the top of the stairs, a 655 square foot apartment is just right for an in-law suite or live-in help such as the nanny or caretaker. The living quarters offer a combined kitchenette and gathering area complete with coat closet and storage closet. The private bedroom is outfitted with double closet offering abundant storage space. A full bath completes the finished living areas. As stylish as it is functional, this carriage house plan with storage is second to none!

a)Floor Plans: House plan drawings indicating dimensions for construction.

b)Roof Plan: Drawings indicating roof slopes and unique conditions.

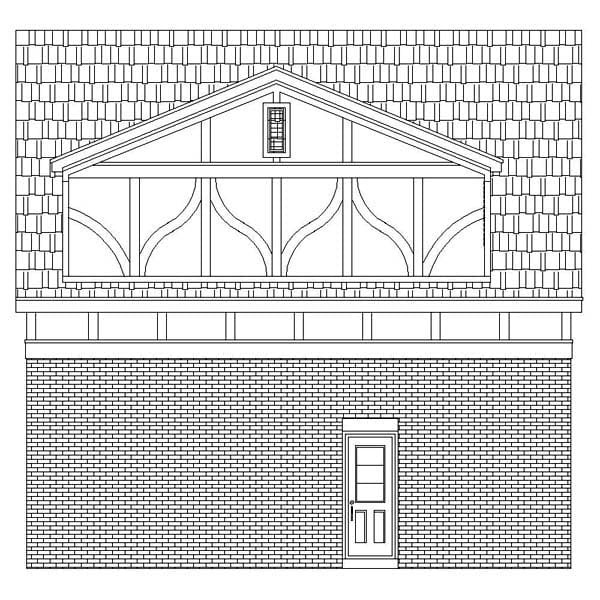

c)Exterior Elevations: Drawings showing appearance and the types of materials used in the construction.

d)Building Sections: Drawings cut through important locations in the structure.

e)Construction Details: Drawings showing specific construction of building elements at a large scale.

f)Electrical Plans: General electrical layout - light fixture and outlet locations, circuit diagrams.

g)SLAB Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure.

h)A building license: “A single-use licensed for construction at one location only.” If design is to be used at subsequent locations, a discounted re-use license is required.
