4 Car Garage Plan 47093

• PDF File: $876.00
• 5 Sets: $672.00
• CAD File: $1,080.00
  Single Build License issued on CAD File orders.
• Right Reading Reverse: $210.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $48.00

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

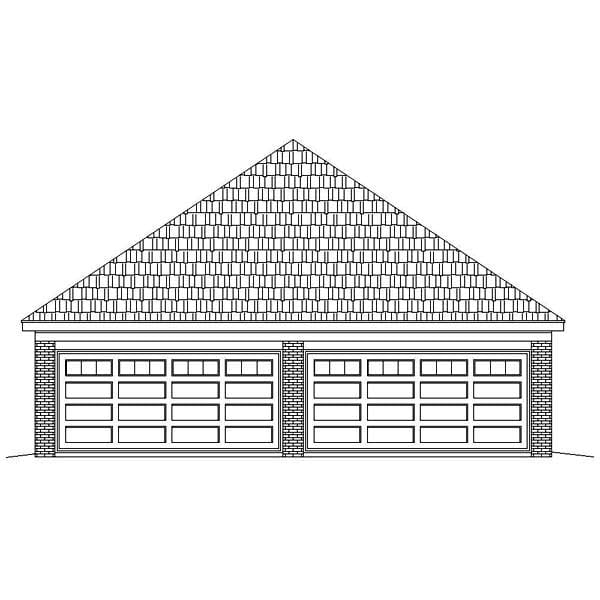

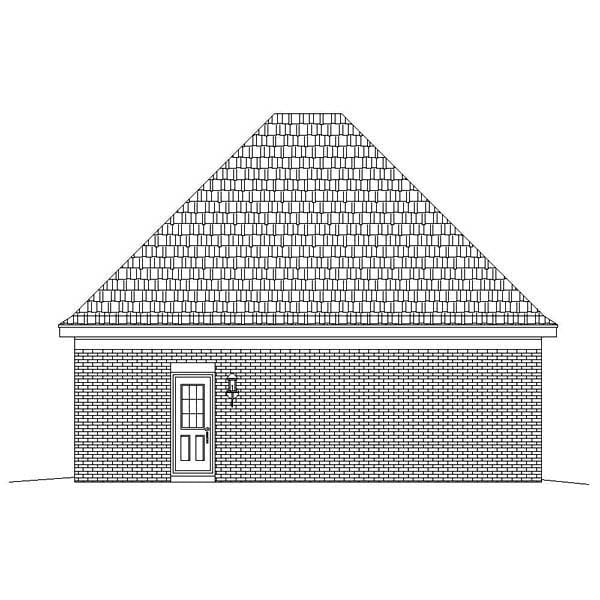

Car and boating enthusiasts will love this detached, 4-car garage plan. Outfitted with dual overhead garage doors and a side-entry service door, this garage floor plan is practical and convenient. Whether you prefer to restore old cars or just have a growing family fleet, you’ll find plenty of parking inside this 1313 square foot design. Maybe you only need to park a couple of cars. Use the remaining space for mechanics tools or other storage. Or, perhaps you have a fishing boat or ski boat. Extra deep bays easily accommodate a boat and trailer. For those who love water sports, this garage can hold everything from your boat and the truck that pulls it to the lake to a pair of jet skis or even canoes and kayaks. A half bath delivers an unexpected convenience. Fashioned with traditional styling and a classic brick exterior, this boat storage garage plan will blend nicely with a variety of architectural home styles.

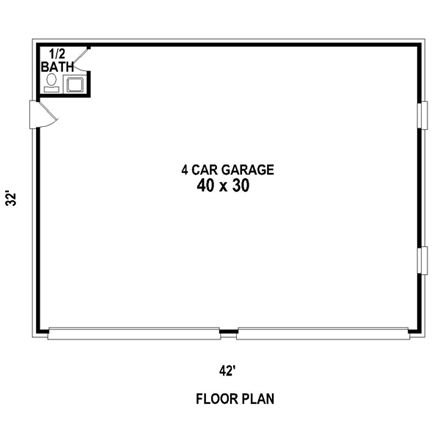

Garage Area:	1313 sq ft
Garage Type:	Detached
Garage Bays:	4
Foundation Types:	Slab
Exterior Walls:	2x4
House Width:	42'
House Depth:	32'
Number of Stories:	1
Half Baths:	1
Primary Roof Pitch:	0
Roof Framing:	Unknown

a)Floor Plans: House plan drawings indicating dimensions for construction.

b)Roof Plan: Drawings indicating roof slopes and unique conditions.

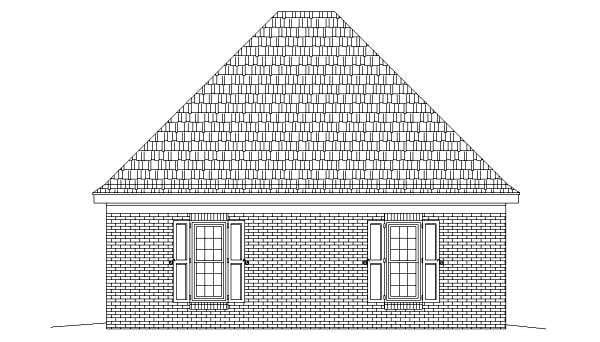

c)Exterior Elevations: Drawings showing appearance and the types of materials used in the construction.

d)Building Sections: Drawings cut through important locations in the structure.

e)Construction Details: Drawings showing specific construction of building elements at a large scale.

f)Electrical Plans: General electrical layout - light fixture and outlet locations, circuit diagrams.

g)SLAB Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure.

h)A building license: “A single-use licensed for construction at one location only.” If design is to be used at subsequent locations, a discounted re-use license is required.

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

We are sorry, but an estimated cost build report is not available for this particular plan.
