2 Car Garage Apartment Plan 47170
2 Car Garage Apartment with 1 Bed, 1 Bath | Plan 47170
Plan Pricing from $876.00
Plan Pricing
Please take note that the designer's office will be closed December 23, 2024 – January 1, 2025 to celebrate Christmas and the New Year. They will resume on January 2, 2025.
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 815 sq ft |
| Upper Living Area: | 815 sq ft |
| Garage Area: | 771 sq ft |
| Garage Type: | Detached |
| Garage Bays: | 2 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x4 |
| House Width: | 25' |
| House Depth: | 33' |
| Number of Stories: | 2 |
| Bedrooms: | 1 |
| 3/4 Baths: | 1 |
| Primary Roof Pitch: | 0 |
| Roof Framing: | Unknown |
Plan Description
Boating enthusiasts and fishermen, pay attention to this boat storage garage plan with flex space! Not only does it offer 771 square feet of parking and extra deep bays, but it also accommodates dog owners with a dog’s room at the back of the 2-car garage with outdoor access to a dog run. The garage area easily handles two oversized vehicles or a boat and trailer and one car. It also offers a storage closet, ideal for all your boating and finishing needs neatly holding lifejackets, towels, fishing poles, tackle and other supplies. Another storage space is positioned under the stairs. Don’t miss the laundry facilities. You’ll appreciate the nearby convenience of the washer and dryer after a day at the lake. Simply throw beach towels, swim suits and other wet clothing items in the laundry as you unload the boat saving steps to the laundry room in the house. Now take a look upstairs. The loft flex space is neatly arranged as a photography studio complete with dark room, storage closet and built-in shelves and window seat. However, this flexible space could satisfy other needs if you desire. With its full bath, it could be finished as a guest suite. Or, maybe you own a home-based business. Finish the studio as an office instead giving you a place to work in peace and meet with clients without disturbing the rest of the home. Two decks/balconies enhance the 815 square foot finished living area. A one-of-a-kind design, this 2-car garage loft plan is the perfect accompaniment to almost any home.
What's Included?
a)Floor Plans: House plan drawings indicating dimensions for construction.
b)Roof Plan: Drawings indicating roof slopes and unique conditions.
c)Exterior Elevations: Drawings showing appearance and the types of materials used in the construction.
d)Building Sections: Drawings cut through important locations in the structure.
e)Construction Details: Drawings showing specific construction of building elements at a large scale.
f)Electrical Plans: General electrical layout - light fixture and outlet locations, circuit diagrams.
g)SLAB Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure.
h)A building license: “A single-use licensed for construction at one location only.” If design is to be used at subsequent locations, a discounted re-use license is required.
b)Roof Plan: Drawings indicating roof slopes and unique conditions.
c)Exterior Elevations: Drawings showing appearance and the types of materials used in the construction.
d)Building Sections: Drawings cut through important locations in the structure.
e)Construction Details: Drawings showing specific construction of building elements at a large scale.
f)Electrical Plans: General electrical layout - light fixture and outlet locations, circuit diagrams.
g)SLAB Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure.
h)A building license: “A single-use licensed for construction at one location only.” If design is to be used at subsequent locations, a discounted re-use license is required.
Modifications
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
Q: roof pitch?
A: The ridge height for this design is 28'-8". The roof pitch over the garage area is 15:12 and the pitch of the upstairs dormers is 10:12.
Common Q & A
Q: Can I make modifications to this plan?
A: Yes you can! Please click the "Modifications" tab above to get more information.
Q: What is the estimated price to build this plan?
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Call 800-482-0464
Photographs may show modified designs.

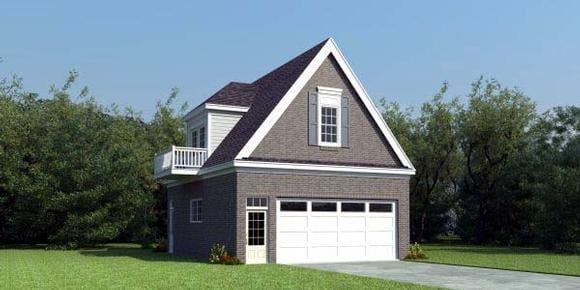

Elevation

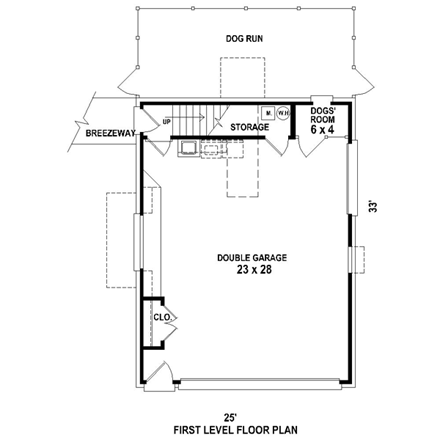

Level One

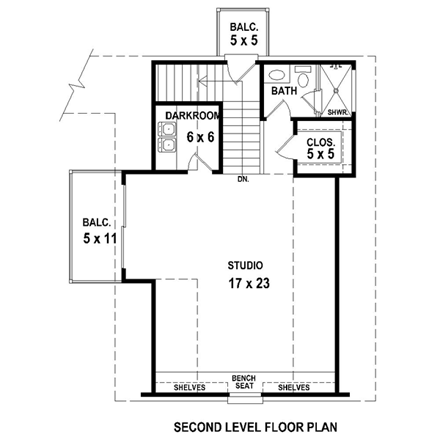

Level Two
Quick Specs
815 Total Living Area815 Upper Level
1 Bedrooms
, 1 3/4 Baths
2 Car Garage
25' W x 33' D
Quick Specs
815 Total Living Area1 Bedrooms
, 1 3/4 Baths
2 Car Garage
25' W x 33' D
