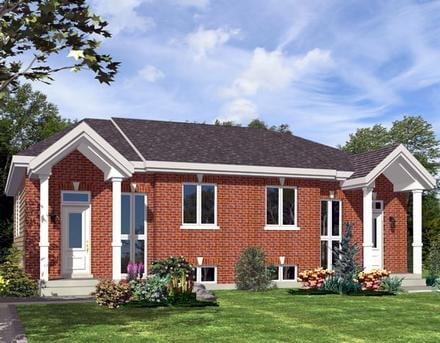

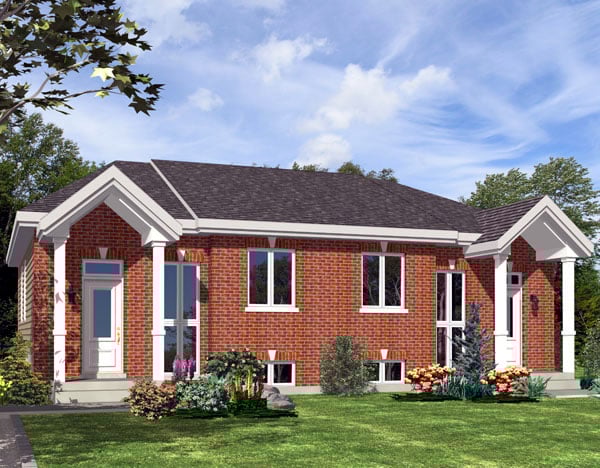

Multi-Family Plan 48247

• PDF File: $2,055.00
• 1 Set: $1,495.00 **
• 3 Sets: $1,545.00
• 4 Sets: $1,575.00
• 5 Sets: $1,595.00
• 8 Sets: $1,695.00
• CAD File Unlimited Build: $3,055.00
  Unlimited Build License issued on CAD File Unlimited Build orders.
• Materials List: $150.00
• Right Reading Reverse: $150.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $50.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.
DELAY: Please take note that the designer's office will be closed from Friday December 20, 2024 to Sunday January 5, 2025 inclusively, for the Holiday season. All request will be answer after this date.

Available Foundation Types:

• Basement : No Additional Fee
  Total Living Area may increase with Basement Foundation option.

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	3124 sq ft
Lower Living Area:	1560 sq ft
Main Living Area:	1564 sq ft
Garage Type:	None
Foundation Types:	Basement
Exterior Walls:	2x6
House Width:	44'0
House Depth:	36'0
Number of Stories:	2
Bedrooms:	4
Full Baths:	2
Max Ridge Height:	21'7 from Front Door Floor Level
Primary Roof Pitch:	10:12
Roof Load:	40 psf
Roof Framing:	Truss
Porch:	80 sq ft
Deck:	58 sq ft
1st Floor Master:	Yes
Main Ceiling Height:	8

* May require additional drawing time.

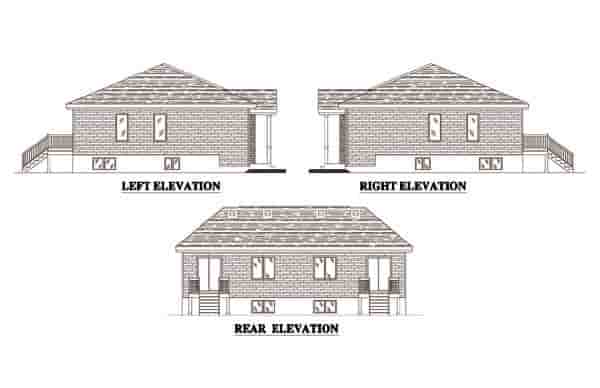

Exterior Elevations: show the front, rear and sides of the house, including exterior materials, details and measurements.

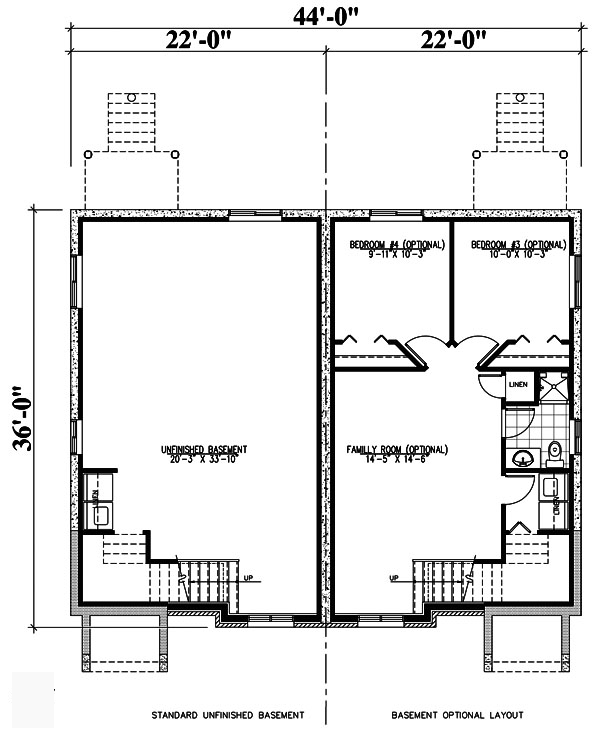

Foundation Plans: All necessary notations and dimensions are included. (Foundation options will vary for each plan. If the home you want does not have the type of foundation you desire, contact Familyhomeplans.com of your plan.)

Interior Elevations: (call 1-800-235-5700 before ordering to confirm availability) show the specific details of cabinets (kitchen, bathroom). We suggest contacting local cabinet and fireplace distributors for sizes and styles.

Schematic Electrical Layouts: (call 1-800-236-5700 before ordering to confirm availability) show the suggested locations for switches, fixtures and outlets. These details may be shown on the floor plan or on a separate diagram.

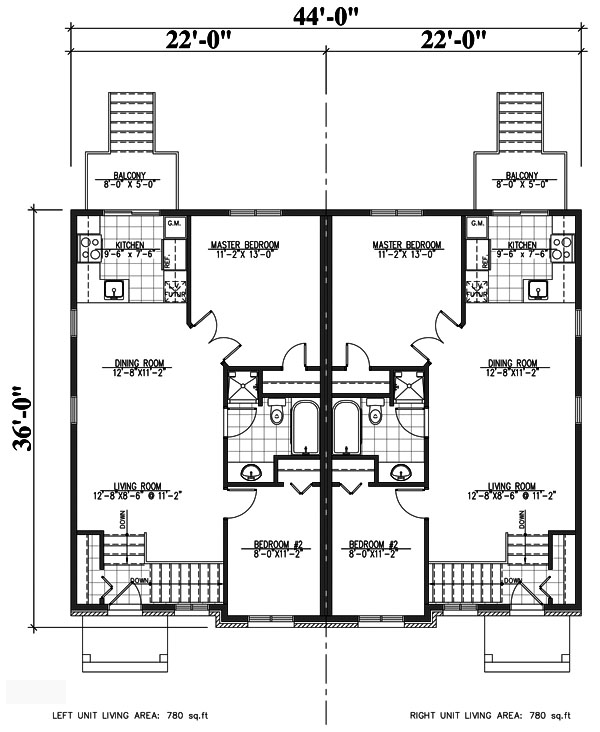

Detailed Floor Plans: show the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc., of each level of the house.

NOTE: Due to regional variations, local availability of materials, local codes, methods of installation, and individual preferences, it is impossible to include detail on heating and plumbing work on your plans. The duct work, venting, and other details will vary depending on the type of heating and cooling system (forced air, hot water, electric, solar) and the type of energy (gas, oil, electricity, solar) that you use. These details and specifications are easily obtained from your builder, contractor, and/or local suppliers.

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!
