Plan Pricing from $410.00

Plan Pricing

PDF File: $410.00
CAD File: $560.00
Single Build License issued on CAD File orders.
Materials List: $50.00
Right Reading Reverse: $50.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Need Printed Sets?

It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.

Available Foundation Types:

Stem Wall Slab : No Additional Fee

Available Exterior Wall Types:

2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

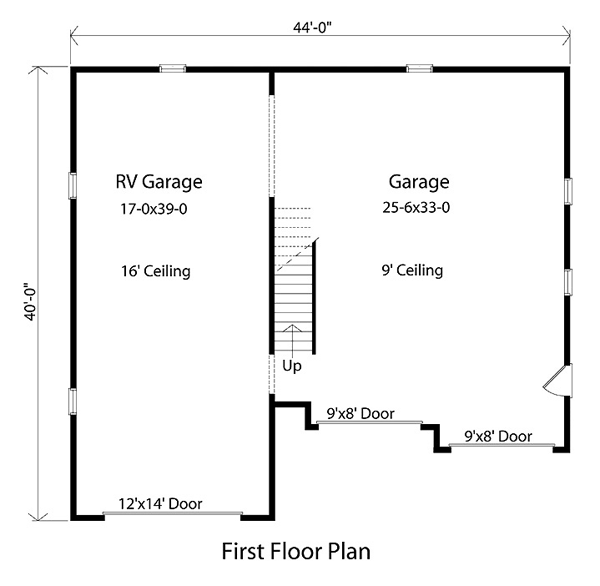

Specifications

Bonus Area:	364 sq ft
Garage Area:	1760 sq ft
Garage Type:	Detached
Garage Bays:	3
Foundation Types:	Stem Wall Slab
Exterior Walls:	2x6
House Width:	44'
House Depth:	40'
Number of Stories:	2
Max Ridge Height:	25' from Front Door Floor Level
Primary Roof Pitch:	9:12
Roof Load:	40 psf
Roof Framing:	Truss
Main Ceiling Height:	16'

What's Included?

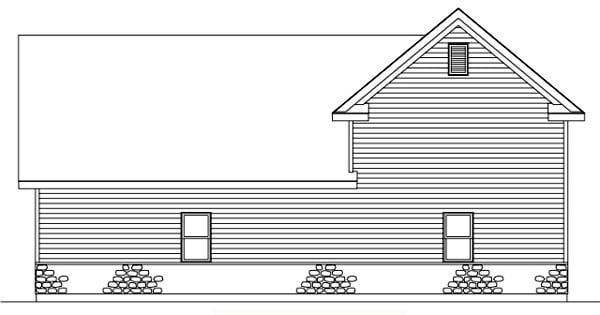

These blueprints will include building specifications, foundation plan, floor plans, exterior elevations, electrical plans, interior cabinet elevations, wall sections and stair details. Some of the larger plans will have additional details.

All plans have been drawn to meet the requirements of the national building codes. Your builder will be able to determine if minor modifications may need to be made to the plans to meet the local building code requirements including any subdivision requirements.

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Previous Q & A

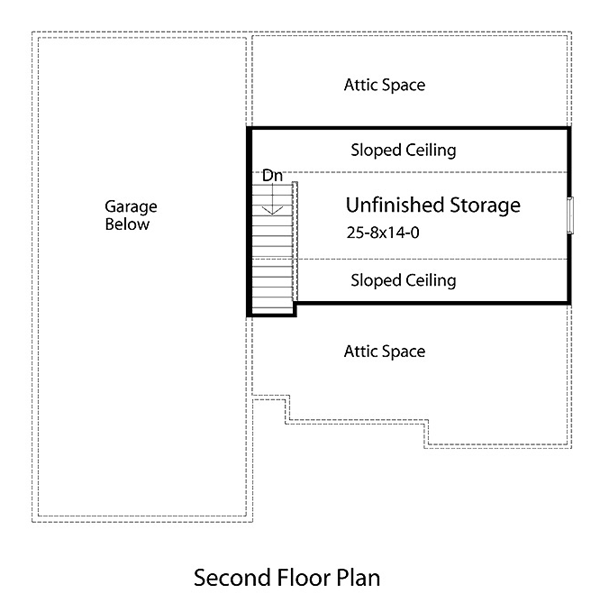

Q: I really like this design, the RV storage and loft combination is hard to find. What is the head space in the loft, both in the center and the sloped edges? Also, would it be possible to access the attic space from the loft as well as from below?

A: Good Afternoon,

The walls on the second floor between the loft and attic are about 6 1/2 feet tall. The ceilings then slope up to 8' and flatten out. I do show an attic access panel from the loft to attic spaces because they are required by code. If you are thinking about capturing that attic space for additional storage you will need to have larger access panels and will need to inform your truss supplier so they can design the attic trusses accordingly.

Mike Whelan

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
