Plan Pricing from $620.00

Plan Pricing

PDF File: $620.00
CAD File: $720.00
Single Build License issued on CAD File orders.
Materials List: $80.00
Right Reading Reverse: $75.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Need Printed Sets?

It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.

Available Foundation Types:

Stem Wall Slab : No Additional Fee

Available Exterior Wall Types:

2x4: No Additional Fee
2x6: $75.00
(Please call for drawing time.)

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

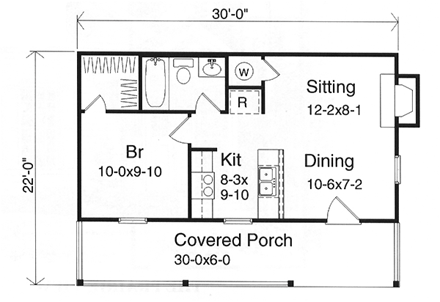

Specifications

Total Living Area:	480 sq ft
Main Living Area:	480 sq ft
Garage Type:	None
See our garage plan collection. If you order a house and garage plan at the same time, you will get 10% off your total order amount.
Foundation Types:	Stem Wall Slab
Exterior Walls:	2x4 2x6 - * $75.00
House Width:	30'
House Depth:	22'
Number of Stories:	1
Bedrooms:	1
Full Baths:	1
Max Ridge Height:	15' from Front Door Floor Level
Primary Roof Pitch:	6:12
Roof Load:	40 psf
Roof Framing:	Truss
Porch:	180 sq ft
FirePlace:	Yes
Main Ceiling Height:	8'

* May require additional drawing time.

What's Included?

These blueprints will include building specifications, foundation plan, floor plans, exterior elevations, electrical plans, interior cabinet elevations, wall sections and stair details. Some of the larger plans will have additional details.

All plans have been drawn to meet the requirements of the national building codes. Your builder will be able to determine if minor modifications may need to be made to the plans to meet the local building code requirements including any subdivision requirements.

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Cost To Build

No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide you with a 10% discount code in your receipt for when you decide to order any plan on our website that will more than pay you back!
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
Your estimate is active for 1 FULL YEAR!

View Sample

demo purposes only

Purchase

$24.95 per plan

** Available for U.S. only.

QUICK Cost-To-Build estimates have the following assumptions:

QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.

Q & A

Previous Q & A

Q: Where is the Furnace, Water heater, and breaker panel located? Also, can the roof have solar panels without structural changes to bear the load?

A: Good Morning, There are two options noted on the floor plans. One option is to have a mini split ductless system. The other option is to locate the furnace on a shelf above the water heater. You will need to inform your truss supplier of your intentions to add solar panels. They will design the trusses accordingly. The roof trusses are intended to be 3-point bearing. That means the trusses bear on the rear wall, front wall and porch beam. The only thing that should be double checked would be the porch beam.

Q: What is the total foot print of the house including the porch?

A: Good Afternoon, The total square footage of this house including the front porch is 670. Mike

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
