Multi-Family Plan 49150

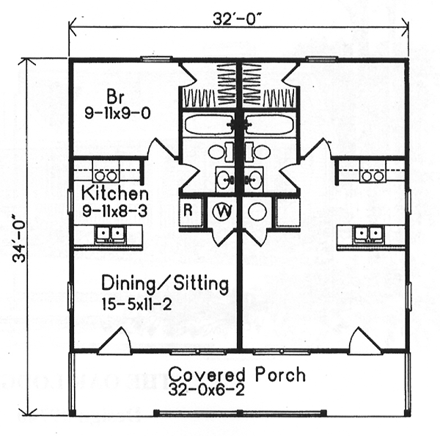

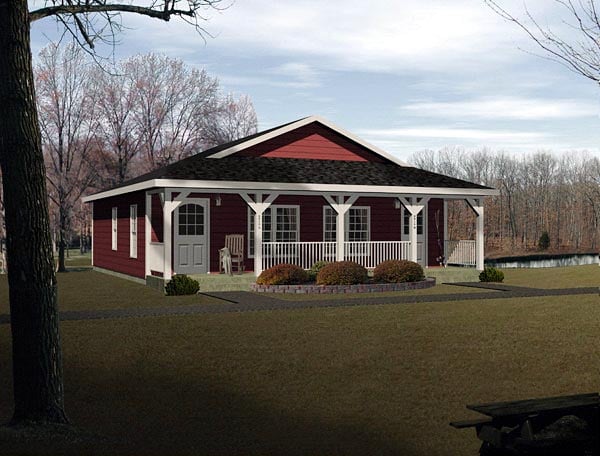

One-Story Style with 2 Bed, 2 Bath | Plan 49150
sq ft
896beds
2baths
2bays
0width
32'depth
34'
Plan Pricing
Need Prints?
It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 896 sq ft |
| Main Living Area: | 448 sq ft |
| Garage Type: | None |
| Foundation Types: | Stem Wall Slab |
| Exterior Walls: | 2x4 2x6 - * $75.00 |
| House Width: | 32' |
| House Depth: | 34' |
| Number of Stories: | 1 |
| Bedrooms: | 2 |
| Full Baths: | 2 |
| Max Ridge Height: | 16' from Front Door Floor Level |
| Primary Roof Pitch: | 5:12 |
| Roof Load: | 40 psf |
| Roof Framing: | Truss |
| Porch: | 192 sq ft |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 8' |
What's Included?
All plans have been drawn to meet the requirements of the national building codes. Your builder will be able to determine if minor modifications may need to be made to the plans to meet the local building code requirements including any subdivision requirements.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: Yes, the common wall between the units is a firewall. Because the trusses run perpendicular to this wall, the firewall does not extend to the roof decking. Instead, I had to use fire rated gypsum on the ceilings of each unit.
A: Good Morning, That is the water heater. Designed as a weekend place, there are no washer and dryer hookups on this plan.
A: The bath is 5x7-9 and the closet is 5’x4-5
A: You could add the solar panels to the roof. You will want to coordinate this addition with your truss supplier. The roof trusses are designed and fabricated by a local truss supplier. They will design the trusses accordingly by taking into account the loading conditions in your area. They will need to know exactly what you will be adding so they can adjust for the extra weight in their designs. Mike
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
