Plan Pricing from $410.00

Plan Pricing

PDF File: $410.00
CAD File: $560.00
Single Build License issued on CAD File orders.
Materials List: $50.00
Right Reading Reverse: $50.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Need Printed Sets?

It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.

Additional Notes

3-9x8 overhead doors

Available Foundation Types:

Stem Wall Slab : No Additional Fee

Available Exterior Wall Types:

2x4: No Additional Fee
2x6: $50.00
(Please call for drawing time.)

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Bonus Area:	742 sq ft
Garage Area:	880 sq ft
Garage Type:	Detached
Garage Bays:	3
Foundation Types:	Stem Wall Slab
Exterior Walls:	2x4 2x6 - * $50.00
House Width:	40'
House Depth:	22'
Number of Stories:	2
Max Ridge Height:	24'6 from Front Door Floor Level
Primary Roof Pitch:	12:12
Roof Load:	40 psf
Roof Framing:	Truss
Main Ceiling Height:	9'
Upper Ceiling Height:	8'

* May require additional drawing time.

Plan Description

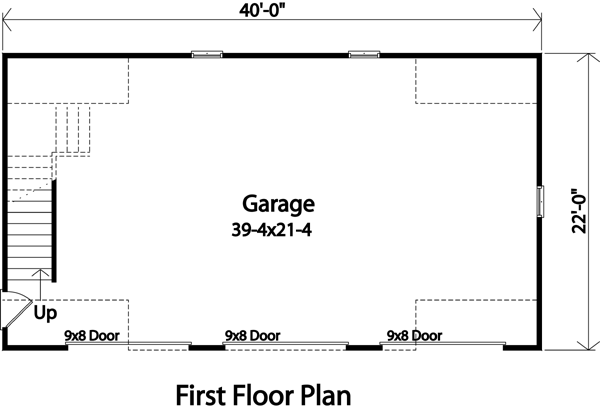

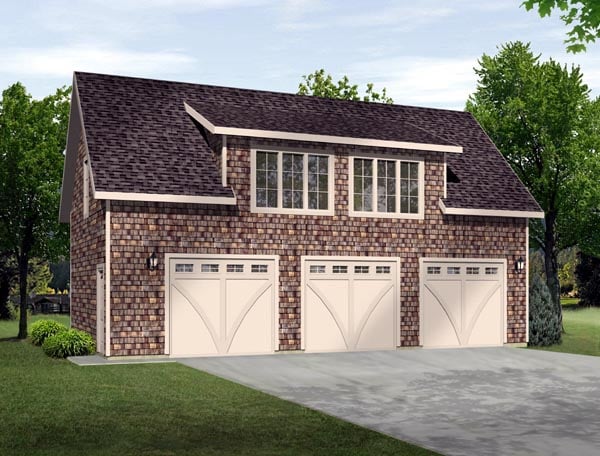

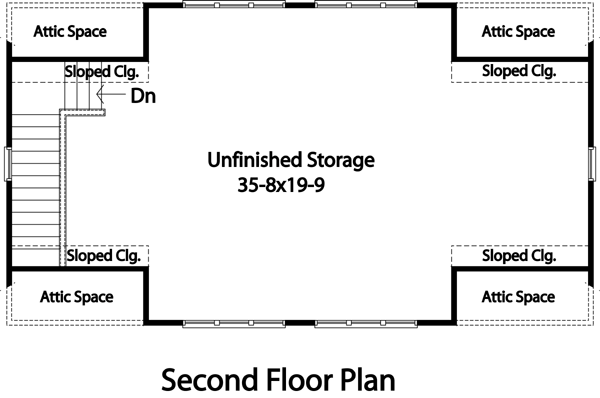

Are you looking for extra space to park the family cars with plenty of room for storage? Check out this three-car garage plan with loft. The garage area features 880 square feet of sheltered parking, three 9’x8’ overhead doors and interior stairs leading to the loft above. Perfect for storage or even a finished space in the future, the upper level provides 742 square feet of storage space brightened with an array of windows. This garage plan with loft is the perfect complement to any home.

What's Included?

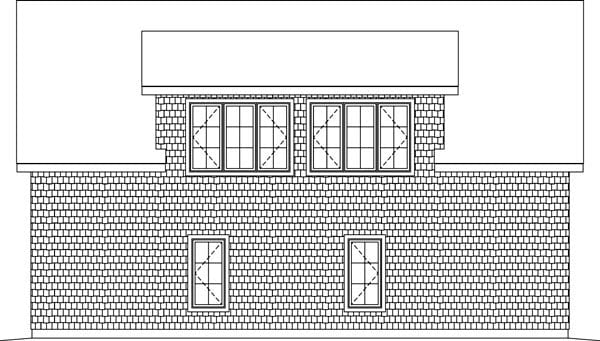

These blueprints will include building specifications, foundation plan, floor plans, exterior elevations, electrical plans, interior cabinet elevations, wall sections and stair details. Some of the larger plans will have additional details.

All plans have been drawn to meet the requirements of the national building codes. Your builder will be able to determine if minor modifications may need to be made to the plans to meet the local building code requirements including any subdivision requirements.

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Previous Q & A

Q: a couple of questions if you please. A. is the upstairs and roofing an engineered truss system? B. Can this be built on a 2' high foundation for additional ceiling height? C. Can it be built on a slab with additional ceiling height using 2"x6" walls? Thanks.....Chuck

A: Chuck, Thank you for your interest in our plans. The plans do call out for pre-engineered trusses which would have to be designed locally by a truss manufacturer. There also are TJI floor joists that make up the middle section of the second floor. Any modifications to the slab, foundation walls, or wall heights to create additional ceiling heights would have to be modified locally. We do have a 2x6 version available for that plan. Also we have a reproducible vellum and CAD file available that would make modifications easier. You can take either of those options to a local design professional to make the changes for you. Thanks.

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
