Garage-Living Plan 50591

• PDF File: $700.00
• 5 Sets plus PDF File: $1,025.00
• PDF File Unlimited Build: $825.00
  Unlimited Build License issued on PDF File Unlimited Build orders.
• CAD File: $1,150.00
  Single Build License issued on CAD File orders.
• CAD File Unlimited Build: $1,275.00
  Unlimited Build License issued on CAD File Unlimited Build orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $195.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Available Foundation Types:

• Stem Wall Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: $175.00
  (Please call for drawing time.)
• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	434 sq ft
Upper Living Area:	434 sq ft
Garage Area:	2016 sq ft
Garage Type:	Detached
Garage Bays:	3
Foundation Types:	Stem Wall Slab
Exterior Walls:	2x4 - * $175.00 2x6
House Width:	52'9
House Depth:	56'0
Number of Stories:	2
Bedrooms:	1
Full Baths:	1
Half Baths:	1
Max Ridge Height:	26'8 from Front Door Floor Level
Primary Roof Pitch:	9:12
Roof Framing:	Truss
Main Ceiling Height:	12'6
Upper Ceiling Height:	8'

* May require additional drawing time.

Special Features:

• 2nd Floor Balcony
• Bonus Room
• Front Porch
• Storage Space

A typical plan includes...

Pages
1. Notes
2. Basement/Foundation

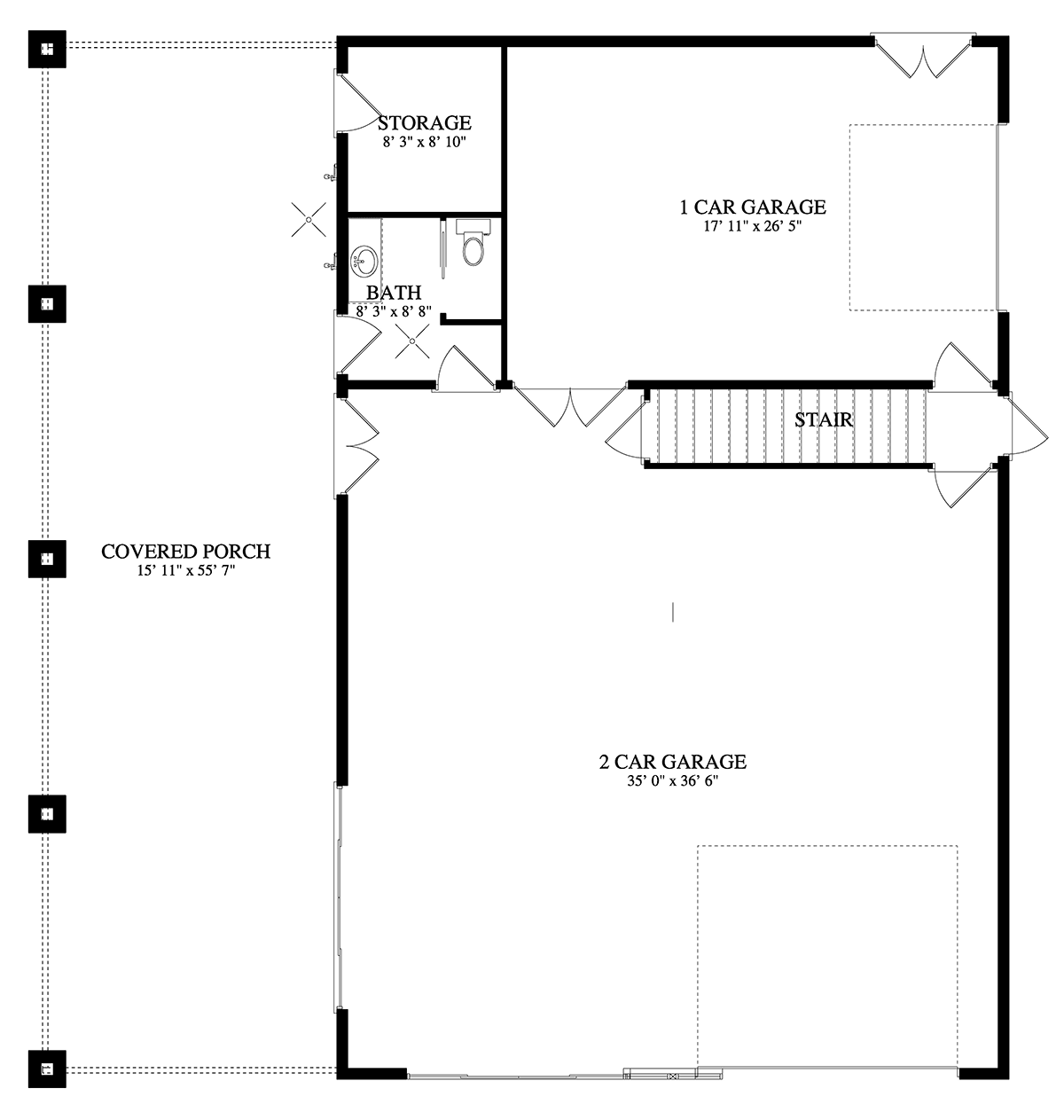

3. Main Floor

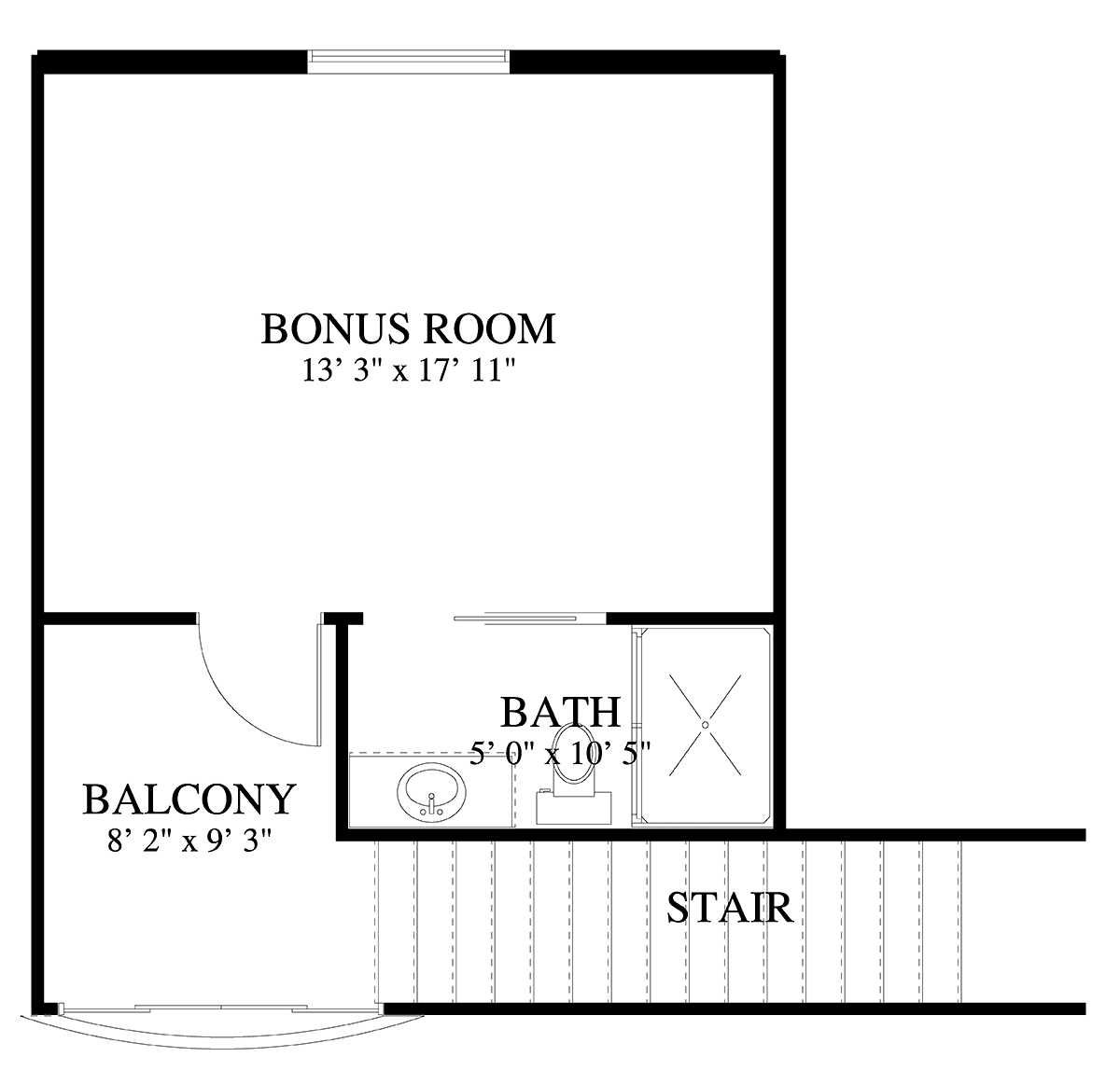

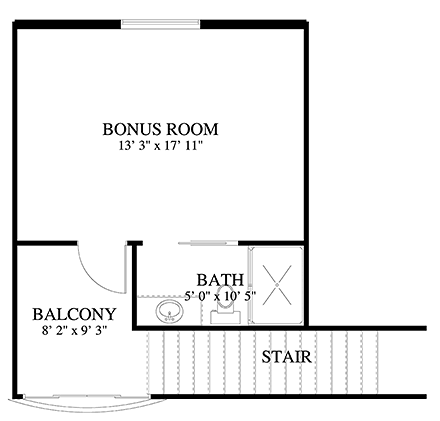

4. Upper Floor
5. Main Floor Framing
6. Upper Floor Framing
7. Roof Framing

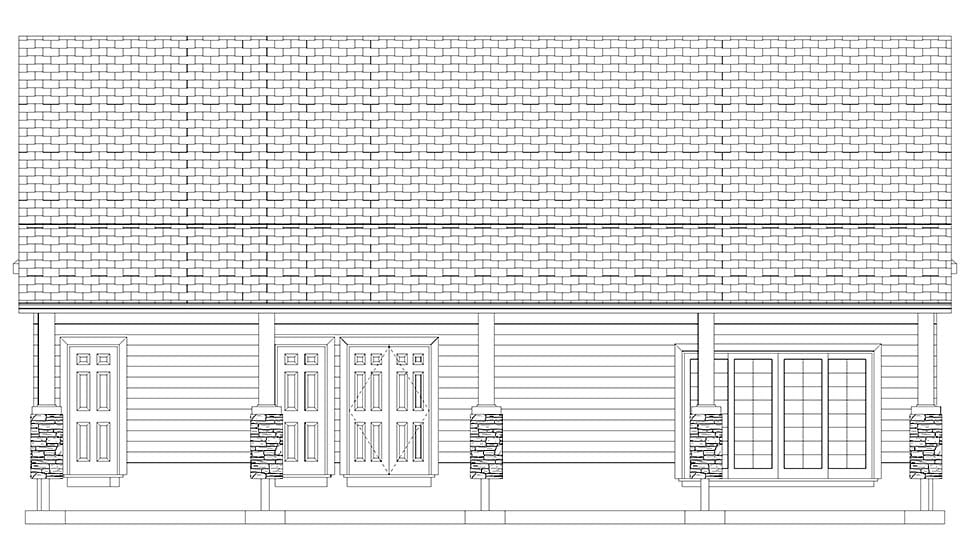

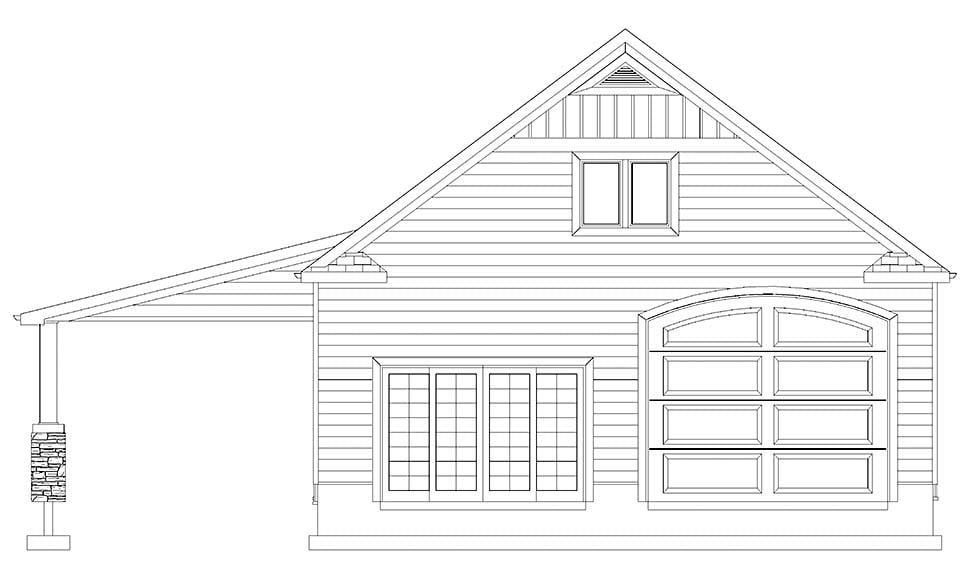

8. Front/Rear Elevations

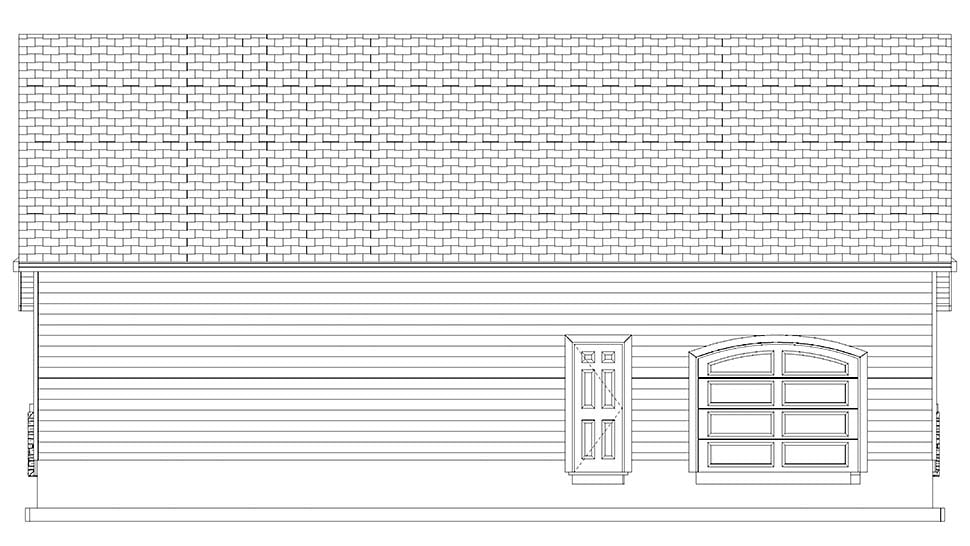

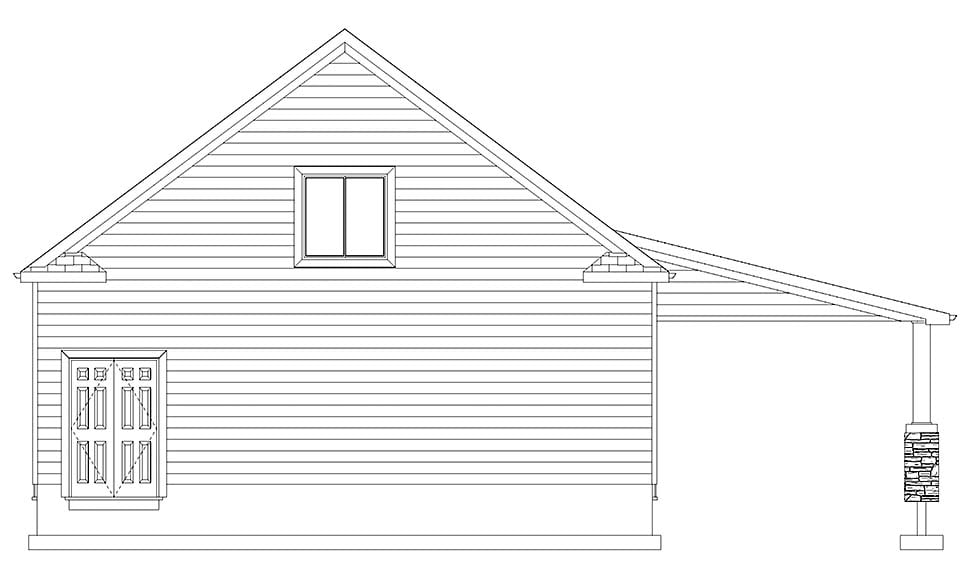

9. Left Right Elevations
10. Cross Sections
11. Basement Electrical
12. Main Floor Electrical
13, Upper Floor Electrical
14. Details

In the case of single story plans, Pages 4, 6, and 13 are eliminated.
