3 Car Garage Apartment Plan 50594

Traditional Style 3 Car Garage Apartment | Plan 50594

Turn OFF Image Gallery

Add to cart

Plan Pricing from $575.00

Plan Pricing

PDF File: $575.00
5 Sets plus PDF File: $925.00
PDF File Unlimited Build: $725.00
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $1,050.00
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $1,175.00
Unlimited Build License issued on CAD File Unlimited Build orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Right Reading Reverse: $195.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Available Foundation Types:

Stem Wall Slab : No Additional Fee

Available Exterior Wall Types:

2x4: No Additional Fee
2x6: $175.00
(Please call for drawing time.)

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Bonus Area:	1073 sq ft
Garage Area:	1073 sq ft
Garage Type:	Detached
Garage Bays:	3
Foundation Types:	Stem Wall Slab
Exterior Walls:	2x4 2x6 - * $175.00
House Width:	40'0
House Depth:	28'6
Number of Stories:	2
Half Baths:	1
Max Ridge Height:	26'0 from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Framing:	Truss and/or Stick
Main Ceiling Height:	10'
Upper Ceiling Height:	9'

* May require additional drawing time.

Special Features:

Bonus Room

What's Included?

A typical plan includes...

Pages
1. Notes
2. Basement/Foundation

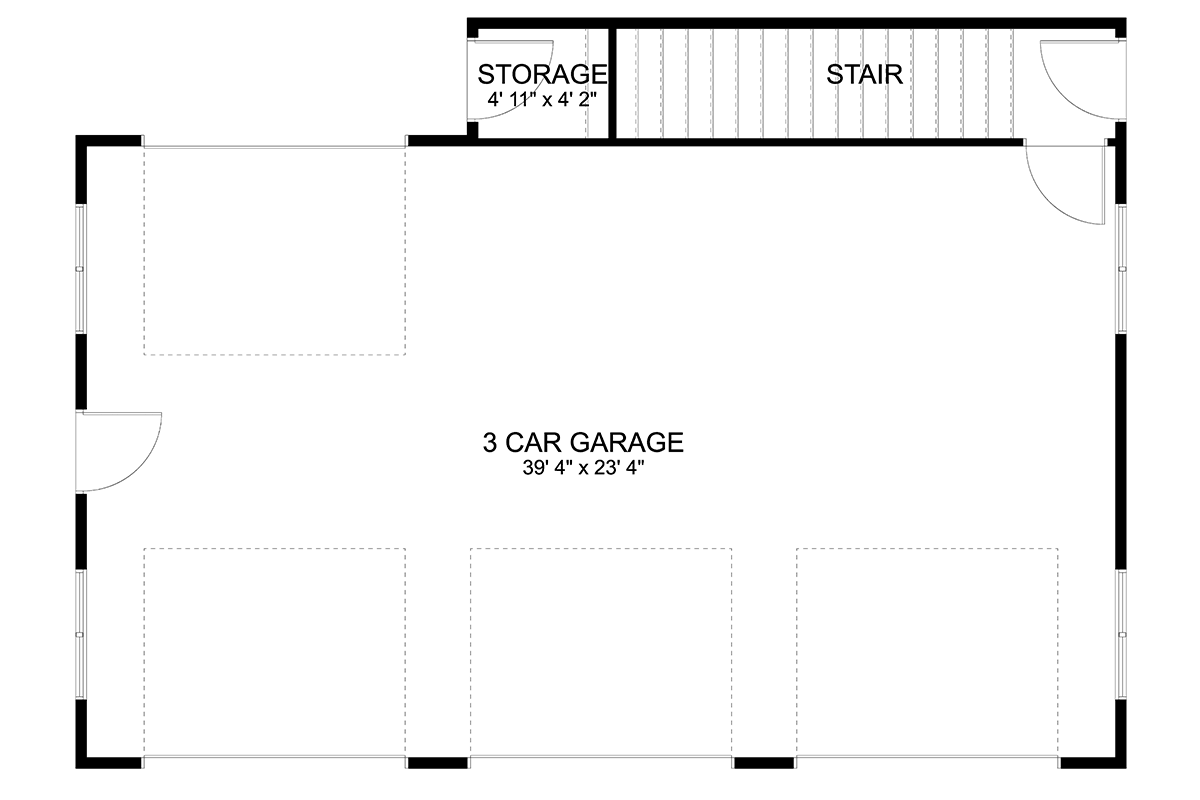

3. Main Floor

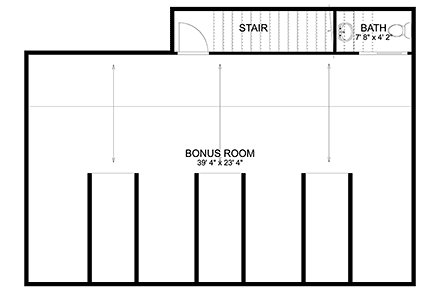

4. Upper Floor
5. Main Floor Framing
6. Upper Floor Framing
7. Roof Framing

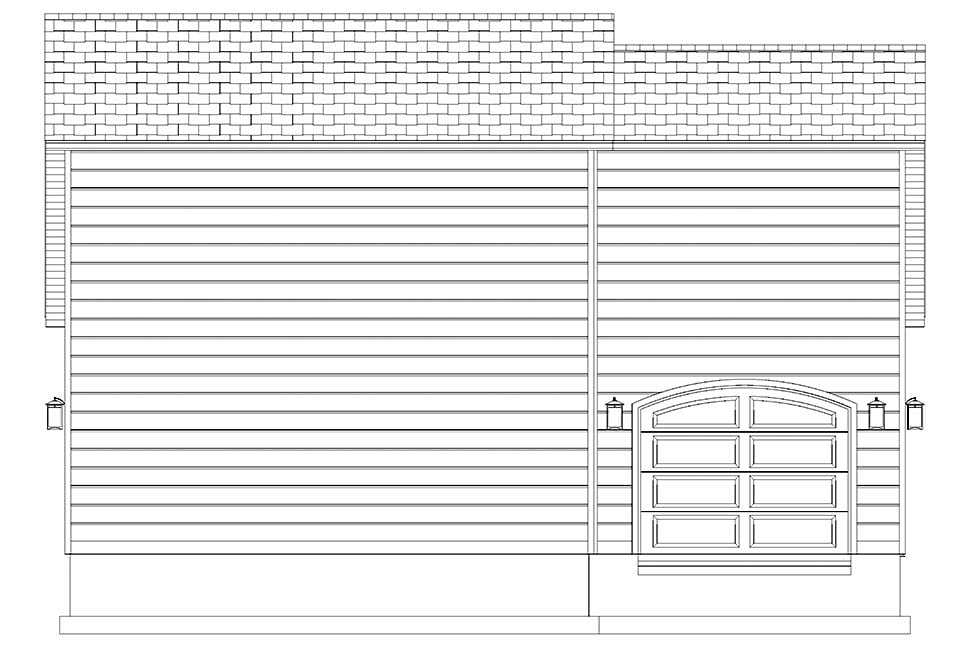

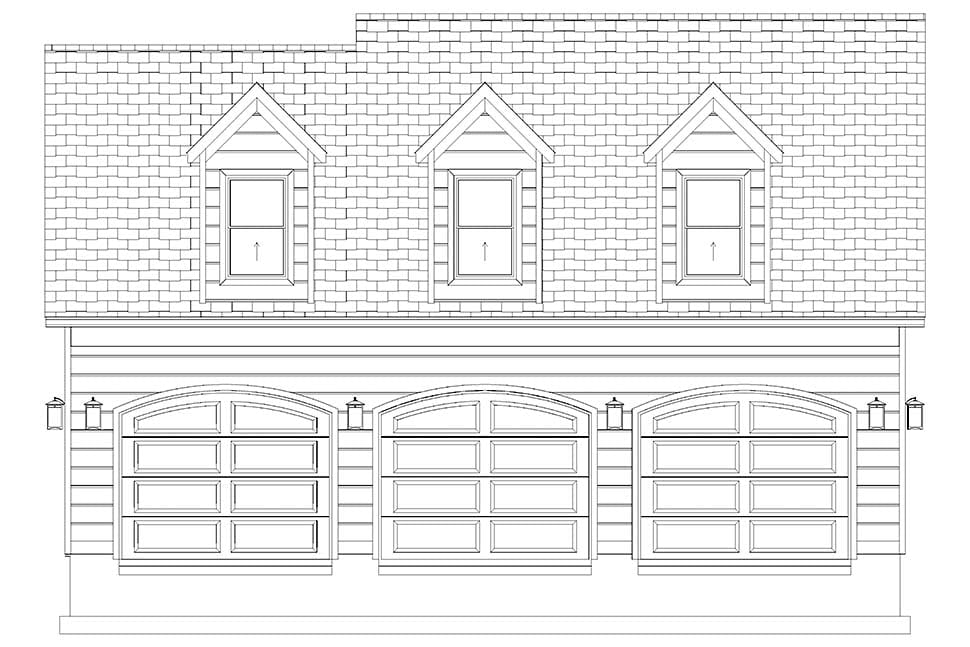

8. Front/Rear Elevations

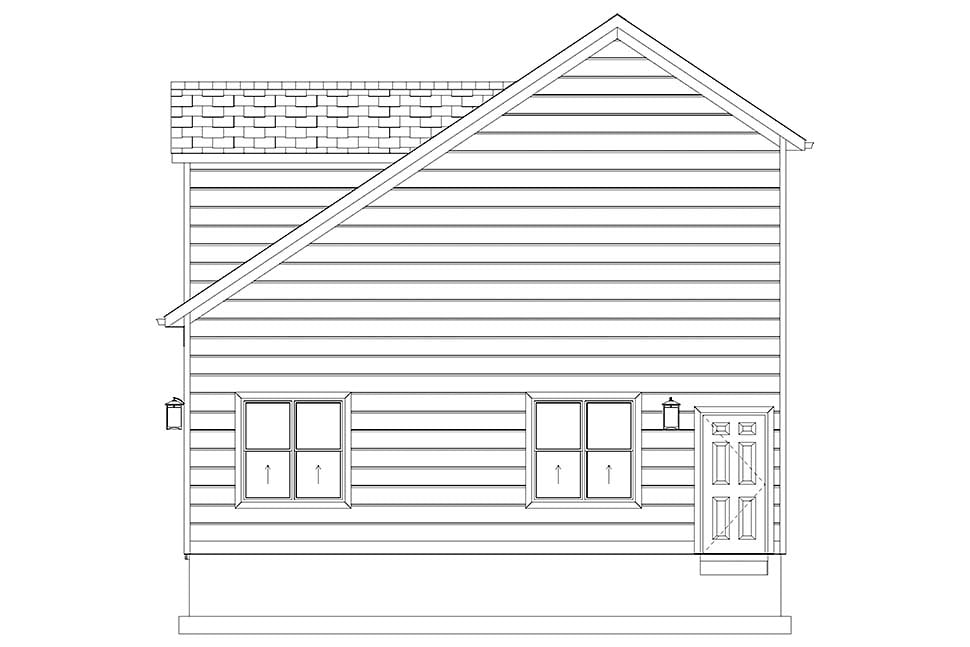

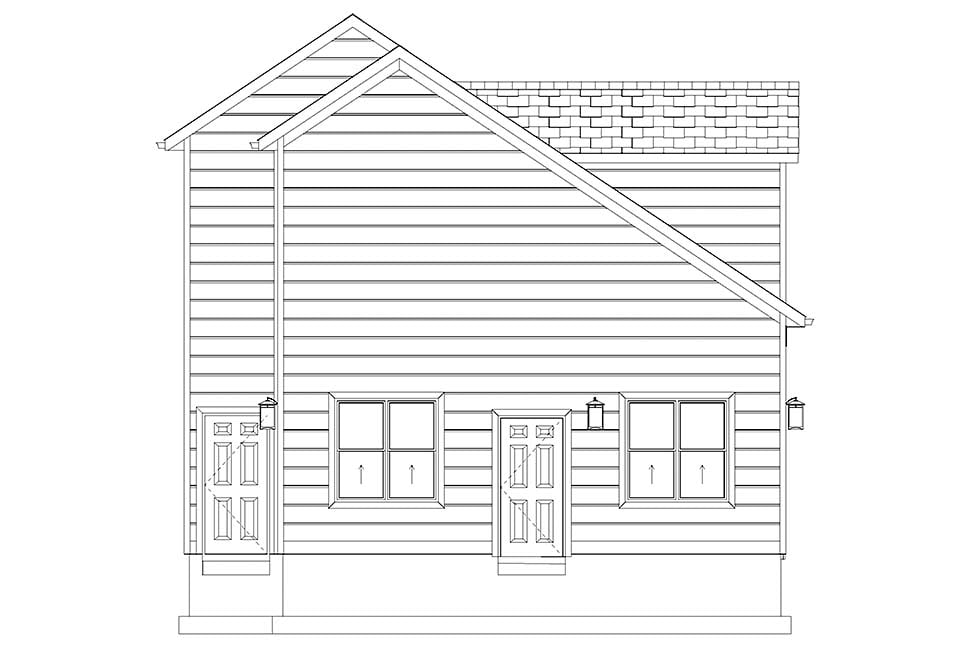

9. Left Right Elevations
10. Cross Sections
11. Basement Electrical
12. Main Floor Electrical
13, Upper Floor Electrical
14. Details

In the case of single story plans, Pages 4, 6, and 13 are eliminated.

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
