4 Car Garage Apartment Plan 50763

• PDF File: $800.00
• 5 Sets plus PDF File: $1,150.00
• PDF File Unlimited Build: $1,300.00
  Unlimited Build License issued on PDF File Unlimited Build orders.
• CAD File: $1,250.00
  Single Build License issued on CAD File orders.
• CAD File Unlimited Build: $1,650.00
  Unlimited Build License issued on CAD File Unlimited Build orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $275.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: $295.00
  (Please call for drawing time.)
• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	1577 sq ft
Main Living Area:	1577 sq ft
Garage Area:	2866 sq ft
Garage Type:	Detached
Garage Bays:	4
Foundation Types:	Slab
Exterior Walls:	2x4 - * $295.00 2x6
House Width:	88'0
House Depth:	56'6
Number of Stories:	2
Half Baths:	1
Max Ridge Height:	20'4 from Front Door Floor Level
Primary Roof Pitch:	9:12
Roof Load:	30 psf
Roof Framing:	Truss
Porch:	273 sq ft
Main Ceiling Height:	9'0

* May require additional drawing time.

Special Features:

• Bonus Room
• Front Porch
• Wet Bar
• Workshop

Title page

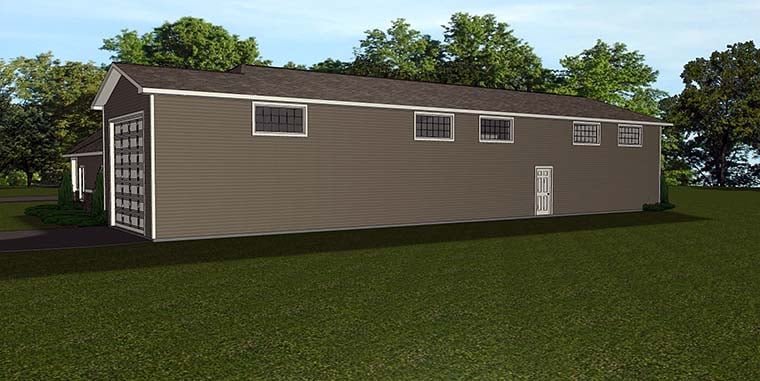

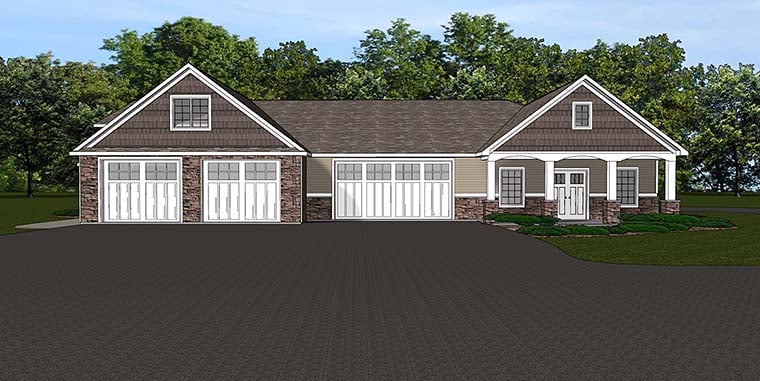

4 elevations, all details, notes, etc...

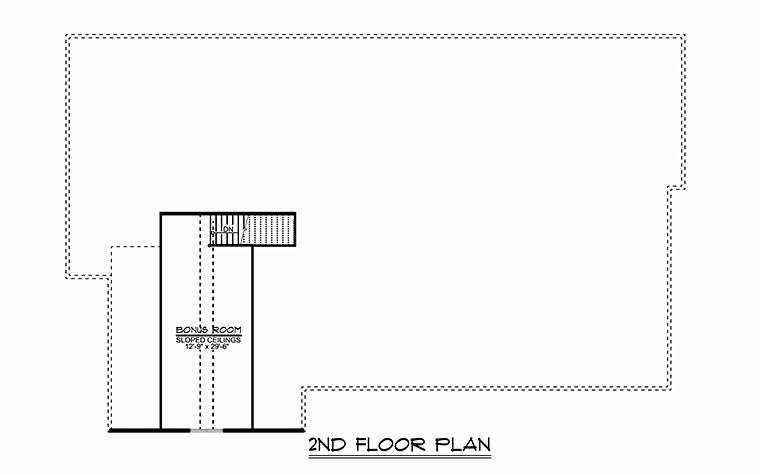

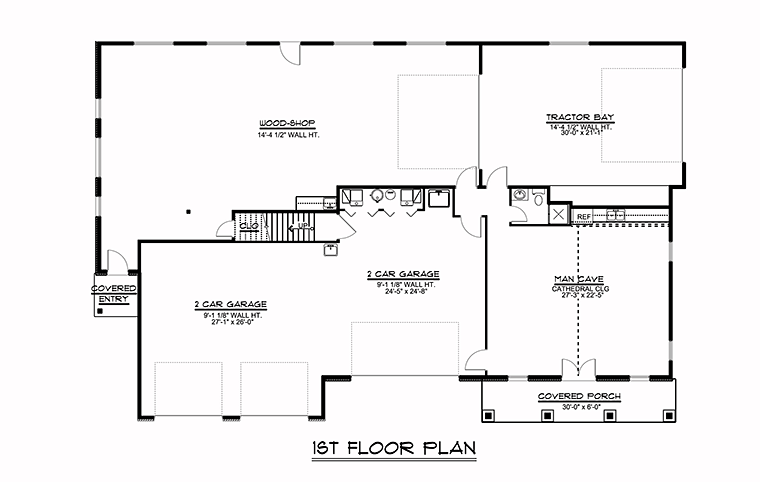

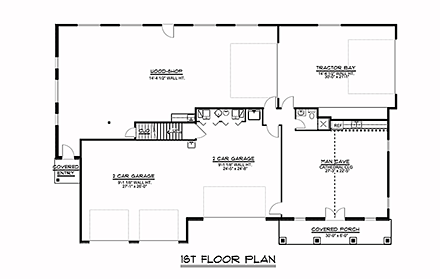

Floor plans (1st, 2nd, bsmt, etc...)

Roof plan

Wall sections, sometimes building cross sections

Foundation plan & Foundation details

General notes page

Electrical plans for each floor.

Miscellaneous column, bracket, details, stair sections.

What is not included will be beam sizes, floor framing plan, roof framing plan, wall framing plans, plumbing and hvac (We do not include these for a few reasons. Our plans are sold across the country, so it's not possible for us to meet local code requirements. To maintain usability, we allow for those details to be decided by local engineers and contractors so they can meet your code requirements.).

Receive a FREE modification estimate.

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!

We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.

Email Designer This is the best and quickest way to get a modification quote!

Please include your preferred Foundation Type and a Specific List of Changes. You can also attach a Sketch of Changes.

It's as simple as that!
