Prices subject to approval prior to fulfillment.Specifications
| Bonus Area: | 575 sq ft |
| Garage Area: | 768 sq ft |
| Garage Type: | Detached |
| Garage Bays: | 3 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x4 |
| House Width: | 32'0" |
| House Depth: | 24'0" |
| Number of Stories: | 2 |
| Max Ridge Height: | 24'3" from Front Door Floor Level |
| Primary Roof Pitch: | 12:12 |
| Roof Load: | 30 psf |
| Roof Framing: | Truss |
| Main Ceiling Height: | 10' |
| Upper Ceiling Height: | 8' |
What's Included?
4 elevations, all details, notes, etc...
Floor plans (1st, 2nd, bsmt, etc...)
Roof plan
Wall sections, sometimes building cross sections
Foundation plan & Foundation details
General notes page
Electrical plans for each floor.
Miscellaneous column, bracket, details, stair sections.
What is not included will be beam sizes, floor framing plan, roof framing plan, wall framing plans.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
We are sorry, but an estimated cost build report is not available for this particular plan.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: Roughly 25' X 19' of space with an 8' ceiling
A: The roof is framed with a combination of trusses and stick framing. I do not have a specific framing plan laid out. The truss manufacture will provide their own set of drawings for their trusses. The plans were designed for the north central climate zone.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
Photographs may show modified designs.
Elevation
Quick Specs
575 Bonus Area3 Car Garage
32'0" W x 24'0" D
Quick Specs
575 Bonus Area3 Car Garage
32'0" W x 24'0" D

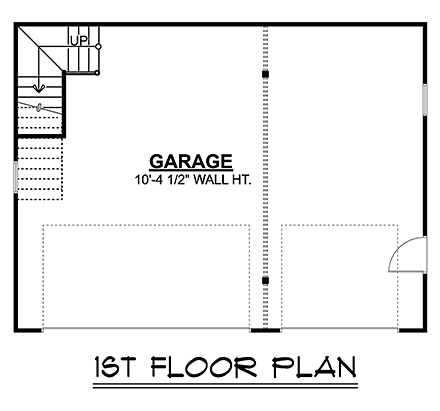

Level One

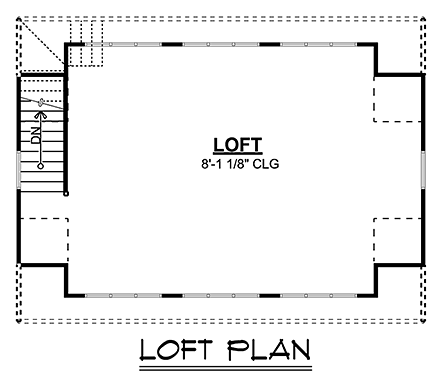

Level Two
