Garage-Living Plan 51488
Modern Style with 1 Bed, 1 Bath, 1 Car Garage
sq ft
572beds
1baths
1bays
1width
19'depth
29'
click for more images
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Plan Pricing
Materials List may take 3-5 weeks to fulfill depending on availability.
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 572 sq ft |
| Main Living Area: | 52 sq ft |
| Upper Living Area: | 520 sq ft |
| Garage Area: | 468 sq ft |
| Garage Type: | Drive Under |
| Garage Bays: | 1 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x6 |
| House Width: | 18'3" |
| House Depth: | 28'6" |
| Number of Stories: | 2 |
| Bedrooms: | 1 |
| Full Baths: | 1 |
| Max Ridge Height: | 20'0" from Front Door Floor Level |
| Primary Roof Pitch: | 0 |
| Roof Framing: | Truss |
| Porch: | 32 sq ft |
| Main Ceiling Height: | 9'0" |
| Upper Ceiling Height: | 8'0" |
What's Included?
a: Floor Plans: House plan drawings indicating dimensions for construction
b: Roof Plan: Drawings indicating roof slopes and unique conditions
c: Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish
d: Building Sections: Drawings cut through important locations in the structure
e: Construction Details: Drawings showing specific construction of building elements at a large scale
f: Kitchen and bath elevations
g: Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
h: Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure CRAWLSPACE
Plans are sent in AutoCAD 2000 format
Modifications
Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!
We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.
Simply contact the modification department via...
Email Us This is the best and quickest way to get a modification quote!
Please include your Telephone Number, Plan Number, Foundation Type, State you are building in and a Specific List of Changes.
It's as simple as that!
Cost To Build
We are sorry, but an estimated cost build report is not available for this particular plan.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: The bathroom door is a “pocket” door, where the door slides into the wall. The bedroom door is a “Barn-style” door that is on the outside of the wall and slides in front of the wall. The door would be a “feature”. Either opening could be revised to use either type door.
A: There is a 1% slope on the flat roof. The roof slopes toward the front parapet wall and is sloped again toward the scuppers to outside the wall and drain down the downspouts
A: This is a flat roof with a 1% slope.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Photographs may show modified designs.
Elevation

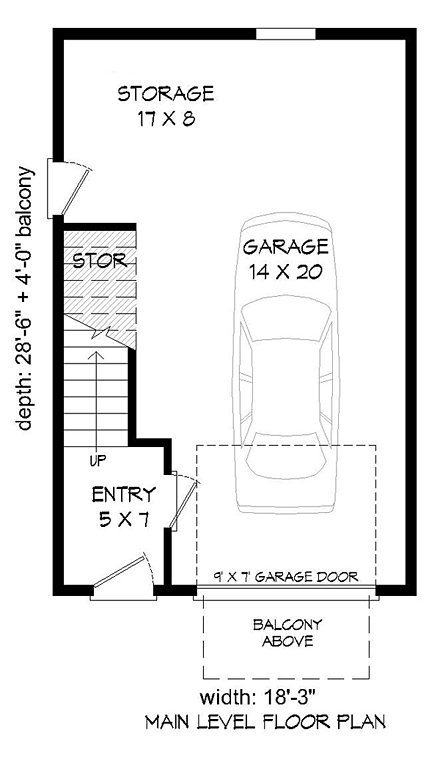

Level One

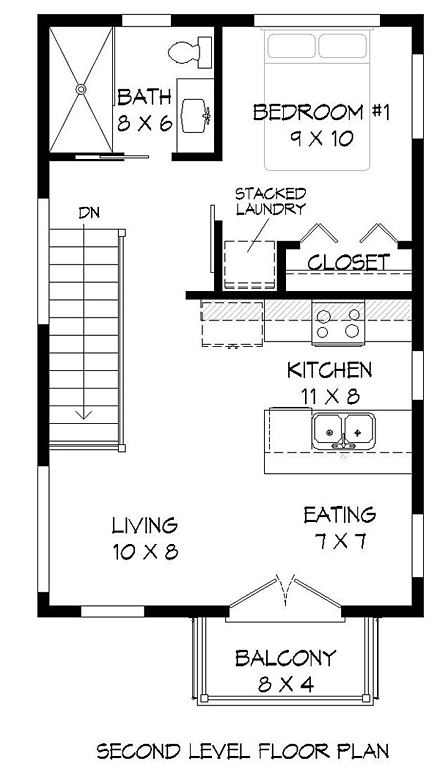

Level Two
Quick Specs
572 Total Living Area52 Main Level
520 Upper Level
1 Bedrooms
1 Full Baths
1 Car Garage
18'3" W x 28'6" D
Quick Specs
572 Total Living Area1 Bedrooms
1 Full Baths
1 Car Garage
18'3" W x 28'6" D
Pricing
PDF File: $1,225.005 Sets: $1,456.00
5 Sets plus PDF File: $1,511.00
CAD File: $1,645.00
more info
Rear Elevation
Photographs may show modified designs.
