Garage-Living Plan 51493
Modern Garage Apartment Plan | Plan 51493
sq ft
820beds
2baths
1bays
2width
25'depth
30'
Plan Pricing
Materials List may take 3-5 weeks to fulfill depending on availability.
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 820 sq ft |
| Main Living Area: | 70 sq ft |
| Upper Living Area: | 750 sq ft |
| Garage Area: | 680 sq ft |
| Garage Type: | Drive Under |
| Garage Bays: | 2 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x6 |
| House Width: | 25'0 |
| House Depth: | 30'0 |
| Number of Stories: | 2 |
| Bedrooms: | 2 |
| Full Baths: | 1 |
| Max Ridge Height: | 22'10 from Front Door Floor Level |
| Primary Roof Pitch: | 0 |
| Roof Framing: | Truss |
| Porch: | 32 sq ft |
| Main Ceiling Height: | 10'0 |
| Upper Ceiling Height: | 9'0 |
Plan Description
Modern Garage Apartment Plan
With 820 square feet of living space over the garage deck this modern garage design features a two bedroom, apartment size space, over the two car parking area. The U shaped kitchen is efficient and roomy for a small floor plan. A full size bathroom with sit down tub has a built in linen area. A large 14 X 18 living area with a small balcony finish out the floor plan. Lots of windows allow substantial light penetration into the modern homeWhat's Included?
a: Floor Plans: House plan drawings indicating dimensions for construction
b: Roof Plan: Drawings indicating roof slopes and unique conditions
c: Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish
d: Building Sections: Drawings cut through important locations in the structure
e: Construction Details: Drawings showing specific construction of building elements at a large scale
f: Kitchen and bath elevations
g: Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
h: Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure CRAWLSPACE
Plans are sent in AutoCAD 2000 format
Modifications
Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!
Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.
Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: Yes! You can thicken the outside walls to accommodate the ICF size. We can make the modifications for you for $250 Steve
A: plans WILL INCLUDE: a) Floor Plans: Floor plan drawings indicating dimensions for construction b) Roof Plan: Drawings indicating roof slopes and unique conditions c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim d) Building Sections: Drawings cut through important locations in the structure e) Construction Details: Drawings showing specific construction of building elements at a large scale f) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets) g) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure h) A building license: A single-use license for construction at one location only (NOTE: If design is to be used at subsequent locations, a discounted re-use license is required and available upon request.) Additional notes about engineering and building codes: Our plans are designed to meet national building codes. We do not guarantee they will meet all local building requirements or building codes influenced by local geographic or climactic factors. It is the responsibility of the owner or builder to ensure these plans comply with city, county, municipal and/or state/provincial building codes. Additionally, your plans will not be sealed or stamped by an engineer or architect. It is the owner’s (or builder’s) responsibility to hire a local professional to review and seal or stamp the plans if required by the building department. This must be handled by an engineer or architect licensed in the state/province where the plan is to be built.
A: These plans are the same, duplicated by error. The roof is an engineered truss roof and the truss manufacturer can easily design with solar panels in mind. Roof material is metal. Thank you Steve
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Call 800-482-0464
click image to enlargeInfo Brochure
Photographs may show modified designs.
Elevation

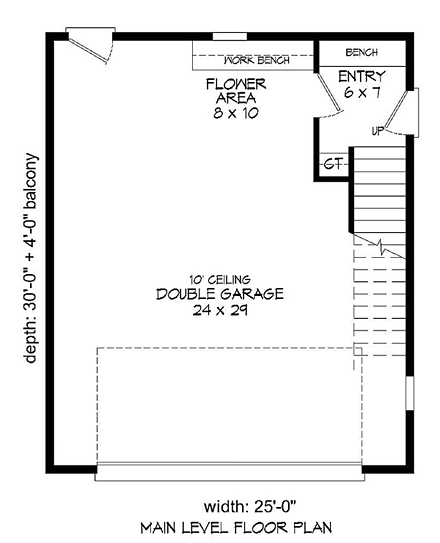

Level One

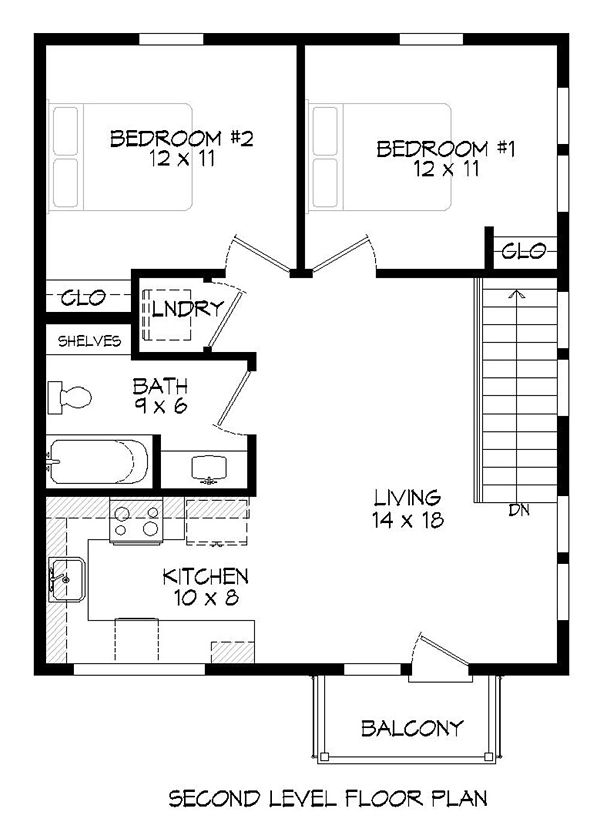

Level Two
