Garage-Living Plan 51545

• PDF File: $1,225.00
• 5 Sets: $1,456.00
• 5 Sets plus PDF File: $1,511.00
• CAD File: $1,645.00
  Single Build License issued on CAD File orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
• Materials List: $368.75
• Right Reading Reverse: $150.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $49.00

Materials List may take 3-5 weeks to fulfill depending on availability.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee
• 2x6: $187.50
  (Please call for drawing time.)

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	780 sq ft
Garage Area:	780 sq ft
Garage Type:	Drive Under
Garage Bays:	2
Foundation Types:	Slab
Exterior Walls:	2x4 2x6 - * $187.50
House Width:	30'5
House Depth:	40'0
Number of Stories:	2
Bedrooms:	1
Full Baths:	1
Max Ridge Height:	23'11 from Front Door Floor Level
Primary Roof Pitch:	6:12
Roof Framing:	Unknown
Deck:	360 sq ft
Main Ceiling Height:	8'0

* May require additional drawing time.

Special Features:

• 2nd Floor Balcony
• Deck or Patio

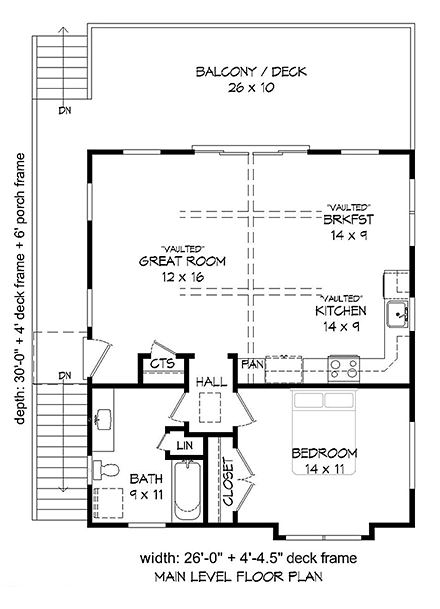

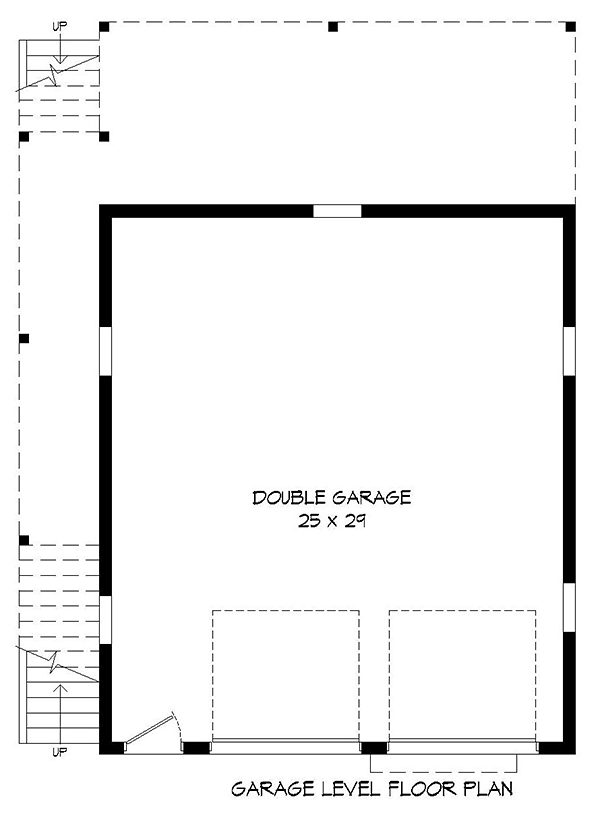

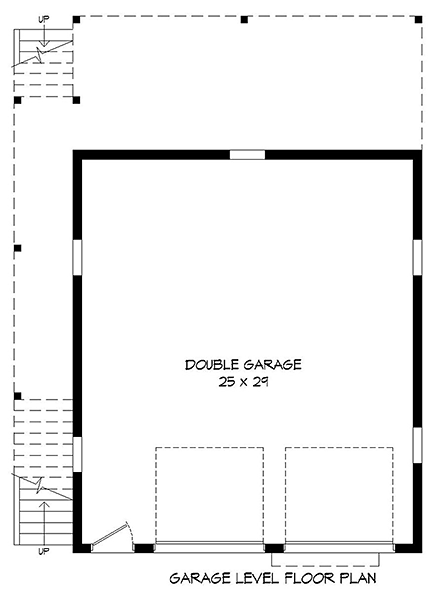

Craftsman Style Garage Apartment Plan or Carriage House Design with One Bedroom

New Garage apartment design with a deep two car parking area and 780 square feet of living space on the second floor. A large inviting set of stairs front and back lead to a fantastic balcony / deck at the rear of the house. The one bedroom and one bathroom floor plan has an open living space wit double door access to the rear deck. This garage house plan will make a fantastic second home and will be attractive on a lot just about anywhere you want a home away from home.

Plans include

a: Floor Plans: House plan drawings indicating dimensions for construction
b: Roof Plan: Drawings indicating roof slopes and unique conditions
c: Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish
d: Building Sections: Drawings cut through important locations in the structure
e: Construction Details: Drawings showing specific construction of building elements at a large scale
f: Kitchen and bath elevations
g: Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
h: Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure CRAWLSPACE

Plans are sent in AutoCAD 2000 format

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

We are sorry, but an estimated cost build report is not available for this particular plan.
