Multi-Family Plan 51636
Apartment Over Garage Duplex Design
sq ft
2800beds
6baths
4bays
4width
51'depth
50'
click for more images
Plan Pricing
Materials List may take 3-5 weeks to fulfill depending on availability.
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 2800 sq ft |
| Main Living Area: | 300 sq ft |
| Upper Living Area: | 2500 sq ft |
| Garage Area: | 2200 sq ft |
| Garage Type: | Drive Under |
| Garage Bays: | 4 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x6 |
| House Width: | 50'5 |
| House Depth: | 50'0 |
| Number of Stories: | 2 |
| Bedrooms: | 6 |
| Full Baths: | 4 |
| Max Ridge Height: | 31'0 from Front Door Floor Level |
| Primary Roof Pitch: | 1:12 |
| Roof Framing: | Stick |
| Porch: | 460 sq ft |
| Main Ceiling Height: | 16'0 |
Special Features:
What's Included?
a: Floor Plans: House plan drawings indicating dimensions for construction
b: Roof Plan: Drawings indicating roof slopes and unique conditions
c: Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish
d: Building Sections: Drawings cut through important locations in the structure
e: Construction Details: Drawings showing specific construction of building elements at a large scale
f: Kitchen and bath elevations
g: Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
h: Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure CRAWLSPACE
Plans are sent in AutoCAD 2000 format
Modifications
Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!
We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.
Simply contact the modification department via...
Email Us This is the best and quickest way to get a modification quote!
Please include your Telephone Number, Plan Number, Foundation Type, State you are building in and a Specific List of Changes.
It's as simple as that!
Cost To Build
We are sorry, but an estimated cost build report is not available for this particular plan.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: The plan meets IRC 2015 Roof is stick built and may need to have lumber size increase to support snow load. Your local lumberyard can likely help determine the required rafter size
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
click for galleryInfo Brochure
Photographs may show modified designs.

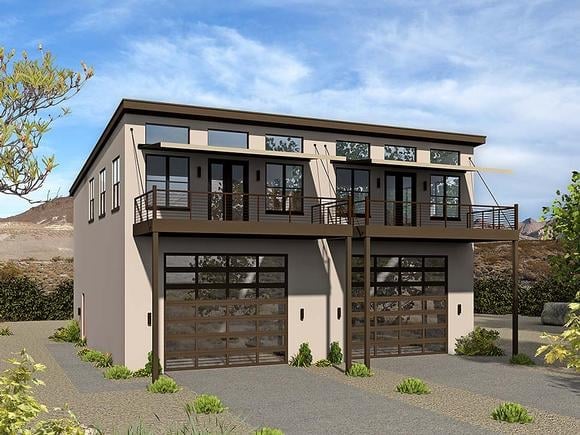

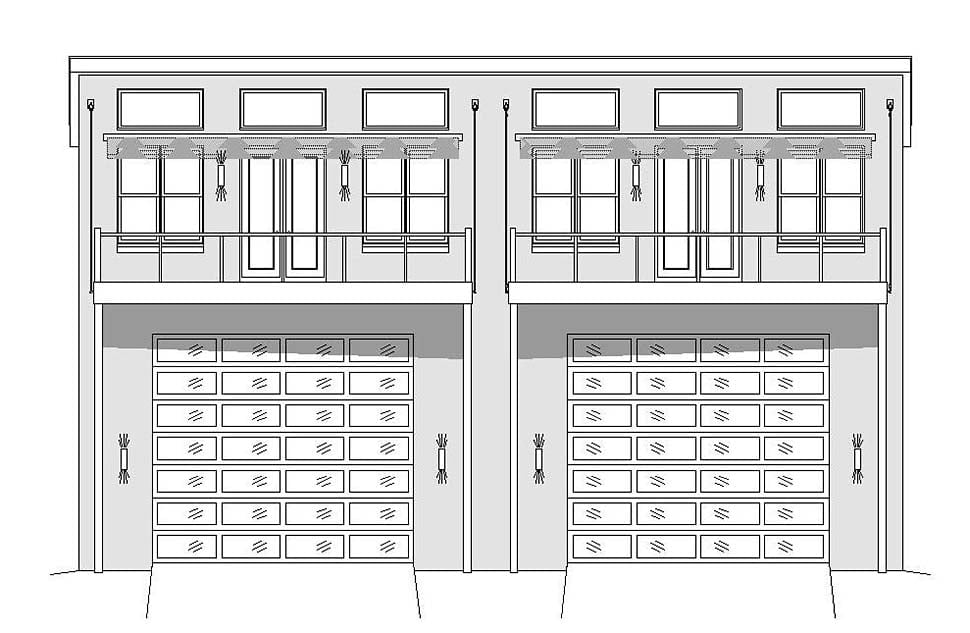

Elevation

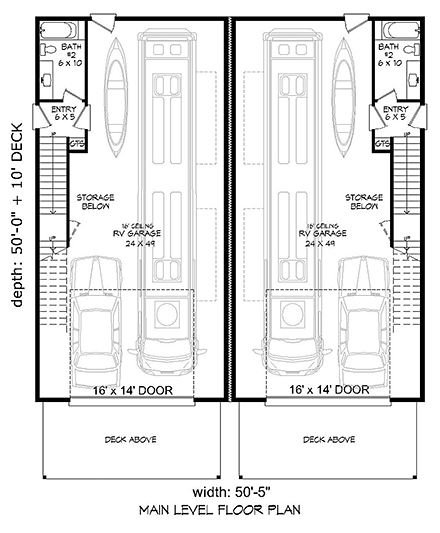

Level One

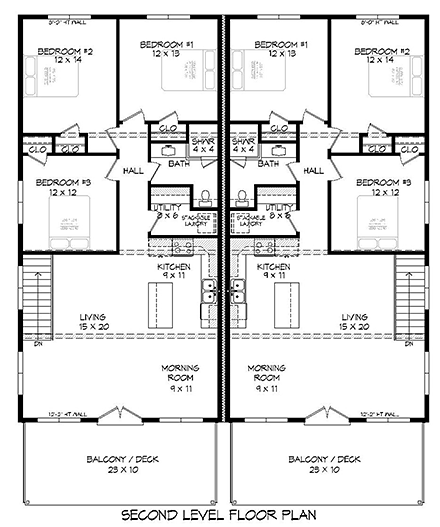

Level Two
Quick Specs
2800 Total Living Area300 Main Level
2500 Upper Level
6 Bedrooms
4 Full Baths
4 Car Garage
50'5 W x 50'0 D
Quick Specs
2800 Total Living Area6 Bedrooms
4 Full Baths
4 Car Garage
50'5 W x 50'0 D
Pricing
PDF File: $2,093.005 Sets: $2,324.00
5 Sets plus PDF File: $2,411.00
CAD File: $2,863.00
more info
Rear Elevation
Photographs may show modified designs.
Buy This Plan
Have any Questions? Please Call 800-482-0464 and our Sales Staff will be able to answer most questions and take your order over the phone. If you prefer to order online click the button below.
