House Plan 51987
Texas Ranch House Plan at Family Home Plans
sq ft
3366beds
4baths
3.5bays
3width
98'depth
76'
click for more images
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Plan Description
Texas Ranch House Plan at Family Home Plans
Texas Ranch House Plan 51987 has 3,366 square feet, 4 bedrooms, and 3.5 baths. Every bedroom has a bathroom and walk-in closet. In addition, the home offers an outdoor kitchen on the rear porch. This home has a big pantry, laundry room, and game room. Bigger is better in Texas. This Texas Ranch Style Home Plan has everything you want and more!
Texas Ranch House Plan With Rustic Appeal
Earthy materials such as stone and wood give your home curb appeal. Stone siding is used as an accent on one wall of the exterior. We used stone as skirting and for the base of the porch columns. The porch columns lend to the rustic aesthetic of the home because they are thick and heavy. The dark stain matches the double front door and the decorative gable of the covered front porch.
Texas Ranch House Plan 51987 has two covered porches. The vaulted ceiling on the front porch is continued to the rear porch. Your family will have so much room to relax on the back porch because it measures 19' wide by 19’6 deep. The vaulted ceiling makes the space feel even bigger. Set up the optional outdoor kitchen with your favorite finishes. Give your kitchen a break. Flip burgers and grill steak outside at any time of the year.
Texas Ranch House Plan With Open Living Space
Your first thought upon entering the great room will be: “This is big!” The great room is big in every direction you look, whether it’s up or around. The ceiling is vaulted, and the room is 18’4 wide by 18’10 deep. One wall has a gas log fireplace surrounded by built-ins. Light floods inside because of the double door and windows on the porch side. Not to mention, the open wall into the kitchen further opens the space. Traffic flows smoothly throughout the living area.
We love the kitchen with its L-shaped, walk-in pantry. The pantry includes a freezer, shelves, and prep counter. Finish the kitchen in Texas Ranch House Plan 51987 with stone counters, floor-to-ceiling cabinets, and of course, the ever-popular stainless steel appliances. Lots of kids can sit at the island eating bar. They can finish homework here in the kitchen and tell you about their day. The dining room is set off by a beamed, tray ceiling. Natural light brightens this room due to the windows on two sides.
House Plan With Walk-in Closet and Bathroom in Every Bedroom
That’s right, every bedroom has a bathroom and walk-in closet! The biggest and best is the master bedroom which is located on the left side of the house. This Texas Ranch House Plan has a split-bedroom layout. The primary bedroom has a giant ensuite. We’ve included a custom shower, separate tub, his and her vanities, two linen closets, and private water closet. The closet measures 13’2 wide by 7’4 deep which affords the couple plenty of storage space for those 10 gallon hats.
The children’s bedrooms are located on the right side of the house. Each bedroom has a good-sized walk-in closet. Bedrooms 2 & 3 share a convenient Jack and Jill bathroom. In addition, the kids will love that they have a game room right outside of their bedrooms. It features a tray ceiling and wide open space for an air hockey table or billiards table. Store the game supplies in the small closet to keep the clutter down.
Other great features for Texas Ranch House Plan 51987 are listed below:
In conclusion, there is a place for everything in this large home. Whether you are entertaining or enjoying time with family, the options are sure to impress.
Plan Pricing
Unlimited License To Build included with CAD file sale.
CAD file sale also includes PDF file. Materials list will NOT reflect any options that have an additional fee because those are modifications. If you buy a materials list, it will only reflect the standard original plan. All of our CAD files are delivered in .DWG format and do not contain any type of 3D capability. Files are delivered in 2004 format so that older software versions will be able to open the files.
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 3366 sq ft |
| Main Living Area: | 3366 sq ft |
| Garage Area: | 846 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 3 |
| Foundation Types: | Basement - * $395.00 Total Living Area may increase with Basement Foundation option. Crawlspace Slab |
| Exterior Walls: | 2x4 2x6 - * $325.00 |
| House Width: | 98'0 |
| House Depth: | 75'10 |
| Number of Stories: | 1 |
| Bedrooms: | 4 |
| Full Baths: | 3 |
| Half Baths: | 1 |
| Max Ridge Height: | 24'0 from Front Door Floor Level |
| Primary Roof Pitch: | 7:12 |
| Roof Load: | 30 psf |
| Roof Framing: | Stick |
| Porch: | 575 sq ft |
| Formal Dining Room: | Yes |
| FirePlace: | Yes |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 10'0 |
Special Features:
What's Included?
Cover Sheet – May include index, front view of home, definitions, etc.
Foundation Plan – Typically includes dimensioned foundation plan with footing details.
Dimensioned Floor Plan – Electrical may be shown.
Exterior Views – Four exterior views of the residence with other miscellaneous details.
Roof Plan – Birds eye view showing all ridges, valleys and other necessary information.
Electrical Plan – Displays all switches, lighting fixtures, outlets and other necessary electrical items. These items may be shown on the Dimensioned Floor Plan.
Wall Section(s) – Detail of wall materials and assembly.
Building Section(s) – Section through home displaying necessary information about framing and other miscellaneous data.
Cabinet Elevations – Displays interior kitchen cabinet views.
Blank Specifications – Specifications guide for the purchaser and their builder to complete. Not available on all plans.
*Note: The items listed above as “Not available on all plans” are not always required for every plan depending on location and complexity.
Items Not Included
Mechanical Plans - Because of varying site conditions, mechanical plans such as plumbing and HVAC plans are not included. These items are easily obtained by your mechanical contractor or material supplier.
Site Plans – If required, this information must be obtained locally to include the information specific to your individual property.
Structural Calculations – In certain areas, particularly those in earthquake and hurricane zones, permit departments may require you to submit structural calculations for your particular conditions. When required, you should consult with a local structural engineer.
Modifications
Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!
We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.
Email Designer This is the best and quickest way to get a modification quote!
Please include your preferred Foundation Type and a Specific List of Changes. You can also attach a Sketch of Changes.
It's as simple as that!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
* Limit one $24.95 credit per complete plan package order.
** Available for U.S. only.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: The 3366 sf is for the living area which is only the heated and cooled portion of the house (the yellow shaded area). Click the "Plan Specifications" link to see the footage of the porches and garage.
A: All of our CAD files are provided in AutoCAD .DWG format and are backward compatible with software versions as old as 2004. Please be aware that our files are strictly 2D line drawings and contain no 3D capabilities.
A: 10'-4" X 4'-6"
A: Yes...the plans call for the HVAC equipment to be located in the attic space. It's also common to locate the water heater in the attic space as well.
A: There are not any pictures available at this time. The attic is accessed via a pull-down stair in the garage.
A: Unfortunately, we do not offer study set packages. Most lending institutions can pre-approve you for an amount and then you can select the appropriate sized plan based on that pre-approval. This will help you avoid purchasing a plan that won't meet your budget.
A: Cabinet elevations are included for the kitchen cabinets only. These are very general in nature since cabinet finishes and styles will be chosen by the homeowner.
A: Yes...our CAD files are saved in 2004 format so that older versions can still access them.
A: The crawlspace foundation is shown with concrete block construction. If you desire poured concrete stemwalls, you can let your contractor make the necessary adjustments. All PDF orders are submitted electronically and usually the same day if ordered before 12:00 CST. If you order additional paid options such as reverse, 2x6 walls, basement, etc. your order may be delayed as much as 5 business days while these options are prepared.
A: We do not have a version of this plan in that configuration at this time. Thanks, Jaso
A: We do not have any interior pictures at this time. As for the roof, shingles can be substituted instead of metal by your builder on site. Thanks, Jason
A: We do not have interior pics at this time. The kitchen as in its original state has over 70sf of counter space which is significant. You could pick up a few more feet by eliminating the linen in the half bath and continuing the kitchen cabinets into that space.
A: All of the images that we currently have for this plan are displayed on the website. We will add additional pictures as they are submitted to us by clients who build the design. Thanks, Jason
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
click for galleryInfo Brochure
Photographs may show modified designs.

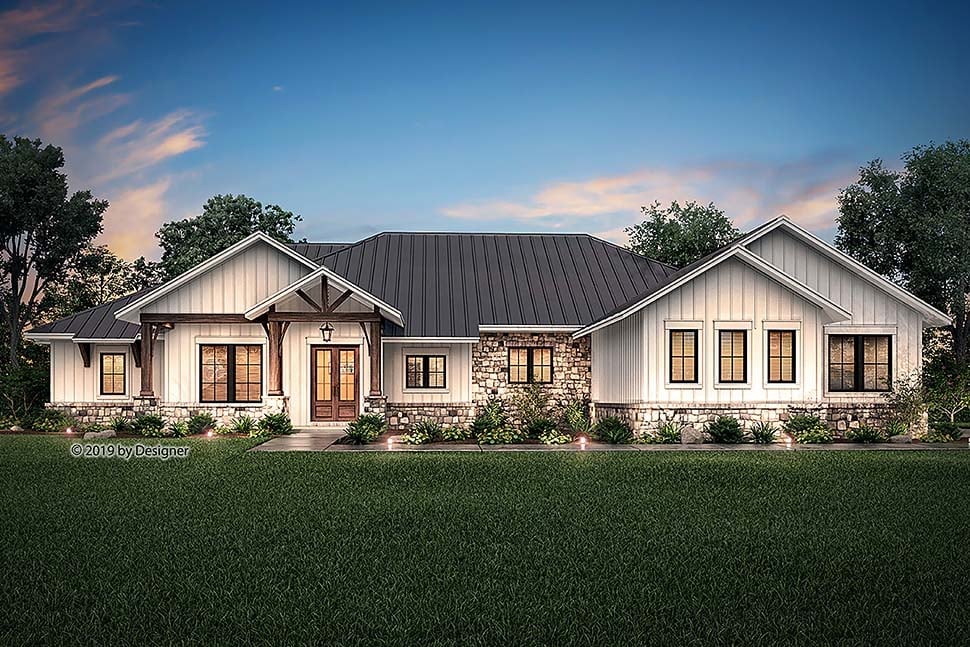

Elevation

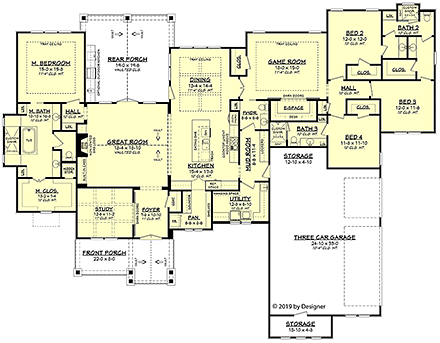

Level One
Alternate Level One
Quick Specs
3366 Total Living Area3366 Main Level
4 Bedrooms
3 Full Baths, 1 Half Baths
3 Car Garage
98'0 W x 75'10 D
Quick Specs
3366 Total Living Area4 Bedrooms
3 Full Baths, 1 Half Baths
3 Car Garage
98'0 W x 75'10 D
