House Plan 52028
One-Story Style, 2944 Sq Ft, 4 Bed, 4 Bath, 2 Car | Plan 52028
sq ft
2944beds
4baths
4bays
2width
60'depth
78'
Click Any Image For Gallery
Plan Pricing from $1,395.00
Plan Pricing
Need Printed Sets?
It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.Sorry, but this plan cannot be sold in the following zip codes: 30041, 30501, 30504, 30506, 30542, or 30566.
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 2944 sq ft |
| Lower Living Area: | 1222 sq ft |
| Main Living Area: | 1722 sq ft |
| Unfinished Basement Area: | 500 sq ft |
| Garage Area: | 607 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 2 |
| Foundation Types: | Walkout Basement |
| Exterior Walls: | 2x4 |
| House Width: | 59'1 |
| House Depth: | 77'4 |
| Number of Stories: | 1 |
| Bedrooms: | 4 |
| Full Baths: | 4 |
| Max Ridge Height: | 23'1 from Front Door Floor Level |
| Primary Roof Pitch: | 10:12 |
| Roof Framing: | Truss and/or Stick |
| Porch: | 326 sq ft |
| Deck: | 110 sq ft |
| FirePlace: | Yes |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 10' |
Plan Description

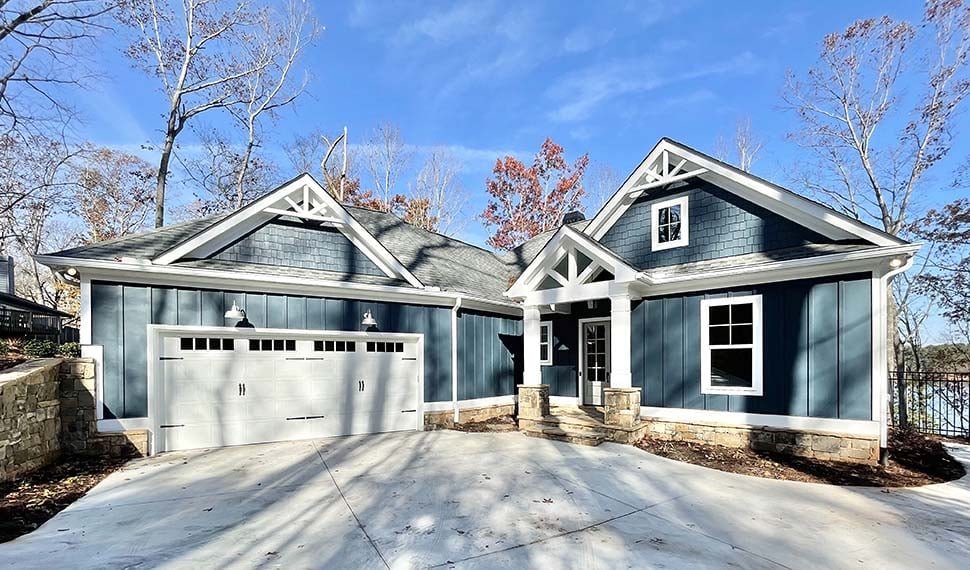

Home Plan With Angled Garage & Lower Level

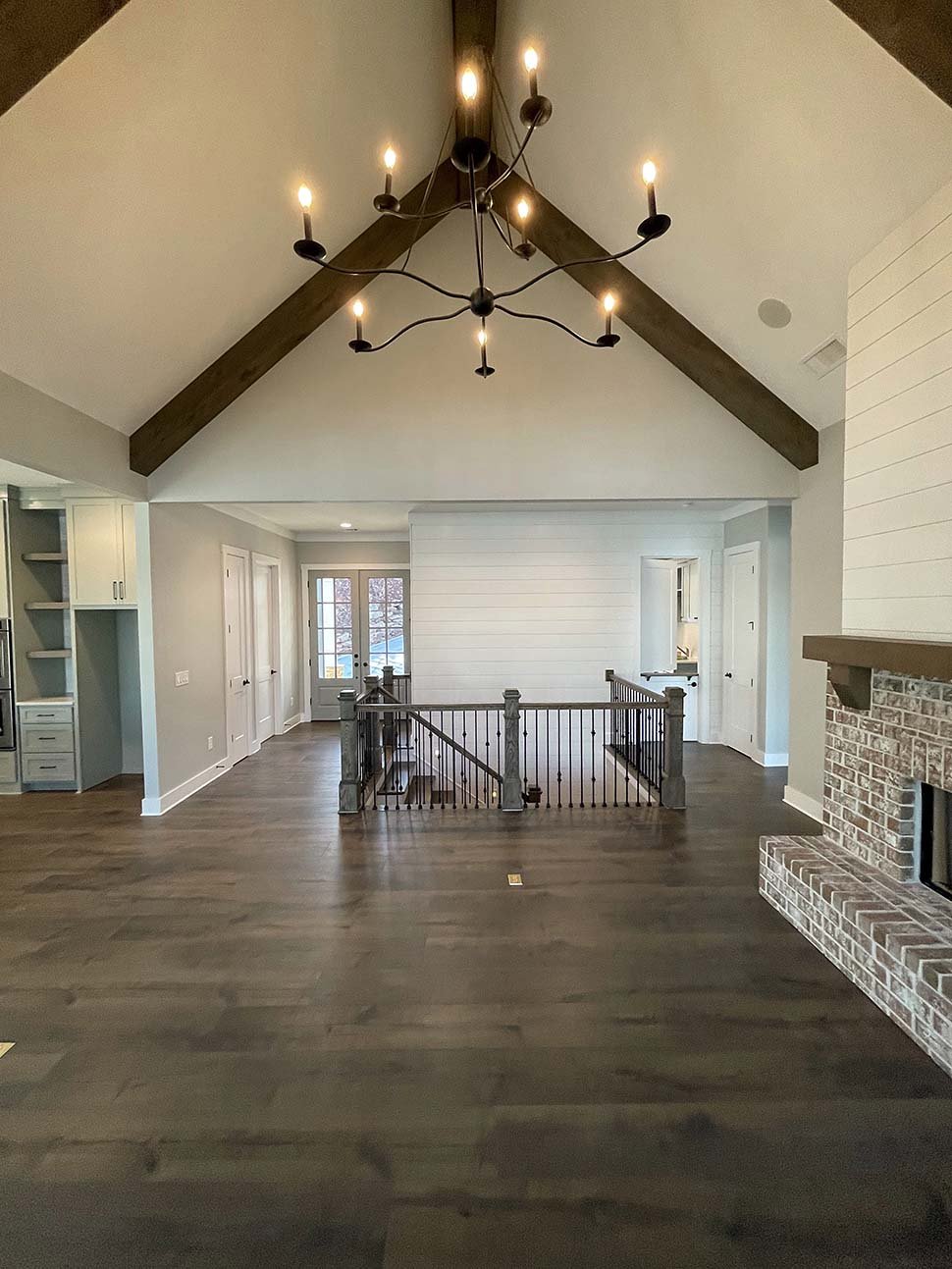

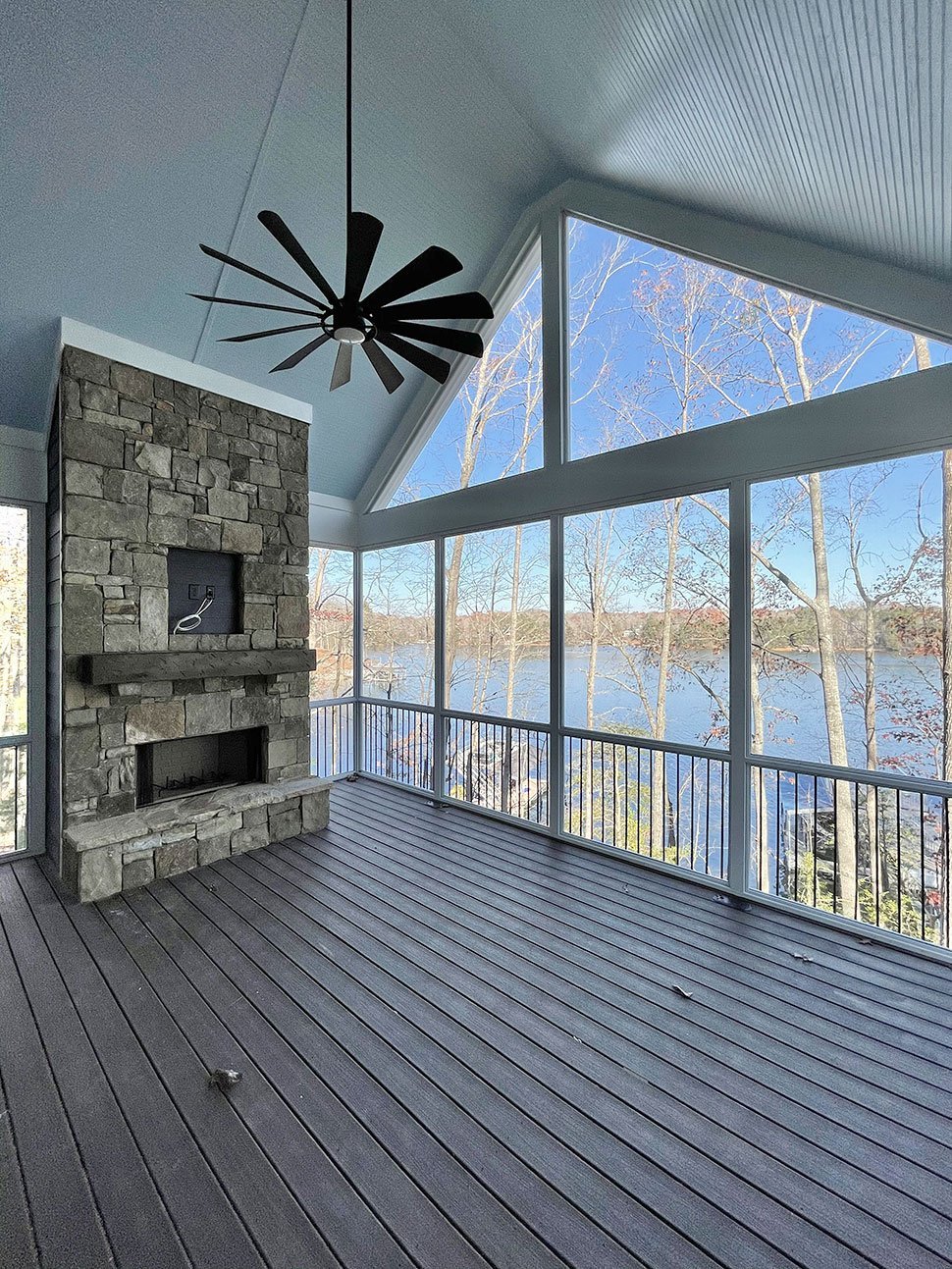

Step into open, elegant living in Home Plan With Angled Garage & Lower Level (Plan 52028). Total Living Area: 2,944 sq ft, 4 bedrooms, and 4 bathrooms. As you arrive, the angled two-car garage adds visual interest and great curb appeal. The heart of the home is the great room with vaulted ceiling and fireplace, which flows into the kitchen boasting a large walk-in corner pantry. Adjacent is a screened back porch complete with an outdoor fireplace—perfect for relaxing or entertaining. The master bedroom also features a vaulted ceiling and a luxurious ensuite with separate his and her walk-in closets. The lower level rounds things out with two more bedrooms, an exercise room, and a roomy rec room, making this layout perfect for both everyday living and guest space.Special Features:
What's Included?
Exterior Elevations

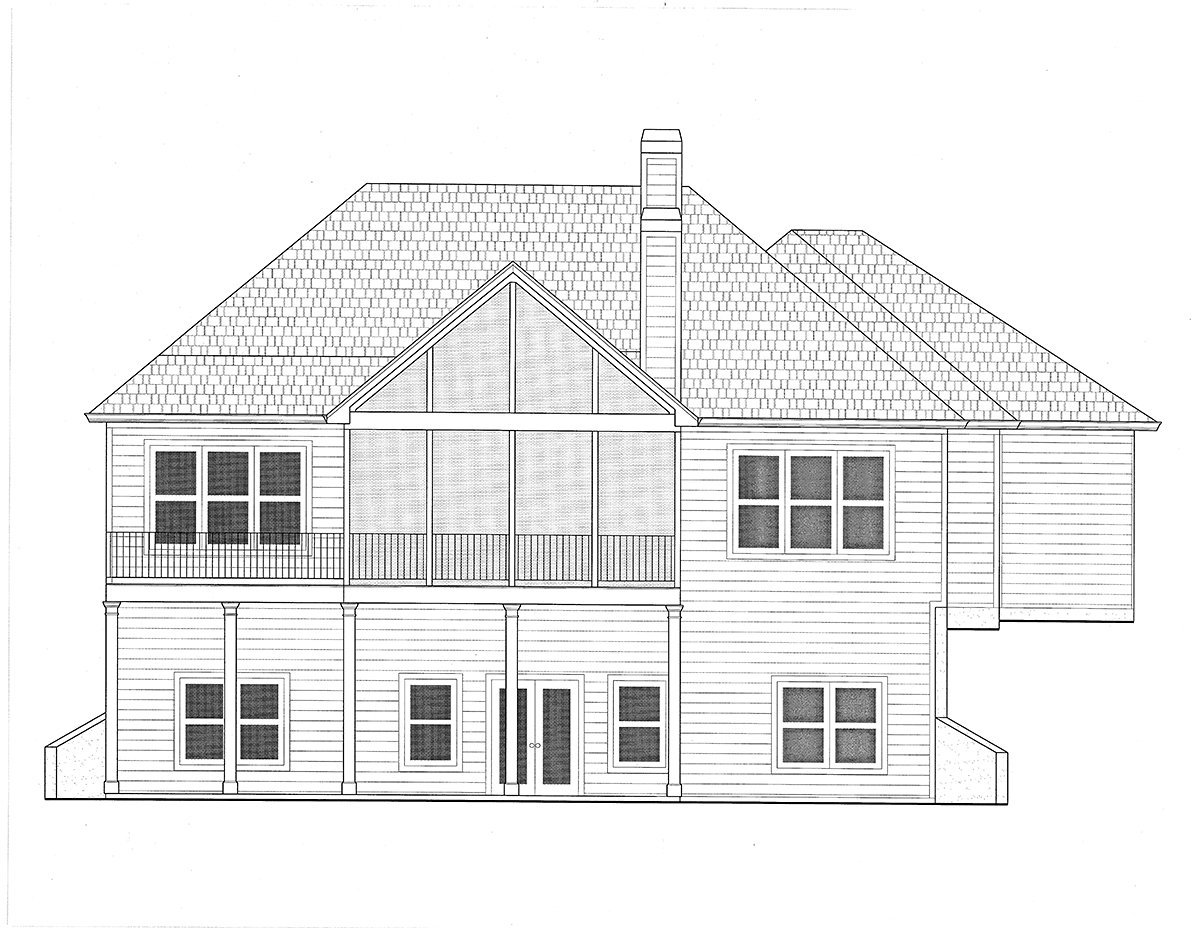

Plans include detailed front, sides, and rear exterior drawings. These drawings give notes on all exterior materials and finishes (siding, brick, stone, etc).
Floor Plan(s)

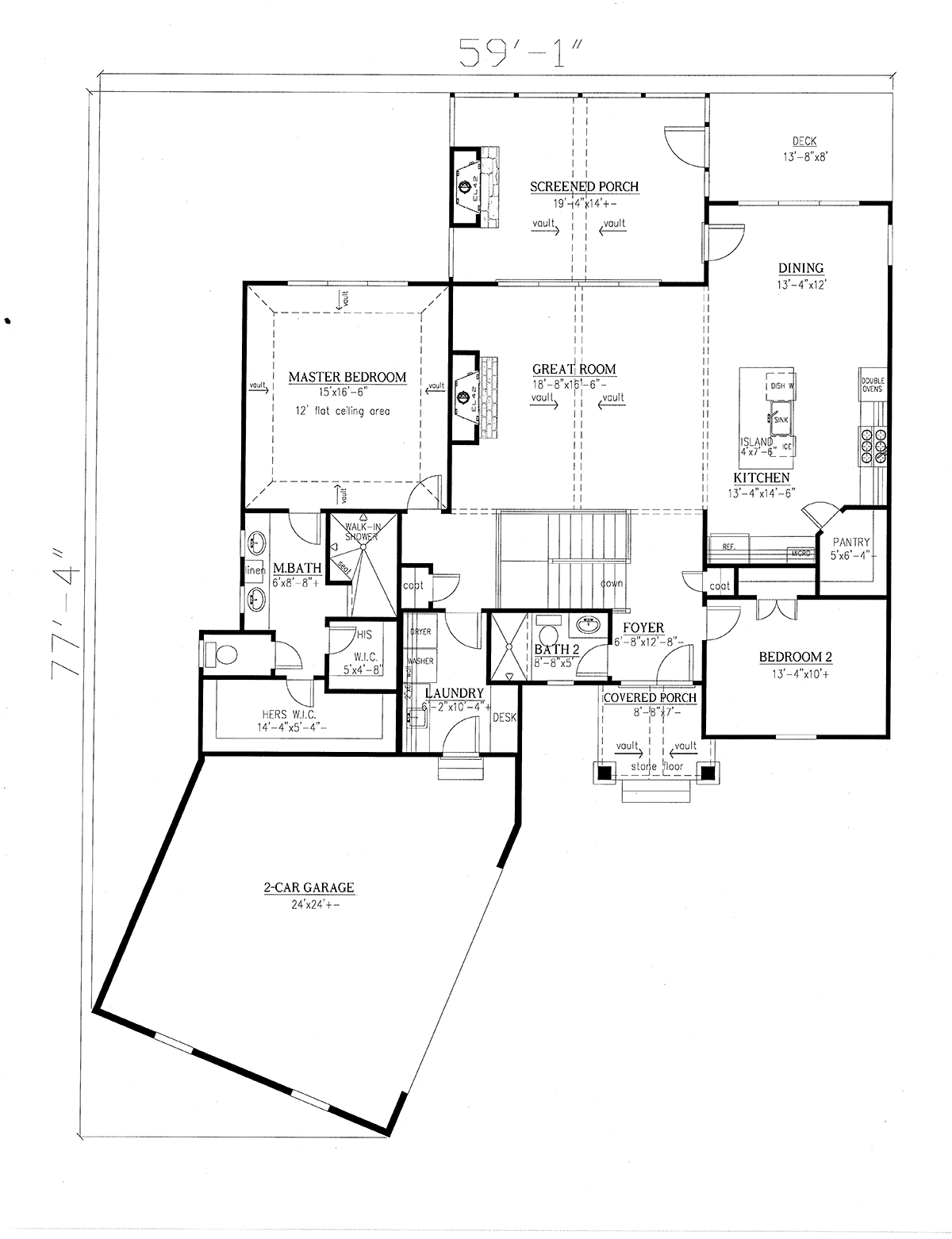

Dimensioned exterior and interior wall framing along with labeled windows/doors sizes in each room of home. Wall heights are indicated for each level. Room sizes are indicated and any beams, posts and structural bearing points are called out.
