2 Car Garage Apartment Plan 52113

• PDF File: $1,680.00
• 5 Sets: $1,820.00
• 5 Sets plus PDF File: $1,890.00
• CAD File: $2,100.00
  Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
• Right Reading Reverse: $100.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $35.00

Materials List may take 3-5 weeks to fulfill depending on availability.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: $125.00
  (Please call for drawing time.)
• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	744 sq ft

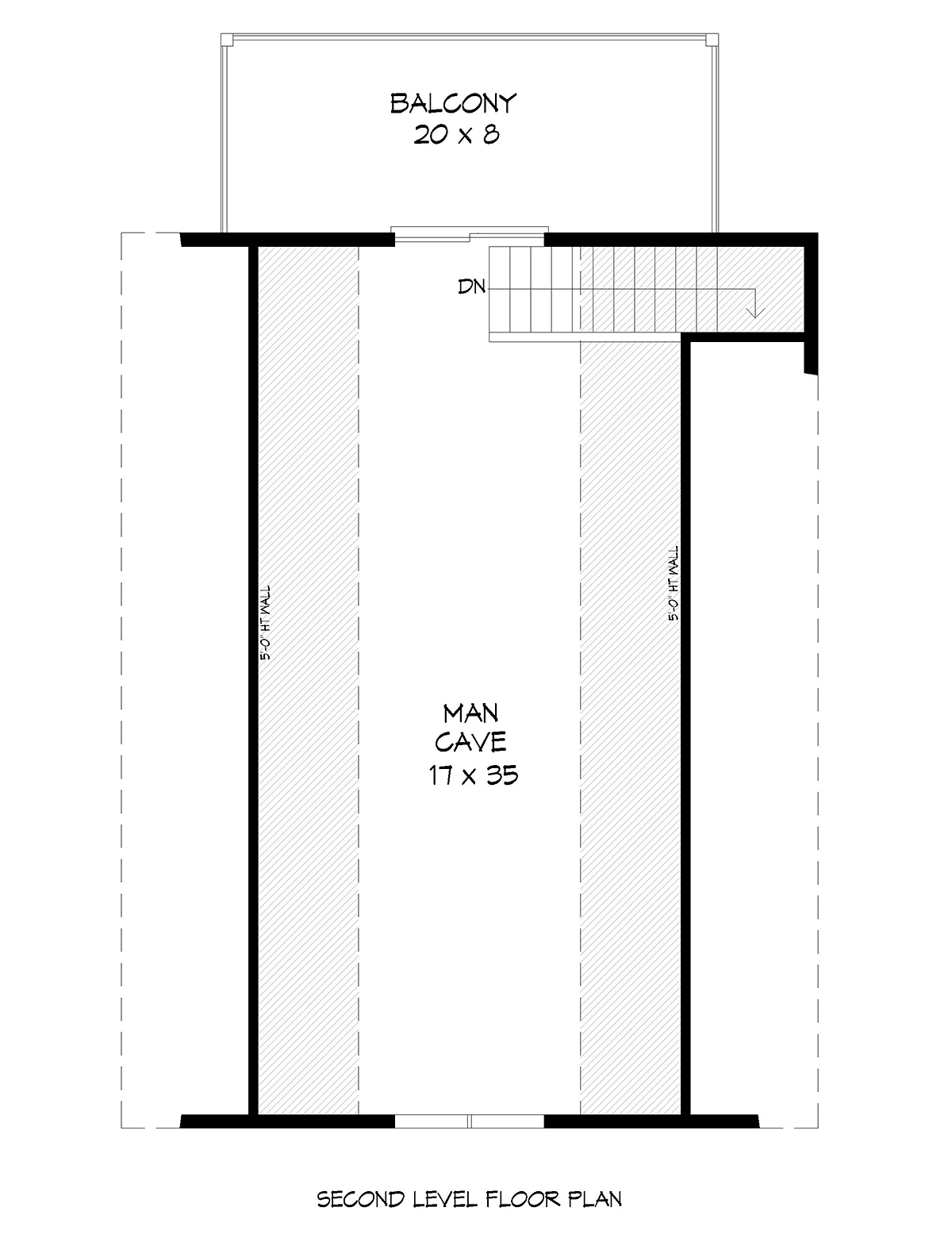

Upper Living Area:	744 sq ft
Garage Area:	1008 sq ft
Garage Type:	Detached
Garage Bays:	2
Foundation Types:	Slab
Exterior Walls:	2x4 - * $125.00 2x6
House Width:	34'6
House Depth:	36'8
Number of Stories:	2
Max Ridge Height:	24'7 from Front Door Floor Level
Primary Roof Pitch:	12:12
Roof Framing:	Truss
Porch:	329 sq ft
Main Ceiling Height:	9'
Upper Ceiling Height:	9'

* May require additional drawing time.

Special Features:

• Bonus Room
• Storage Space

Plans include

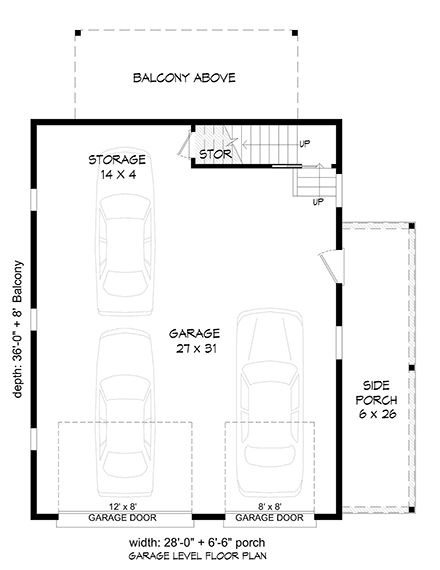

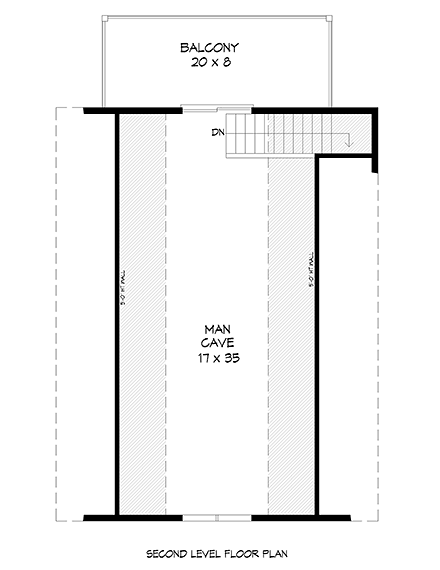

a: Floor Plans: House plan drawings indicating dimensions for construction
b: Roof Plan: Drawings indicating roof slopes and unique conditions

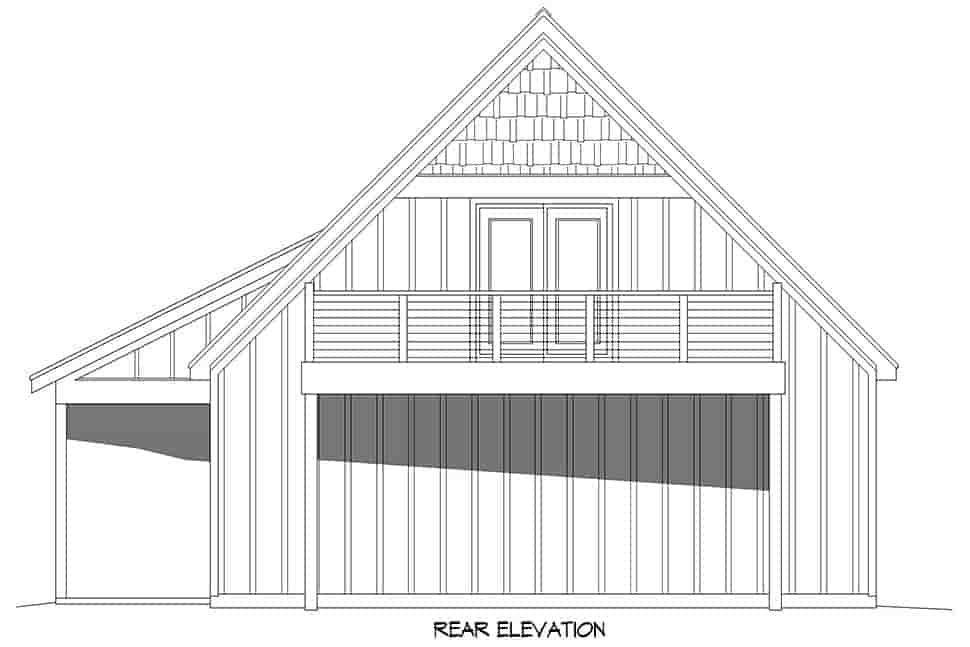

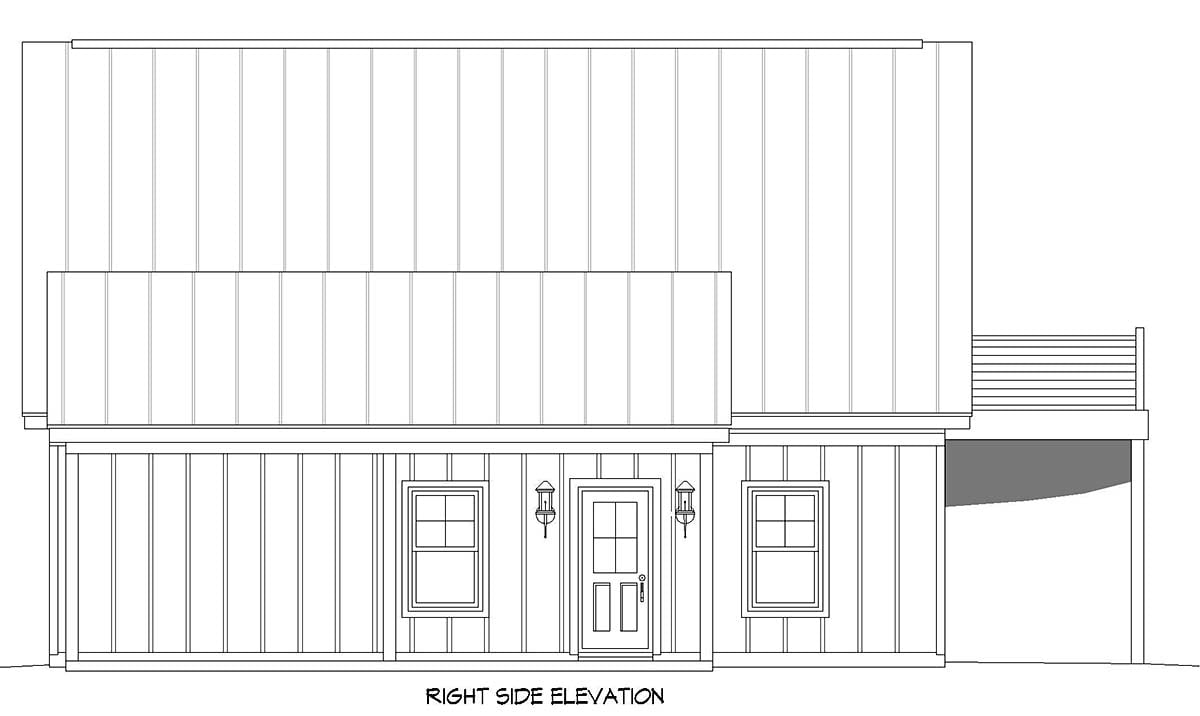

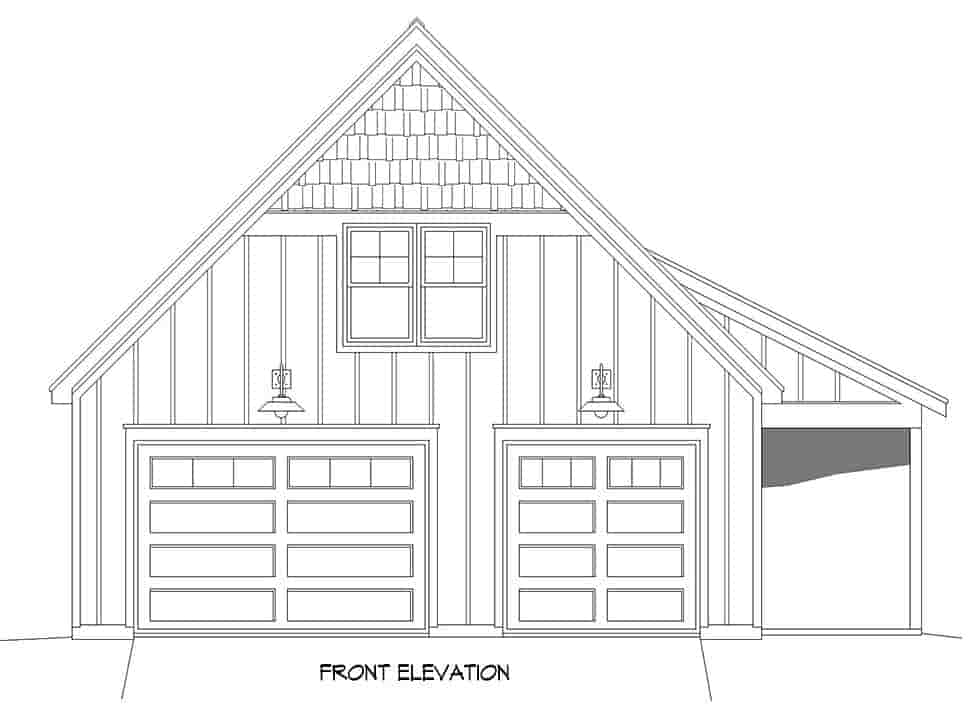

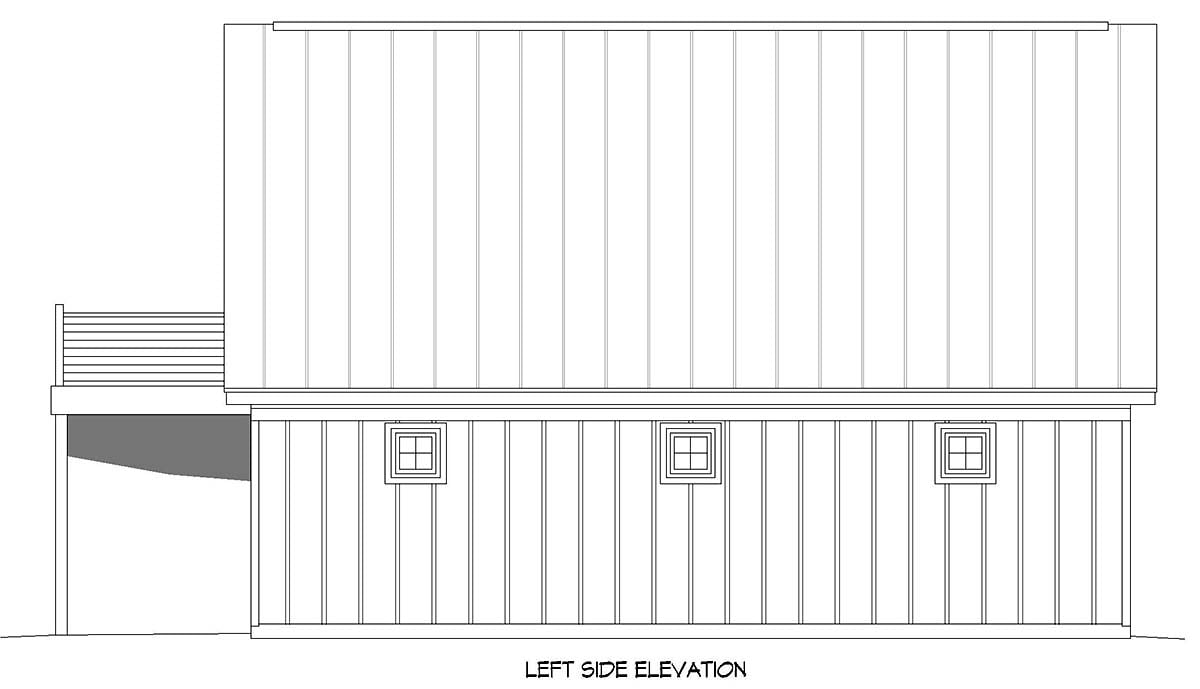

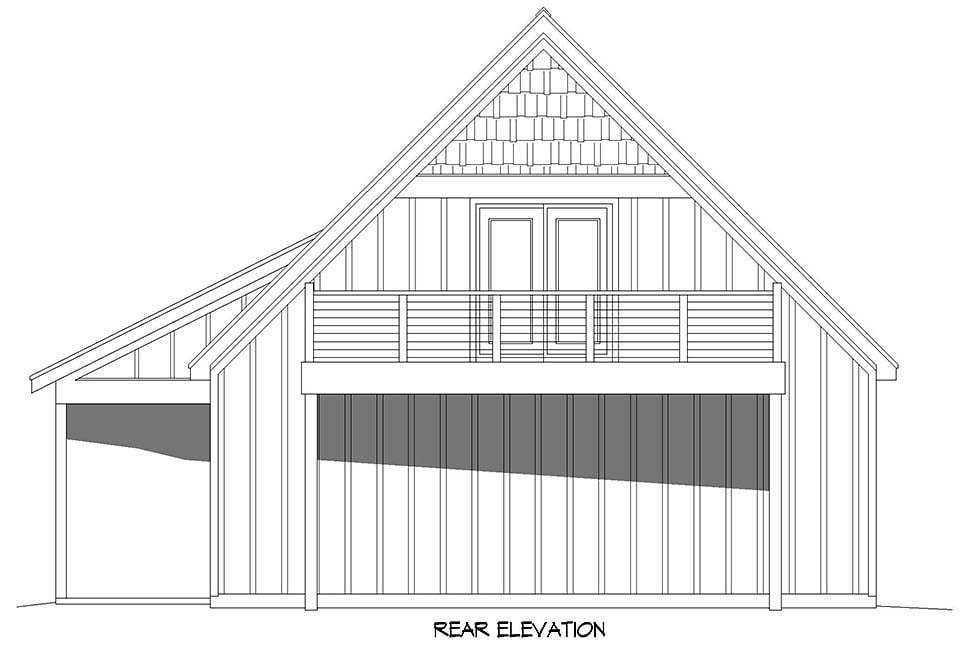

c: Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish
d: Building Sections: Drawings cut through important locations in the structure
e: Construction Details: Drawings showing specific construction of building elements at a large scale
f: Kitchen and bath elevations
g: Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
h: Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure CRAWLSPACE

Plans are sent in AutoCAD 2000 format

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

We are sorry, but an estimated cost build report is not available for this particular plan.

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
