Garage-Living Plan 52160

• PDF File: $1,225.00
• 5 Sets: $1,456.00
• 5 Sets plus PDF File: $1,511.00
• CAD File: $1,645.00
  Single Build License issued on CAD File orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
• Materials List: $368.75
• Right Reading Reverse: $150.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $49.00

Materials List may take 3-5 weeks to fulfill depending on availability.

Available Foundation Types:

• Basement : $437.50
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : $250.00
  May require additional drawing time, please call to confirm before ordering.
• Slab : No Additional Fee
• Walkout Basement : $562.50
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	576 sq ft
Main Living Area:	51 sq ft
Upper Living Area:	525 sq ft
Garage Area:	474 sq ft
Garage Type:	Detached
Garage Bays:	1
Foundation Types:	Basement - * $437.50 Total Living Area may increase with Basement Foundation option. Crawlspace - * $250.00 Slab Walkout Basement - * $562.50 Total Living Area may increase with Basement Foundation option.
Exterior Walls:	2x6
House Width:	21'0
House Depth:	25'0
Number of Stories:	2
Max Ridge Height:	23'6 from Front Door Floor Level
Primary Roof Pitch:	5:12
Roof Framing:	Stick
Deck:	42 sq ft
Main Ceiling Height:	8'
Upper Ceiling Height:	7'
Vaulted Ceiling:	Yes

* May require additional drawing time.

Plans include

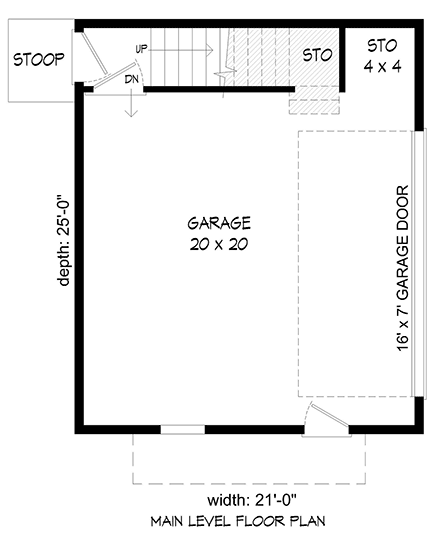

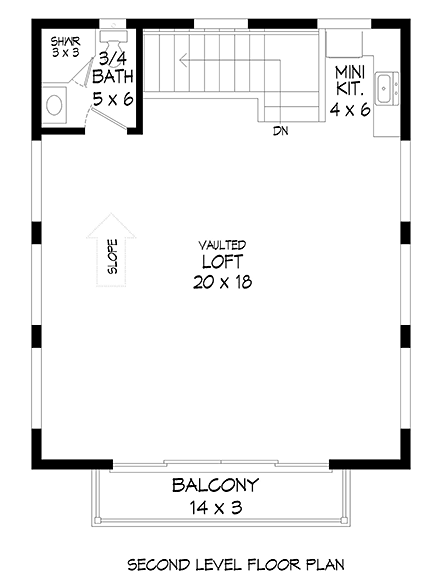

a: Floor Plans: House plan drawings indicating dimensions for construction
b: Roof Plan: Drawings indicating roof slopes and unique conditions

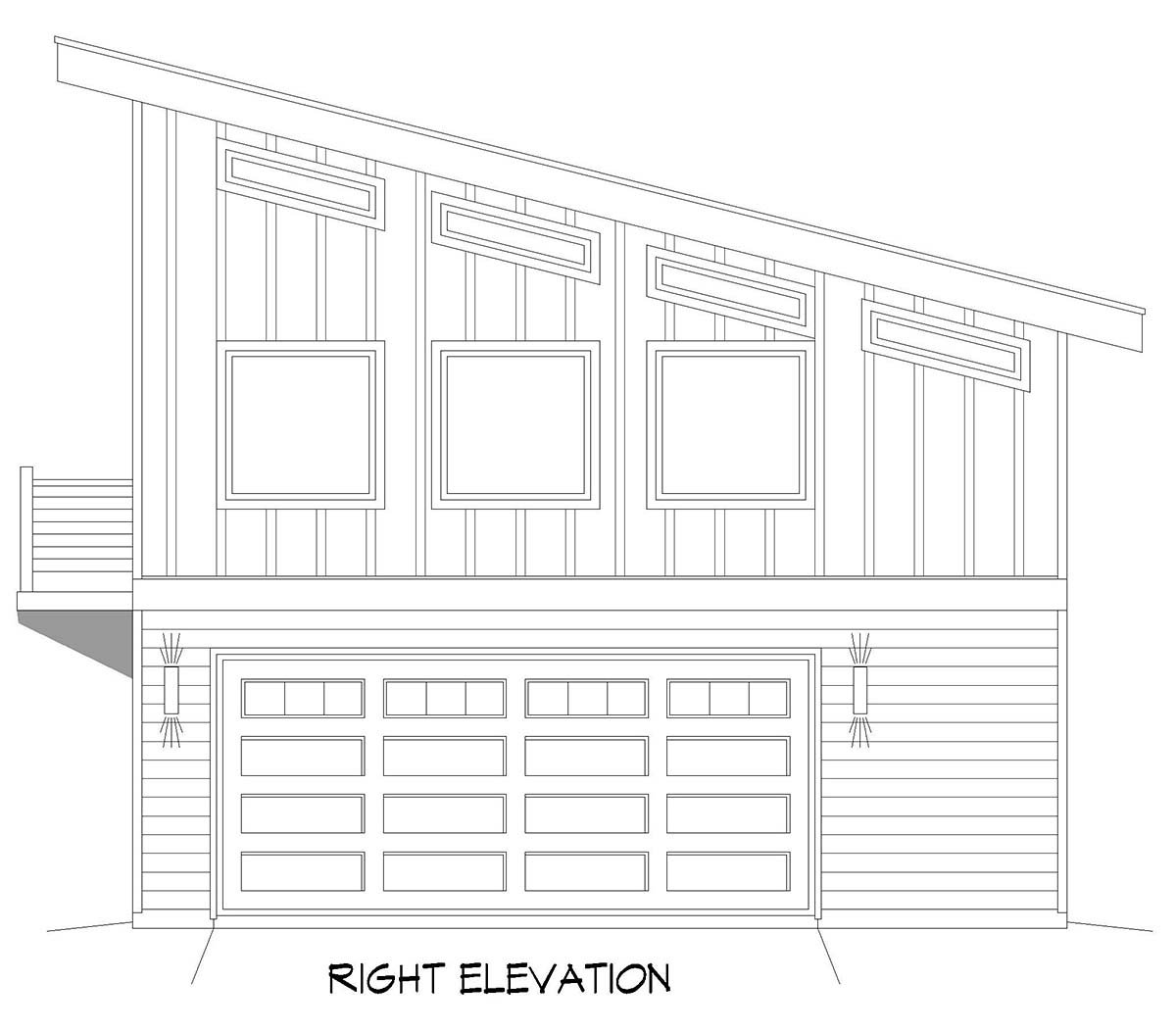

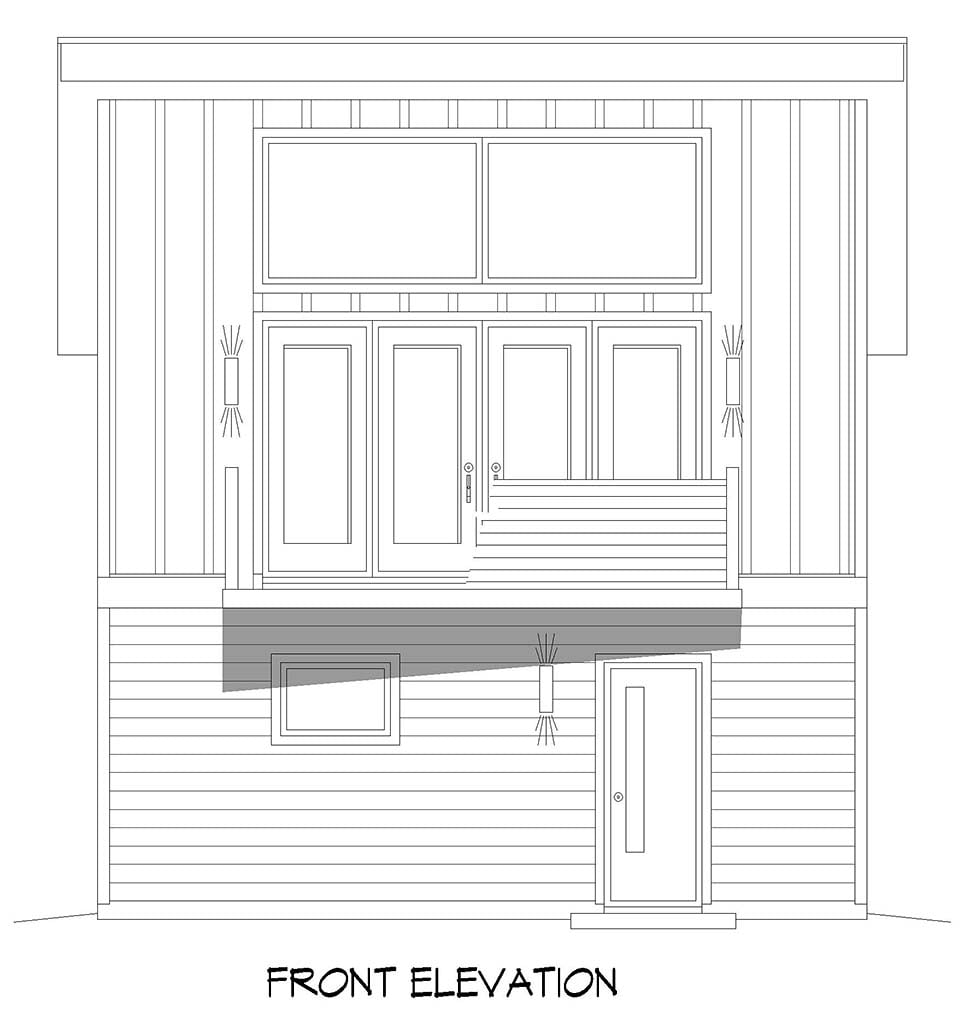

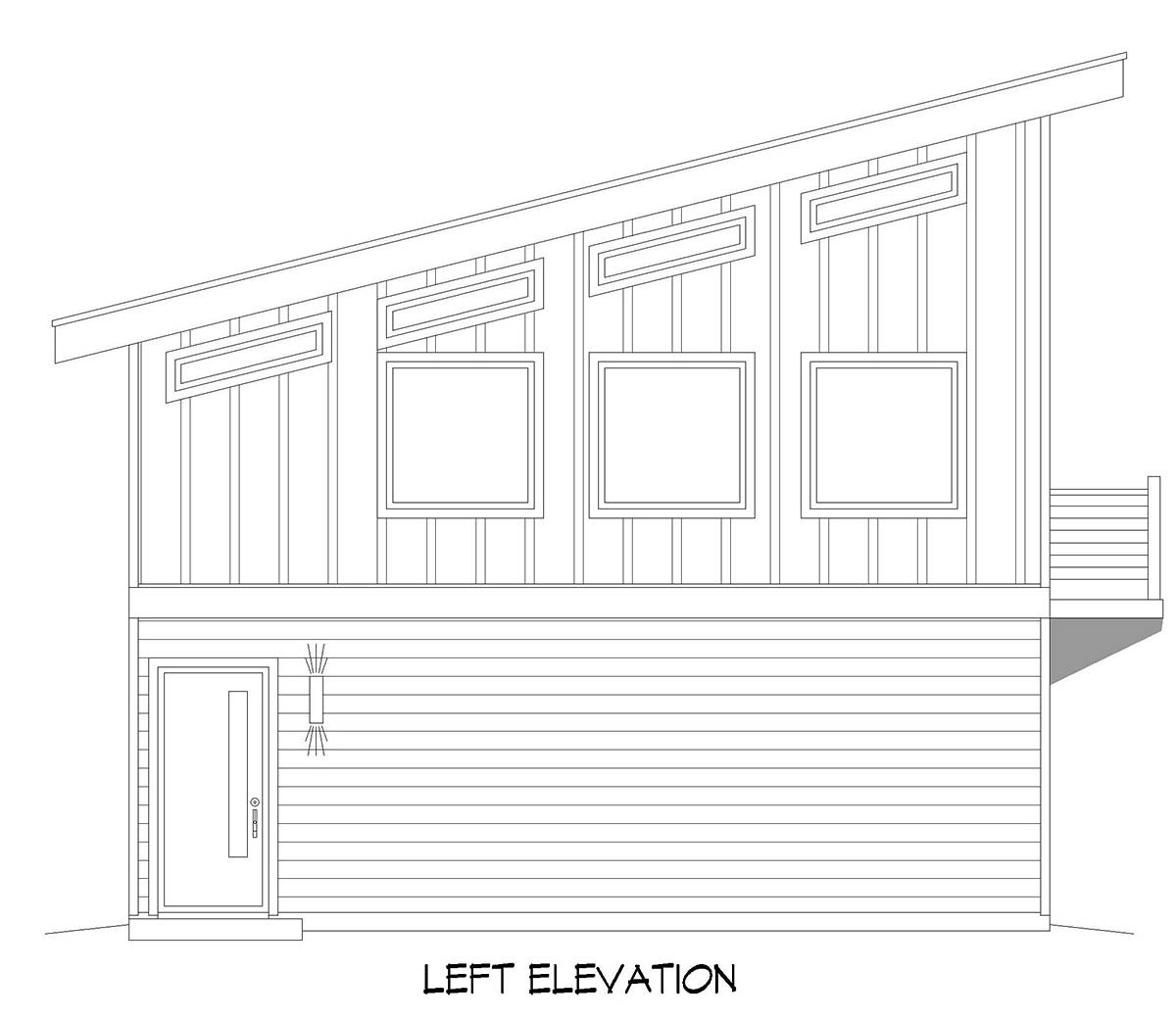

c: Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish
d: Building Sections: Drawings cut through important locations in the structure
e: Construction Details: Drawings showing specific construction of building elements at a large scale
f: Kitchen and bath elevations
g: Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
h: Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure CRAWLSPACE

Plans are sent in AutoCAD 2000 format

Receive a FREE modification estimate:

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!

We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.

Simply contact the modification department via...

Email Us This is the best and quickest way to get a modification quote!

Please include your Telephone Number, Plan Number, Foundation Type, State you are building in and a Specific List of Changes.

It's as simple as that!

We are sorry, but an estimated cost build report is not available for this particular plan.
