Garage-Living Plan 52162

• PDF File: $1,593.00
• 5 Sets: $1,764.00
• 5 Sets plus PDF File: $1,813.00
• CAD File: $2,303.00
  Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
• Materials List: $250.00
• Right Reading Reverse: $200.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $49.00

Materials List may take 3-5 weeks to fulfill depending on availability.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	1957 sq ft
Main Living Area:	697 sq ft
Upper Living Area:	1260 sq ft
Garage Area:	563 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	42'0
House Depth:	30'0
Number of Stories:	2
Bedrooms:	2
Full Baths:	2
Max Ridge Height:	26'4 from Front Door Floor Level
Primary Roof Pitch:	2.5:12
Roof Framing:	Truss
Deck:	195 sq ft
Main Ceiling Height:	10'
Upper Ceiling Height:	7'
Vaulted Ceiling:	Yes

Special Features:

• 2nd Floor Balcony
• Deck or Patio
• Mudroom
• Open Floor Plan
• Storage Space

Plans include

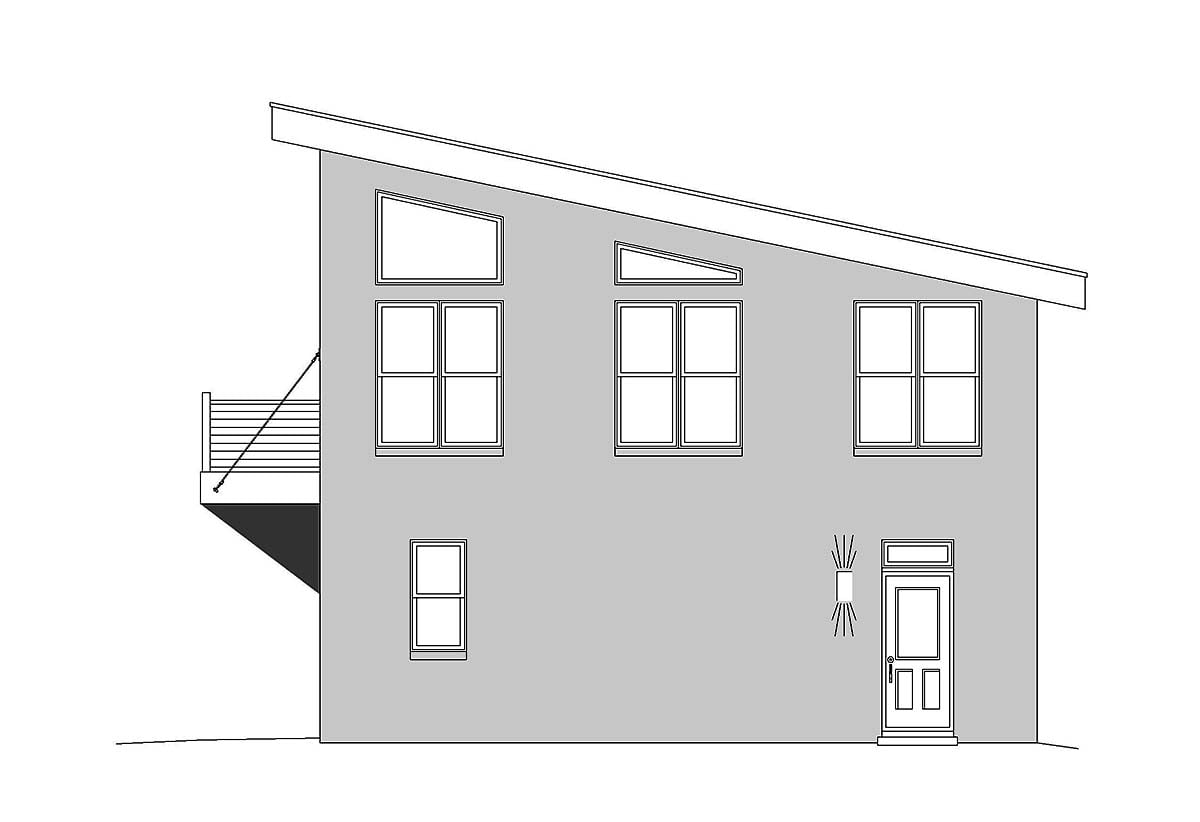

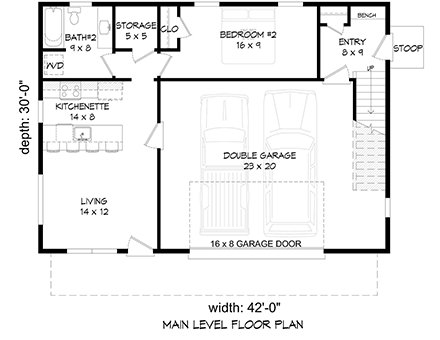

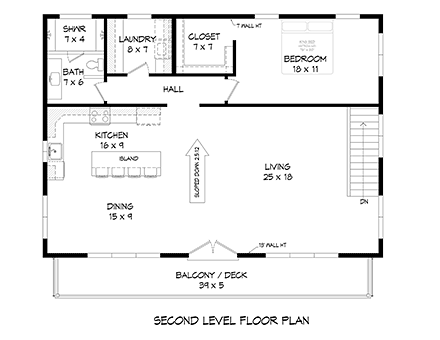

a: Floor Plans: House plan drawings indicating dimensions for construction
b: Roof Plan: Drawings indicating roof slopes and unique conditions

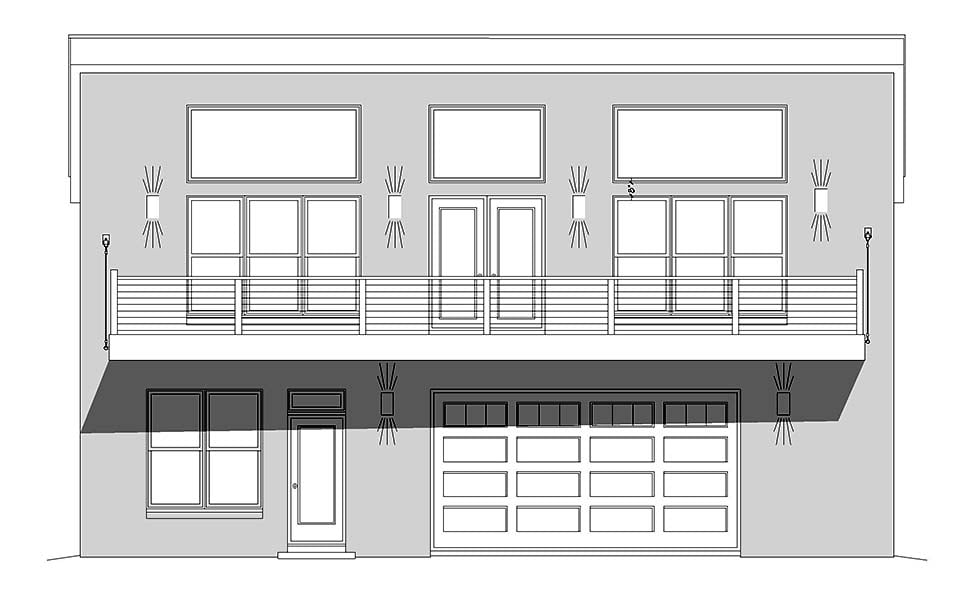

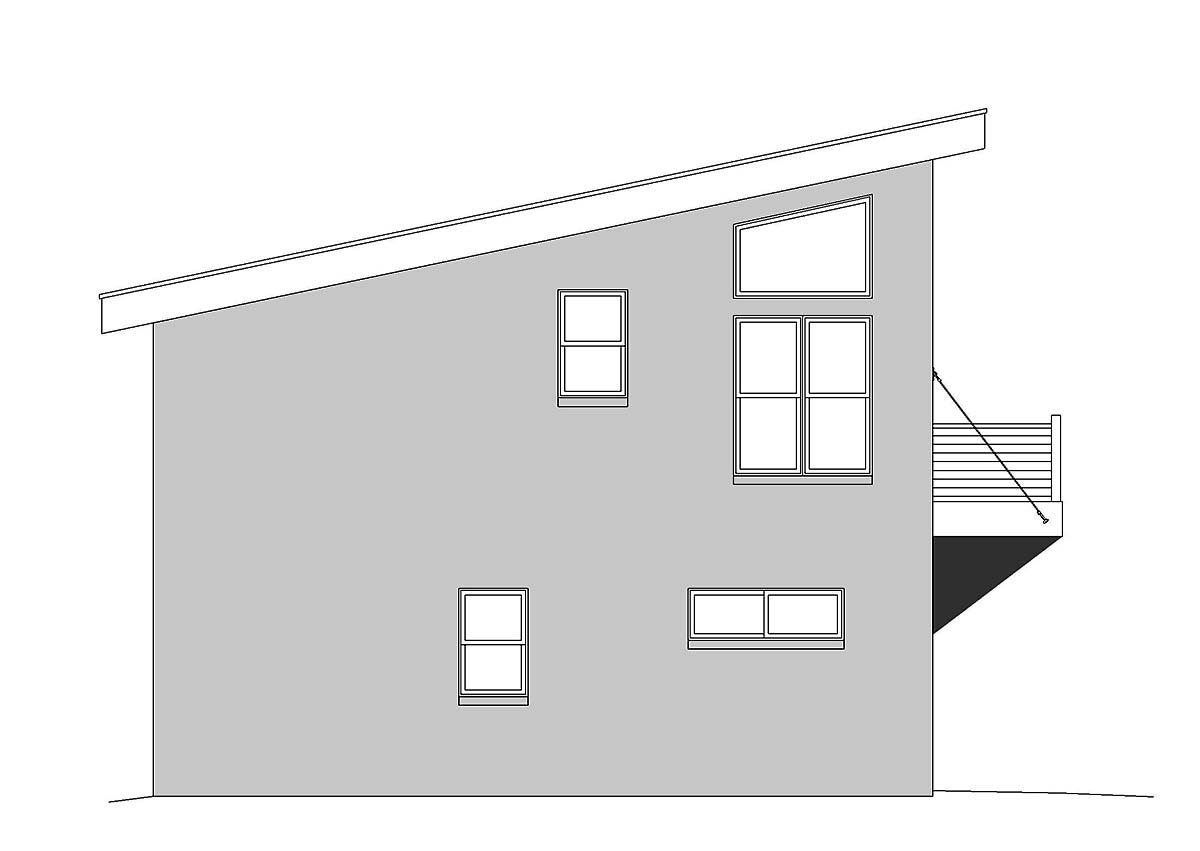

c: Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish
d: Building Sections: Drawings cut through important locations in the structure
e: Construction Details: Drawings showing specific construction of building elements at a large scale
f: Kitchen and bath elevations
g: Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
h: Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure CRAWLSPACE

Plans are sent in AutoCAD 2000 format
