Garage-Living Plan 52156

• PDF File: $1,435.00
• 5 Sets: $1,666.00
• 5 Sets plus PDF File: $1,728.00
• CAD File: $2,135.00
  Single Build License issued on CAD File orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
• Materials List: $368.75
• Right Reading Reverse: $200.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $49.00

Materials List may take 3-5 weeks to fulfill depending on availability.

Available Foundation Types:

• Crawlspace : $250.00
  May require additional drawing time, please call to confirm before ordering.
• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	1402 sq ft
Main Living Area:	58 sq ft
Upper Living Area:	1344 sq ft
Garage Area:	1286 sq ft
Garage Type:	Attached
Garage Bays:	4
Foundation Types:	Crawlspace - * $250.00 Slab
Exterior Walls:	2x6
House Width:	46'0
House Depth:	37'0
Number of Stories:	2
Bedrooms:	2
Full Baths:	2
3/4 Baths:	1
Max Ridge Height:	26'11 from Front Door Floor Level
Primary Roof Pitch:	2.5:12
Roof Framing:	Truss
Deck:	287 sq ft
Main Ceiling Height:	10'
Upper Ceiling Height:	7'
Vaulted Ceiling:	Yes

* May require additional drawing time.

Special Features:

• Deck or Patio
• Entertaining Space
• Guest Room
• Open Floor Plan
• Pantry
• Storage Space

Plans include

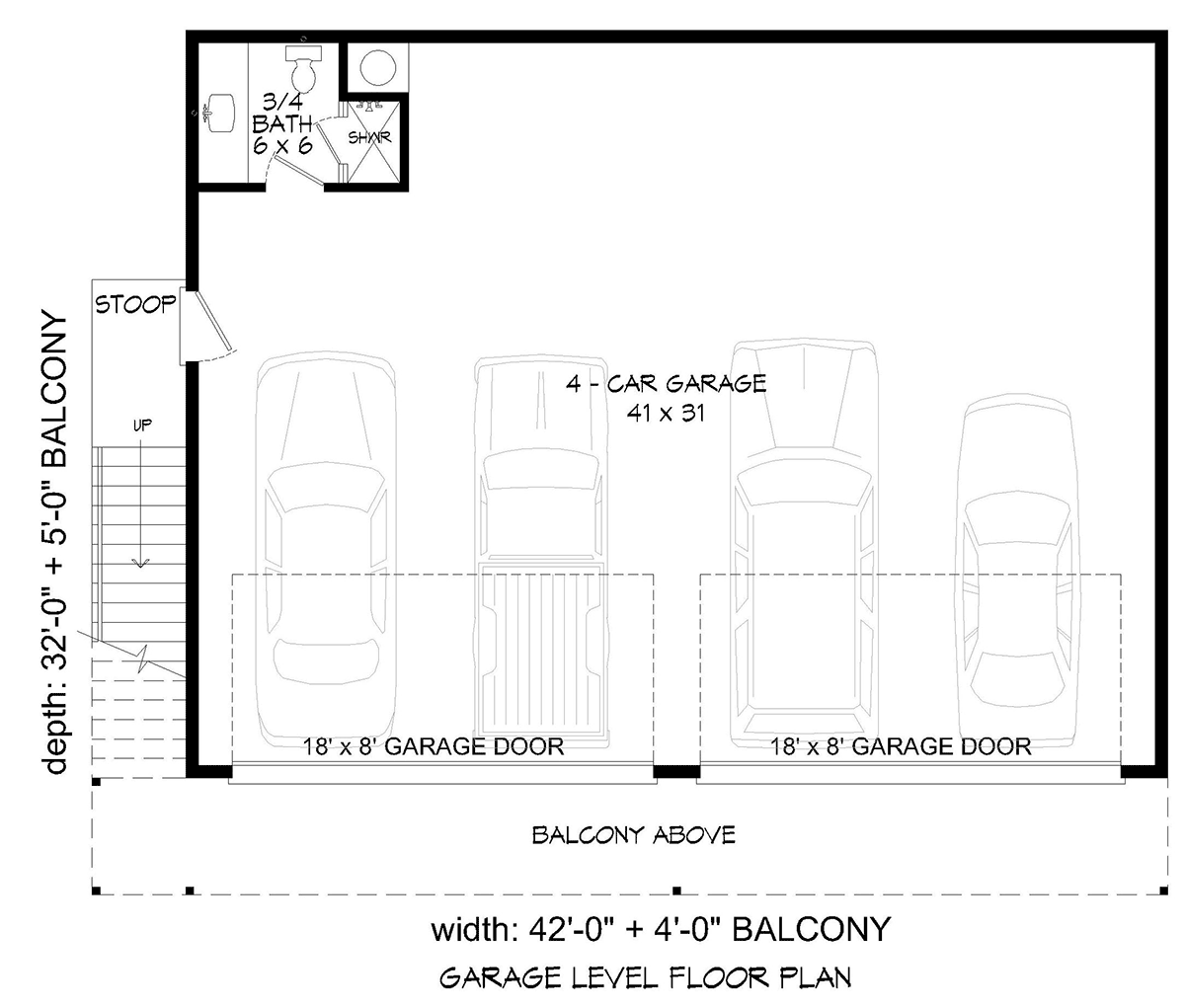

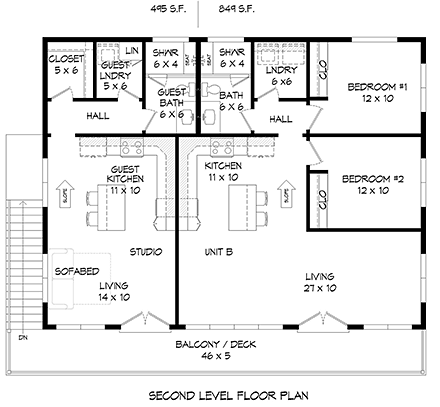

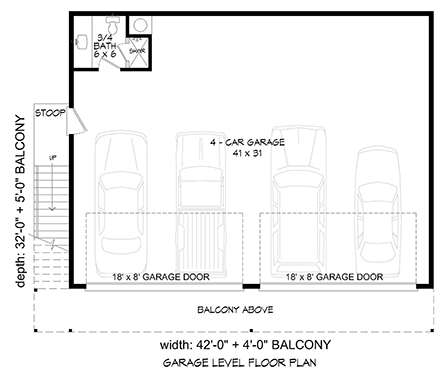

a: Floor Plans: House plan drawings indicating dimensions for construction
b: Roof Plan: Drawings indicating roof slopes and unique conditions

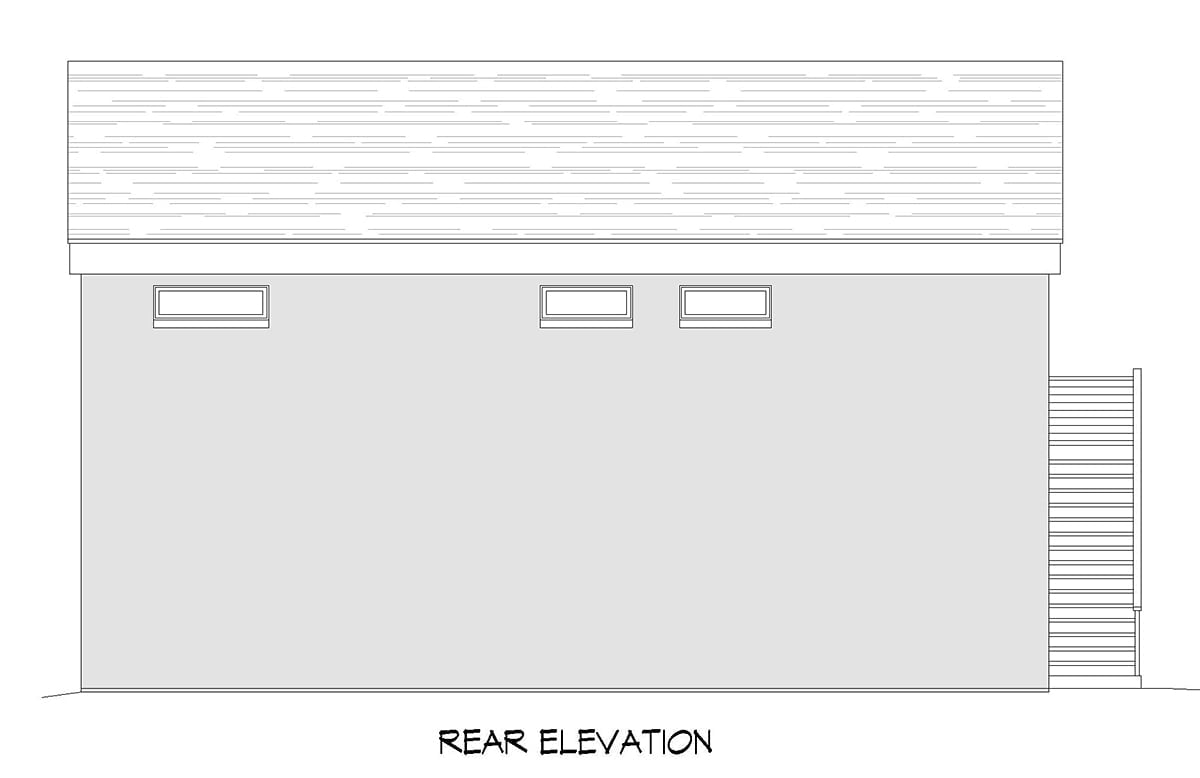

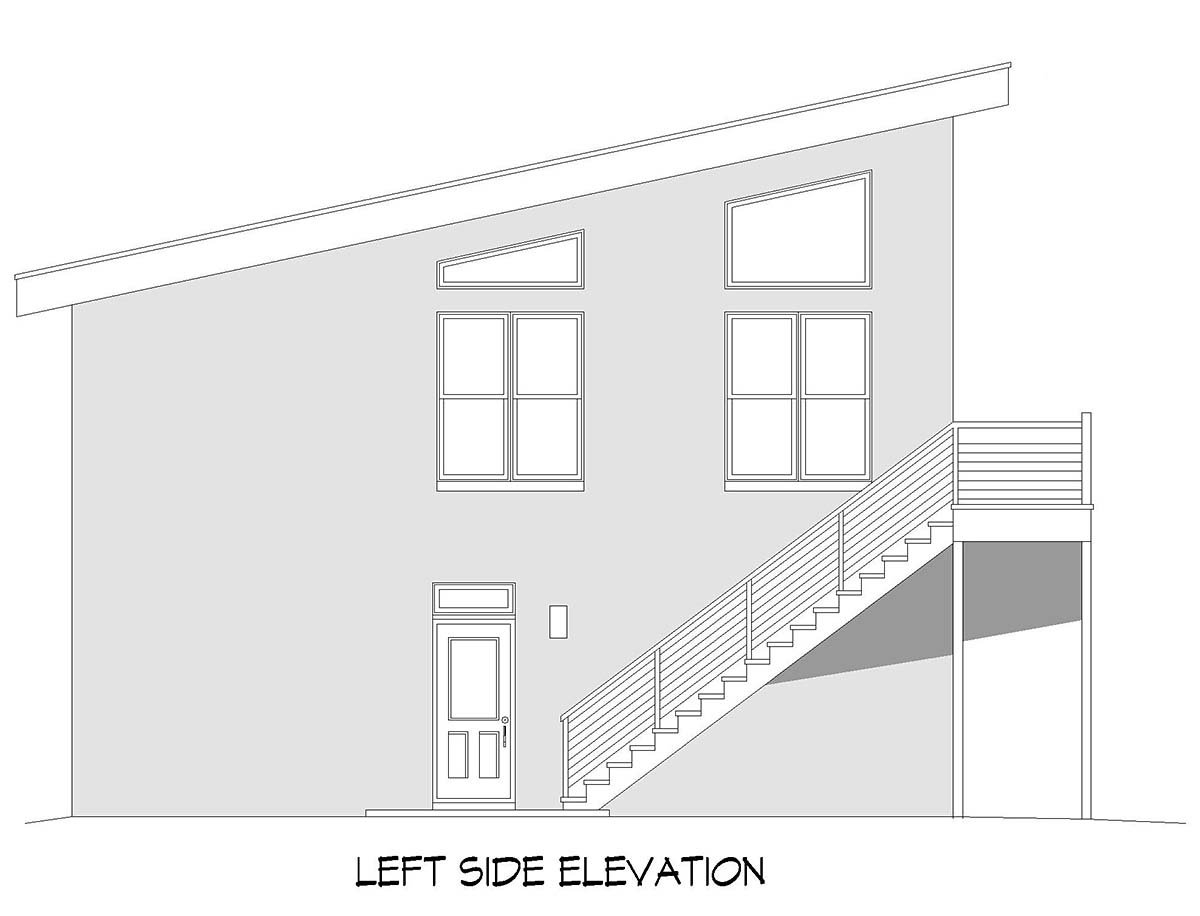

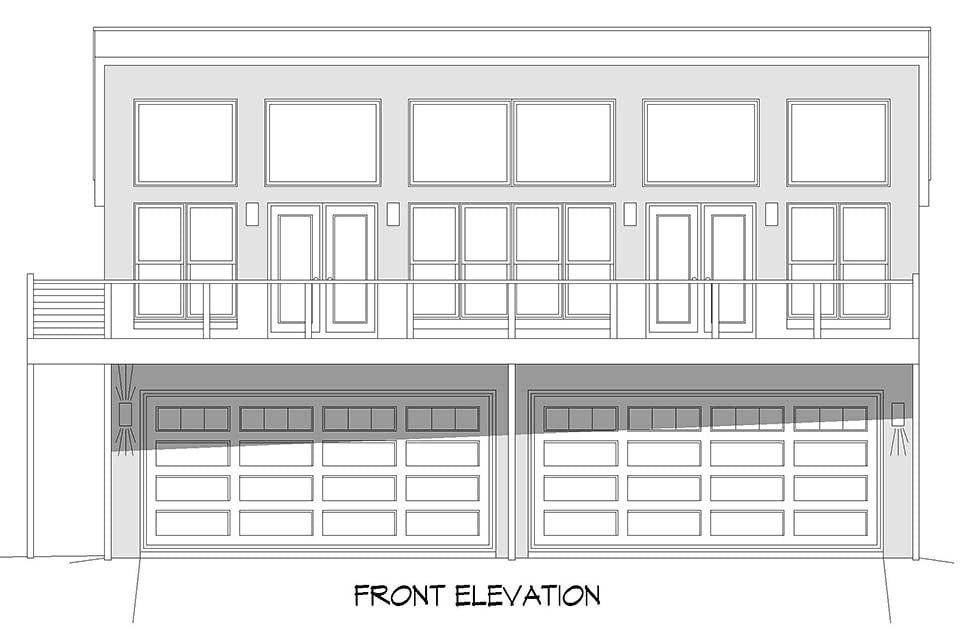

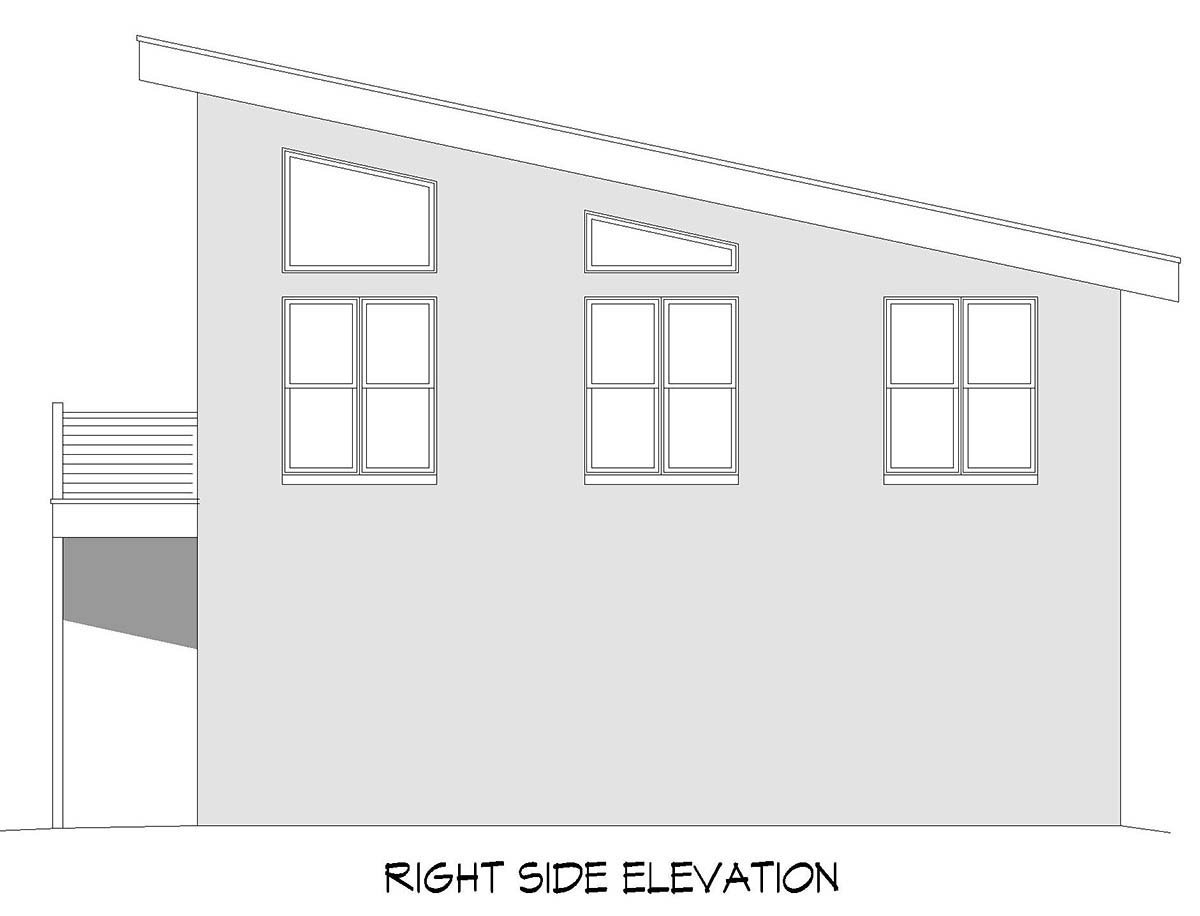

c: Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish
d: Building Sections: Drawings cut through important locations in the structure
e: Construction Details: Drawings showing specific construction of building elements at a large scale
f: Kitchen and bath elevations
g: Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
h: Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure CRAWLSPACE

Plans are sent in AutoCAD 2000 format

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

We are sorry, but an estimated cost build report is not available for this particular plan.
