2 Car Garage Plan 52223

• PDF File: $410.00
• CAD File: $560.00
  Single Build License issued on CAD File orders.
• Materials List: $50.00

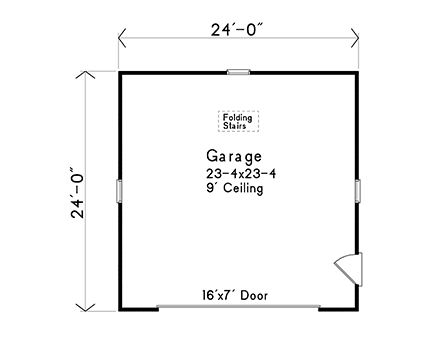

• Right Reading Reverse: $50.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Available Foundation Types:

• Stem Wall Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee
• 2x6: $50.00
  (Please call for drawing time.)

Prices subject to approval prior to fulfillment.

• Shipping Policy

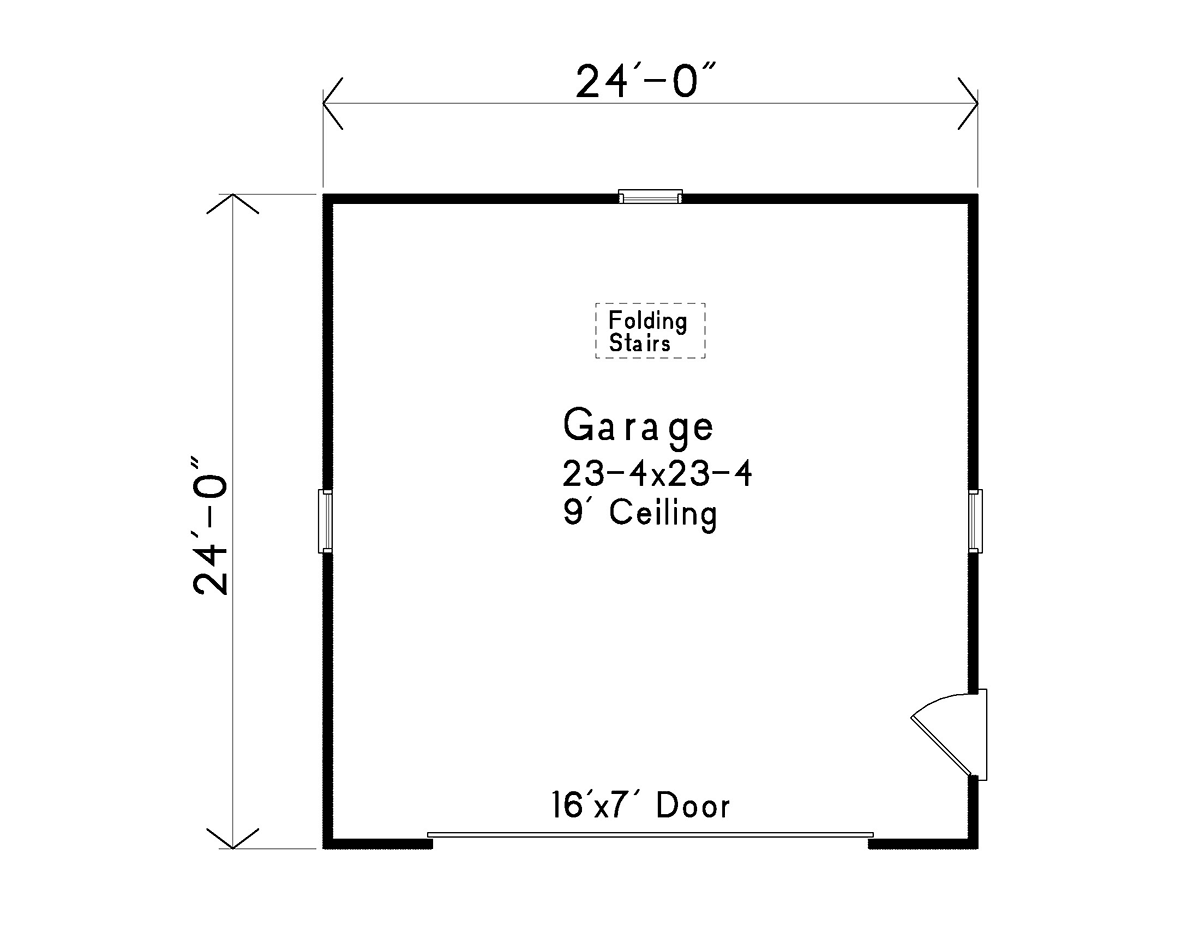

Garage Area:	576 sq ft
Garage Type:	Detached
Garage Bays:	2
Foundation Types:	Stem Wall Slab
Exterior Walls:	2x4 2x6 - * $50.00
House Width:	24'0
House Depth:	24'0
Number of Stories:	1
Max Ridge Height:	19'0 from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Load:	40 psf
Roof Framing:	Truss
Main Ceiling Height:	9'

* May require additional drawing time.

These blueprints will include building specifications, foundation plan, floor plans, exterior elevations, electrical plans, interior cabinet elevations, wall sections and stair details. Some of the larger plans will have additional details.

All plans have been drawn to meet the requirements of the national building codes. Your builder will be able to determine if minor modifications may need to be made to the plans to meet the local building code requirements including any subdivision requirements.

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Common Q & A
