House Plan 54003
One Floor Craftsman Ranch with 1598 Sq Ft, 3 Bedrooms, 2 Full Baths and a 2 Car Garage
sq ft
1598beds
3baths
2bays
2width
62'depth
47'
click for more images
Plan Pricing
Turnaround time to ship plans may be between 48 – 72 hours. Please call to confirm.
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 1598 sq ft |
| Main Living Area: | 1598 sq ft |
| Unfinished Basement Area: | 1598 sq ft |
| Garage Area: | 603 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 2 |
| Foundation Types: | Basement |
| Exterior Walls: | 2x6 |
| House Width: | 61'8 |
| House Depth: | 47' |
| Number of Stories: | 1 |
| Bedrooms: | 3 |
| Full Baths: | 2 |
| Max Ridge Height: | 22'6 from Front Door Floor Level |
| Primary Roof Pitch: | 8:12 |
| Roof Load: | 50 psf |
| Roof Framing: | Truss |
| Porch: | 98 sq ft |
| FirePlace: | Yes |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 9' |
Special Features:
Plan Description
One Floor Craftsman Ranch with 1598 Sq Ft, 3 Bedrooms, 2 Full Baths and a 2 Car Garage
A single level floor plan with a popular split bedroom layout. The master bedroom is nicely placed behind the garage and the spare bedrooms share a bathroom on the opposite side of the house. The living space has the kitchen at the front of the house with a central island/bar top. A large open space is shared by the great room and an informal dining room with fireplace. A front load two-car garage with ample storage space, enters not far from the kitchen. Access attic storage with a drop down.What's Included?
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: Good Afternoon, Questions 1: The window above the garage is decorative only. There is no bonus room. Questions 2: The labeling of the bedrooms on the marketing image is a typo. It should be marked as Bedroom 2 & Bedroom 3 Thanks!
A: The basement is under the whole house except the porch and garage. It is built with 2 x 6 walls The trusses are not pre-engineered. There is no attic space above the garage. The window in the gable is decorative not functional. I hope that this answers the questions!
A: The roof pitch on the left side of the house is 8/12. The pitch on the right side is 5/12.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
click for galleryInfo Brochure
Photographs may show modified designs.

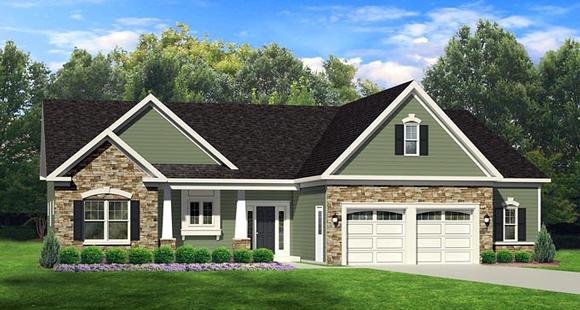

Elevation
Level One
Quick Specs
1598 Total Living Area1598 Main Level
3 Bedrooms
2 Full Baths
2 Car Garage
61'8 W x 47' D
Quick Specs
1598 Total Living Area3 Bedrooms
2 Full Baths
2 Car Garage
61'8 W x 47' D
Rear Elevation
Photographs may show modified designs.
