House Plan 54688

• PDF File: $1,365.00
• CAD File: $2,725.00
  Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $150.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

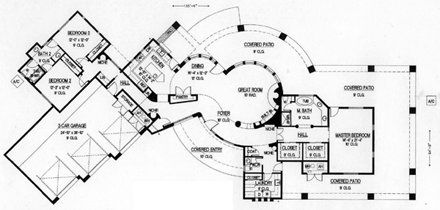

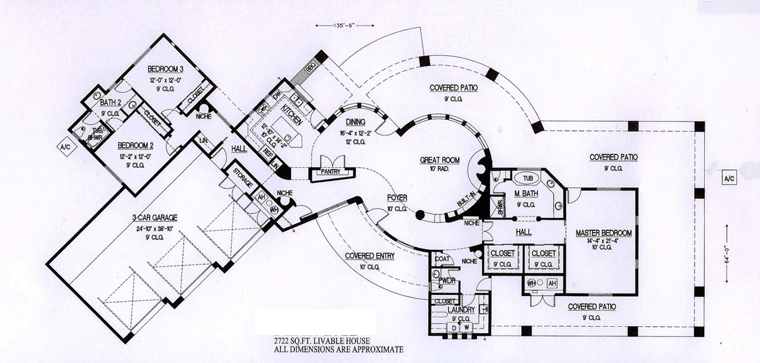

Total Living Area:	2722 sq ft
Main Living Area:	2722 sq ft
Garage Type:	Attached
Garage Bays:	3
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	135'6
House Depth:	64'
Number of Stories:	1
Bedrooms:	3
Full Baths:	2
Half Baths:	1
Max Ridge Height:	16' from Front Door Floor Level
Primary Roof Pitch:	0
Roof Load:	20 psf
Roof Framing:	Unknown
Porch:	1940 sq ft
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	16'

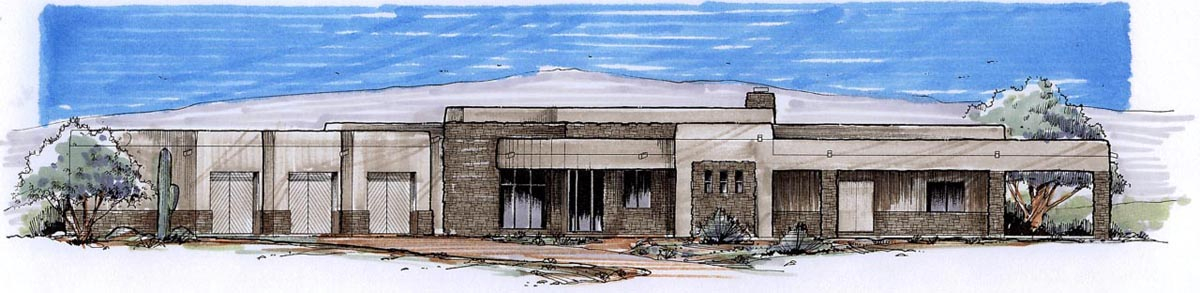

Southwest Style, 2722 Sq Ft, 3 Bed, 3 Bath, 3 Car

Southwest Style House Plan 54688 with 2722 Sq Ft, 3 Bed, 3 Bath, 3 Car Garage

Our plans include foundation plan (slab on grade), architectural floor plans, dimension floor plans, exterior elevations, building cross sections, roof framing plan, second floor framing plan, roof drainage plan, structural details, plumbing schematics, electrical plan, and diagrammatic ducting plans.
