House Plan 55713
House Plan 55713 with 1663 Sq Ft, 4 Bed, 3 Bath
sq ft
1663beds
4baths
2.5bays
0width
30'depth
60'Click Any Image For Gallery
Plan Pricing from $1,150.00
Plan Pricing
Need Printed Sets?
It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 1663 sq ft |
| Main Living Area: | 1663 sq ft |
| Garage Type: | None |
| See our garage plan collection. If you order a house and garage plan at the same time, you will get 10% off your total order amount. | |
| Foundation Types: | Slab |
| Exterior Walls: | Concrete |
| House Width: | 30' |
| House Depth: | 60' |
| Number of Stories: | 1 |
| Bedrooms: | 4 |
| Full Baths: | 2 |
| Half Baths: | 1 |
| Primary Roof Pitch: | 5:12 |
| Roof Load: | 55 psf |
| Roof Framing: | Truss |
| Porch: | 56 sq ft |
| 1st Floor Master: | Yes |
Plan Description
Total under roof 1768 sq. ft. Covered Front Porch with block columns Foyer with 8 ft ceiling Kitchen with access to Side Patio open to Dining Room Living Room Master Bedroom with walkin closet Master Bath single vanity.
What's Included?

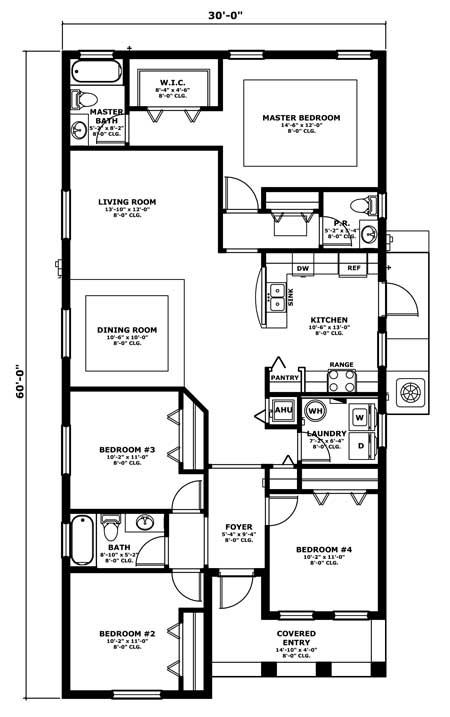

Floor Plan
