House Plan 55857

• PDF File: $1,150.00
• CAD File: $1,650.00
  Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $250.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• Concrete: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	1453 sq ft
Main Living Area:	1453 sq ft
Garage Area:	239 sq ft
Garage Type:	Attached
Garage Bays:	1
Foundation Types:	Slab
Exterior Walls:	Concrete
House Width:	39'2
House Depth:	46'
Number of Stories:	1
Bedrooms:	3
Full Baths:	2
Max Ridge Height:	17'4 from Front Door Floor Level
Primary Roof Pitch:	5:12
Roof Load:	40 psf
Roof Framing:	Truss
Porch:	15 sq ft
1st Floor Master:	Yes
Main Ceiling Height:	8'

One-Story Style, 1453 Sq Ft, 3 Bed, 2 Bath

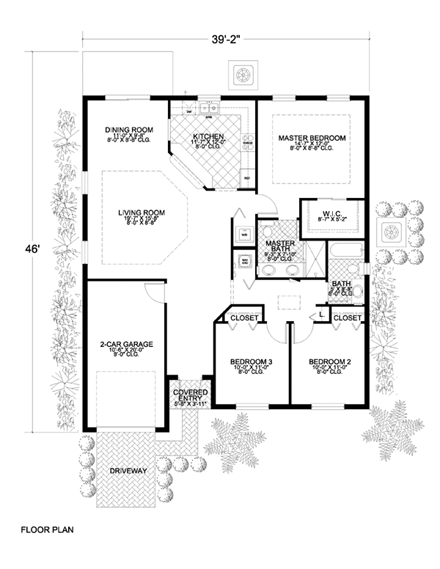

Narrow Lot, One-Story Style House Plan 55857 with 1453 Sq Ft, 3 Bed, 2 Bath, 1 Car Garage
