House Plan 55898
Mediterranean Style with 6 Bed, 5 Bath, 3 Car Garage
sq ft
4881beds
6baths
3.5bays
3width
55'depth
83'
click for more images
Plan Pricing from $1,600.00
Plan Pricing
Additional Notes
Total - Under Roof 6,170 Sq.Ft.Floor: Live Load 40
Floor: Dead Load 25
Roof: Live Load 30
Roof: Dead Load 25
Wind Speed 140
Roof Material S. Tile
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 4881 sq ft |
| Main Living Area: | 2327 sq ft |
| Upper Living Area: | 2554 sq ft |
| Garage Area: | 611 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 3 |
| Foundation Types: | Slab |
| Exterior Walls: | Concrete |
| House Width: | 54'9 |
| House Depth: | 82'2 |
| Number of Stories: | 2 |
| Bedrooms: | 6 |
| Full Baths: | 3 |
| 3/4 Baths: | 1 |
| Half Baths: | 1 |
| Max Ridge Height: | 31'5 from Front Door Floor Level |
| Primary Roof Pitch: | 5:12 |
| Roof Load: | 40 psf |
| Roof Framing: | Truss |
| Porch: | 1018 sq ft |
| Deck: | 408 sq ft |
| Formal Dining Room: | Yes |
| Main Ceiling Height: | 10'6 |
What's Included?
Floor Plan
Each of our distinctive residential floor plans come with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
Kitchen & Bath Layouts
The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
Elevations
All residential floor plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
Sections
Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
Structural Plans
All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
Foundation Plan
Most of the Architect House Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
Roof Plan
Roof and Roof Framing Plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic rooflines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
Mechanical Plans
Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
Electrical Plans
Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
Plumbing Plan
Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.
Modifications
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Common Q & A
Q: Can I make modifications to this plan?
A: Yes you can! Please click the "Modifications" tab above to get more information.
Q: What is the estimated price to build this plan?
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Photographs may show modified designs.

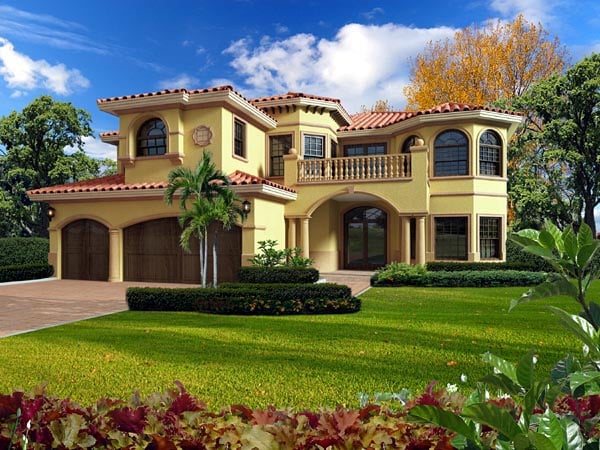

Elevation

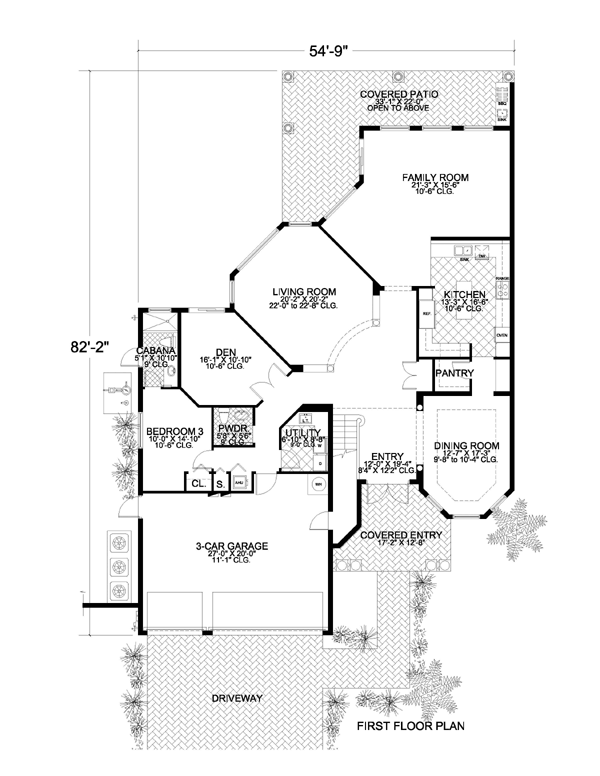

Level One

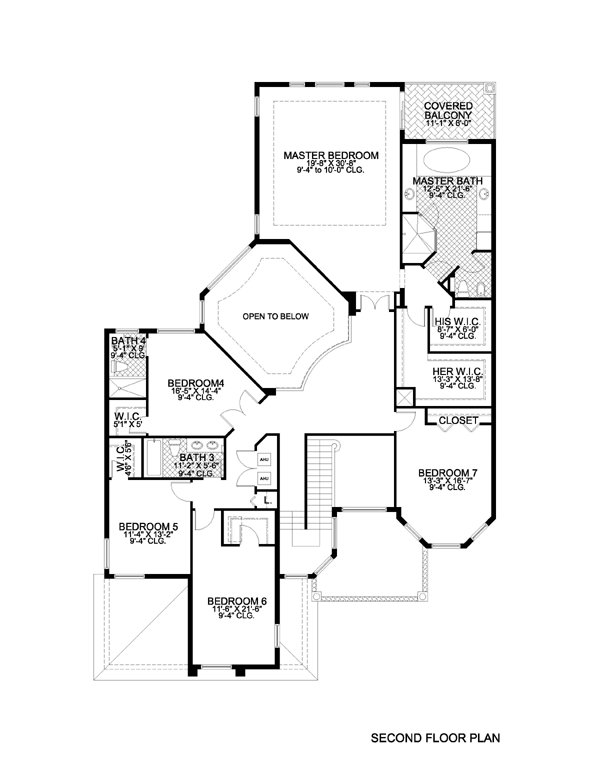

Level Two
Quick Specs
4881 Total Living Area2327 Main Level
2554 Upper Level
6 Bedrooms
3 Full Baths, 1 3/4 Baths, 1 Half Baths
3 Car Garage
54'9 W x 82'2 D
Quick Specs
4881 Total Living Area6 Bedrooms
3 Full Baths, 1 3/4 Baths, 1 Half Baths
3 Car Garage
54'9 W x 82'2 D
