2 Car Garage Apartment Plan 58541

• PDF File: $650.00
• 1 Set: $550.00 **
• 5 Sets: $750.00
• 8 Sets: $850.00
• Reproducible Set: $850.00
• CAD File: $1,300.00
  Single Build License issued on CAD File orders.
• Materials List: $85.00
• Right Reading Reverse: $175.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $60.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Additional Notes

Garage Doors: 9’ x 7’
Interior Doors: 2’ 6” (30”)
Front windows: 3’ x 3’
Left Side Window: 5’ x 5’
Right Side Window: 4’ x 4’

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	624 sq ft
Upper Living Area:	624 sq ft
Garage Type:	Detached
Garage Bays:	2
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	30'
House Depth:	25'
Number of Stories:	2
Bedrooms:	1
Full Baths:	1
Max Ridge Height:	24' from Front Door Floor Level
Primary Roof Pitch:	12:12
Roof Load:	40 psf
Roof Framing:	Unknown
Main Ceiling Height:	8'

Cover Sheet Landscaped architectural rendering of the exterior help the owner/builder visualize the new home completed.

Foundation Plan 1/4 inch scale basement and foundation plans with all necessary dimensions and notations.

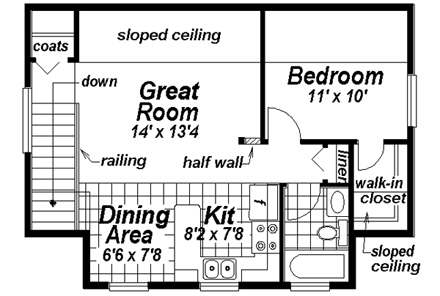

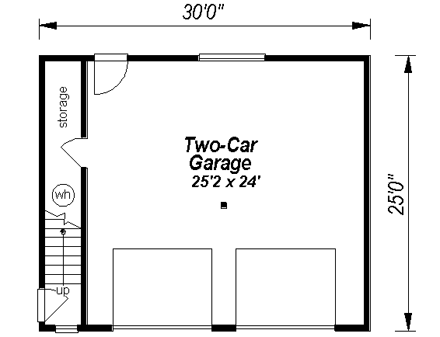

Floor Plans Detailed 1/4 inch scale main and upper story plans with complete dimensions. Floor plans also include room sizes, detail cross section keys and location of plumbing fixtures.

Electrical Plans 3/16 inch scale electrical plans showing light fixtures, switches and plug locations.

Cross Sections 1/4 inch scaled sections of the foundation, interior and exterior walls, floor and roof details for design and construction methods.

Site Plan A stock plot plan with a detailed aerial view of the home situated on a rectangular lot is provided.

Exterior Elevations 1/4 inch scale exterior elevation drawings of the front, rear and both sides of the house. These drawings show window and door locations as well as general material specifications.

All plans are drawn with 2x6 exterior walls.

Lumber, windows, doors, nails, insulation and trims. No HVAC or electrical included.
