Specifications

Total Living Area:	920 sq ft
Upper Living Area:	920 sq ft
Garage Area:	988 sq ft
Garage Type:	Detached
Garage Bays:	3
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	38'
House Depth:	26'
Number of Stories:	2
Bedrooms:	2
Full Baths:	2
Max Ridge Height:	24' from Front Door Floor Level
Primary Roof Pitch:	12:12
Roof Load:	40 psf
Roof Framing:	Stick
Main Ceiling Height:	8'
Upper Ceiling Height:	8'

Plan Description

Two Bedroom Garage with Living Space Above

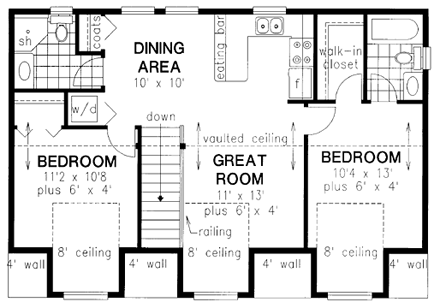

2 bedroom garage apartment plan at Family Home Plans. This garage has living space above, 920 square feet to be exact. The floor plan has two large bedrooms with dormers, one full bath, and one bathroom with shower. The complete kitchen area has an eating bar and a dining area. A nice great room completes the living area part of this garage plan . A three car garage design that is 25 feet deep also has a covered entry. garage apartment

What's Included?

Cover Sheet Landscaped architectural rendering of the exterior help the owner/builder visualize the new home completed.

Foundation Plan 1/4 inch scale basement and foundation plans with all necessary dimensions and notations.

Floor Plans Detailed 1/4 inch scale main and upper story plans with complete dimensions. Floor plans also include room sizes, detail cross section keys and location of plumbing fixtures.

Electrical Schematic Plans 3/16 inch scale electrical plans showing light fixtures, switches and plug locations.

Cross Sections 1/4 inch scaled sections of the foundation, interior and exterior walls, floor and roof details for design and construction methods.

Site Plan A stock plot plan with a detailed aerial view of the home situated on a rectangular lot is provided.

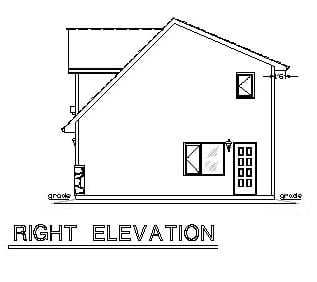

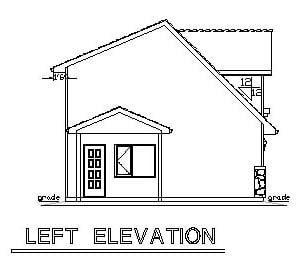

Exterior Elevations 1/4 inch scale exterior elevation drawings of the front, rear and both sides of the house. These drawings show window and door locations as well as general material specifications.

All plans are drawn with 2x6 exterior walls.

Lumber, windows, doors, nails, insulation and trims. No HVAC or electrical wiring included.

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Q & A

Previous Q & A

Q: If I order this plan does it come with a lumber/ window/ door and trim Material List?

A: This plan does not come with a materials list, however, a comprehensive materials list is available for an additional $50.00

Q: What is the foundation spec on this plan? 24" footing by 8" wall then slab?

A: The foundation is shown as: 8" concrete wall on a 16' x 6" concrete strip footing.

Q: Has this design been purchased and built by others in the past? If so, are recommendations/suggestions/comments from the owners of this residence available?

A: We currently do not have any feedback from customers who have purchased and built this plan.

Q: is the 36ft wide dimension include the outside cover storage is yes what width is the outside storage.

A: The width of this house is 36' wide from outside wall to outside wall. On the left side, the covered porch is 2'9" from the outside wall to the center of post.

Q: Are these prefab? Thank you and if not do you know where i could find something like this prefab? Thank you

A: This plan is designed using traditional stick framing.

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
