House Plan 59127

• PDF File: $1,425.00
• 1 Set: $1,175.00 **
• 5 Sets: $1,325.00
• 5 Sets plus PDF File: $1,500.00
• Reproducible Set: $1,650.00
• CAD File: $1,850.00
  Single Build License issued on CAD File orders.
• Materials List: $150.00
• Right Reading Reverse: $150.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $60.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Available Foundation Types:

• Basement : No Additional Fee
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : No Additional Fee
• Stem Wall Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

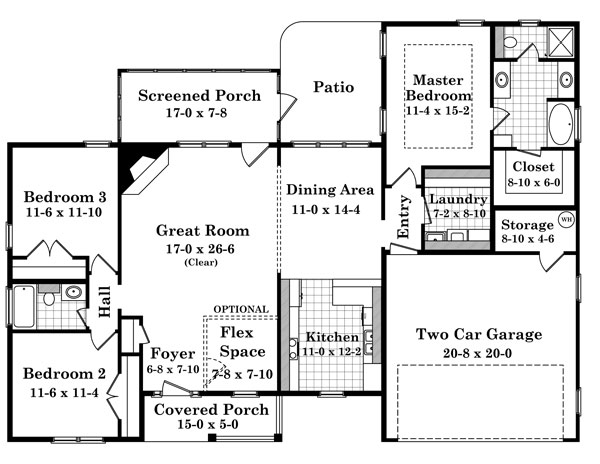

This beautiful home features an open living area plan and may be the answer to your family's needs. The isolated master suite includes a raised ceiling, oversized jet tub, separate shower and toilet compartment, large walk-in closet, and dual lavatories. The large utility/laundry includes plenty of space for folding and storing clothing and other goods. The expansive great room features the very popular gas log fireplace, and includes transoms above windows on the rear to allow for plenty of light to enter the room. This plan also features a screened porch, perfect for relaxing away those lazy summer afternoons. A flex space is provided to allow for that much-needed home office or other family need, such as a nursery, playroom, etc. The kitchen includes a raised bar for conversations with friends and family. An easy-to-build and feature rich home for your family!

Total Living Area:	1700 sq ft
Main Living Area:	1700 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Basement Crawlspace Stem Wall Slab
Exterior Walls:	2x4
House Width:	62'2
House Depth:	45'8
Number of Stories:	1
Bedrooms:	3
Full Baths:	2
Max Ridge Height:	20'11 from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Load:	30 psf
Roof Framing:	Stick
Porch:	205 sq ft
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	9'

* May require additional drawing time.

Special Features:

• Brick or Stone Veneer
• Deck or Patio
• Front Porch
• Rear Porch

Cover Sheet, showing architectural rendering of the residence

Floor Plan/Plans (scale: 1/4" = 1' - 0")

Cabinet Elevations (scale: 3/8" = 1' - 0")

Electrical Plan Layout with Electrical Symbols Legend

Exterior Elevations (typically 4)

Typical Exterior Wall Section (scale: 3/4" = 1' - 0")

Section Thru Building (usually 1/2" = 1' - 0", transverse section)

Roof Drainage Plan (scale: 1/8" = 1' - 0")

Foundation Plan and Details (plan scale: 1/4" = 1'-0"; details: 3/4"=1'-0")

Short-form FHA/VA Specifications form

License to Build

Plans range in number of pages from 5 to 13 pages on 24" x 36" sheets. Printed on a wide-format xerox machine to guarantee quality of the prints and very good legibility. Prints are printed on white bond paper. Reproducible plans are printed on eraseable vellum.

This Plan is a USDA Rural Development Certified Plan

Receive a FREE modification estimate:

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!

We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.

Simply contact the modification department via...

Email Us This is the best and quickest way to get a modification quote!

Please include your Telephone Number, Plan Number, Foundation Type, State you are building in and a Specific List of Changes.

It's as simple as that!

• No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide a discount code in your receipt that will refund (plus some) the Home-Cost price when you decide to order any plan on our website!
• Get more accurate results, quicker! No need to wait for a reliable cost.
• Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
• Cost report for your zip code. (the zip code can be changed after you receive the online report)
• Estimate 1, 1-1/2 or 2 story home plans. **
• Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
• Your estimate is active for 1 FULL YEAR!

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Common Q & A
