2 Car Garage Apartment Plan 59446
Garage Apartment - Two Car Garage Plan with Art Studio and Bathroom
click for more images
Plan Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 865 sq ft |
| Main Living Area: | 237 sq ft |
| Upper Living Area: | 628 sq ft |
| Garage Area: | 556 sq ft |
| Garage Type: | Detached |
| Garage Bays: | 2 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x4 - * $90.00 2x6 |
| House Width: | 26' |
| House Depth: | 32' |
| Number of Stories: | 2 |
| 3/4 Baths: | 1 |
| Primary Roof Pitch: | 8:12 |
| Roof Framing: | Unknown |
| Porch: | 46 sq ft |
Plan Description

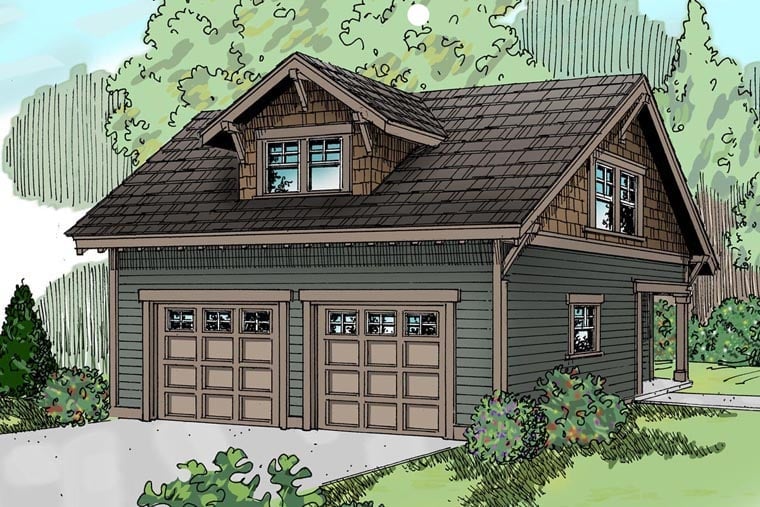

Two Car Garage Plan with Art Studio and Bathroom

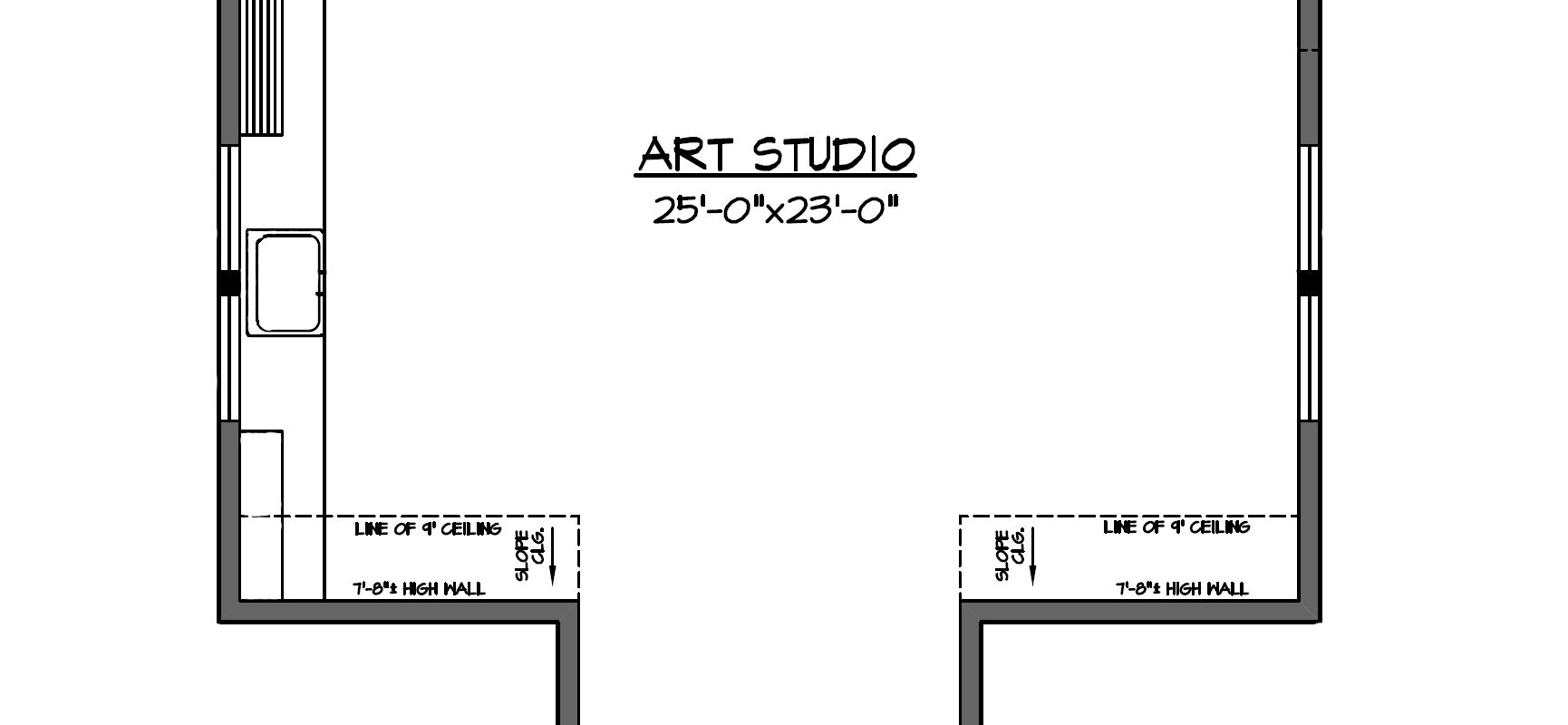

Garage home plans. This Craftsman garage plan can park two cars. Both garage doors are 9' wide and 8' tall. On the second floor there is an art studio with a full bathroom and sink area for snacks. This garage design would be suitable for a garage with office space above or as a hobby roomWhat's Included?
Elevations: Drawings which show the front, sides, and rear of the home, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows the placement and dimensions of all walls, doors, and windows. Includes the location of beams, ceiling heights, pertinent interior elevations, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details.
Basement Plan (if any): Included if the plan has a basement alternative. Shows all basement details. Plans which include alternate basement stair location or main basement stair will include a basement plan. Other plans can be modified to include a basement foundation.
Roof Framing Plan: Shows roof outlines, conventional framing and/or trusses, beams, roof framing details, etc.
Details: Drawings which show specific details such as fireplaces, stairways, decks, etc.
Section: A drawing of a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting and electrical outlets.
Modifications
1) Please Email Us your changes. (Itemized list of changes with details)
Cost To Build
We are sorry, but an estimated cost build report is not available for this particular plan.
Q & A
Previous Q & A
A: The roof pitch on the front dormer is also 8/12. The rear roof pitch is 3/12 though.
A: Good afternoon, Thank you for your question regarding the snow load. It looks like this plan is designed to a 25lb snow load. Please let us know if you have any additional questions we can help out with Thank you,
A: The ridge height for this garage is 24’6”.
A: Good Morning, Thank you for your interest in our garage plan #59446. To help answer your question, we do in fact have a home plan that is paired with this garage design. The home design is #69683 and we have included a link of the design below. If you were to purchase the home design that matches this garage, the garage plan is included in the home plan blueprints so you won’t have to make two separate purchases. https://www.familyhomeplans.com/house-plan-69683 Please let us know if you had additional questions or if there was anything we could help clarify. We can be reached by replying to this email. We appreciate your interest in our garage plan and hope you have a great rest of your day. Thank you and kind regards, Jaycee
A: Thank you for your interest in plan number 59446. The overall height of this design is approximately 24’-6” tall.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
click for galleryInfo Brochure
Photographs may show modified designs.
Elevation
Level One
Level Two
Quick Specs
865 Total Living Area237 Main Level
628 Upper Level
2 Car Garage
26' W x 32' D
Quick Specs
865 Total Living Area2 Car Garage
26' W x 32' D
