2 Car Garage Apartment Plan 59469

Craftsman Style 2 Car Garage Apartment | Plan 59469

Turn OFF Image Gallery

Add to cart

Plan Pricing from $945.00

Plan Pricing

PDF File: $945.00
1 Set: $370.00 **
5 Sets plus PDF File: $605.00
CAD File: $1,050.00
Single Build License issued on CAD File orders.
Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
Materials List: $50.00
Right Reading Reverse: $80.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $25.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Available Foundation Types:

Slab : No Additional Fee

Available Exterior Wall Types:

2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Bonus Area:	538 sq ft
Garage Area:	896 sq ft
Garage Type:	Detached
Garage Bays:	2
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	32'
House Depth:	28'
Number of Stories:	2
Primary Roof Pitch:	8:12
Roof Framing:	Unknown

Plan Description

Garage home plans. This Craftsman style garage plan can house up to two cars. Both of the doors are 10' wide and 8' tall. There is also a craft room on the second floor.

What's Included?

Artist's Rendering: An artist's drawing of the home, usually viewed from the front.

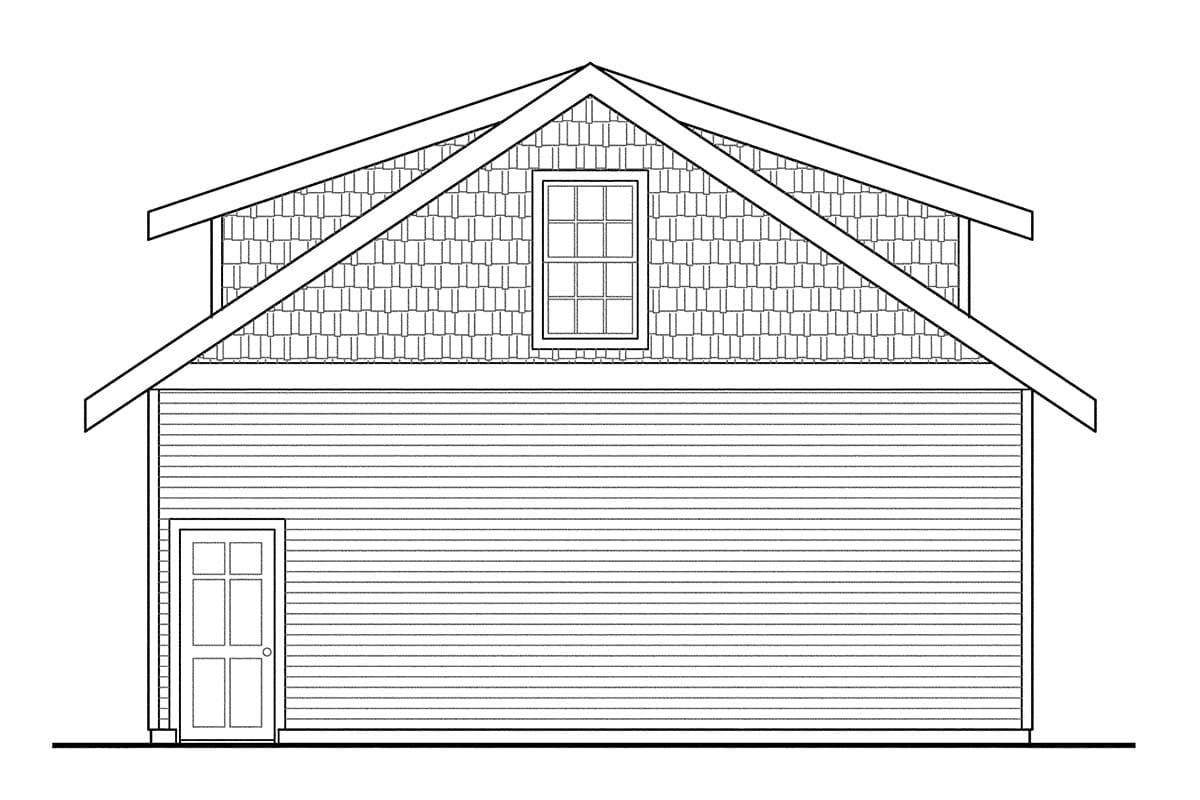

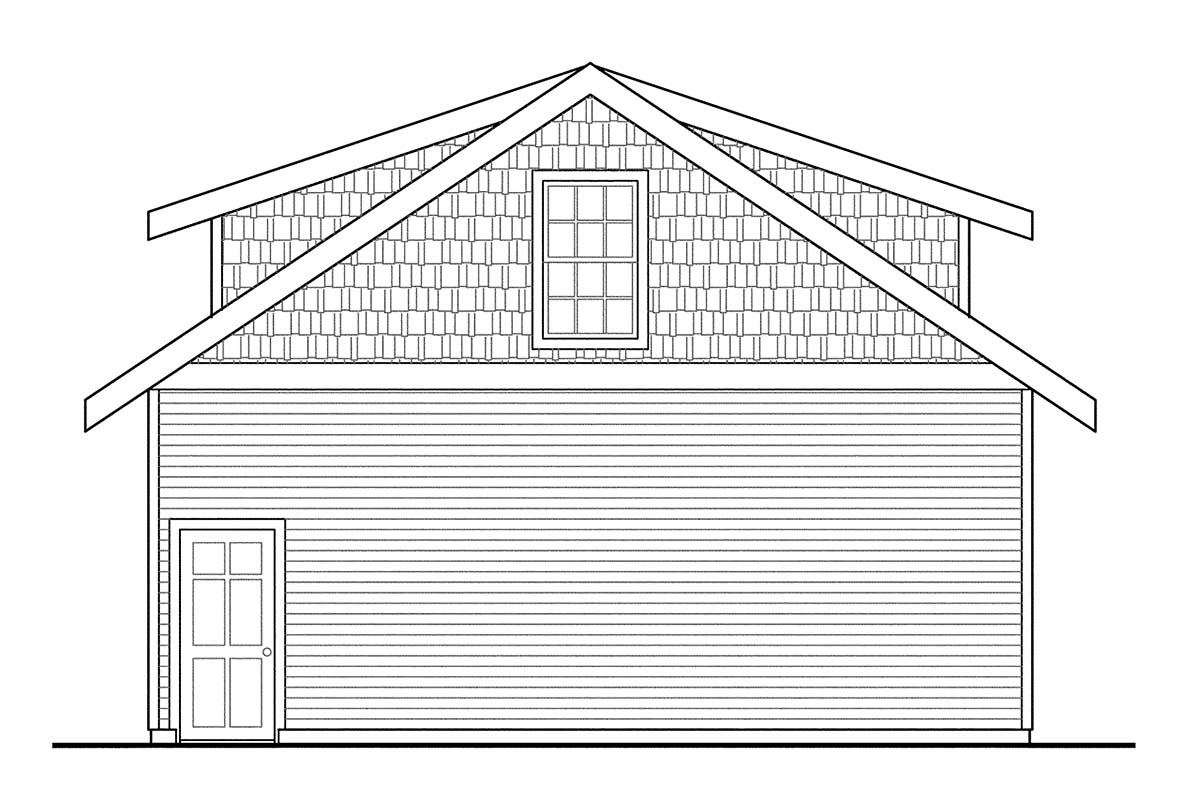

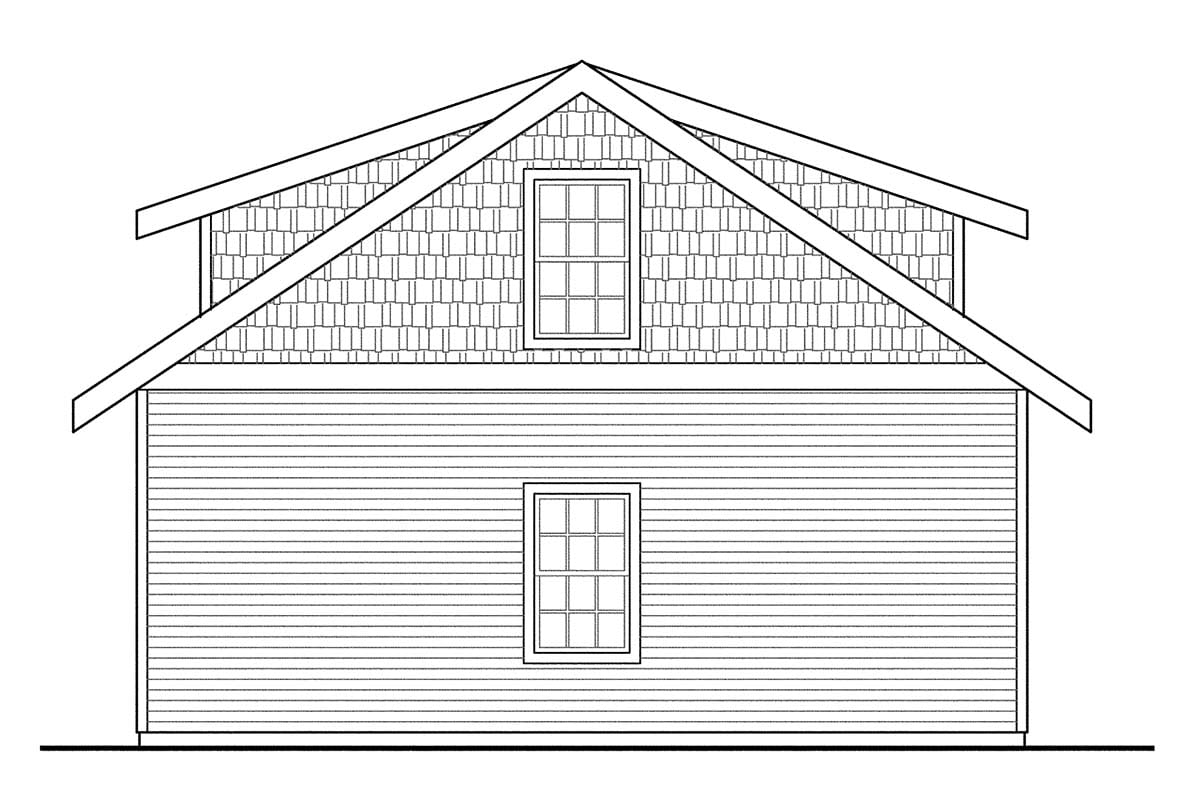

Elevations: Drawings which show the front, sides, and rear of the home, including exterior materials, trim sizes, roof pitches, etc.

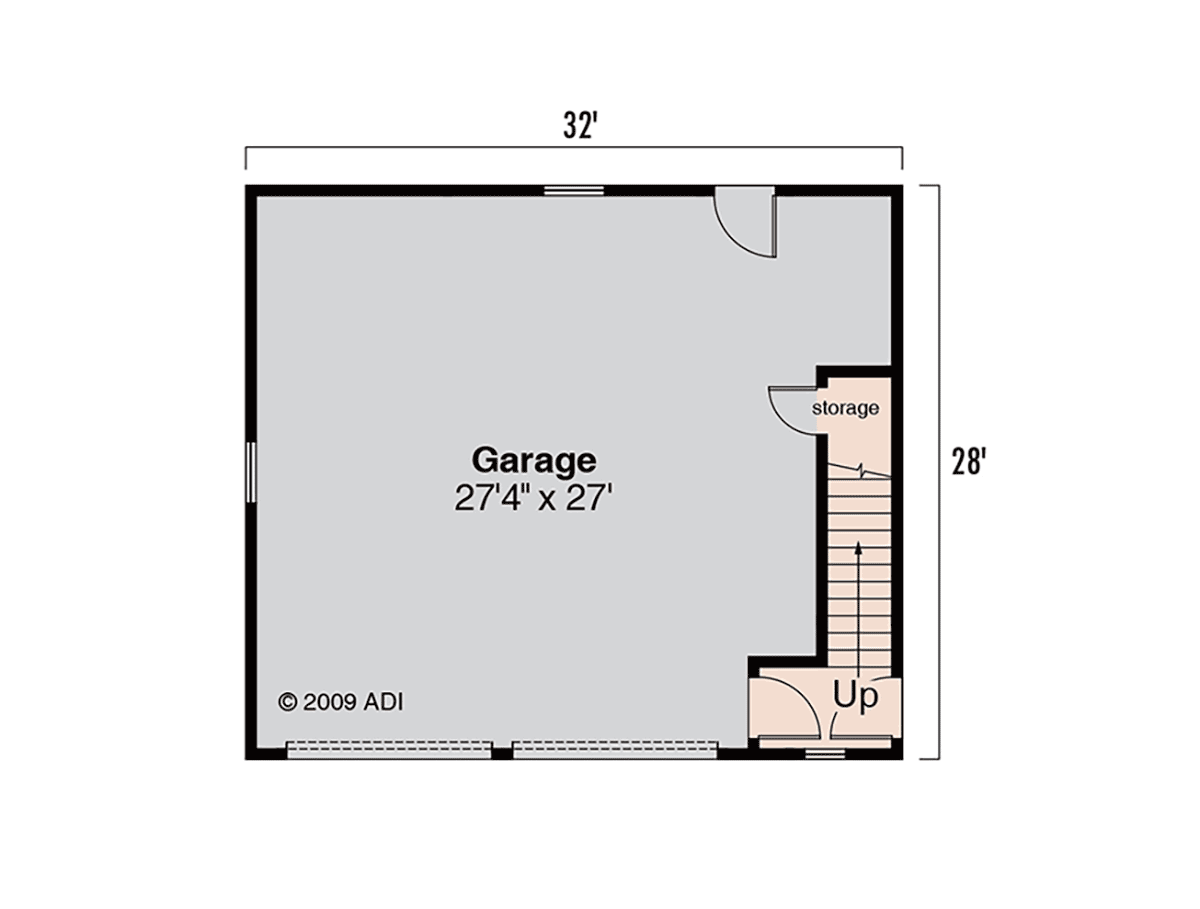

Main Floor Plan: Shows the placement and dimensions of all walls, doors, and windows. Includes the location of beams, ceiling heights, pertinent interior elevations, etc.

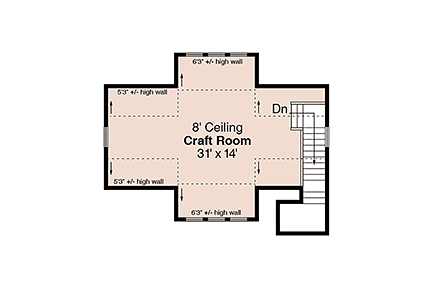

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details.

Basement Plan (if any): Included if the plan has a basement alternative. Shows all basement details. Plans which include alternate basement stair location or main basement stair will include a basement plan. Other plans can be modified to include a basement foundation.

Roof Framing Plan: Shows roof outlines, conventional framing and/or trusses, beams, roof framing details, etc.

Details: Drawings which show specific details such as fireplaces, stairways, decks, etc.

Section: A drawing of a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan: A schematic layout of all lighting and electrical outlets.

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate:

1) Please Email Us your changes. (Itemized list of changes with details)

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Previous Q & A

Q: Are there any supporting posts between the garage bays?

A: There are no posts separating the bays for this garage.

Q: What size are the plans?

A: The construction drawings for Plan 59469 are on 36” x 24” pages. Please let us know if we can help with any other questions about this design.

Q: Hi, I would like to know what kind of foundation you have on this garage plan? I am from Thurston Co, WA, they have few rules so I want to make sure this blueprint includes what I need for Thurston Co. Thanks, William (I think the client is asking for more detail on how the slab is drawn.)

A: Good Morning, This garage plan is a two pour slab foundation, specifically with stem wall and footing. Thank you, Jayce

Q: What is the Main Ceiling Height, Upper Ceiling Height, and size of the garage doors?

A: Hello, To answer the questions provided, the main floor ceiling height is 9’. The upstairs has an 8’ ceiling that slopes from the left to right from 8’ to 5’4” walls and from front to back the walls slope from 8’ to 6’3”. The garage door is 10’ wide and 8’ tall. Thank you! Jaycee

Q: What is the height of this garage? We need a plan for a two car garage with apartment above but maximum height needs to be 18 feet or less.

A: Hello, The building height of design 20-049 is 21’-10”. Thank you,

Q: What is the height of this garage?

A: Thank you for your interest in plan number 59469. This design is approximately 21’-10” tall. Please let us know if we can help with any other questions.

Q: What is the ridge height? Zoning restrictions are a max of 20' for an accessory structure in my area.

A: Thank you for your interest in plan number 59469. This design is currently drawn with an overall height of approximately 21’-10”. We can take a look at modifying this design to bring the height to within your zoning restrictions. Let us know if you would be interested in receiving a quote for modifying this plan to be 20’ tall.

Q: What is the ceiling height of the 1st floor?

A: Thank you for your interest in plan number 59469. The first floor top plate height is 9’. Please let us know if you have any other questions on this design.

Q: This fits the bill very closely but for one question: what is the odd appendage shown to the lower-right on the upper "craft" floor drawing? Nothing like it is depicted on the representative drawing (which is the model I'm after). Thank you, Keith

A: Dear Keith,

Thank you for your interest in plan number 59469.

What is shown in the second floor plan is the outline of the stair landing on the main floor below. Please let us know if you have any other questions.

Q: what is the floor to ceiling height of the craft room?

A: Thank you for your interset in plan number 59469.

The craft room has 8’ ceilings through out the majority of the room. The front and back walls eventually slope down to 5’3” high walls and the dormers slope down to 6’3” high walls.

Please let us know if you have any other questions about this design.

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
