5 Car Garage Apartment Plan 59472

• PDF File: $1,425.00
• 1 Set: $575.00 **
• 5 Sets plus PDF File: $980.00
• CAD File: $1,535.00
  Single Build License issued on CAD File orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $190.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $40.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: $225.00
  (Please call for drawing time.)
• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	799 sq ft
Upper Living Area:	799 sq ft
Garage Area:	1200 sq ft
Garage Type:	Detached
Garage Bays:	5
Foundation Types:	Slab
Exterior Walls:	2x4 - * $225.00 2x6
House Width:	40'
House Depth:	46'
Number of Stories:	2
Bedrooms:	1
3/4 Baths:	2
Primary Roof Pitch:	6:12
Roof Framing:	Unknown
FirePlace:	Yes
Main Ceiling Height:	9'
Upper Ceiling Height:	9'

* May require additional drawing time.

Garage home plans. This bungalow style garage plan can house up to 5 cars. The larger two car door is 16' wide and 8' tall, while the smaller door is 9' wide and 8' tall. This garage plan also has a guest apartment on the second floor. The guest apartment features a walk-in closet with full bathroom in the bedroom. As well as a fireplace in the great room that can be enjoyed from the kitchen and nook. There is also a utility room that is accessed through the kitchen.

Artist's Rendering: An artist's drawing of the home, usually viewed from the front.

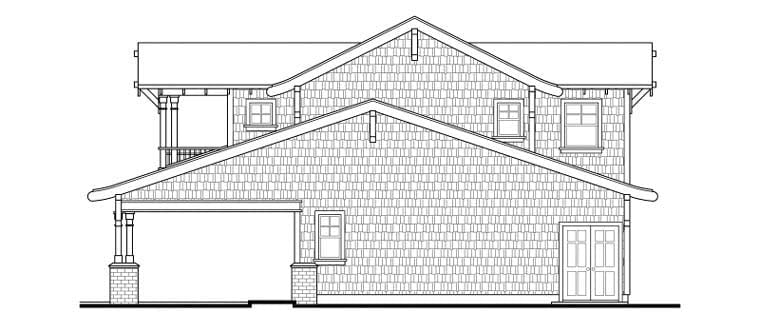

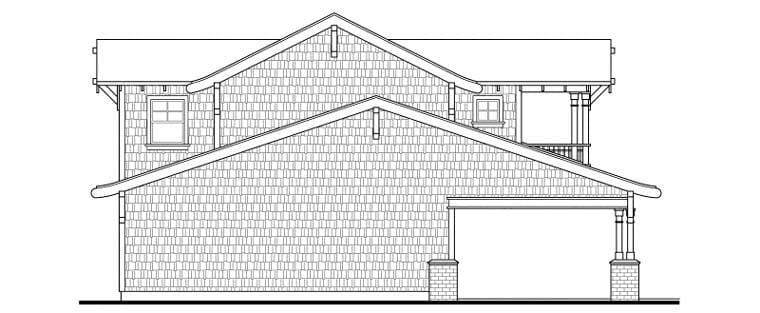

Elevations: Drawings which show the front, sides, and rear of the home, including exterior materials, trim sizes, roof pitches, etc.

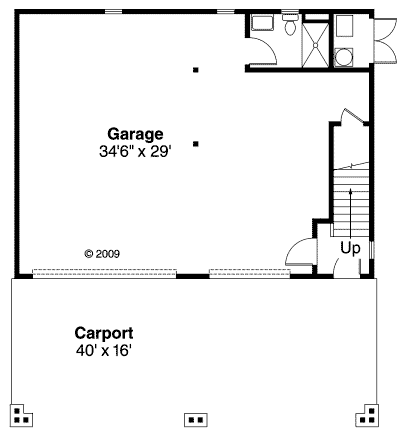

Main Floor Plan: Shows the placement and dimensions of all walls, doors, and windows. Includes the location of beams, ceiling heights, pertinent interior elevations, etc.

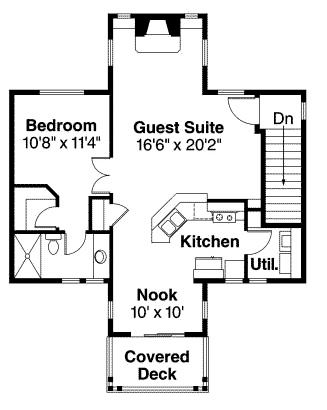

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details.

Basement Plan (if any): Included if the plan has a basement alternative. Shows all basement details. Plans which include alternate basement stair location or main basement stair will include a basement plan. Other plans can be modified to include a basement foundation.

Roof Framing Plan: Shows roof outlines, conventional framing and/or trusses, beams, roof framing details, etc.

Details: Drawings which show specific details such as fireplaces, stairways, decks, etc.

Section: A drawing of a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan: A schematic layout of all lighting and electrical outlets.
