3 Car Garage Apartment Plan 59948

• PDF File: $780.00
• 5 Sets: $650.00
• 5 Sets plus PDF File: $905.00
• CAD File: $1,200.00
  Single Build License issued on CAD File orders.
• Materials List: $65.00
• Right Reading Reverse: $50.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $45.00

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	644 sq ft
Upper Living Area:	644 sq ft
Garage Area:	934 sq ft
Garage Type:	Attached
Garage Bays:	3
Foundation Types:	Slab
Exterior Walls:	2x4
House Width:	39'4
House Depth:	25'
Number of Stories:	2
Bedrooms:	1
Full Baths:	1
Max Ridge Height:	23' from Front Door Floor Level
Primary Roof Pitch:	12:12
Roof Load:	40 psf
Roof Framing:	Stick
Main Ceiling Height:	9'
Upper Ceiling Height:	8'

This three car garage plan can be an excellent addition to your existing home or built all by itself. The first floor garage plan has plenty of space including a first floor laundry room! The private second floor includes a large bedroom with a living area. The sloped ceiling along with the front dormer located in the living area adds an unexpected architectural element to the second floor.

Cover Sheet, showing architectural rendering of the residence

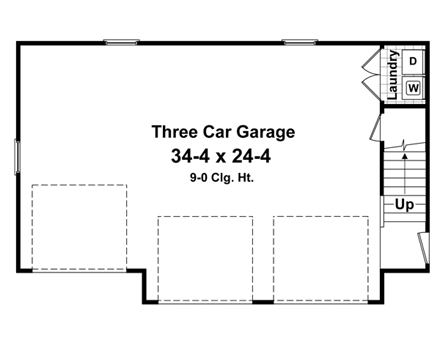

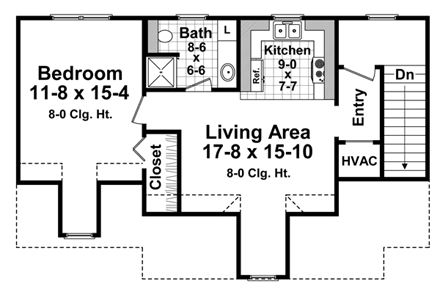

Floor Plan/Plans (scale: 1/4" = 1' - 0")

Cabinet Elevations (scale: 3/8" = 1' - 0")

Electrical Plan Layout with Electrical Symbols Legend

Exterior Elevations (typically 4)

Typical Exterior Wall Section (scale: 3/4" = 1' - 0")

Section Thru Building (usually 1/2" = 1' - 0", transverse section)

Roof Drainage Plan (scale: 1/8" = 1' - 0")

Foundation Plan and Details (plan scale: 1/4" = 1'-0"; details: 3/4"=1'-0")

Short-form FHA/VA Specifications form

License to Build

Plans range in number of pages from 5 to 13 pages on 24" x 36" sheets. Any plan less than 1200 heated sq ft is formatted on 18x24 size paper. Printed on a wide-format xerox machine to guarantee quality of the prints and very good legibility. Prints are printed on white bond paper. Reproducible plans are printed on eraseable vellum.

This Plan is a USDA Rural Development Certified Plan

Receive a FREE modification estimate:

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!

We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.

Simply contact the modification department via...

Email Us This is the best and quickest way to get a modification quote!

Please include your Telephone Number, Plan Number, Foundation Type, State you are building in and a Specific List of Changes.

It's as simple as that!
